Infineon IGBT Module Equivalent
Infineon IGBT adopts self-developed TRENCHSTOP trench chip technology with ultra-low switching loss, excellent high-frequency performance and comprehensive product portfolio. Covering wide voltage & current grades, it supports automotive, industrial and renewable energy scenarios. Widely used in EV inverters, PV converters, industrial servo drives, UPS, welding machines and traction equipment. It features mature EconoPACK, EasyPACK and PrimePACK packages, with complete simulation models for convenient power converter design.

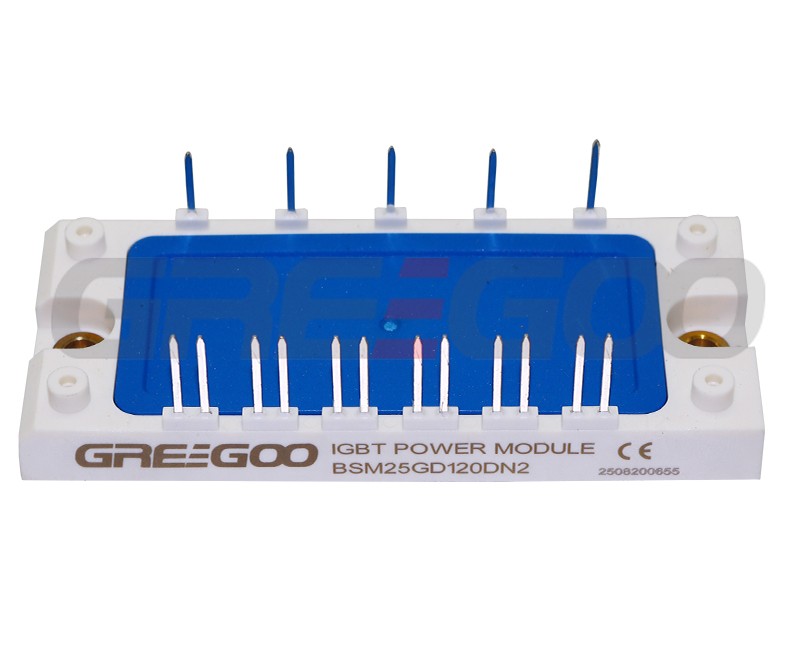

BSM25GD120DN2 IGBT Power Module
35A 1200V
BSM50GX120DN2 IGBT Power Module
72A 1200V IGBT MODULE

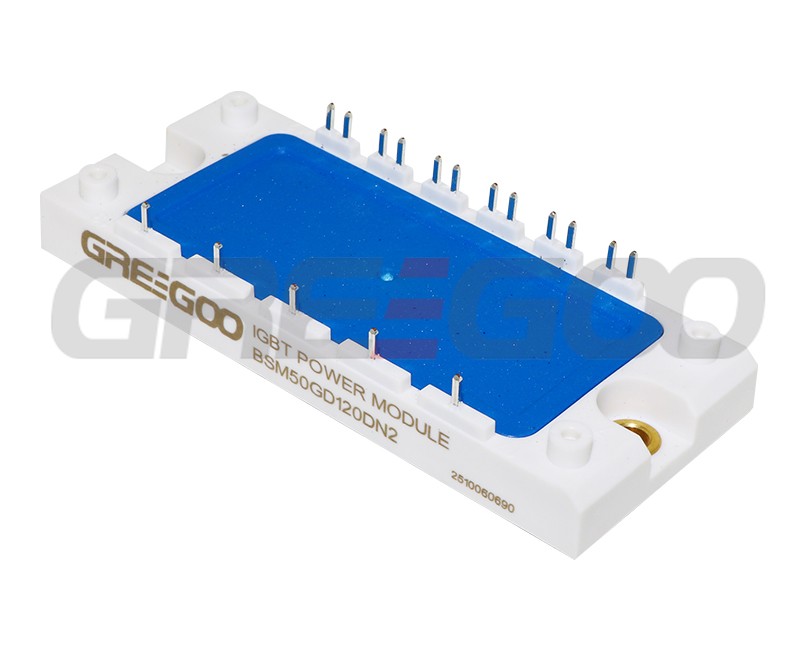

BSM50GD120DN2 IGBT Module
72A 1200V IGBT power module

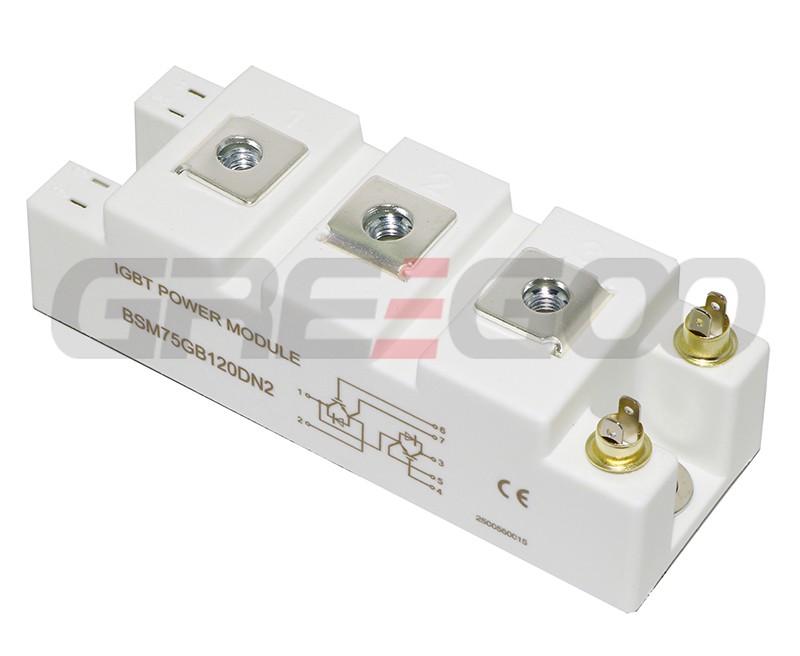

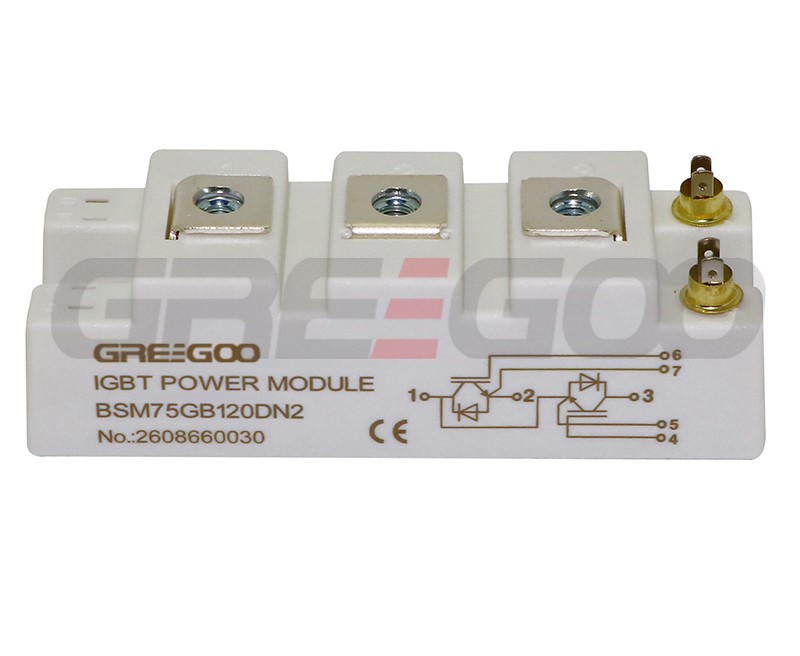

BSM75GB120DN2 IGBT Power Module
105A 1200V half bridge igbt module

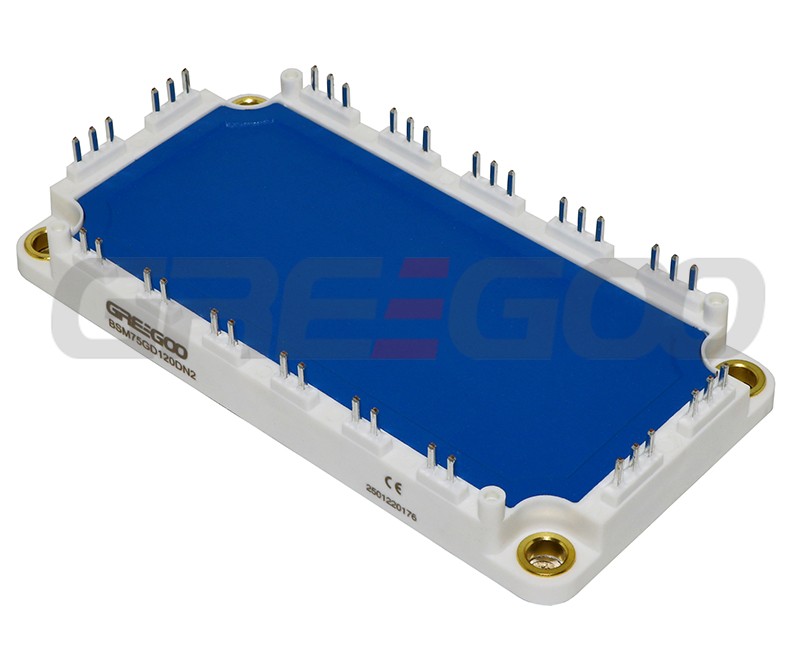

BSM75GD120DN2 IGBT Power Module
75A 1200V IGBT module

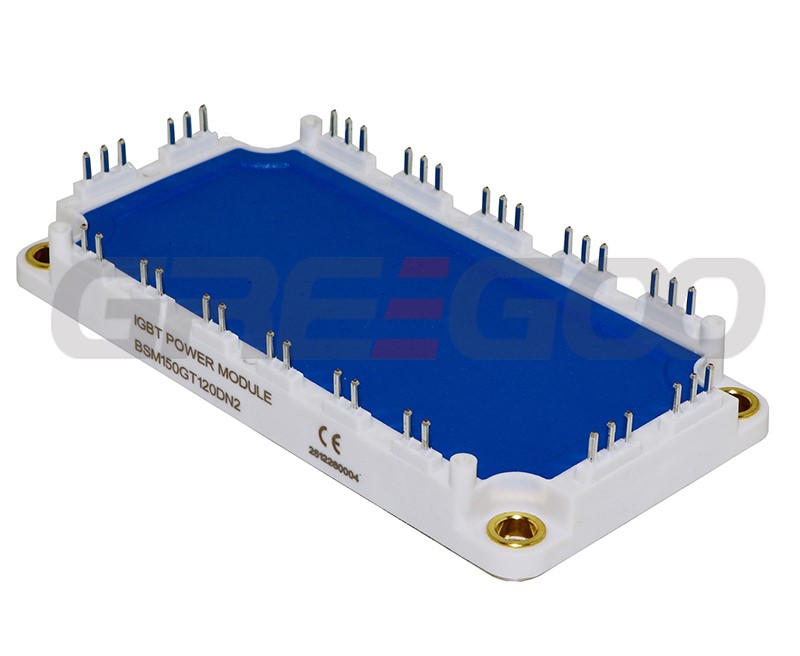

BSM150GT120DN2 IGBT Power Module
200A 1200V 3-phase full-bridge

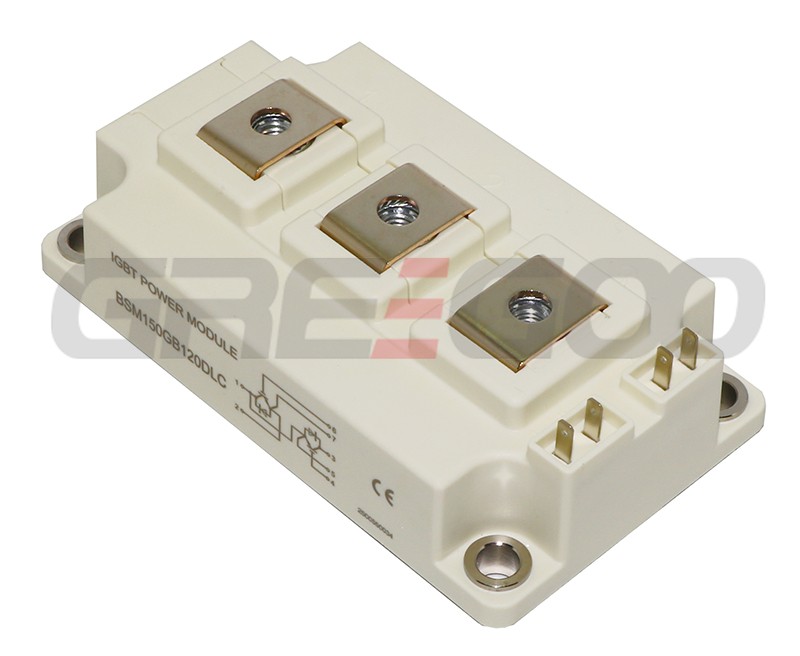

BSM150GB120DLC IGBT Module
150A 1200V IGBT Module

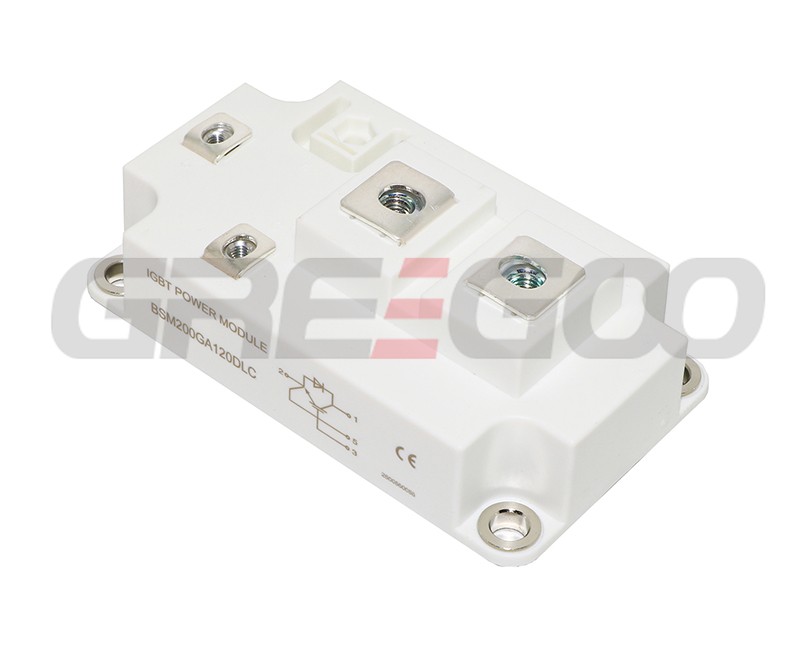

BSM200GA120DLC IGBT Module
200A 1200V IGBT module - 62mm C-series module with low loss IGBT2 and EmCon diode

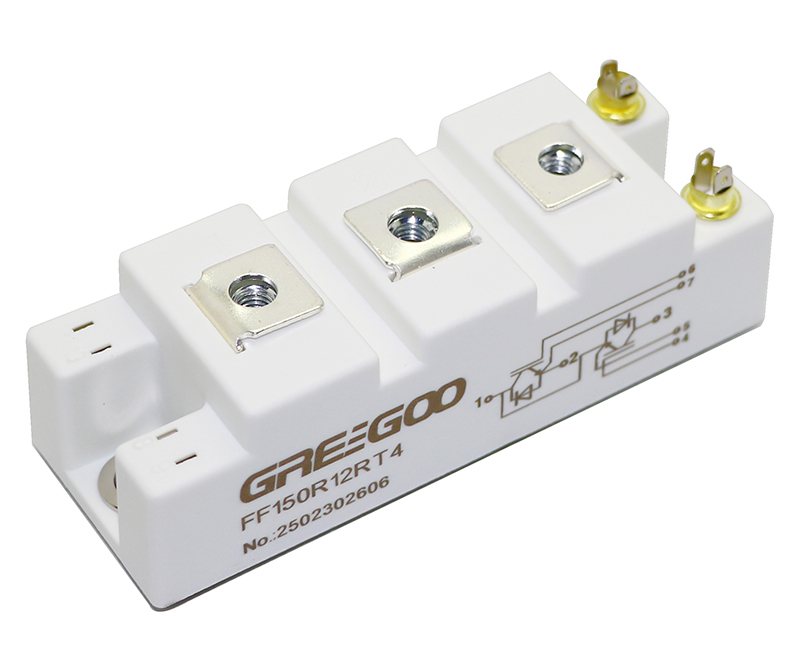

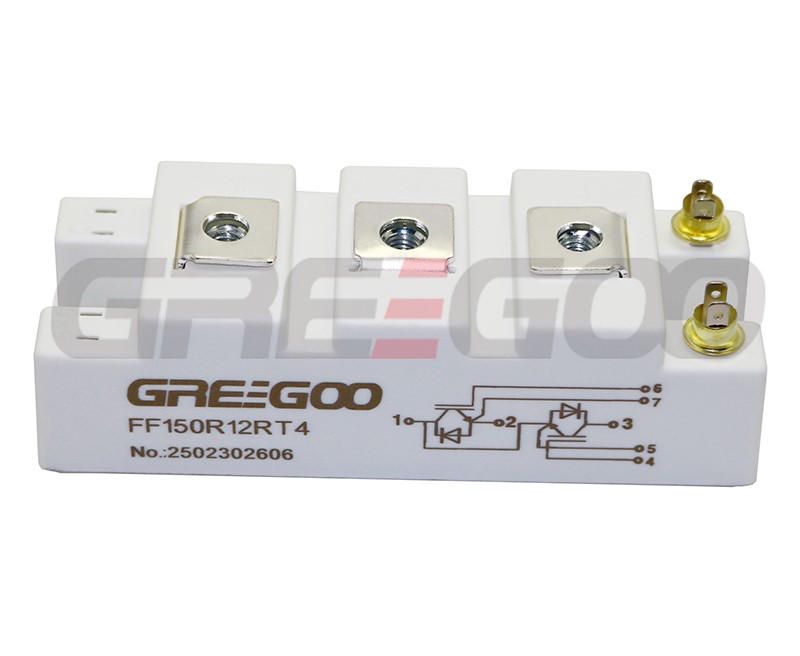

FF150R12RT4 IGBT Module
150A 1200V
FF600R12ME4 IGBT Module
IGBT module with Trench/Fieldstop, IGBT4 and emitter controlled diode and NTC

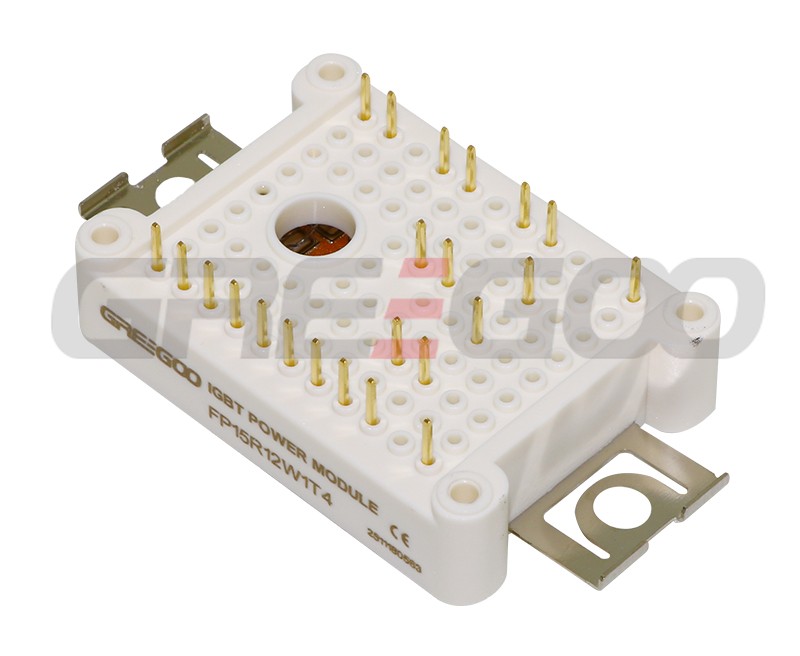

FP15R12W1T4 IGBT4 and Emitter Controlled 4 diode and NTC
Vces=1200V, Ic nom=15A, Icrm=30A
7MBR15VKD120-50 IGBT Module
Small Capacity PIM (Built in converter and brake parts) 1200 V Class

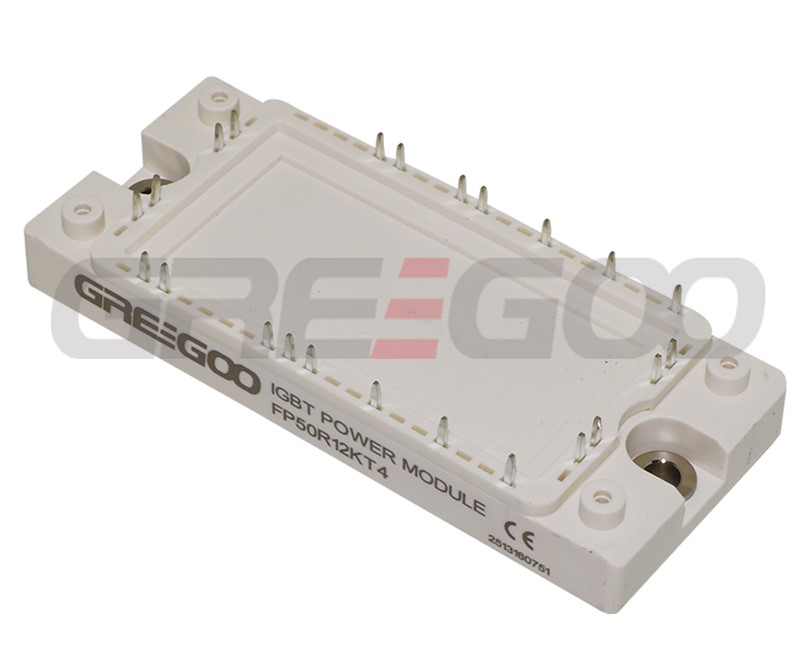

FP50R12KT4G IGBT Module
FP50R12KT4G IGBT module with fast Trench/Field stop IGBT4 and emitter controlled 4 diode and NTC

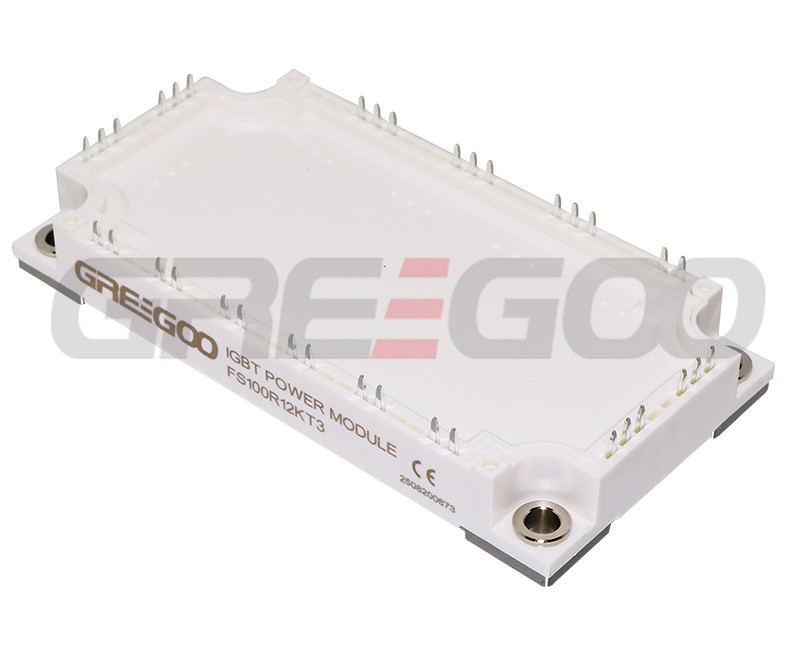

FS100R12KT3
FS100R12KT3 IGBT module with fast trench/field stop IGBT3 and Emitter Controlled High Efficiency diode

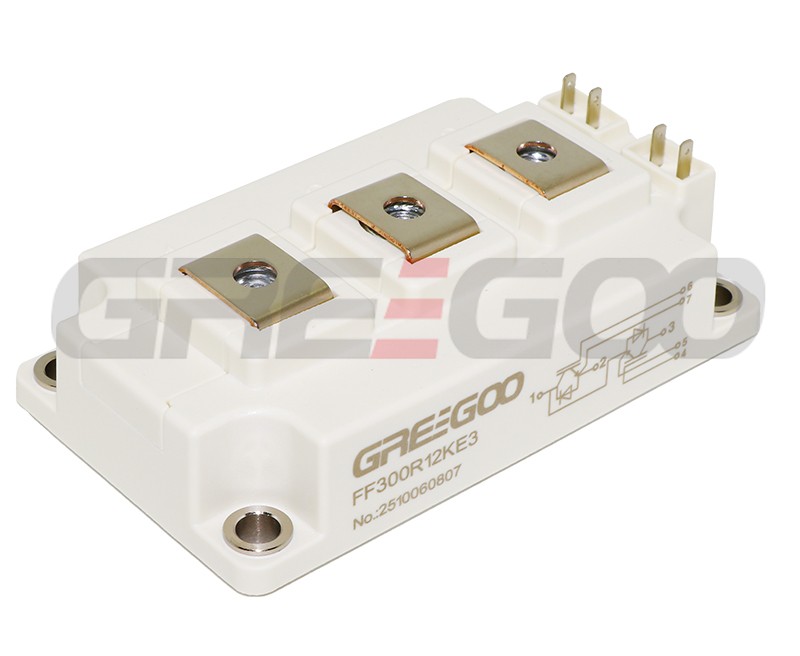

FF300R12KE3 IGBT Module
62mm C-series module with trench/fieldstop IGBT3 and Emitter Controlled High Efficiency diode
FS450R12KE4 IGBT Module
EconoPACK B-series module with trench/field stop IGBT4 and optimized Emitter Controlled diode
FZ2400R17HE4P_B9 High-power IGBT module
FZ2400R17HE4P_B9 High-power rating, designed for high-voltage high-current power switching scenarios.
Optimized for industrial power electronics and general inverter applications
FF1200R17KP4-B2 IGBT Module
1700V 1200A IGBT-Module

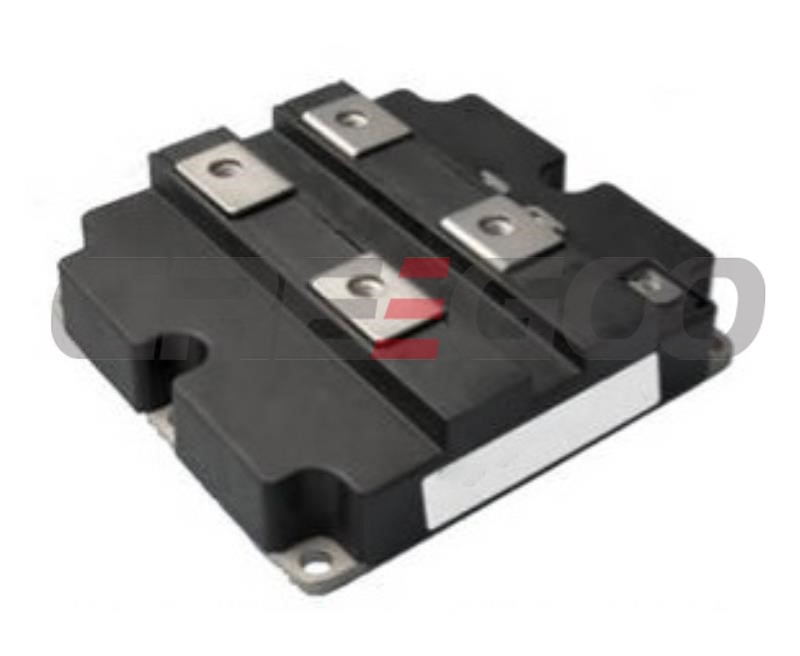

FZ1600R17KF6C-B2 IGBT Module
2600A 1700V Dual Common Emitter Common Gate IGBT Module
| Field | Code | Definition |
| Prefix | FF | DuoPack half bridge module（2pcs IGBT，EconoDUAL） |
| FS | SixPack three phase full bridge | |
| FP | PIM （IGBT + bridge + braket，EasyPIM） | |
| F3L | 3 level NPC | |
| Rated Current | 600 | Rated collector current Ic (A)，Tc=80℃ |
| R | R | With anti-parallel freewheeling diode |
| Voltage Code | 06 | 600V |
| 12 | 1200V | |
| 17 | 1700V | |
| Package Code | M | EconoDUAL3 |
| W | EasyPACK | |
| K | EconoPACK | |
| P | PrimePACK | |
| Chip Grade & Generation | E4 | IGBT4 medium speed, low Vce(sat) |
| T4 | IGBT4 fast, low switching loss | |
| E7 | IGBT7 medium speed | |
| T7 | IGBT7 fast | |
| TRENCHSTOP IGBT generation | E | Medium speed |
| T | Fast speed |
