PLC interface Ultra-slim Pluggable Miniature Solid State Relay Module
| Part Numbers |
Input voltage (AC/DC) |
Load Voltage |
Load Current |
SSR Model |
Socket Model |
Mount |

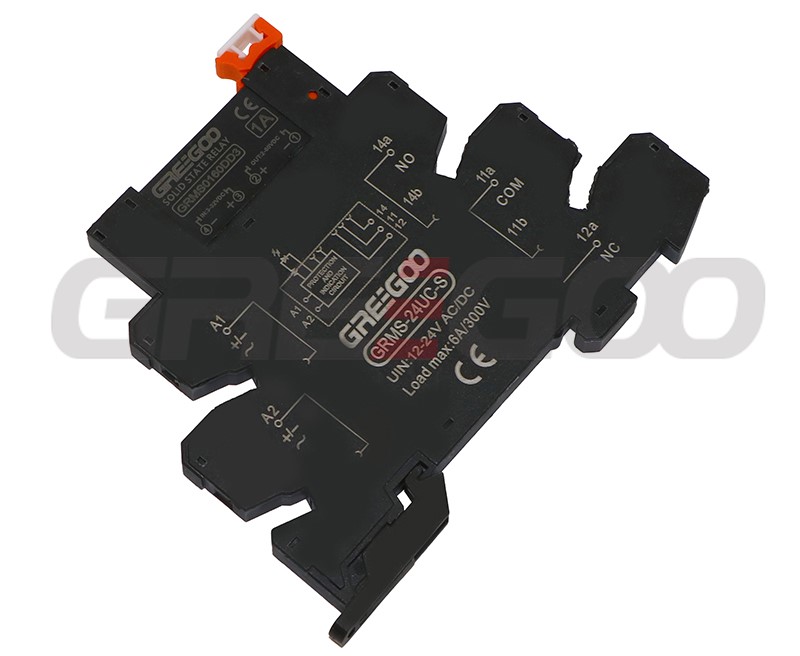

| GRMS0160DD3LS | 12V/24V | 2-60VDC | 1A | GRMS0160DD3 | GRMS-24UC-S | Screw |
| GRMS0260DD3LS | 12V/24V | 2-60VDC | 2A | GRMS0260DD3 | GRMS-24UC-S | Screw |
| GRMS0360DD3LS | 12V/24V | 2-60VDC | 3A | GRMS0360DD3 | GRMS-24UC-S | Screw |

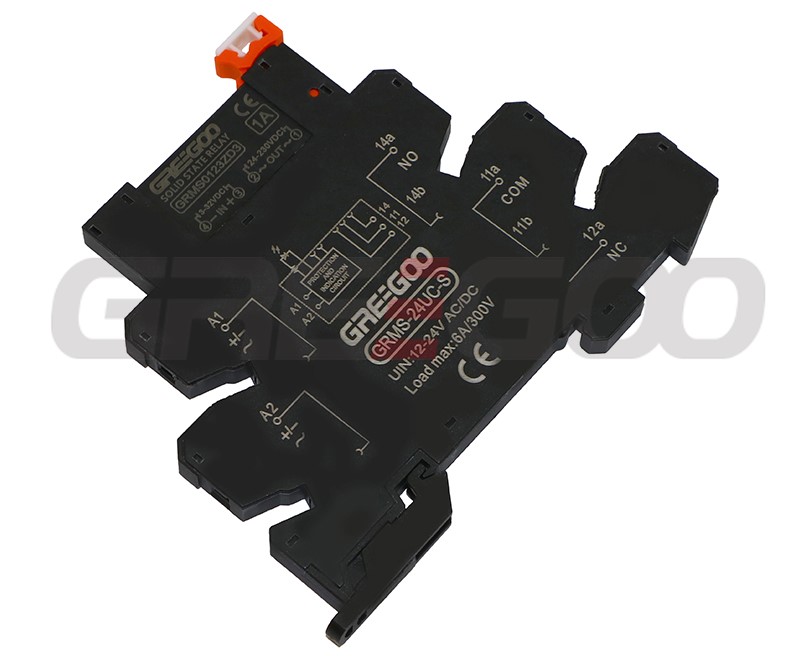

| GRMS0123ZD3LS | 12V/24V | 24-230VAC | 1A | GRMS0123ZD3 | GRMS-24UC-S | Screw |
| GRMS0223ZD3LS | 12V/24V | 24-230VAC | 2A | GRMS0223ZD3 | GRMS-24UC-S | Screw |
| GRMS0323ZD3LS | 12V/24V | 24-230VAC | 3A | GRMS0323ZD3 | GRMS-24UC-S | Screw |
| GRMS0160DD3HS | 230V | 2-60VDC | 1A | GRMS0160DD3 | GRMS-240UC-S | Screw |
| GRMS0260DD3HS | 230V | 2-60VDC | 2A | GRMS0260DD3 | GRMS-240UC-S | Screw |

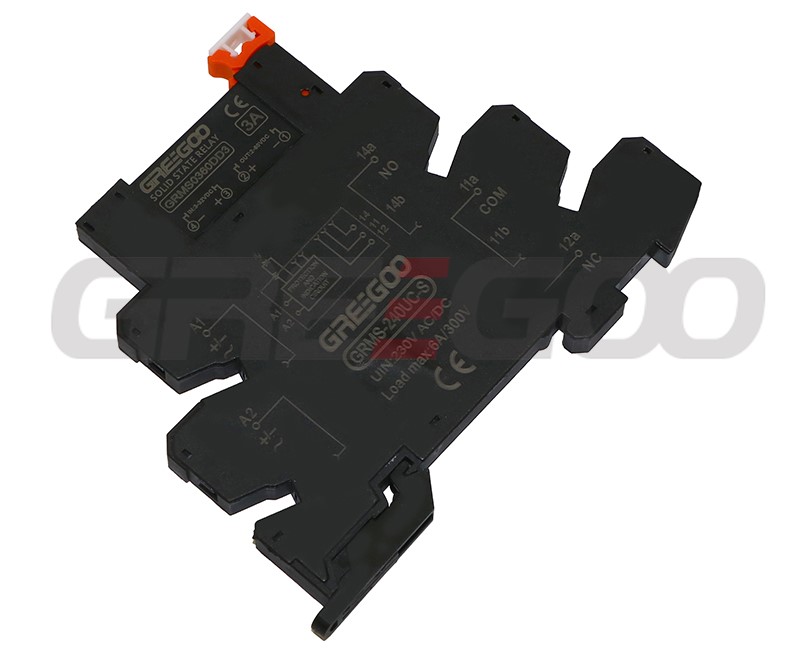

| GRMS0360DD3HS | 230V | 2-60VDC | 3A | GRMS0360DD3 | GRMS-240UC-S | Screw |
| GRMS0123ZD3HS | 230V | 24-230VAC | 1A | GRMS0123ZD3 | GRMS-240UC-S | Screw |
| GRMS0223ZD3HS | 230V | 24-230VAC | 2A | GRMS0223ZD3 | GRMS-240UC-S | Screw |

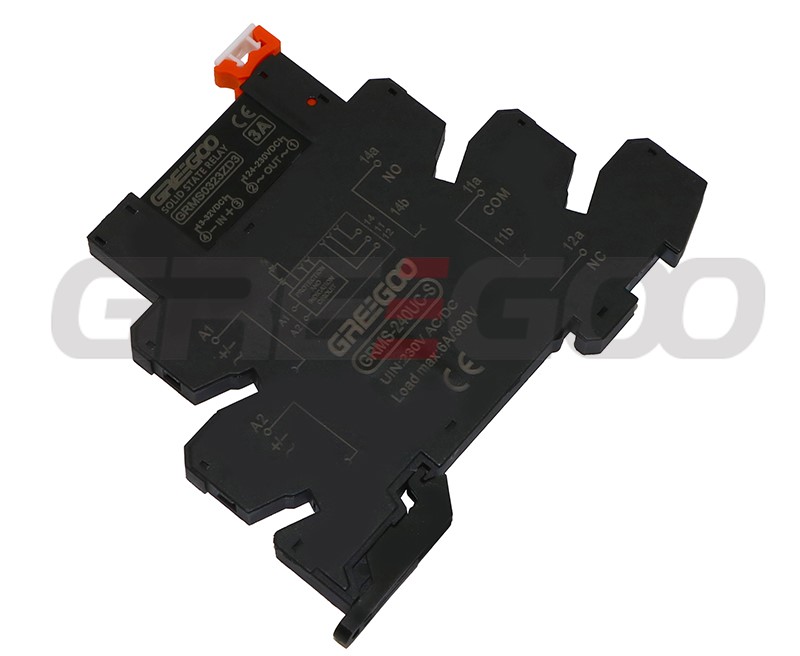

| GRMS0323ZD3HS | 230V | 24-230VAC | 3A | GRMS0323ZD3 | GRMS-240UC-S | Screw |
The main difference is their form factor and mounting method. PCB SSRs are soldered directly onto a circuit board and are compact, lower-current components. Plug-in SSRs slot into a mounting socket, making them easier to replace without soldering and generally better suited for traditional industrial control panels.
Need more information?
Contact us to request pricing, availability and customization options.
