Single Diode Module and Thyristor Module
A single diode module is a passive rectifying device that conducts current automatically when forward-biased, whereas a single thyristor module is an active, controllable switch that requires a gate trigger signal to start conduction.
GMD25A GMD55A PV Diode Module
25A 55A 500V to 2500V

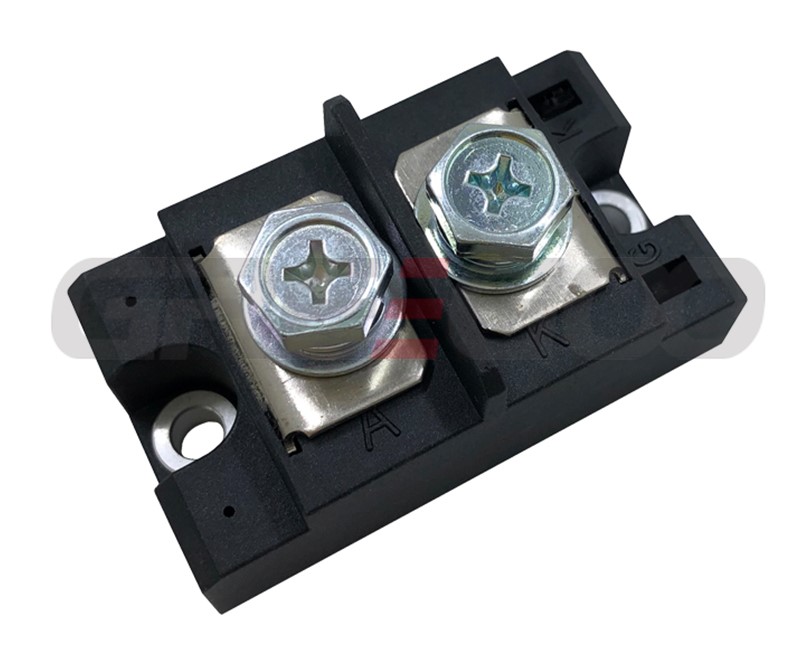

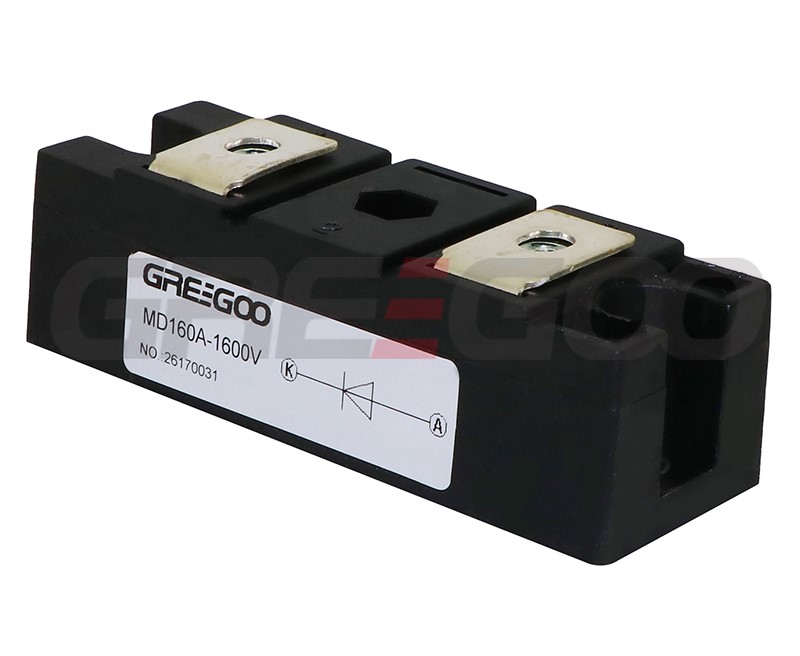

MD160 160A Single Diode Module
160A 1000V-1800V diode module

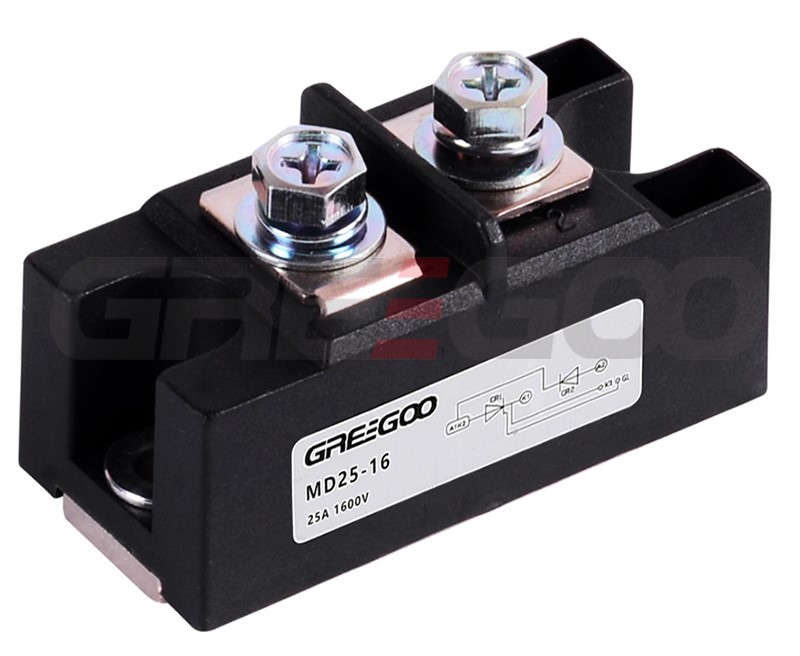

MD25 MD40 MD60 MD80 MD100 MD110 Anti-reverse Diode Modules
25A to 110A 400V-2500V anti-reverse diode module
MD130 MD160 MD200 MD250 Anti-reverse Diode Modules
130A to 250A 400V-2500V anti-reverse diode module

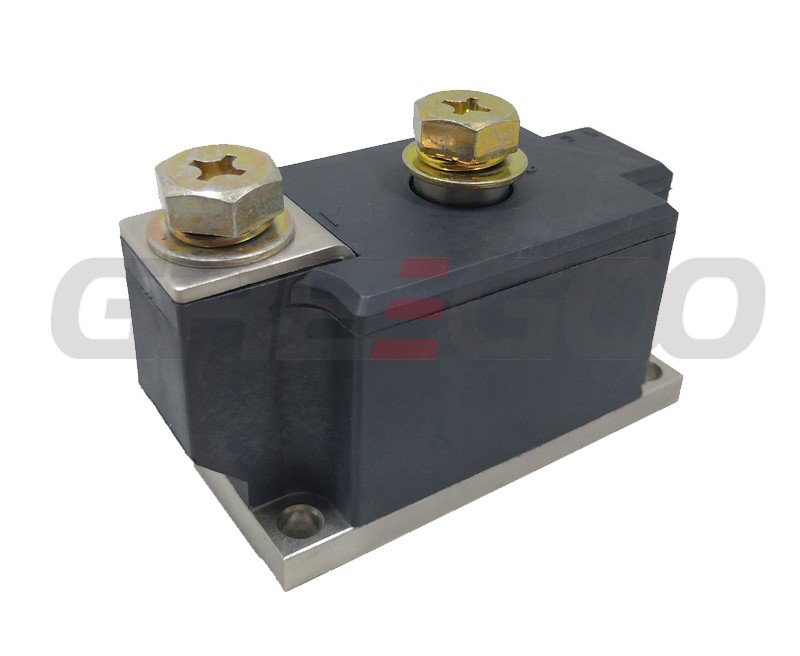

MD200 MD250 MD300 MD400 MD500 MD600 Anti-reverse Diode Modules
200A to 600A 400V-5000V anti-reverse diode module

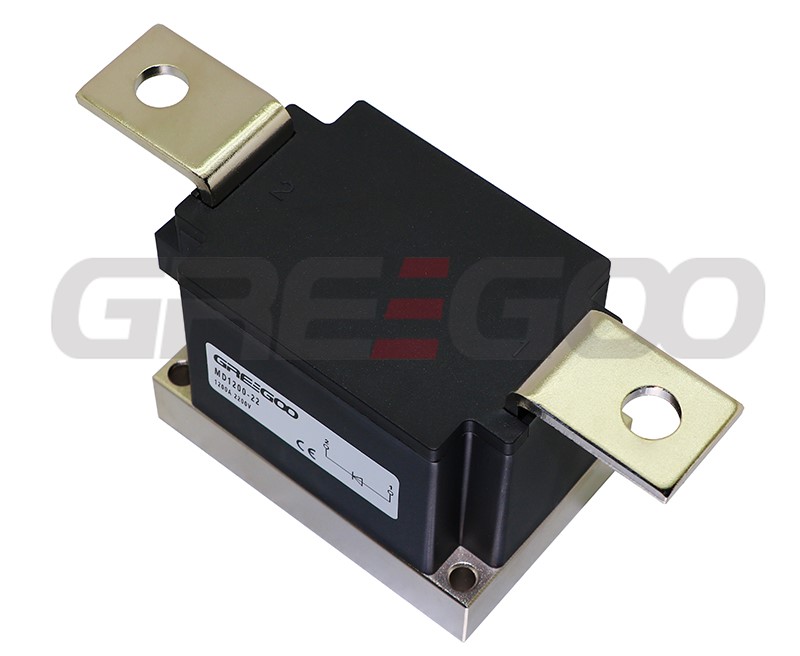

MD800 MD1000 MD1200 Anti-reverse Diode Modules
800A to 120A 1000V-5000V anti-reverse diode module
MT25 MT40 MT60 MT80 MT100 MT110 Single Thyristor Modules
25A to 110A 400V-2200V single thyristor scr module
MT130 MT160 MT200 MT250 Single Thyristor Modules
130A to 250A 400V-2200V Single thyristor modules
MT200 MT250 MT300 MT400 MT500 MT600 Single Thyristor Modules
200A to 600A 400V-5000V single thyristor module
MT800 MT1000 MT1200 Single Thyristor Modules
800A to 120A 1000V-5000V single thyristor modules
Single diode module vs single thyristor module, what's their difference?
| Feature | Single Diode Module | Single Thyristor Module (SCR) |
| Terminals | 2 terminals (Anode, Cathode) | 3 terminals (Anode, Cathode, Gate) |
| Control Signal | None required (uncontrolled) | Requires a gate pulse trigger to turn ON |
| Operation | Conducts automatically with forward voltage | Latches ON after a gate pulse; stays ON until current drops below the holding threshold |
| Function | Passive AC-to-DC rectification | Controlled phase-angle power regulation and switching |
| Turn-Off | Natural commutation when voltage reverses | Natural (AC) or forced commutation circuit (DC) |
| Typical Use | Standard power supplies and freewheeling paths | Motor speed control, soft starters, and heating regulators |
