SKKT series
The main difference between SKKT and SKKT ...B (such as SKKT92 and SKKT92B) lies in the pin definitions and the layout of the terminal block, specifically in the arrangement order of the Gate and Auxiliary Cathode (HK) pins:
-
SKKT (Standard version): The pin arrangement from top to bottom is: HK2, G2, HK1, G1.
-
SKKT ...B (B series): The pin arrangement from top to bottom is: G2, HK2, HK1, G1 (where the positions of G2 and HK2 are swapped vertically).
SKKT27 Thyristor Module
25A 800-1600V dual thyristor module
SKKT27B Thyristor Module
25A 800-1600V dual thyristor module
SKKT42 Thyristor Module
40A 800-1800V dual thyristor module
SKKT42B Thyristor Module
40A 800-1800V dual thyristor module
SKKT57 Thyristor Module
50A 800-2200V dual thyristor module
SKKT57B Thyristor Module
50A 800-1800V dual thyristor module
SKKT72 Thyristor Module
70A 800-2200V dual thyristor module
SKKT72B Thyristor Module
70A 800-1800V dual thyristor module
SKKT92 Thyristor Module
95A 800-1800V dual thyristor module
SKKT92B Thyristor Module
95A 800-1800V dual thyristor module
SKKT106 Thyristor Module
106A 800-1800V dual thyristor module
SKKT106B Thyristor Module
106A 800-1800V dual thyristor module
SKKT107 Thyristor Module
119A 800-1800V dual thyristor module
SKKT122 Thyristor Module
129A 800-1800V dual thyristor module
SKKT132 Thyristor Module
137A 800-2200V dual thyristor module
SKKT162 Thyristor Module
156A 800-2200V dual thyristor module
SKKT172 Thyristor Module
175A 1400-1800V dual thyristor module
SKKT215 Thyristor Module
215A 1400-1800V dual thyristor module

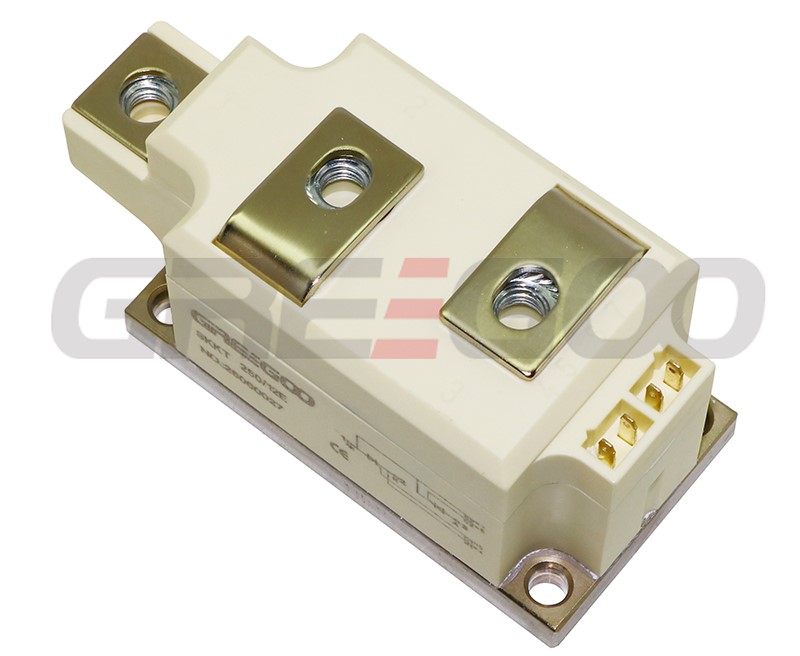

SKKT250 Thyristor Module
250A 800-1800V dual thyristor module
SKKT273 Thyristor Module
273A 1200-1800V dual thyristor module
SKKT330 Thyristor Module
305A 800-1800V dual thyristor module
SKKT323 Thyristor Module
320A 1200-1600V dual thyristor module
SKKT460 Thyristor Module
460A 1600-2200V dual thyristor module
SKKT570 Thyristor Module
570A 1200-1800V dual thyristor module
