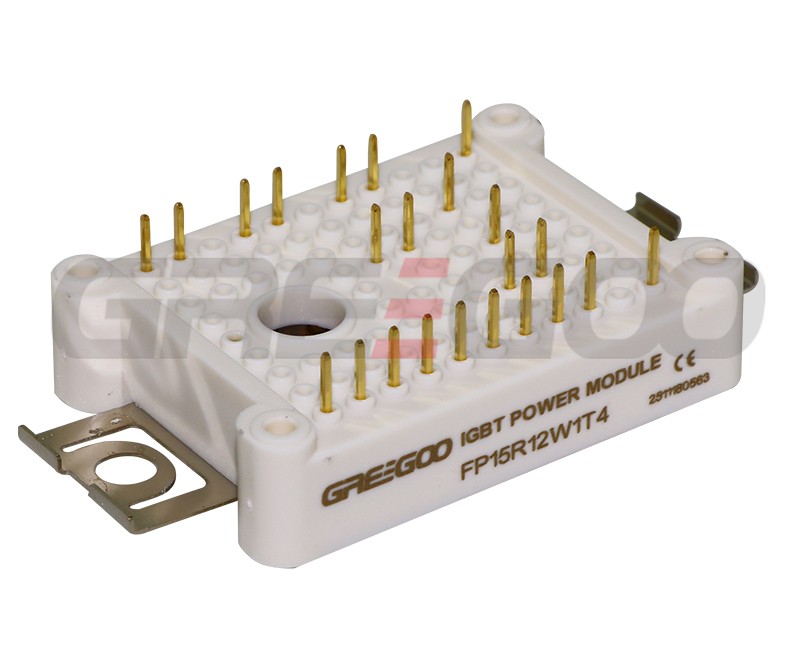

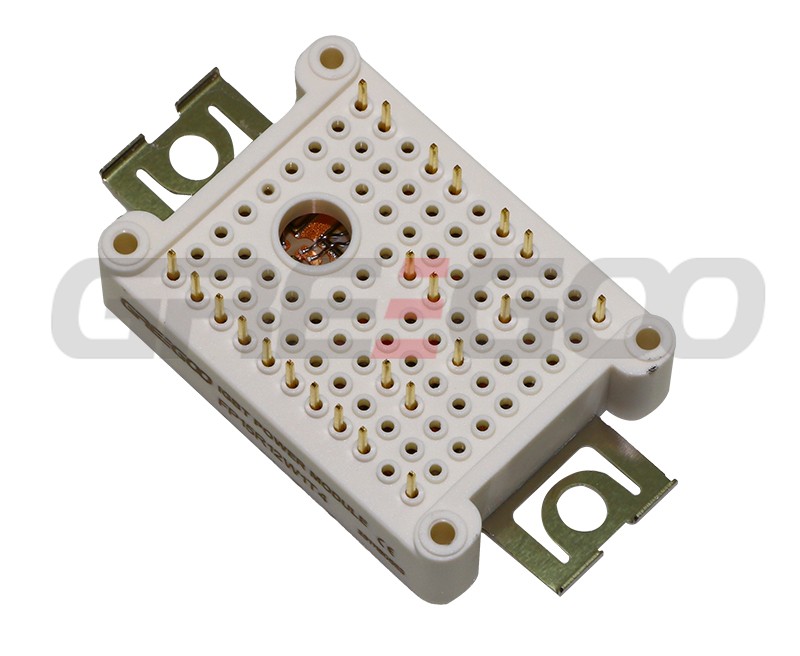

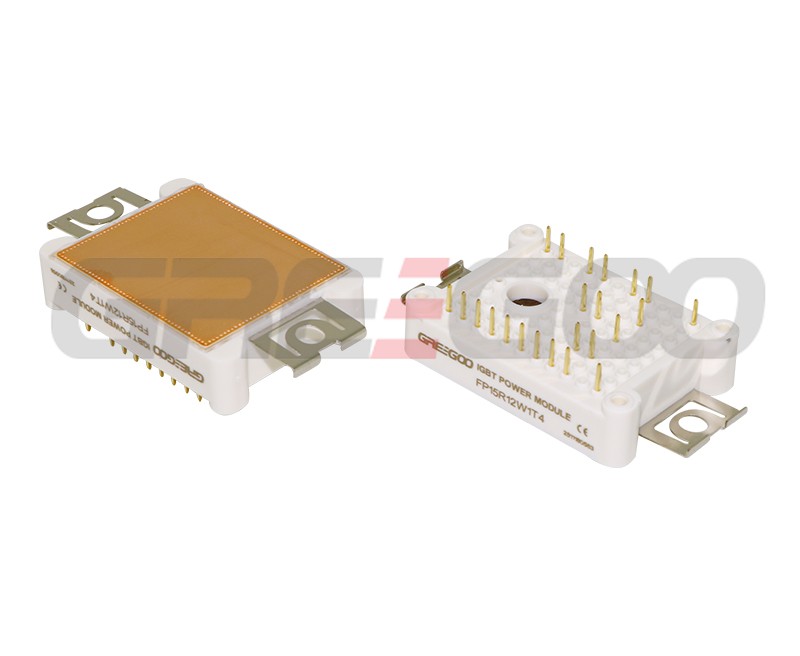

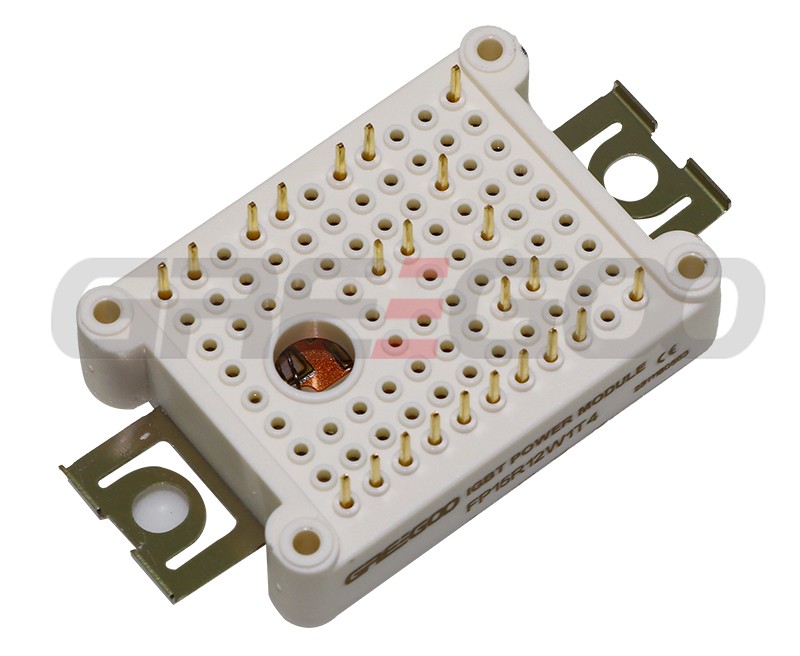

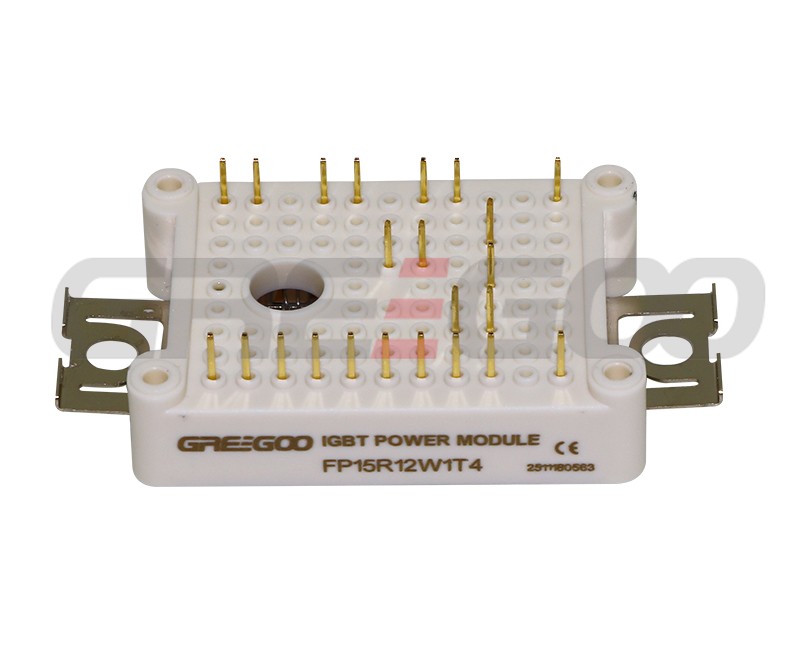

FP15R12W1T4 IGBT4 and Emitter Controlled 4 diode and NTC

Home Products IGBT Power ModuleInfineon IGBT Module EquivalentFP15R12W1T4 IGBT4 and Emitter Controlled 4 diode and NTC

Trench IGBT 4

Trench IGBT 4

Vces=1200V, Ic nom=15A, Icrm=30A

Vces=1200V, Ic nom=15A, Icrm=30A

Low Switching Losses

Compact design solder contact

Low VcEsat

Feature & Application

FP15R12W1T4 IGBT4 and Emitter Controlled 4 diode and NTC

Typical Applications

Auxiliary Inverters
Air Conditioning
Motor Drives

Electrical Features

Low Switching Losses
Trench IGBT 4
VcEsat with positive Temperature Coefficient
Low VcEsat

Mechanical Features

AlzO3 Substrate with Low Thermal Resistance
Compact design
Solder Contact Technology
Rugged mounting due to integrated mounting clamps

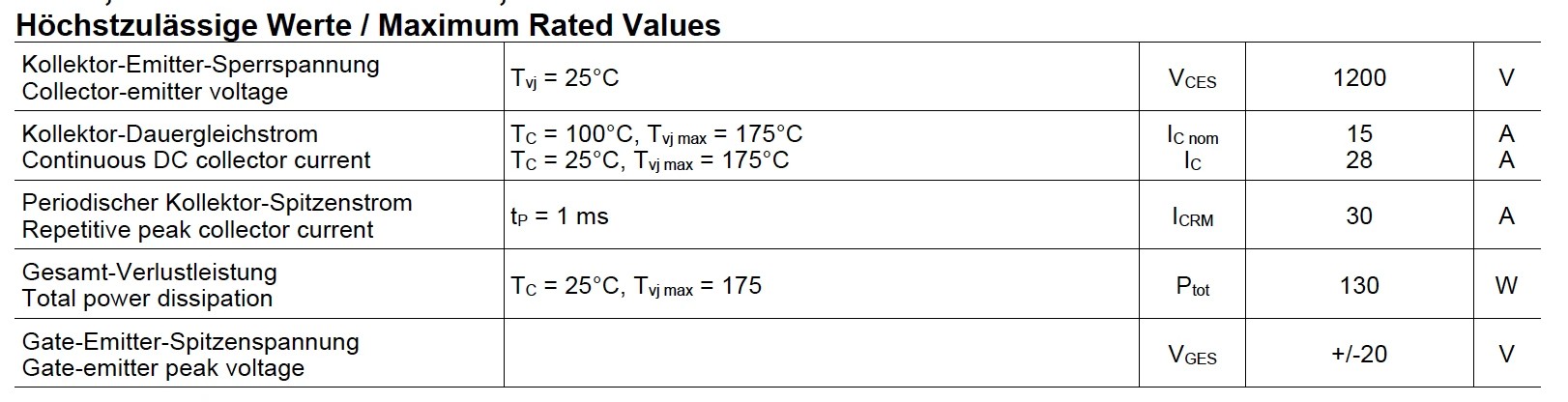

Max. rated values

FP15R12W1T4 IGBT4

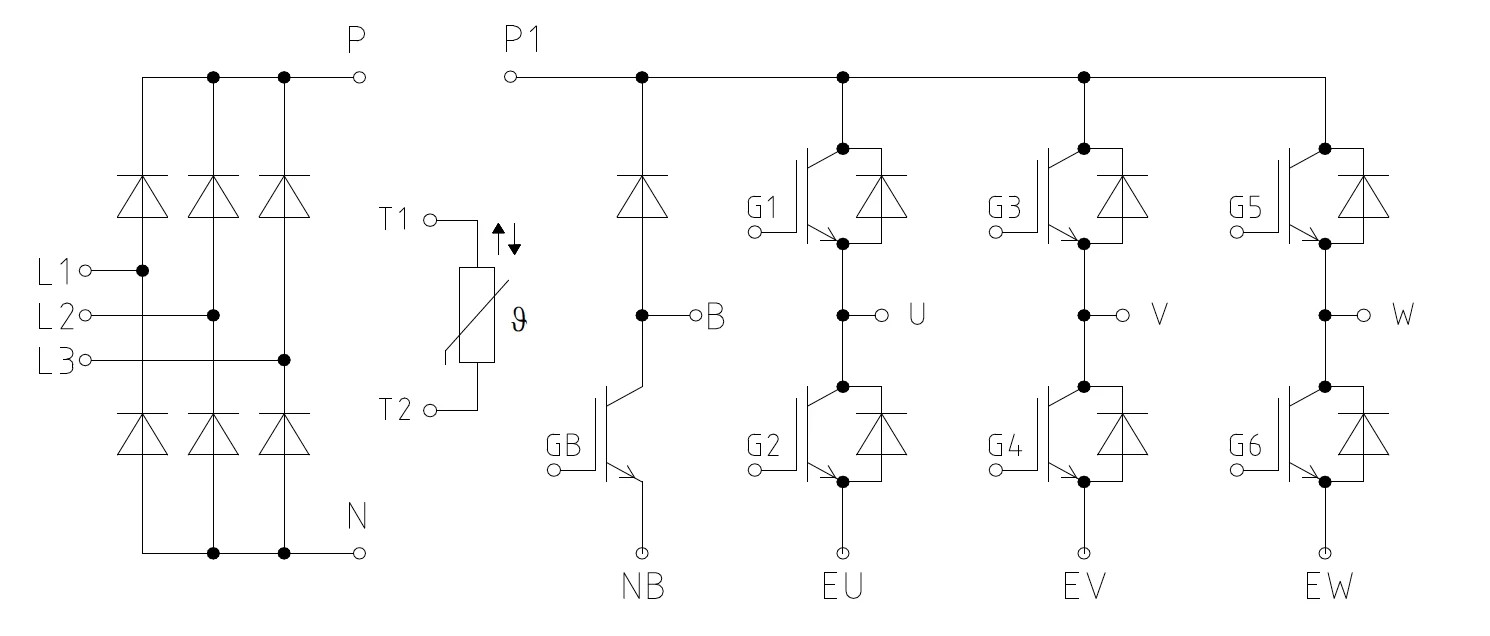

Circuit diagram

FP15R12W1T4 IGBT4 circuit

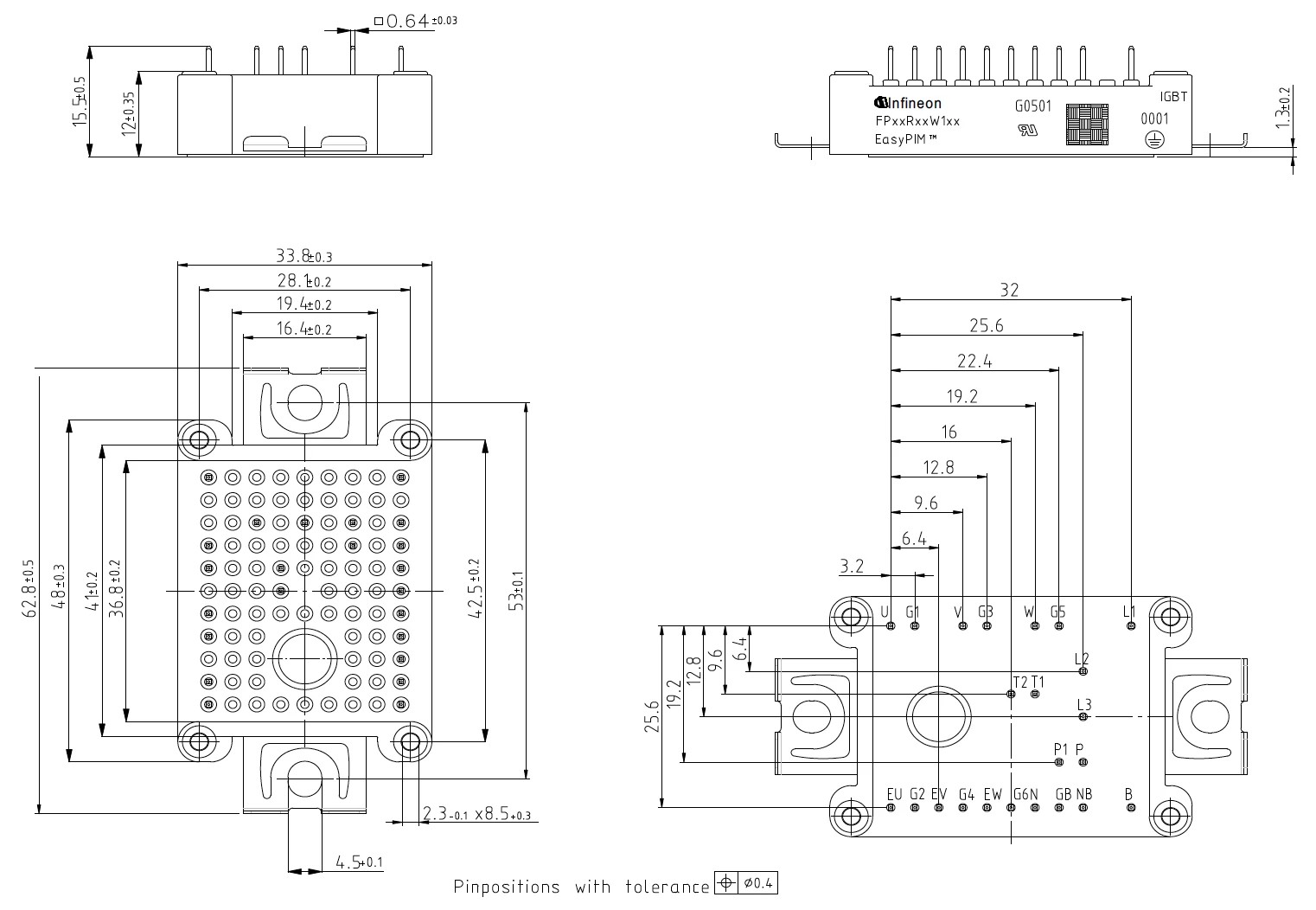

Dimensions

FP15R12W1T4 IGBT4 dimensions
