3 phase Antiparallel Thyristor Module SK45UT 47A 800V to 1600V
Home Products Thyristor Diode ModuleSemikron Thyristor Diode Module3 phase Antiparallel Thyristor Module SK45UT 47A 800V to 1600V
Product Details

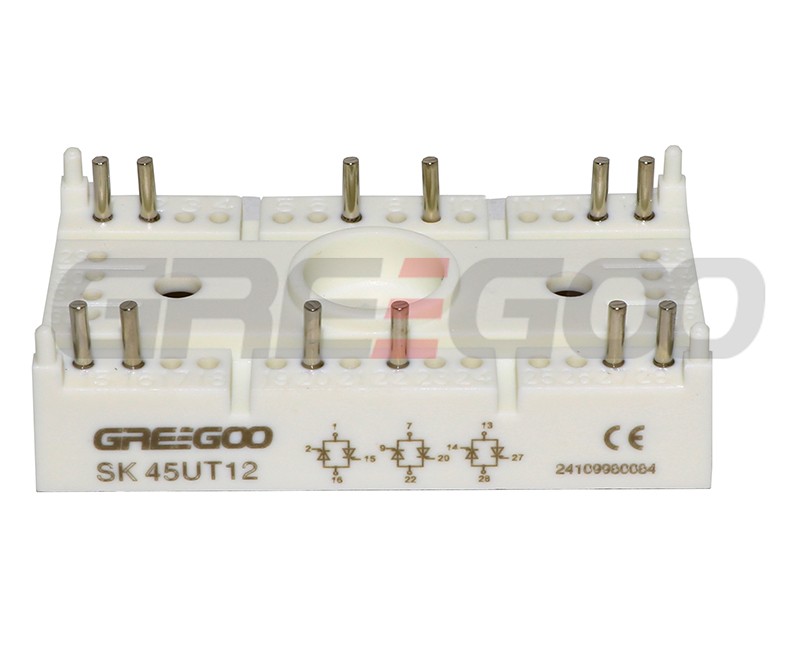

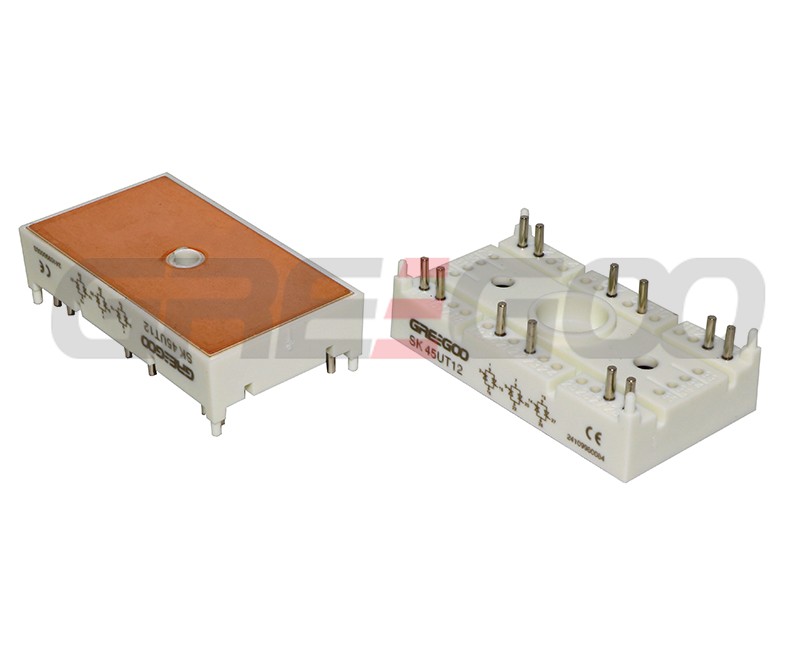

3 phase Antiparallel Thyristor Module SK45UT 47A 800V to 1600V
Features
- Compact Design
- One screw mounting
- Glass passived thyristor chips
- Up to 1600V reverse voltage
- Heat transfer and isolation through direct
- copper bonded aluminium oxide ceramic(DBC)
Typical Applications
- Soft starters
- Light control (studios, theaters..)
- Temperature control
Key specification
| Model numbers | SK45UT08 SK45UT12 SK45UT16 |
| Type of component | Thyristor module, antiparallel thyristor structure |
| Max. off-state voltage | 800V 1200V 1600V |
| Load current (IRMS) | 47 A (at Ts = 85°C) |
| Max. forward voltage (VT) | 1.9 V |
| Max. forward impulse current (ITSM) | 380 A (at Tvj = 125 °C) |
| Gate current (IGT) | Min. 100 mA |

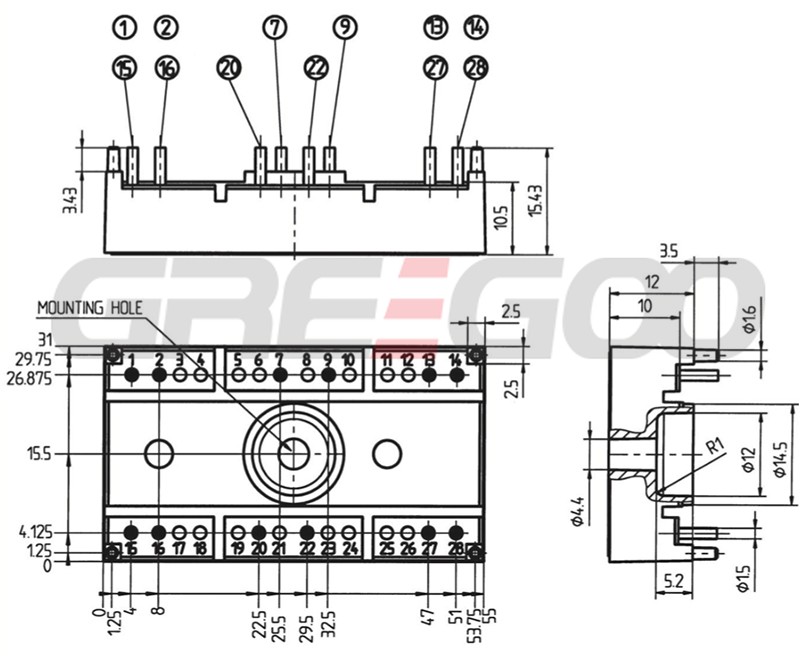

| Dimensions (LxWxH) | 55x31x12 mm |
| Mounting | One screw mounting, press-in PCB electrical mounting |
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
