Solid state relay dc to dc 2000A 100V
| Name | DC to DC Solid state relay | DC to DC Solid state relay | DC to DC Solid state relay | DC to DC Solid state relay |
| Type | Standard | Standard | Standard | Fast switching |

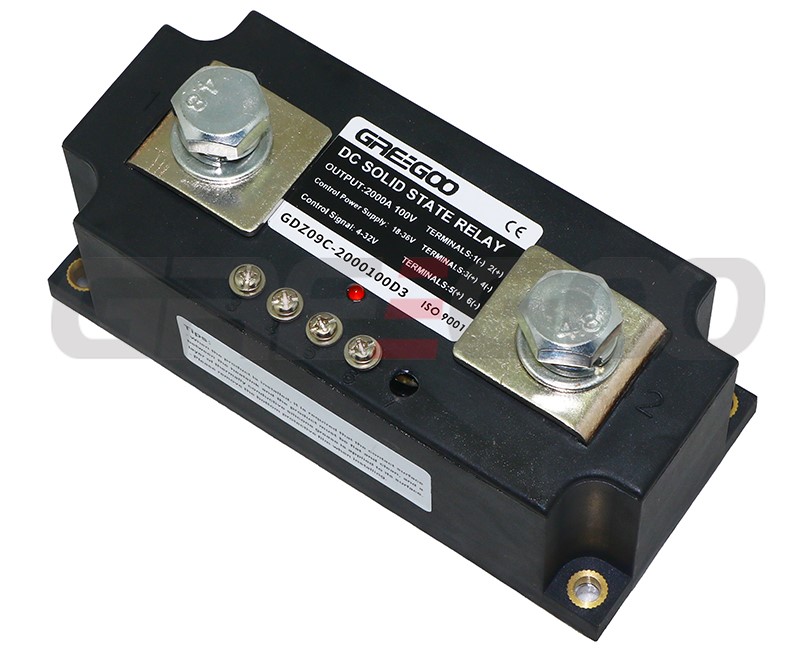

| Part numbers | GDZ09-2000100D1 | GDZ09-2000100D2 | GDZ09-2000100D4 | GDZ09C-2000100D3 |
| Control voltage | 12-15VDC | 18-36VDC | 12-60VDC | 4-32VDC |
| Control power supply | / | / | / | 12/24VDC |
| Max.switching current per phase | 2000A | 2000A | 2000A | 2000A |
| Max.switching voltage | 0-100VDC | 0-100VDC | 0-100VDC | 0-100VDC |
| Switching time | ≤5mS | ≤5mS | ≤8mS | ≤0.1mS |
| Output method | Mosfet DC output | Mosfet DC output | Mosfet DC output | Mosfet DC output |
| Mounting | Panel mount | Panel mount | Panel mount | Panel mount |
| Contacts configuration | 1NO | 1NO | 1NO | 1NO |
| Manufacturer | Greegoo | Greegoo | Greegoo | Greegoo |
| Certificates | CE, RoHS | CE, RoHS | CE, RoHS | CE, RoHS |
| Note | Part numbers with "L" for over current protection, e.g. GDZ09-2000100D2L, Part numbers with "T" for over temperature protection, e.g. GDZ09-2000100D2T | |||
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
Related Products
Solid state relay dc to dc 120A 100V
120A 100V GDZ08-120100 GDZ08C-120100

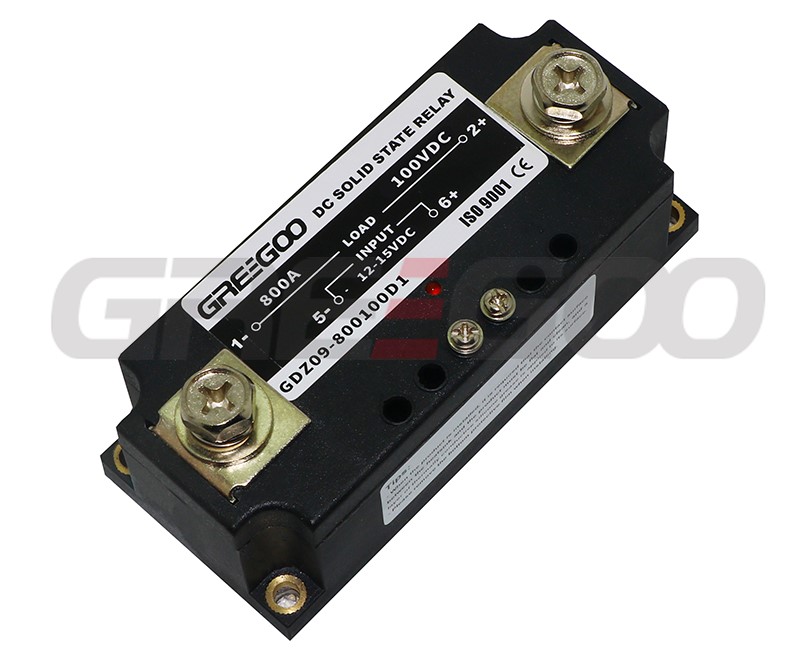

Solid state relay dc to dc 800A 100V
800A 100V GDZ09-800100 GDZ09C-800100
Solid state relay dc to dc 1500A 100V
1500A 100V GDZ09-1500100 GDZ09C-1500100

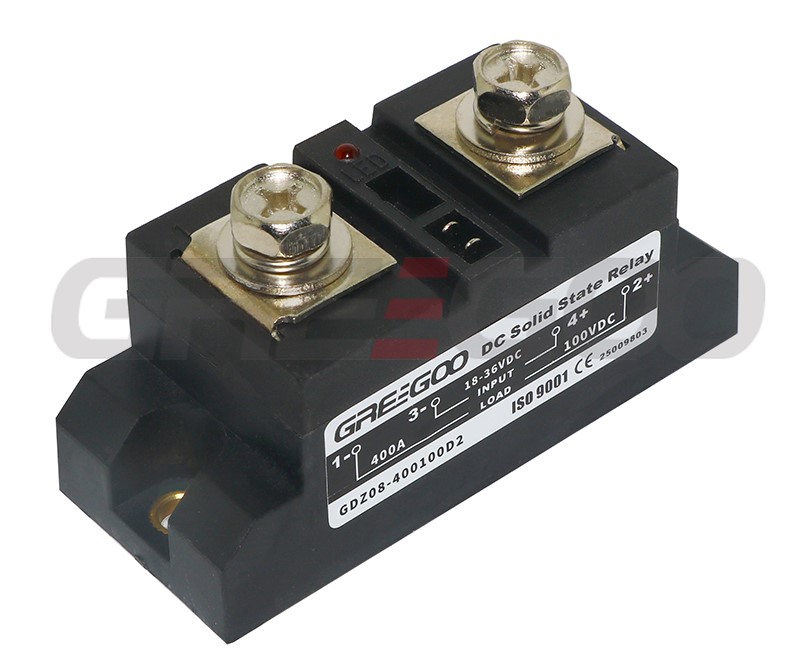

Solid state relay dc to dc 400A 100V
