Name					Unit	Value
Main circuit	Rated working voltage (Ue)				kV	3.6
	Rated working current (Ie)				A	400
	Rated frequency (fr)				Hz	50~60
	Rated making capacity				A	10Ie (AC-4)
	Rated breaking capacity				A	8Ie (AC-4)
	Rated short time withstand current				A	10Ie
	Rated peak withstand current				A	25Ie
	Rated short circuit duration				s	4
	Power frequency withstand voltage		Between phases, phase to earth		kV	18
			Vacuum breaks		kV	18
	Lightening impulse withstand voltage				kV	40
Control circuit		Rated voltage (Us)			V	AC or DC. 110/220
		Rated power (Ps)electric holding			VA	≤600/50 (absorbing/holding)
Auxiliary circuit				Form		3a 3b
				Rated value		AC 380V/5A,
						DC 380V/1A
Control circuit, auxiliary circuit to earth power frequency withstand voltage					kV	2
Rated operating frequency				Long-term	time/h	300
				Short-term	time/h	600
Mechanical endurance					10000 times	30
Electrical endurance					10000 times	10
Mechanical characteristics		Closing time			ms	≤200
		Original opening time			ms	≤160
		3-phase synchronism			ms	≤3
		Closing tripping			ms	≤10
Remark: rated control voltage can be made according to customer’s requirements.

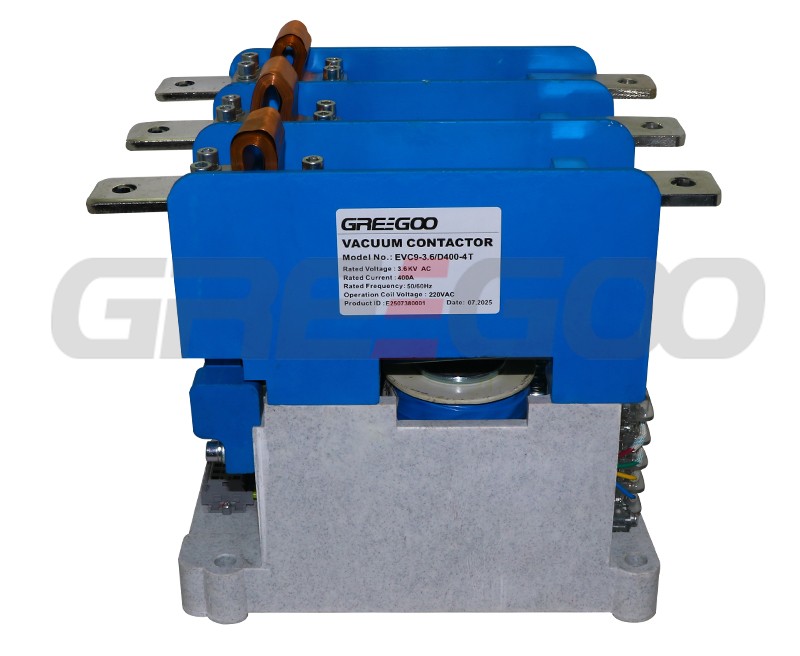

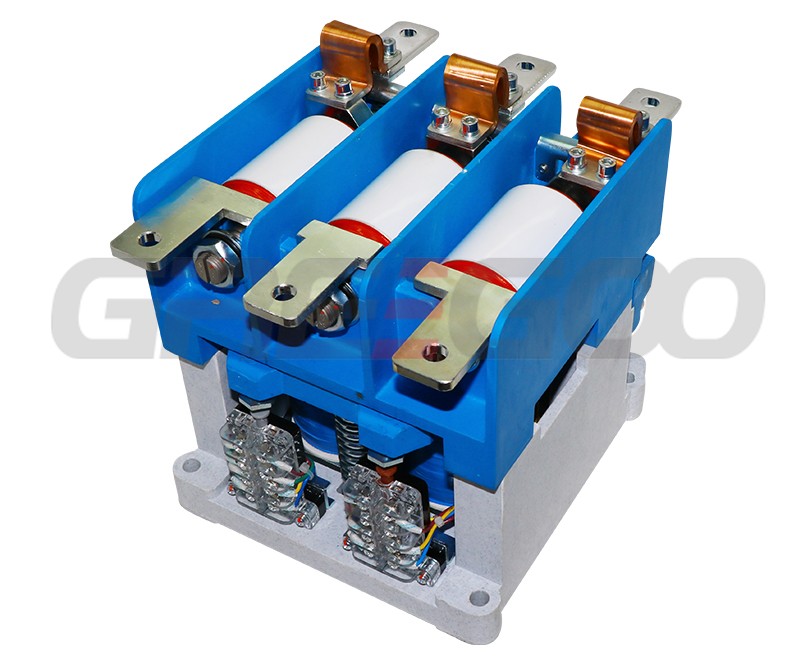

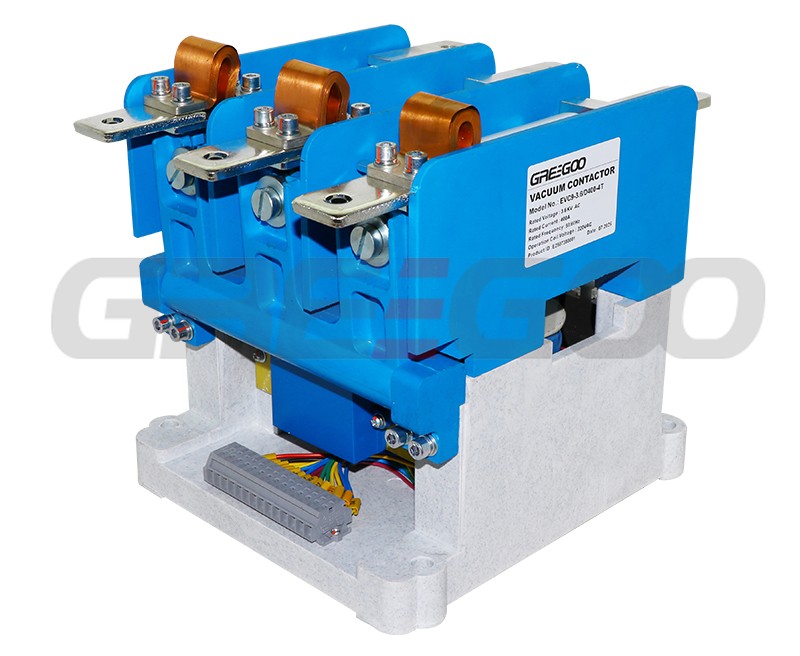

3.3KV 3.6KV vacuum contactor EVC9-3.6/D400-4T
