MT800 MT1000 MT1200 Single Thyristor Modules
Home Products Thyristor Diode ModuleSingle Diode Module and Thyristor ModuleMT800 MT1000 MT1200 Single Thyristor Modules
Features and Application
MT800 MT1000 MT1200 Single Thyristor Modules
Features
- Pressure contact technology for high reliability
- Industial standard package
- Electrically insulated baseplate
- Advanced medium power technology
Typical Applications
- Rectifier for Drives Applications
- Rectifiers for UPS
- Battery chargers
- Soft starter
- Crowbar applications
- Power controllers
- Static switches
Part numbers
| Part numbers | IF(AV) | Tc |
VRRM |
| MT800-10 | 800A | 70℃ | 1000V |
| MT800-12 | 800A | 70℃ | 1200V |
| MT800-16 | 800A | 70℃ | 1600V |
| MT800-18 | 800A | 70℃ | 1800V |
| MT800-20 | 800A | 70℃ | 2000V |
| MT800-22 | 800A | 70℃ | 2200V |
| MT800-25 | 800A | 70℃ | 2500V |
| MT800-30 | 800A | 70℃ | 3000V |
| MT800-36 | 800A | 70℃ | 3600V |
| MT800-42 | 800A | 70℃ | 4200V |
| MT800-50 | 800A | 70℃ | 5000V |
| MT1000-10 | 1000A | 70℃ | 1000V |
| MT1000-12 | 1000A | 70℃ | 1200V |
| MT1000-16 | 1000A | 70℃ | 1600V |
| MT1000-18 | 1000A | 70℃ | 1800V |
| MT1000-20 | 1000A | 70℃ | 2000V |
| MT1000-22 | 1000A | 70℃ | 2200V |
| MT1000-25 | 1000A | 70℃ | 2500V |
| MT1000-30 | 1000A | 70℃ | 3000V |
| MT1000-36 | 1000A | 70℃ | 3600V |
| MT1000-42 | 1000A | 70℃ | 4200V |
| MT1000-50 | 1000A | 70℃ | 5000V |
| MT1200-10 | 1200A | 70℃ | 1000V |
| MT1200-12 | 1200A | 70℃ | 1200V |
| MT1200-16 | 1200A | 70℃ | 1600V |
| MT1200-18 | 1200A | 70℃ | 1800V |
| MT1200-20 | 1200A | 70℃ | 2000V |
| MT1200-22 | 1200A | 70℃ | 2200V |
| MT1200-25 | 1200A | 70℃ | 2500V |
| MT1200-30 | 1200A | 70℃ | 3000V |
| MT1200-36 | 1200A | 70℃ | 3600V |
| MT1200-42 | 1200A | 70℃ | 4200V |
| MT1200-50 | 1200A | 70℃ | 5000V |

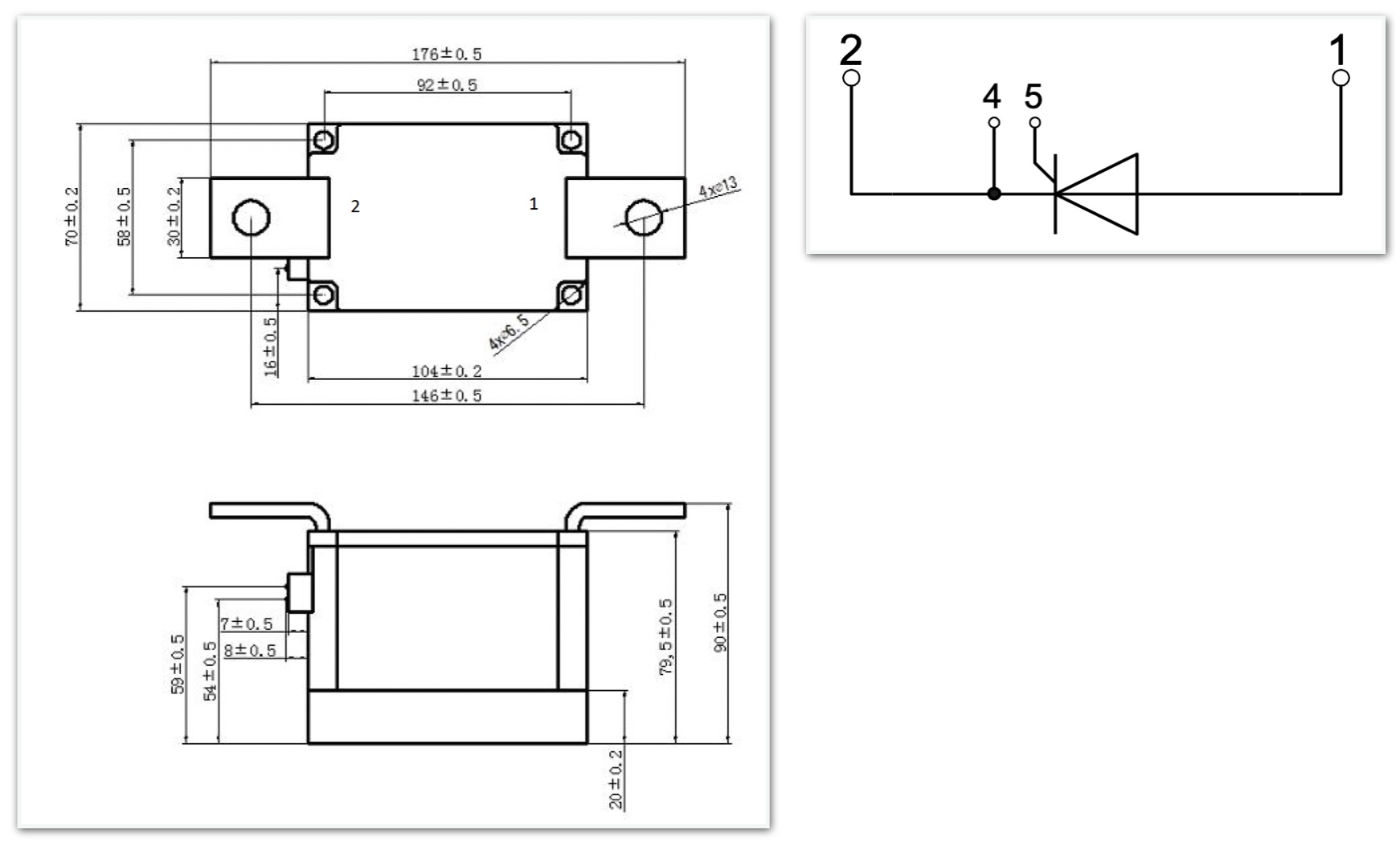

Dimensions
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
