Specification
3 phase half wave rectifier dc solid state relay GZ31GS
Model | GZ31GS (Half-Wave Rectification) | GZ31GL (Half-Wave Overcurrent Protection) |
---|---|---|
Input Power Voltage | 240 VAC 440 VAC | 240 VAC 440 VAC |
Output Rectified Voltage | (Phase Voltage × 2.34VDC) - (1.5~4.5V) | (Phase Voltage × 2.34VDC) - (1.5~4.5V) |
Maximum Rectified Current | 30~200 A | 30~200 A |
Control Voltage | 12~15 VDC 18~36 VDC | 12~15 VDC 18~36 VDC |
Control Current | 60-85 mA 18~36 VDC | 60-85 mA 18~36 VDC |
Isolation Voltage | ≥2500 V | ≥2500 V |
Insulation Voltage | ≥2000 V | ≥2000 V |
Insulation Resistance | ≥100 MΩ | ≥100 MΩ |
Power Frequency | 10~1000 HZ | 10~1000 HZ |
Operating Temperature | -25~75℃ | -25~75℃ |
Cooling Conditions | ≥30A with heatsink, ≥60A add fan for enhanced cooling | ≥30A with heatsink, ≥60A add fan for enhanced cooling |
Load Current Safety Factor | Resistive load: 2-3 times, Inductive load: 4-6 times | Resistive load: 2-3 times, Inductive load: 4-6 times |

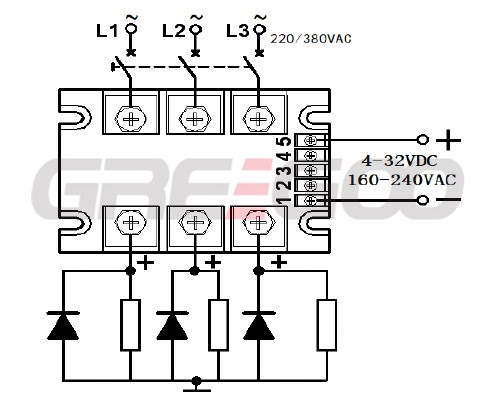

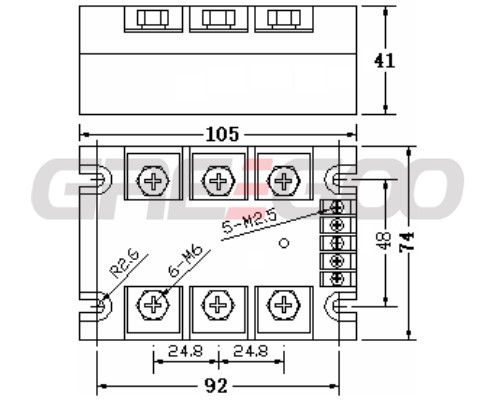

Product Details
- Optical and magnetic isolation between input and output circuits.
- LED indicates working status.
- Three-phase half-wave rectified contactless switch output, with a switching speed of <0.4ms.
- High operating frequency, capable of rapid on/off switching between 10-1000Hz.
- GZ31GL features overcurrent protection, capable of instantly cutting off the load power in case of overcurrent.
- Epoxy resin solid encapsulation, shockproof and corrosion-resistant, with no arc flash during switching.
- The product is mainly used for contactless switch control devices requiring high switching frequencies, such as electromagnetic vibrators, rectification conversion for generators, and rapid charging and discharging of AC/DC.
