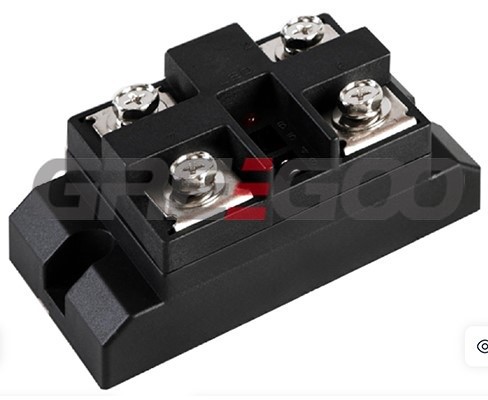

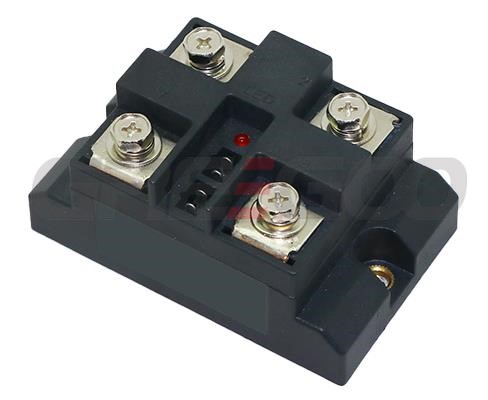

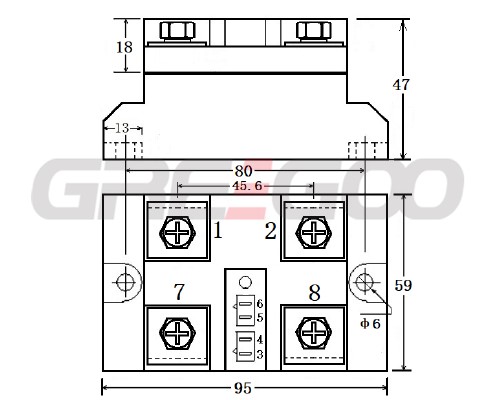

Single phase full wave rectifier dc solid state relay GZ12GS
Home Products DC Load Solid State RelayHigh Frequency Rectifier DC Solid State RelaySingle phase full wave rectifier dc solid state relay GZ12GS
Specification
Single phase full wave rectifier dc solid state relay GZ12GS
Model | GZ12GS (Full-Wave Rectification) | GZ12GL (Full-Wave Overcurrent Protection) |
---|---|---|
Input Power Voltage | 240 VAC 440 VAC | 220 VAC 440 VAC |
Output Rectified Voltage | (Phase Voltage × 2.34VDC) - (1.5~4.5V) | (Phase Voltage × 2.34VDC) - (1.5~4.5V) |
Maximum Rectified Current | 30~200 A | 30~200 A |
Control Voltage | 12~15 VDC 18~36 VDC | 12~15 VDC 18~36 VDC |
Control Current | 60-85 mA 30-60mA | 60-85 mA 30-60mA |
Output Indicator | LED | LED |
Overload Protection | None | 50% of Peak Current |
Isolation Voltage | ≥ 2000 V | ≥ 2000 V |
Insulation Voltage | ≥ 2500 V | ≥ 2500 V |
Operating Temperature | -30 ~ 75 ℃ | -30 ~ 75 ℃ |
Power Frequency | 10-1000 HZ | 10-1000 HZ |
Cooling Conditions | ≥30A with heat sink, >80A with added fan cooling | ≥30A with heat sink, >80A with added fan cooling |
Load Current Safety Factor | Resistive load: 2-3 times, Inductive load: 3-4 times | Resistive load: 2-3 times, Inductive load: 3-4 times |
Product Details
- Optical and magnetic isolation between input and output circuits.
- LED indicates working status.
- Full-wave rectified solid-state contactless switch output, with a switching speed of <0.4ms.
- Freewheeling diodes preset at both ends of the load, making installation convenient and reliable.
- High operating frequency, capable of rapid on/off switching between 10-1000Hz.
- JGZ12GL model features overcurrent protection.
- Epoxy resin solid encapsulation, shockproof and corrosion-resistant, with no arc flash during switching.
- Mainly used for contactless switch control devices requiring high switching frequencies. Examples include electromagnetic vibrators, rectification conversion for generators, and rapid charging and discharging of AC/DC.
