3 phase diode bridge + 1 SCR thyristor modules
Home Products Diode Bridge ModuleRecommend Bridge Rectifiers3 phase diode bridge + 1 SCR thyristor modules
Product Details

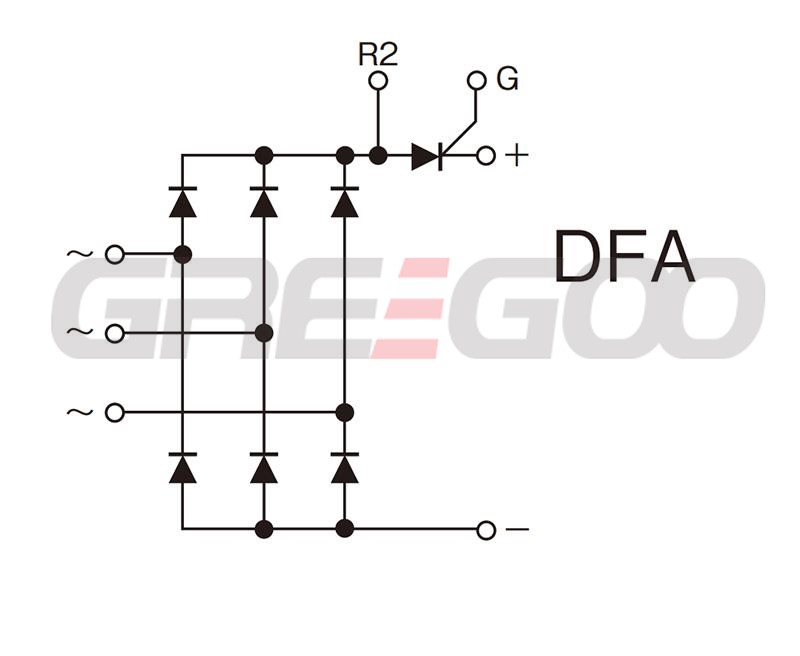

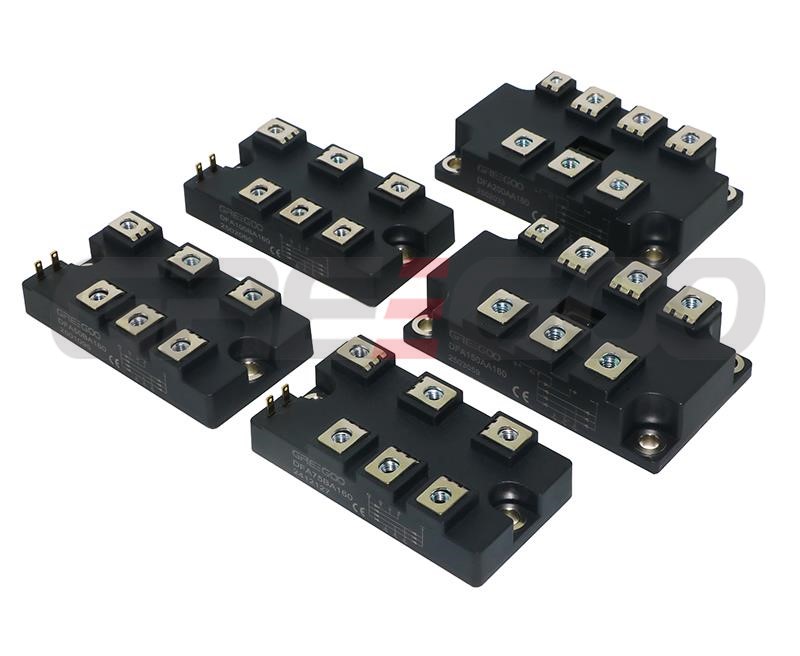

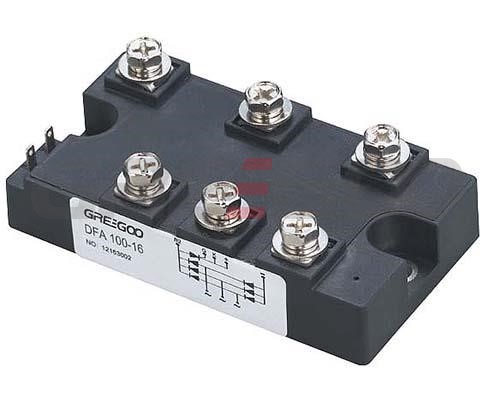

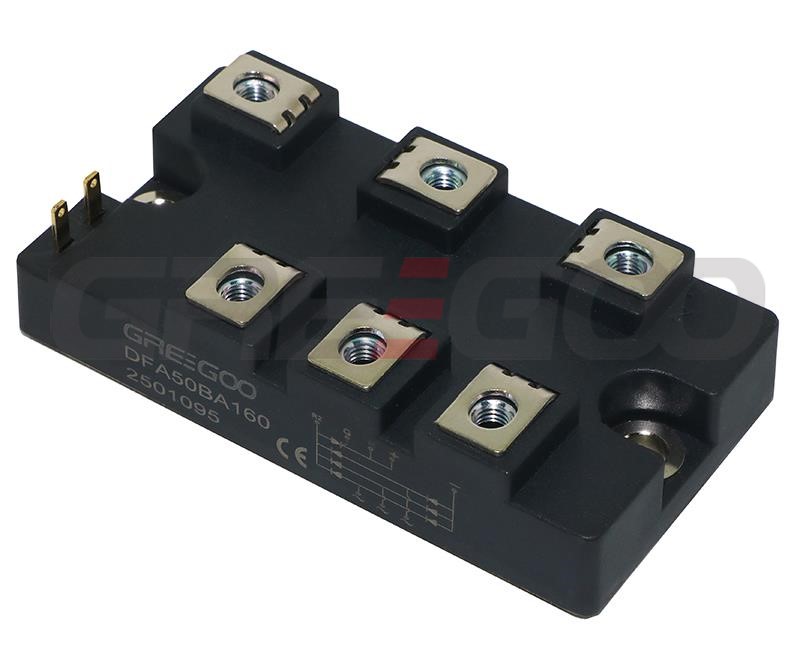

3 phase diode bridge + 1 SCR thyristor modules
Typical Application
· Inverter for AC or DC motor control
· Current stabilized power supply
· Switching power supply
Feature
· This module is designed very compactly. Because diode module and thyristor are put together.
·This modules is also isolated type between electrode terminal and mounting base. So you can put this module and the other one together in a same heatsink.
Type | VRRM | VRSM | IT(AV) | ITSM | I²t | di/dt | IGT | VGT | dv/dt | Rth(j-c) | Rth(c-f) |
VDRM | |||||||||||
V | V | A | A | A²s | A/μs | mA | V | V/μs | ℃/W | ℃/W | |

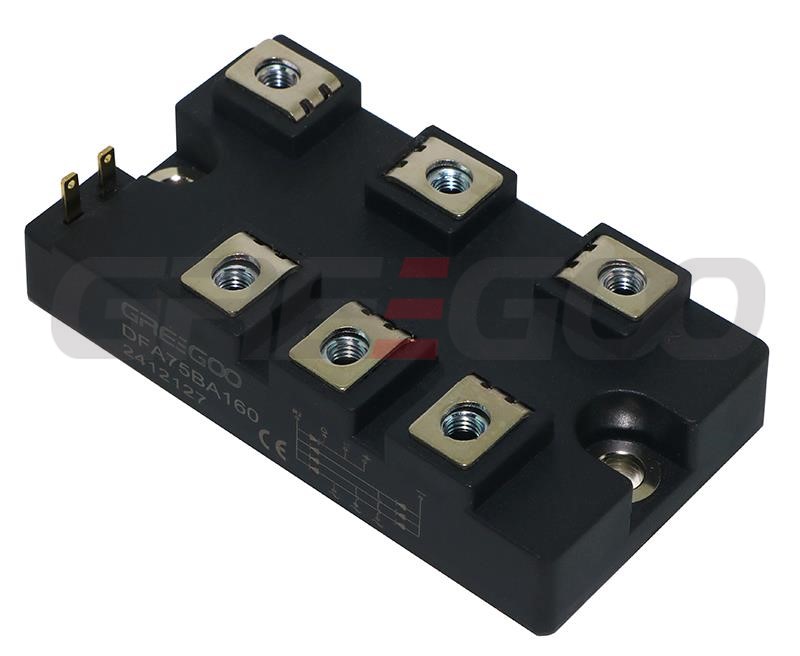

DFA50BA80 | 800 | 960 | 50 | 730/800 | 2660 | 150 | 70 | 3 | 500 | 0.8 | 0.1 |
DFA50BA160 | 1600 | 1700 | 50 | 730/800 | 2660 | 150 | 70 | 3 | 500 | 0.8 | 0.1 |
DFA75BA80 | 800 | 960 | 75 | 910/1000 | 4150 | 150 | 70 | 3 | 500 | 0.4 | 0.1 |
DFA75BA160 | 1600 | 1700 | 75 | 910/1000 | 4150 | 150 | 70 | 3 | 500 | 0.4 | 0.1 |

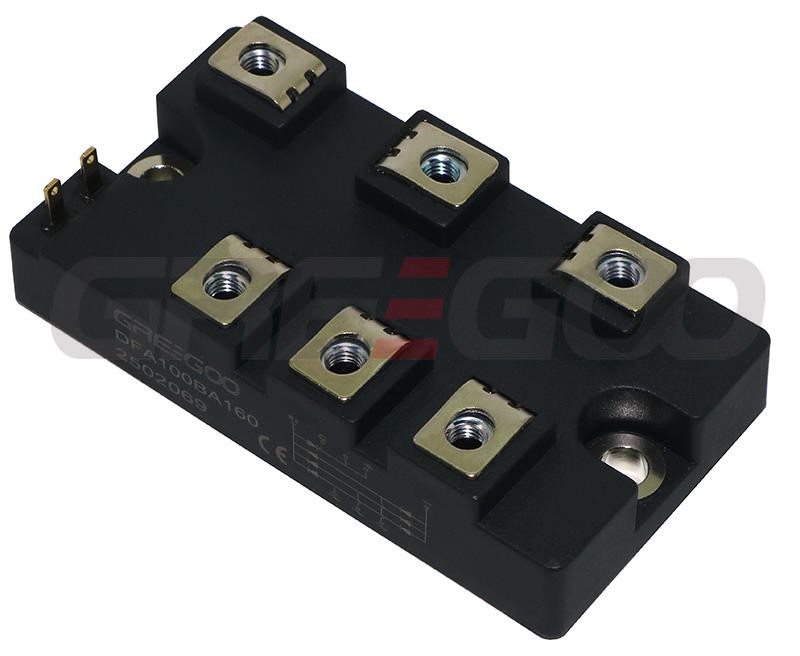

DFA100BA80 | 800 | 960 | 100 | 1186/1300 | 7030 | 150 | 70 | 3 | 500 | 0.36 | 0.1 |
DFA100BA160 | 1600 | 1700 | 100 | 1186/1300 | 7030 | 150 | 70 | 3 | 500 | 0.36 | 0.1 |

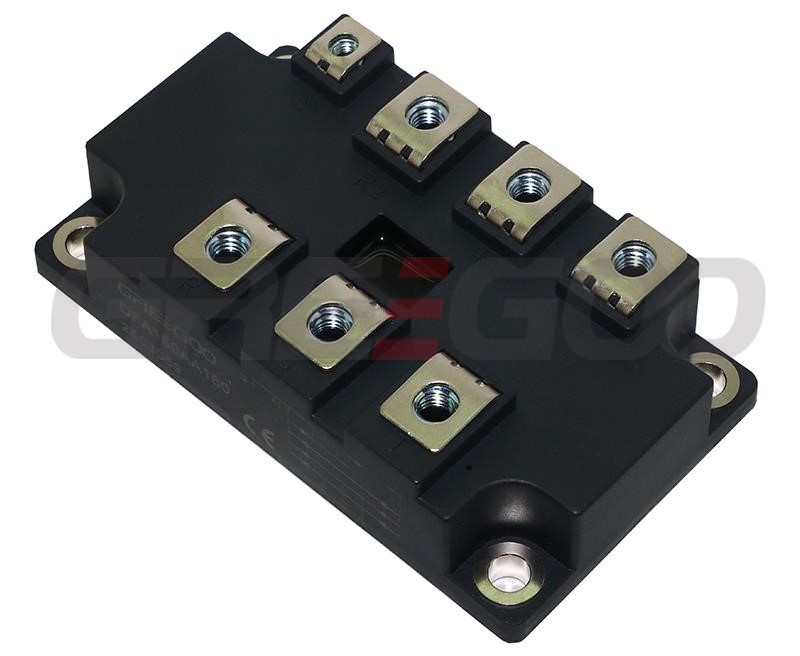

DFA150AA80 | 800 | 960 | 150 | 1460/1600 | 10670 | 150 | 70 | 3 | 500 | 0.21 | 0.07 |
DFA150AA160 | 1600 | 1700 | 150 | 1460/1600 | 10670 | 150 | 70 | 3 | 500 | 0.21 | 0.07 |

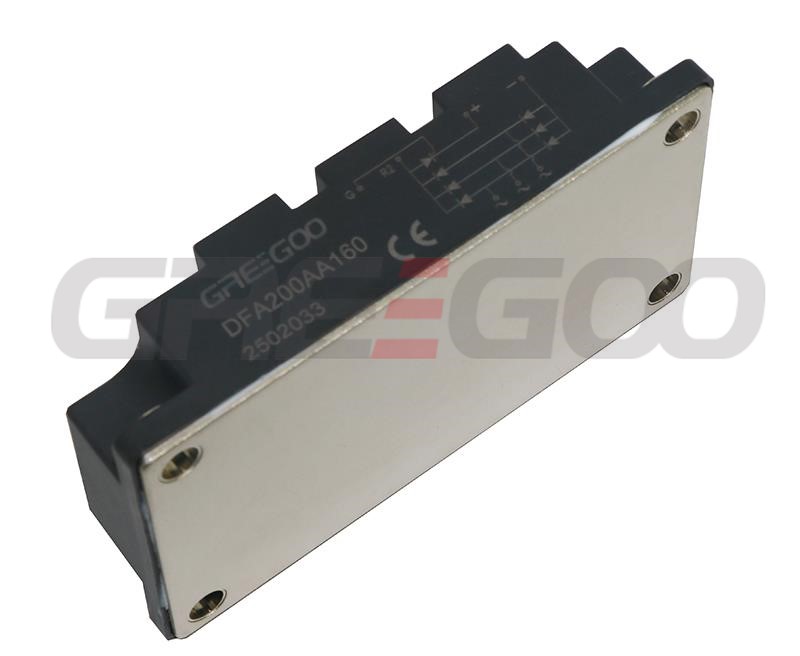

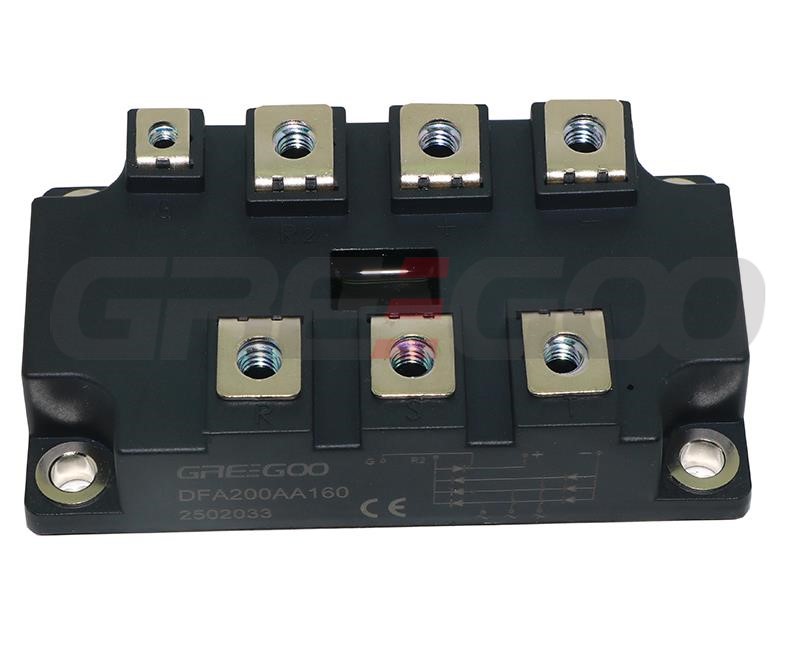

DFA200AA80 | 800 | 960 | 200 | 1850/2000 | 17000 | 200 | 100 | 3 | 500 | 0.18 | 0.18 |
DFA200AA160 | 1600 | 1700 | 200 | 1850/2000 | 17000 | 200 | 100 | 3 | 500 | 0.18 | 0.18 |
