3 phase full wave rectifier dc solid state relay GZ32GS
Home Products DC Load Solid State RelayHigh Frequency Rectifier DC Solid State Relay3 phase full wave rectifier dc solid state relay GZ32GS
Specification
3 phase full wave rectifier dc solid state relay GZ32GS
Model | GZ32GS (Full-Wave Rectification) | GZ32GL (Full-Wave Overcurrent Protection) |
---|---|---|
Input Power Voltage | 240 VAC 440 VAC | 240 VAC 440 VAC |
Output Rectified Voltage | (Phase Voltage × 2.34VDC) - (1.5 ~ 4.5V) | (Phase Voltage × 2.34VDC) - (1.5 ~ 4.5V) |
Maximum Rectified Current | 30 ~ 200 A | 30 ~ 200 A |
Control Voltage | 12 ~ 15 VDC 18 ~ 36 VDC | 12 ~ 15 VDC 18 ~ 36 VDC |
Control Current | 60-85 mA 30-60mA | 60-85 mA 30-60mA |
Isolation Voltage | ≥2500 V | ≥2500 V |
Insulation Voltage | ≥2000 V | ≥2000 V |
Insulation Resistance | ≥100 MΩ | ≥100 MΩ |
Power Frequency | 10 ~ 1000 HZ | 10 ~ 1000 HZ |
Operating Temperature | -25 ~ 75℃ | -25 ~ 75℃ |
Cooling Conditions | ≥30A with heat sink, ≥60A with additional fan cooling | ≥30A with heat sink, ≥60A with additional fan cooling |
Load Current Safety Factor | Resistive load: 2-3 times, Inductive load: 4-6 times | Resistive load: 2-3 times, Inductive load: 4-6 times |

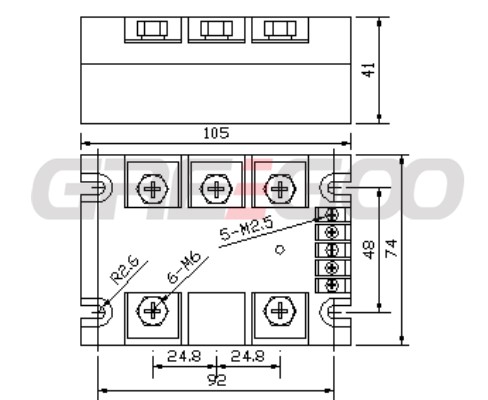

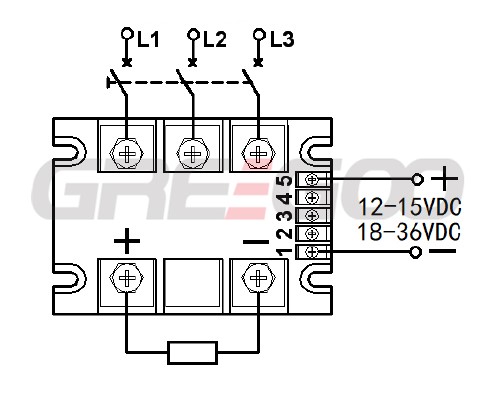

Product Details
- Optical and magnetic isolation between input and output circuits.
- LED indicates working status.
- Full-wave rectified solid-state contactless switch output, with a switching speed of <0.4ms.
- High operating frequency, capable of rapid on/off switching between 10-1000Hz.
- Pre-set freewheeling diodes at both ends of the load, making installation convenient and reliable.
- GZ32GL features overcurrent protection, capable of instantly cutting off the load power in case of overcurrent.
- Epoxy resin solid encapsulation, shockproof and corrosion-resistant, with no arc flash during switching.
- The product is mainly used for contactless switch control devices requiring high switching frequencies, such as electromagnetic vibrators, rectification conversion for generators, and rapid charging and discharging of AC/DC.
