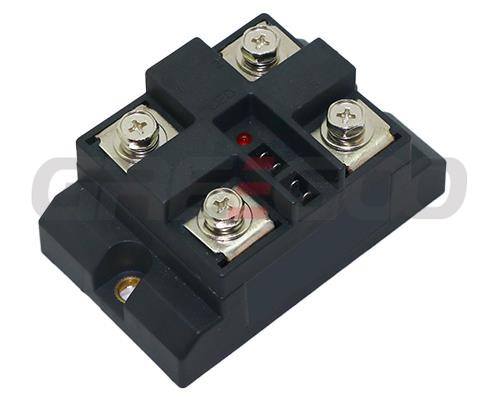

2 phase half wave rectifier dc solid state relay GZ23GS
Home Products DC Load Solid State RelayHigh Frequency Rectifier DC Solid State Relay2 phase half wave rectifier dc solid state relay GZ23GS
Specification
2 phase half wave rectifier dc solid state relay GZ23GS
Model | GZ23GS (Half-Wave Rectification) | GZ23GL (Half-Wave Overcurrent Protection) |
---|---|---|
Input Power Voltage | 240 VAC 440VAC | 220VAC 440 VAC |
Output Rectified Voltage | (Input Power Voltage × 0.45VDC) - (1.5 ~ 4.5V) | (Input Power Voltage × 0.45VDC) - (1.5 ~ 4.5V) |
Maximum Load Current | 30 ~ 200 A | 30 ~ 200 A |
Control Voltage | 12 ~ 15 VDC 18 ~ 36 VDC | 12 ~ 15 VDC 18 ~ 36 VDC |
Control Current | 60-85 mA 30-60mA | 60-85 mA 30-60mA |
Isolation Voltage | ≥2500 V | ≥2500 V |
Insulation Voltage | ≥2500 V | ≥2500 V |
Insulation Resistance | ≥100 MΩ | ≥100 MΩ |
Load Power Frequency | 10 ~ 1000 HZ | 10 ~ 1000 HZ |
Operating Temperature | -25 ~ 75℃ | -25 ~ 75℃ |
Cooling Requirements | ≥30A with heatsink, ≥80A plus fan cooling | ≥30A with heatsink, ≥80A plus fan cooling |
Load Current Safety Factor | Resistive load: 2-4 times, Inductive load: 4-6 times | Resistive load: 2-4 times, Inductive load: 4-6 times |

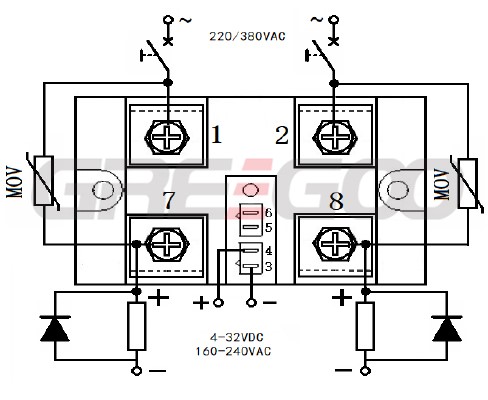

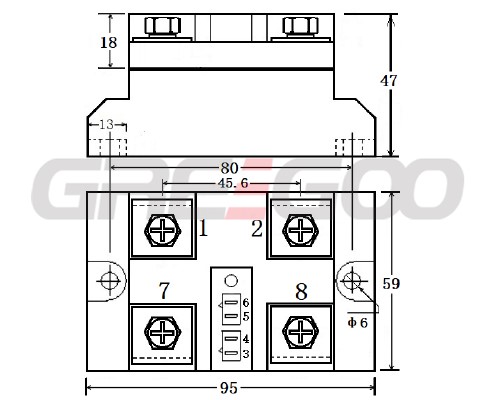

Product Details
- Optical and magnetic isolation between input and output circuits.
- LED indicates working status.
- Half-wave rectified solid-state contactless switch output, with a switching speed of <0.4ms.
- High operating frequency, capable of rapid on/off switching between 10-1000Hz.
- GZ23GL features overcurrent protection.
- Epoxy resin solid encapsulation, shockproof and corrosion-resistant, with no arc flash during switching.
- Mainly used for contactless switch control devices requiring high switching frequencies, such as electromagnetic vibrators, rectification conversion for generators, and rapid charging and discharging of AC/DC.
