Specification
Single phase half wave rectifier dc solid state relay GZ11GS
Model | GZ11GS (Half-Wave Rectification) | GZ11GL (Half-Wave Overcurrent Protection) |
---|---|---|
Control Voltage | 12~15 VDC 18~36 VDC | 12~15 VDC 18~36 VDC |
Control Current | 60-85 mA 30-60 mA | 60-85 mA 30-60 mA |
Operation Indicator | LED Display | LED Display |
Shutdown Voltage | 12~15VDC: ≤10VDC | 18~36VDC: ≤12VDC |
Switching Time | ≤0.4 mS | ≤0.4 mS |
Input Power Supply | 240VAC 440VAC | 240VAC 440VAC |
Peak Current | 60~200A | 60~200A |
Output Voltage | (Input Power Voltage × 0.45V) - (2.5~4.5V) | (Input Power Voltage × 0.45V) - (2.5~4.5V) |
Overload Protection | None | 50% of Peak Current |
Isolation Voltage | ≥2000 V | ≥2000 V |
Insulation Voltage | ≥2500 V | ≥2500 V |
Operating Temperature | -30 to 75 ℃ | -30 to 75 ℃ |
Power Frequency Range | 10-1000 HZ | 10-1000 HZ |
Cooling Requirements | ≥30A with heat sink, ≥100A add fan for enhanced cooling | ≥30A with heat sink, ≥100A add fan for enhanced cooling |
Load Current Safety Factor | For resistive loads use 2-3 times, for inductive loads use 3-4 times. | For resistive loads use 2-3 times, for inductive loads use 3-4 times. |

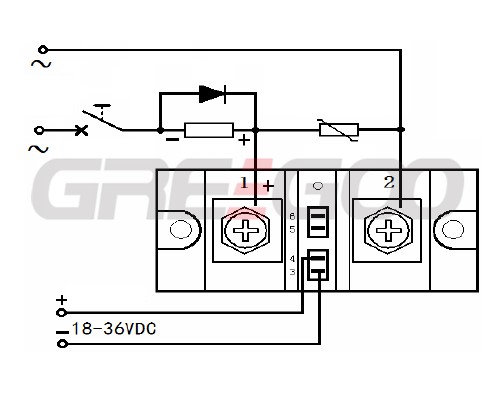

Product Details
- Optical and magnetic isolation between input and output circuits.
- LED indicates working status.
- Half-wave rectified solid-state contactless switch output, with a switching speed of <0.4ms.
- High operating frequency, capable of rapid on/off switching between 10-1000Hz.
- The GZ11GL model features overcurrent and short-circuit protection, instantly cutting off the load power in case of overcurrent.
- Mainly used for contactless switch control devices requiring high switching frequencies. Examples include electromagnetic vibrators, rectification conversion for generators, and rapid charging and discharging of AC/DC.
