Thyristor diode module 26-110A
Home Products Thyristor Diode ModuleDiode Thyristor ModuleThyristor diode module 26-110A
Product Details

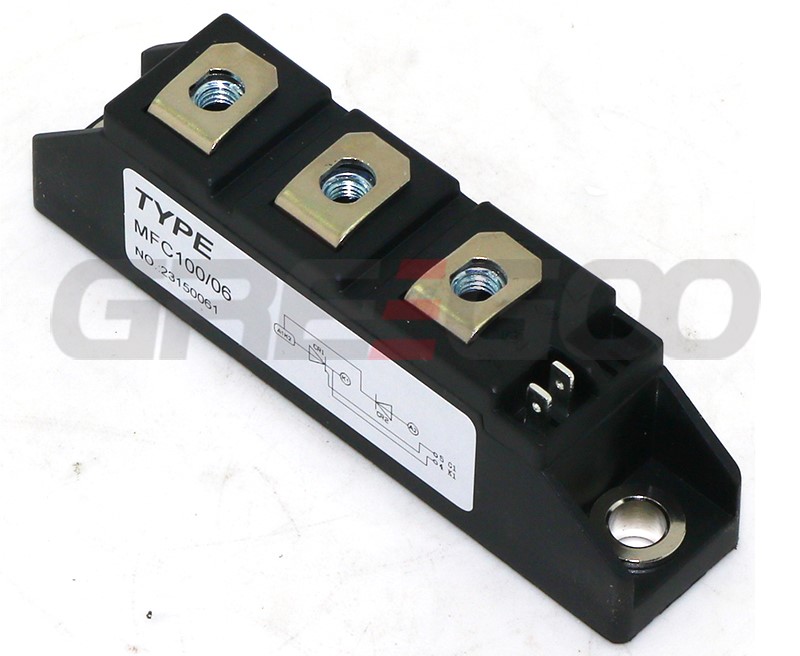

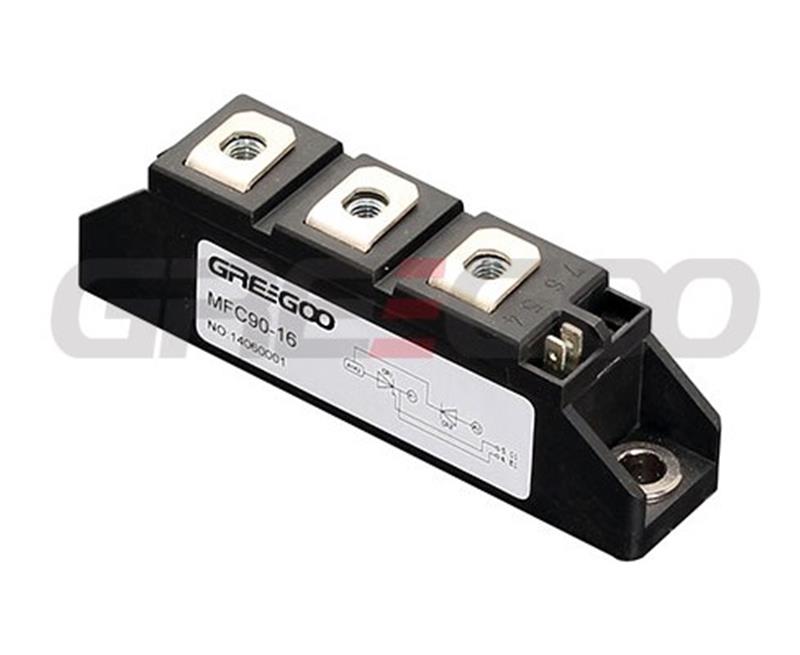

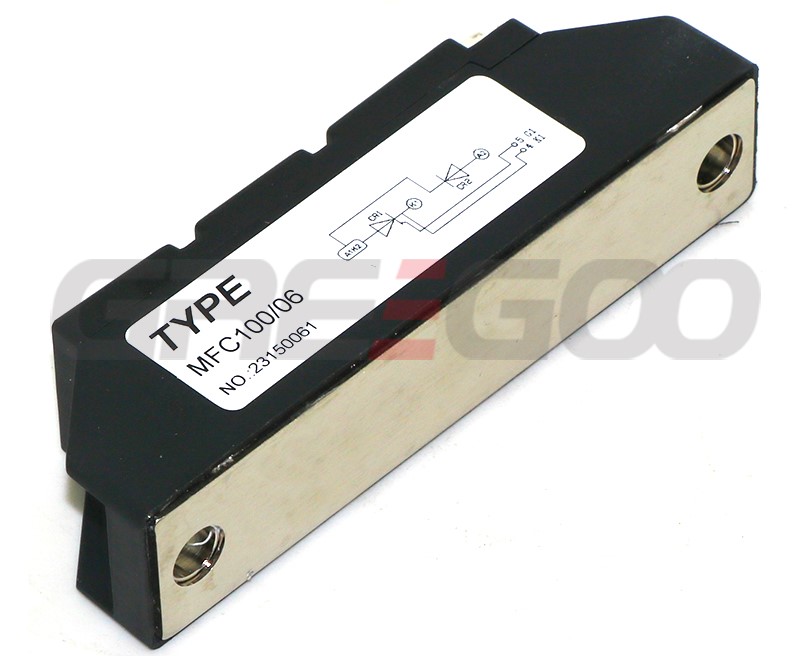

Thyristor diode module 26-110A
| Symbol | Meaning |
| M | Module |
| F | Phase control thyristor Rectifier diode (T D) |
| C | C - in series, A - common anode, K - common cathode, X - anti-parallel |
| 26 | Average current |
| 12 | Voltage code: code x 100 = VRRM |

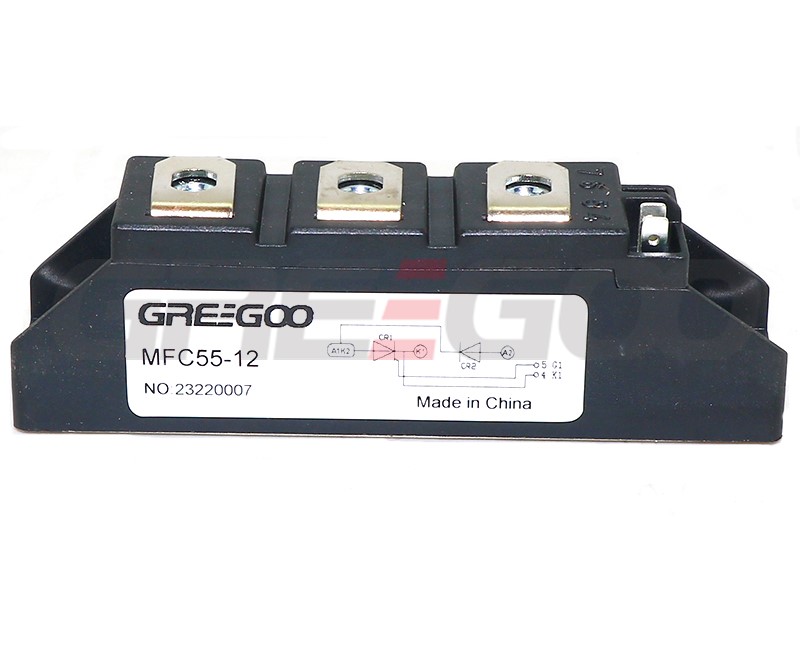

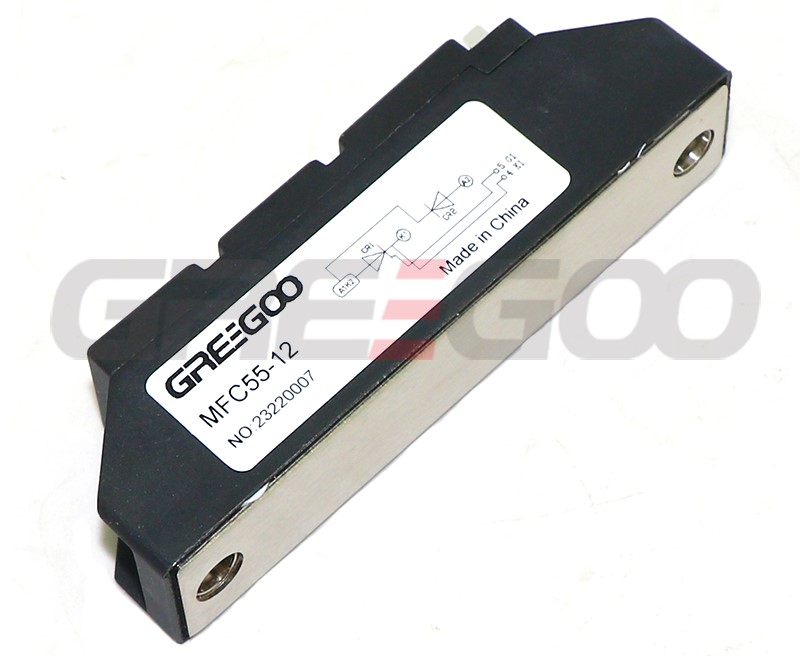

| Eg. | MFC26-12, thyristor diode module, in series connection, 26A, 1600V. |
| Type | VDRMVRRM | IT(AV) | ITSM | dv/dt | di/dt | IDRM | IGT | VGT | IH | VTM/VFM | VTO | rT | Rjc |
| IF(AV) | IFSM | IRRM | |||||||||||
| V | TC= | KA | V/us | A/us | mA | mA | V | mA | V /A | V | mΩ | oC/W | |
| 85oC A | |||||||||||||
| MFC26,MFA26,MFK26,MFX26 | 600-1800 | 26 | 0.55 | 800 | 50 | 8 | 100 | 2.5 | 100 | 1.69/80 | 0.85 | 9.68 | 0.95 |
| MFC40,MFA40,MFK40,MFX40 | 600-1800 | 40 | 1 | 800 | 50 | 8 | 100 | 2.5 | 100 | 1.60/120 | 0.85 | 5.57 | 0.65 |
| MFC55,MFA55,MFK55,MFX55 | 600-1800 | 55 | 1.25 | 800 | 50 | 8 | 100 | 2.5 | 100 | 1.50/170 | 0.85 | 3.47 | 0.53 |
| MFC70,MFA70,MFK70,MFX70 | 600-1800 | 70 | 1.6 | 800 | 50 | 10 | 100 | 2.5 | 100 | 1.48/210 | 0.8 | 2.64 | 0.41 |

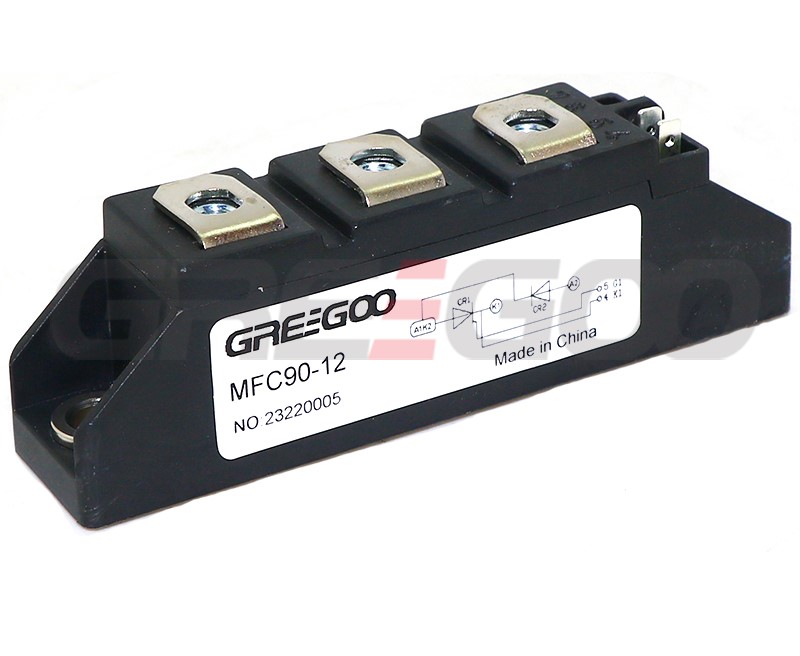

| MFC90,MFA90,MFK90,MFX90 | 600-1800 | 90 | 2 | 800 | 100 | 10 | 100 | 2.5 | 100 | 1.70/270 | 0.8 | 3.01 | 0.28 |

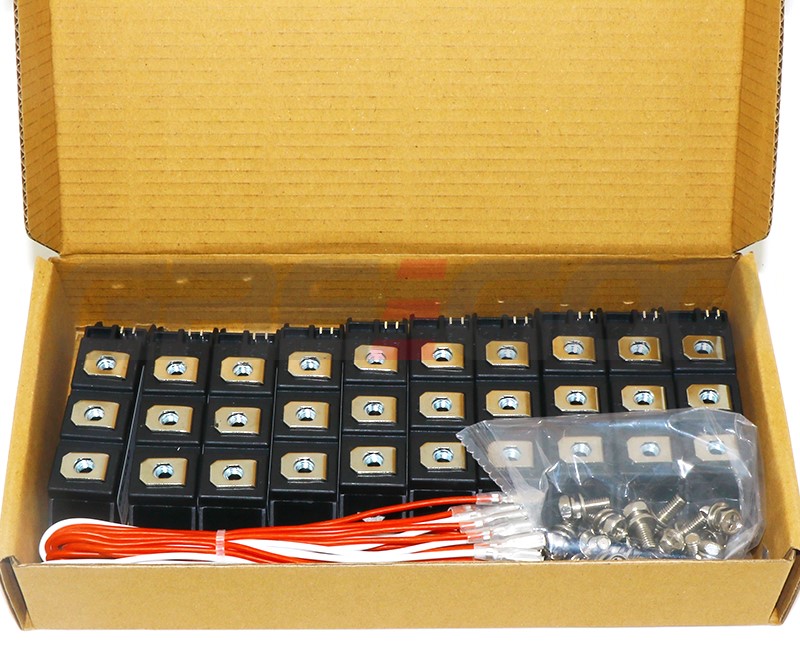

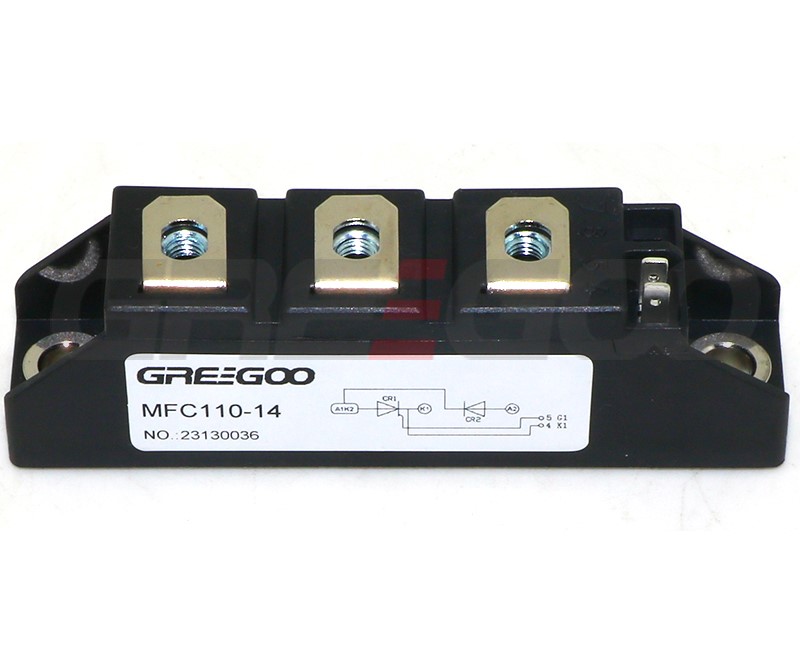

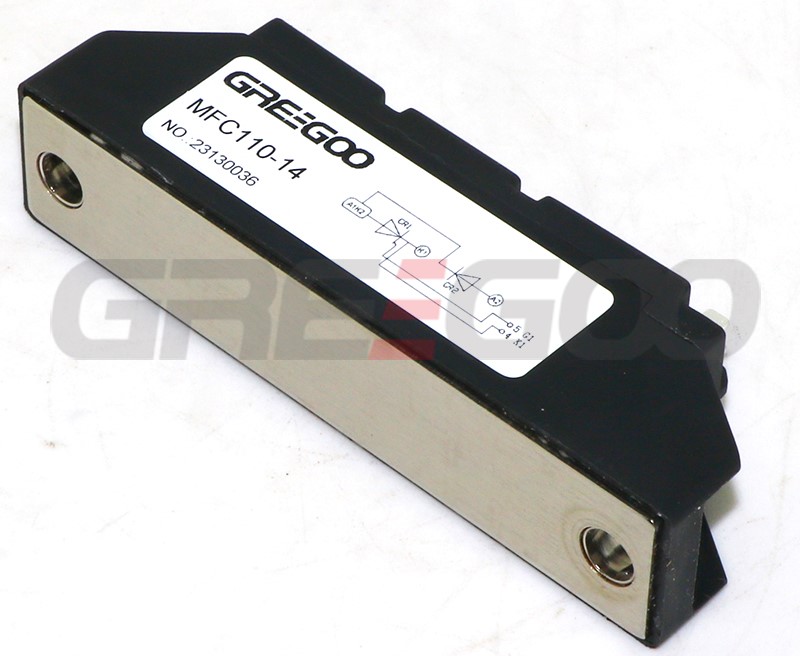

| MFC110,MFA110,MFK110,MFX110 | 600-1800 | 110 | 2.4 | 800 | 100 | 12 | 100 | 2.5 | 100 | 1.69/330 | 0.8 | 2.29 | 0.25 |
