Thyristor diode module 135-182A
Home Products Thyristor Diode ModuleDiode Thyristor Module (MFx series)Thyristor diode module 135-182A
Product Details

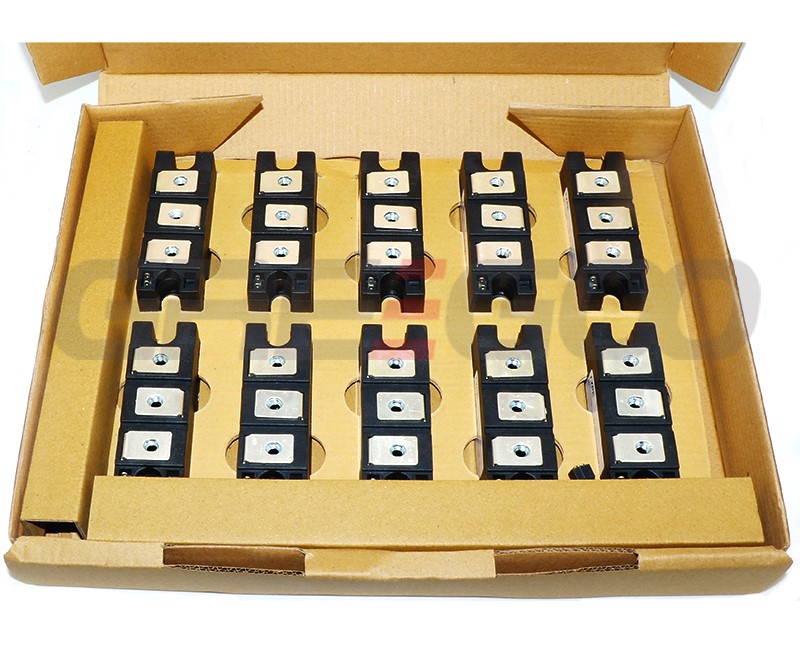

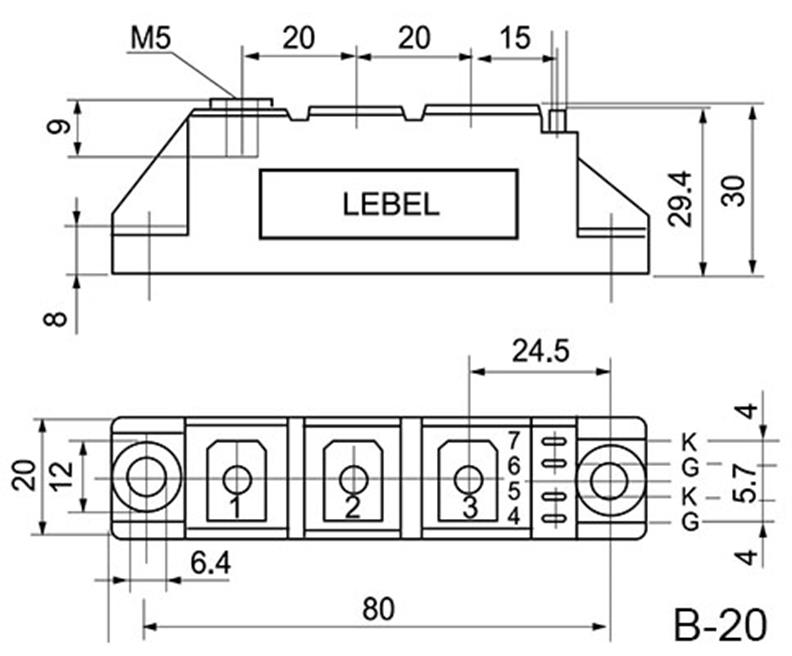

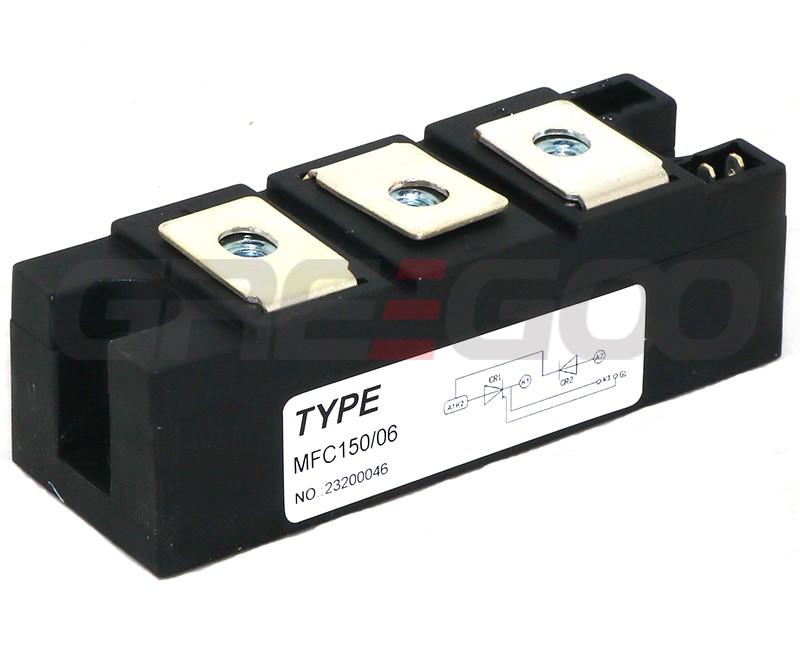

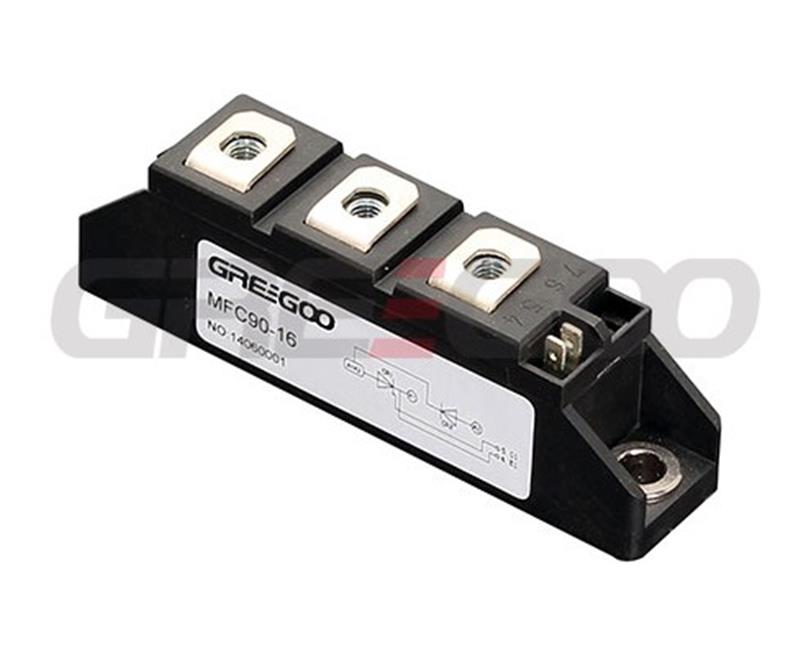

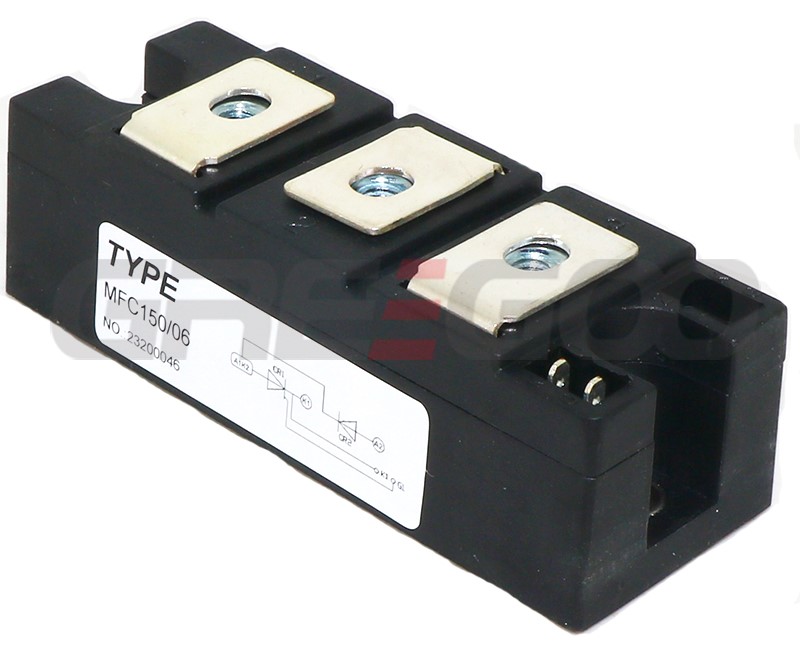

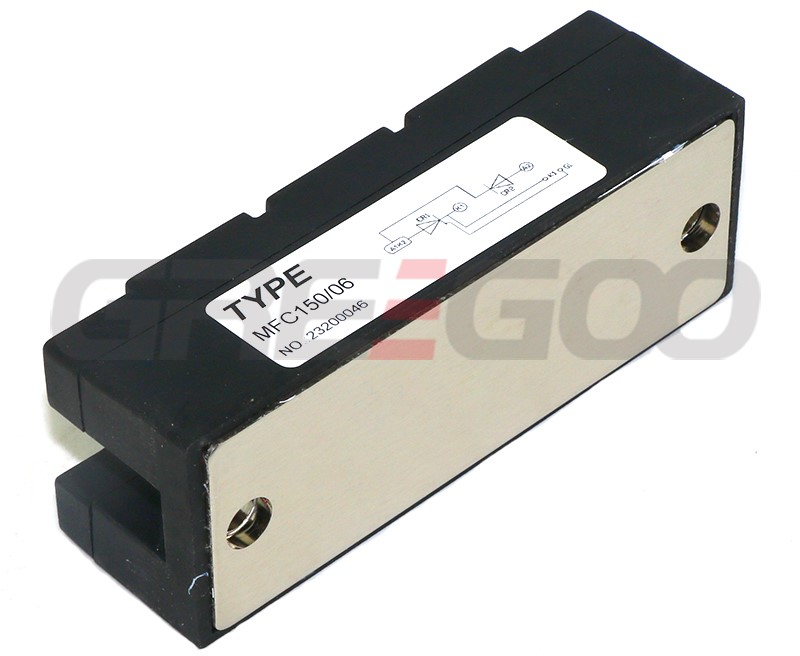

Thyristor diode module 135-182A
| Symbol | Meaning |
| M | Module |
| F | Phase control thyristor Rectifier diode (T D) |
| C | C - in series, A - common anode, K - common cathode, X - anti-parallel |
| 26 | Average current |
| 12 | Voltage code: code x 100 = VRRM |
| Eg. | MFC26-12, thyristor diode module, in series connection, 26A, 1600V. |
| Type | VDRMVRRM | IT(AV) | ITSM | dv/dt | di/dt | IDRM | IGT | VGT | IH | VTM/VFM | VTO | rT | Rjc |
| IF(AV) | IFSM | IRRM | |||||||||||
| V | TC= | KA | V/us | A/us | mA | mA | V | mA | V /A | V | mΩ | oC/W | |
| 85oC A | |||||||||||||
| MFC135,MFA135,MFK135,MFX135 | 600-1800 | 135 | 2 | 800 | 100 | 20 | 100 | 2.5 | 100 | 1.75/410 | 0.8 | 2.85 | 0.35 |
| MFC160,MFA160,MFK160,MFX160 | 600-1800 | 160 | 5.4 | 800 | 100 | 20 | 150 | 2.5 | 100 | 170/480 | 0.8 | 1.69 | 0.17 |
| MFC182,MFA182,MFK182,MFX182 | 600-1800 | 182 | 5.8 | 800 | 100 | 25 | 150 | 2.5 | 100 | 1.62/550 | 0.8 | 1.26 | 0.16 |
