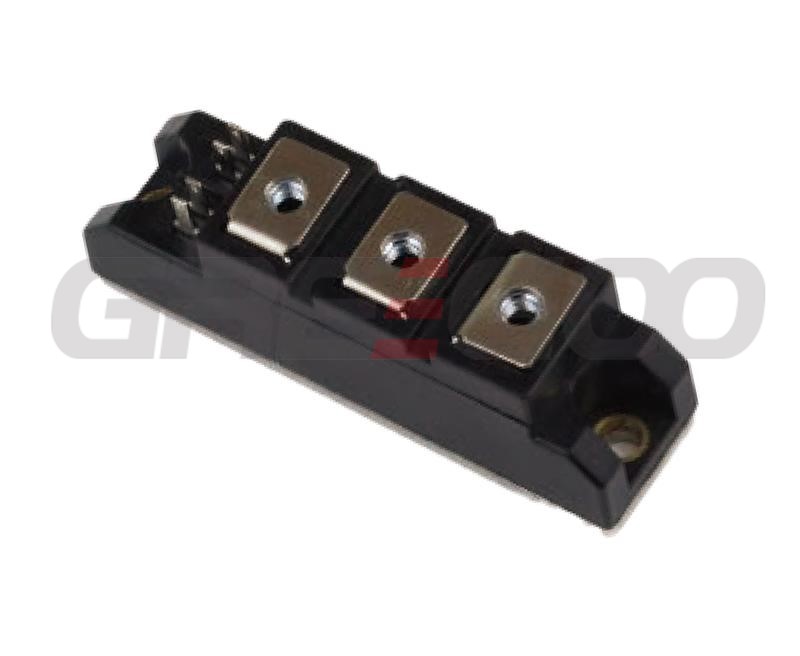

Power Thyristor Diode Module - Sanrex PK PD PE 25A to 110A

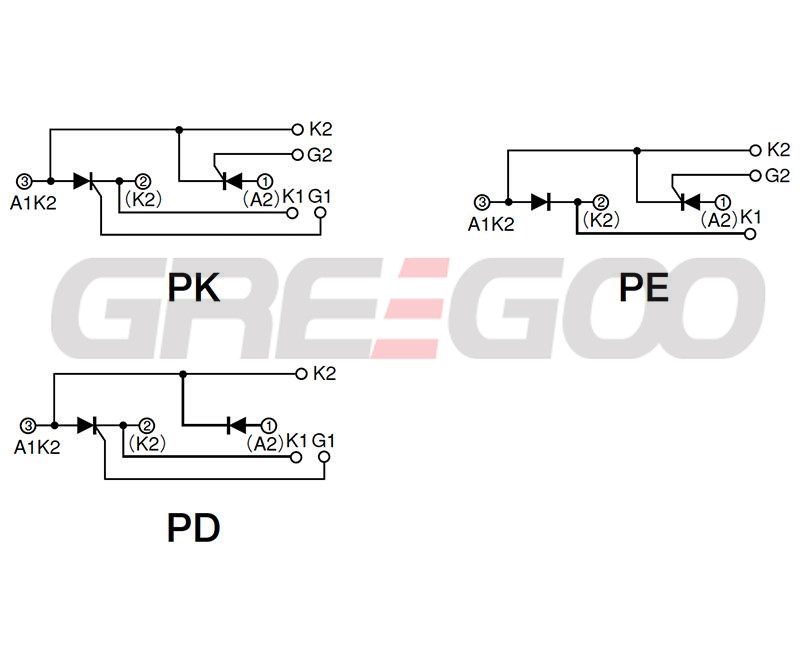

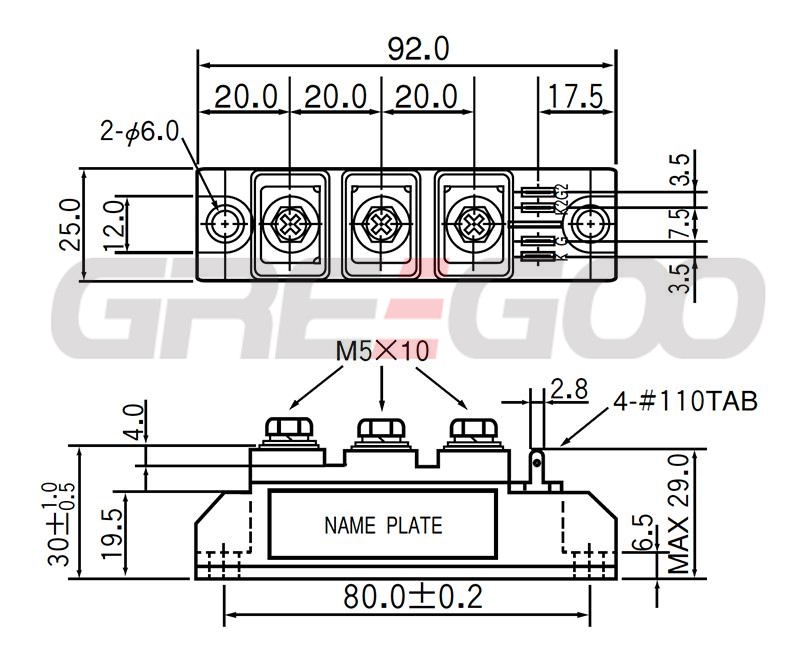

Power Thyristor/Diode Module PK PD PE series are designed for various rectifier circuits and power controls. For your circuit application, following internal connections and wide voltage ratings up to 1600V are available. and electrically isolated mounting base make your mechanical design easy.

Applications

Various rectifiers
AC/DC motor drives
Heater controls
Light dimmers
Static switches

Part number

MODEL	VRRM	VRSM	VDRM
PK110FG80	800	960	800
PD110FG80	800	960	800
PE110FG80	800	960	800
PK110FG120	1200	1300	1200
PD110FG120	1200	1300	1200
PE110FG120	1200	1300	1200
PK110FG160	1600	1700	1600
PD110FG160	1600	1700	1600
PE110FG160	1600	1700	1600

PK90FG80	800	960	800
PD90FG80	800	960	800
PE90FG80	800	960	800
PK90FG120	1200	1300	1200
PD90FG120	1200	1300	1200
PE90FG120	1200	1300	1200
PK90FG160	1600	1700	1600
PD90FG160	1600	1700	1600
PE90FG160	1600	1700	1600

PK70FG80	800	960	800
PD70FG80	800	960	800
PE70FG80	800	960	800
PK70FG120	1200	1300	1200
PD70FG120	1200	1300	1200
PE70FG120	1200	1300	1200
PK70FG160	1600	1700	1600
PD70FG160	1600	1700	1600
PE70FG160	1600	1700	1600

PK55FG80	800	960	800
PD55FG80	800	960	800
PE55FG80	800	960	800
PK55FG120	1200	1300	1200
PD55FG120	1200	1300	1200
PE55FG120	1200	1300	1200
PK55FG160	1600	1700	1600
PD55FG160	1600	1700	1600
PE55FG160	1600	1700	1600

PK40FG80	800	960	800
PD40FG80	800	960	800
PE40FG80	800	960	800
PK40FG120	1200	1300	1200
PD40FG120	1200	1300	1200
PE40FG120	1200	1300	1200
PK40FG160	1600	1700	1600
PD40FG160	1600	1700	1600
PE40FG160	1600	1700	1600

PK25FG80	800	960	800
PD25FG80	800	960	800
PE25FG80	800	960	800
PK25FG120	1200	1300	1200
PD25FG120	1200	1300	1200
PE25FG120	1200	1300	1200
PK25FG160	1600	1700	1600
PD25FG160	1600	1700	1600
PE25FG160	1600	1700	1600
