Thyristor diode module 800A 1000A 1200A
Home Products Thyristor Diode ModuleDiode Thyristor ModuleThyristor diode module 800A 1000A 1200A
Product Details

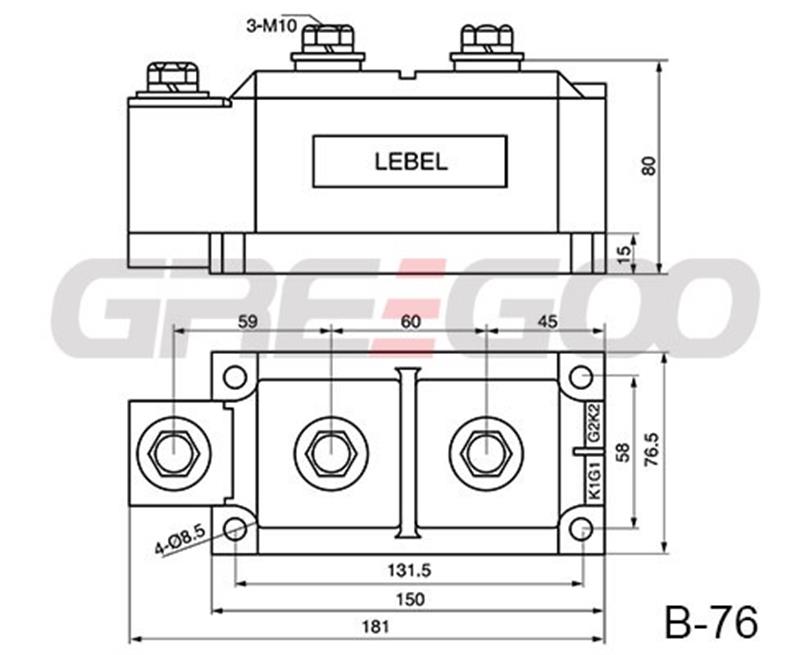

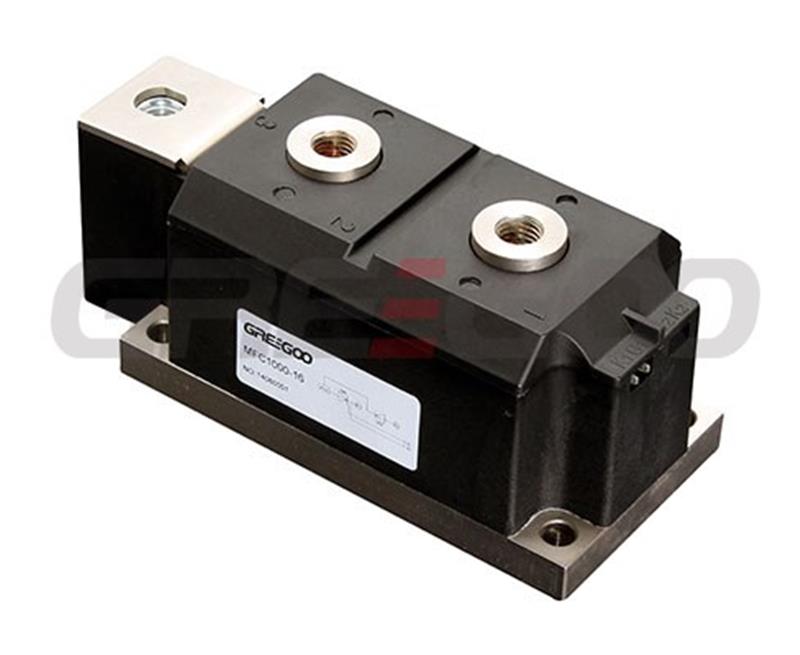

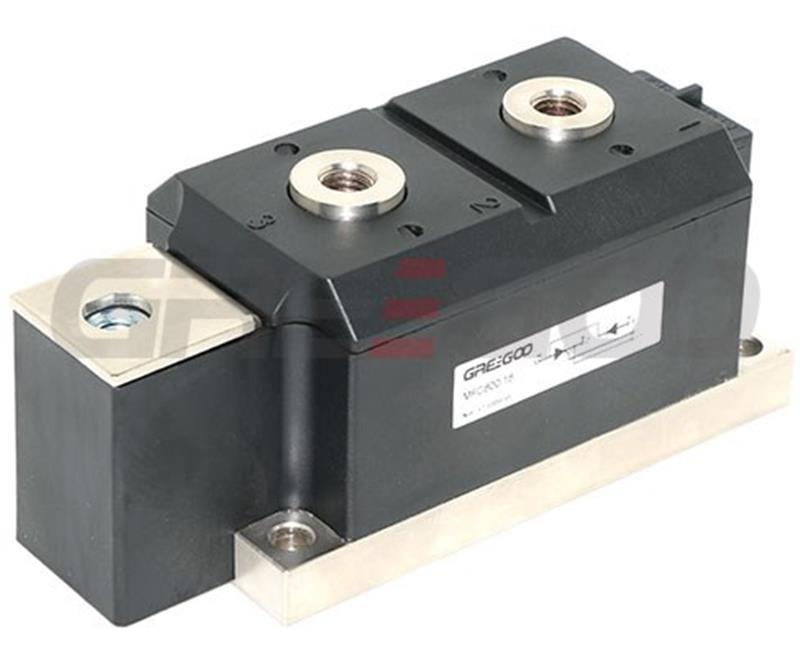

Thyristor diode module 800A 1000A 1200A
| Symbol | Meaning |
| M | Module |
| F | Phase control thyristor Rectifier diode (T D) |
| C | C - in series, A - common anode, K - common cathode, X - anti-parallel |
| 26 | Average current |
| 12 | Voltage code: code x 100 = VRRM |
| Eg. | MFC26-12, thyristor diode module, in series connection, 26A, 1600V. |
| Type | VDRMVRRM | IT(AV) | ITSM | dv/dt | di/dt | IDRM | IGT | VGT | IH | VTM/VFM | VTO | rT | Rjc |
| IF(AV) | IFSM | IRRM | |||||||||||
| V | TC= | KA | V/us | A/us | mA | mA | V | mA | V /A | V | mΩ | oC/W | |
| 85oC A | |||||||||||||
| MFC800,MFA800,MFK800,MFX800 | 600-1800 | 800 | 16 | 800 | 100 | 40 | 200 | 3 | 100 | 1.86/2400 | 0.8 | 0.42 | 0.054 |
| MFC1000,MFA1000,MFK1000,MFX1000 | 600-1800 | 1000 | 20 | 800 | 100 | 60 | 200 | 3 | 100 | 1.96/3000 | 0.8 | 0.34 | 0.053 |
| MFC1200,MFA1200,MFK1200,MFX1200 | 600-1800 | 1200 | 24 | 800 | 100 | 70 | 200 | 3 | 100 | 1.98/3000 | 0.8 | 0.29 | 0.051 |
