Three phase half controlled bridge rectifier 110A 175A 200A
Features
• Package with screw terminals
• Isolation voltage 3000 V~
• Planar passivated chips
Applications
• Input rectifier for PWM converter
• Input rectifier for switch mode power supplies (SMPS)
• Softstart capacitor charging
Advantages
• Easy to mount with two screws
• Space and weight savings
• Improved temperature and power cycling

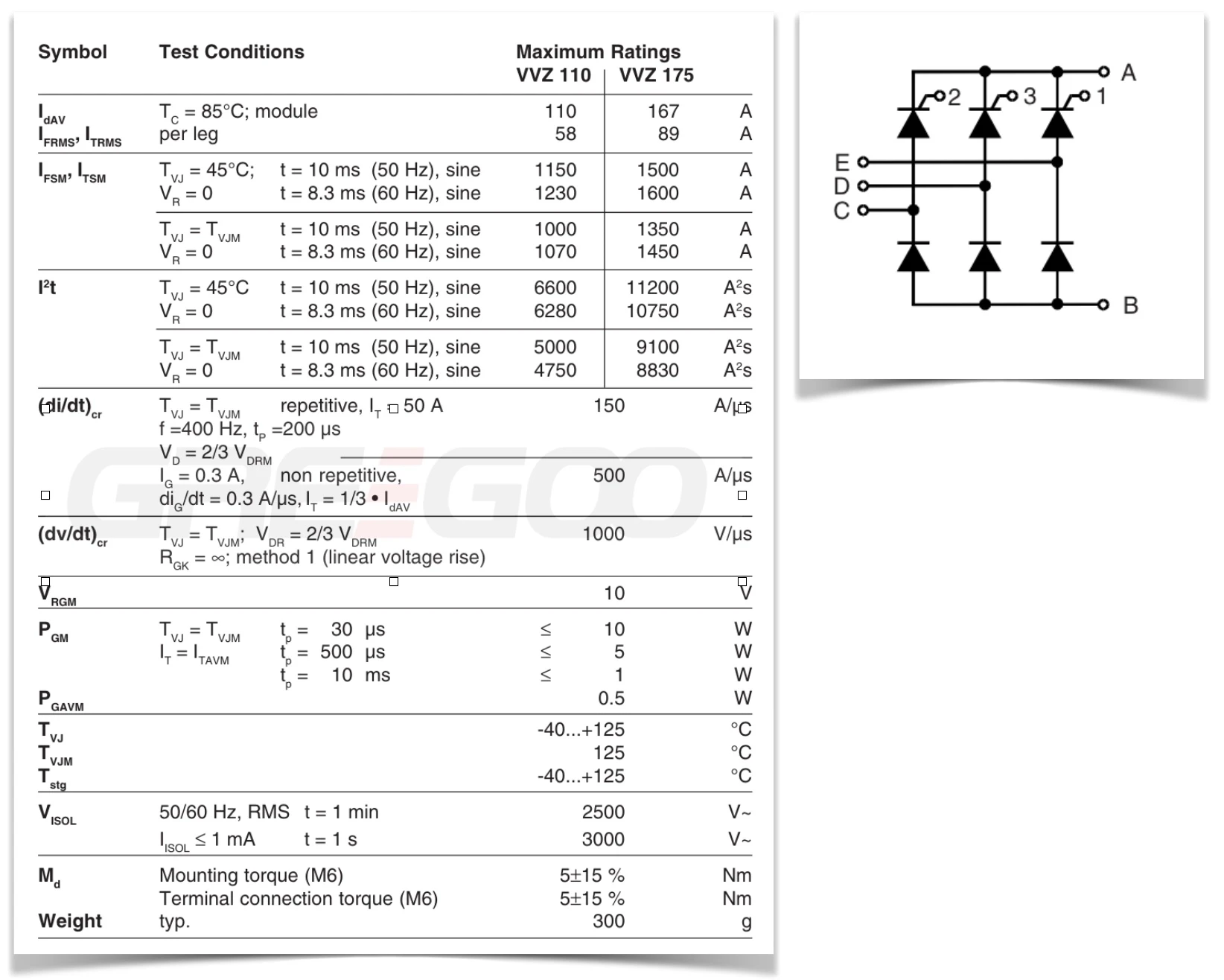

VVZ110 VVZ175 Three Phase Half Controlled Rectifier Bridge, B6HK

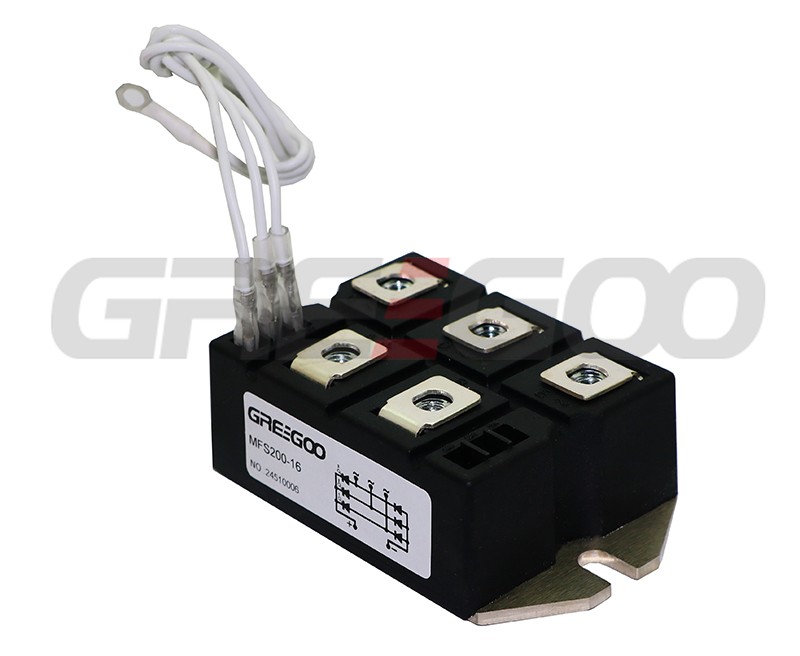

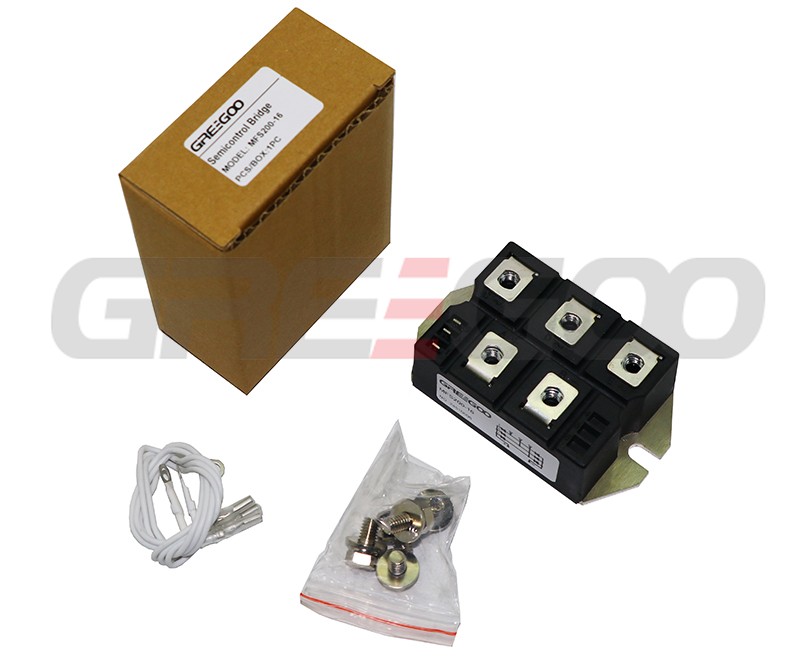

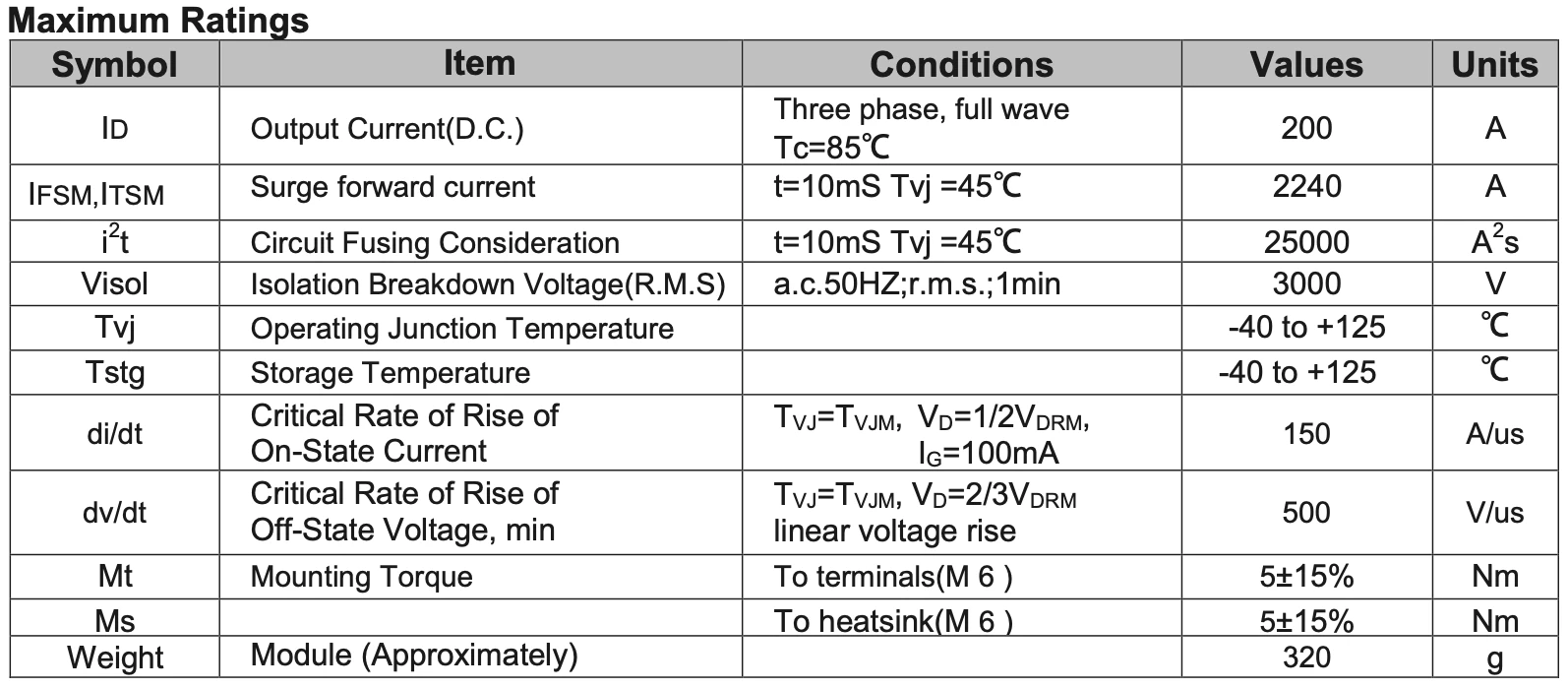

Three phase half controlled bridge rectifier 200A
| MODEL | IFAV | VFM | VRRM | IRRM | IFSM |
| A | V | V | mA | A | |
| MFS-200-08 | 200 | 1.6 | 800 | 15 | 1800 |
| MFS-200-12 | 200 | 1.6 | 1200 | 15 | 1800 |
| MFS-200-16 | 200 | 1.6 | 1600 | 15 | 1800 |
| MFS-200-18 | 200 | 1.6 | 1800 | 15 | 1800 |
Need more information?
Contact us to request pricing, availability and customization options.
