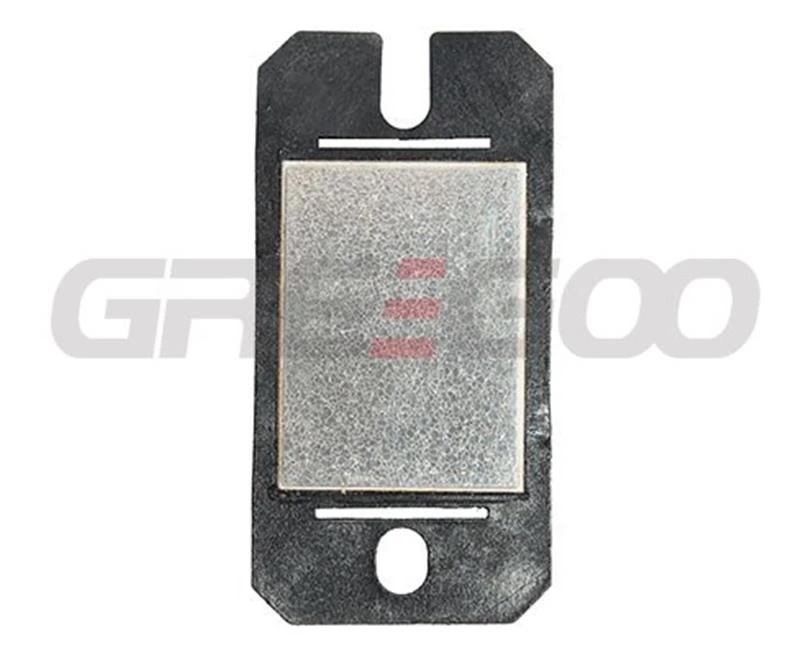

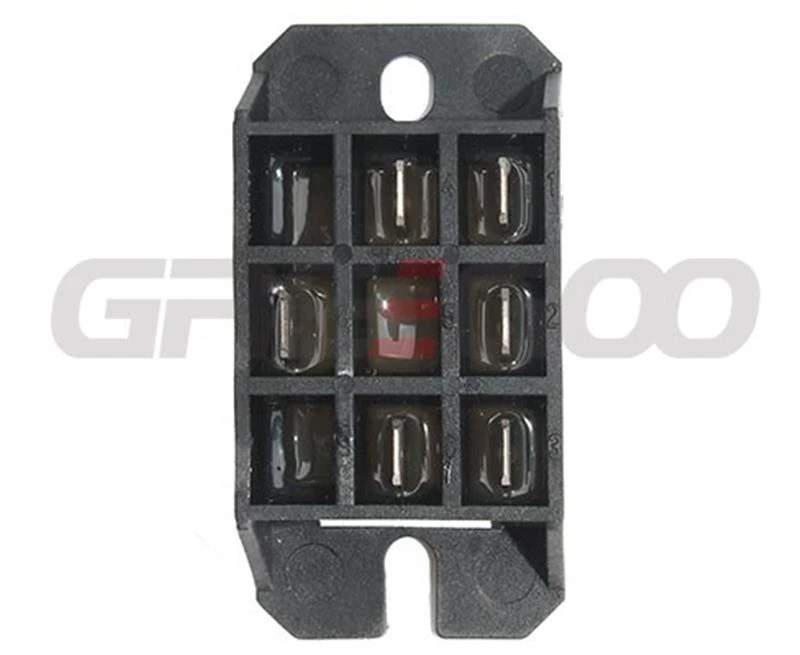

1 Phase Half Controlled Rectifier Bridge with Freewheeling Diode

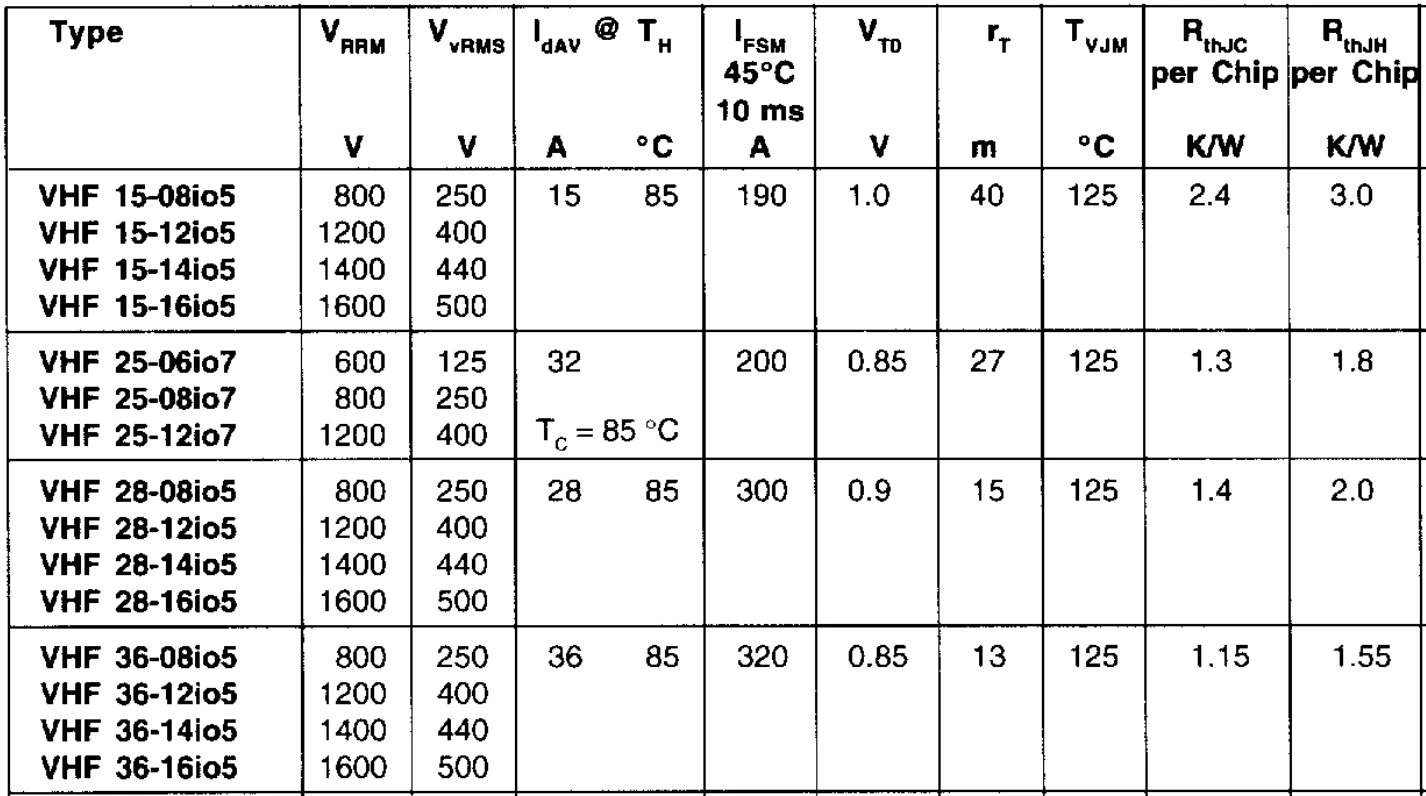

1-Phase Half Controlled Bridges
| Part Number | VRRM | IDAVM | @TH | @Tc | IFSM | VT0 | rT | Tvjm | RthJC | RthJH |
| (V) | (A) | (°C) | (°C) | 10ms | (V) | (mOhms) | (°C) | per chip | per chip | |
| (A) | (K/W) | (K/W) | ||||||||
| VHF36 | 800-1600 | 36 | 85 | - | 320 | 0.85 | 13 | 125 | 1.15 | 1.55 |
| VHF28 | 800-1600 | 28 | 85 | - | 300 | 0.9 | 15 | 125 | 1.4 | 2 |
| VHF15 | 800-1600 | 15 | 85 | - | 190 | 1 | 40 | 125 | 2.4 | 3 |
VHF15-08io5, VHF15-12io5, VHF15-14io5, VHF15-16io5, VHF25-06io7, VHF25-08io7, VHF25-12io7, VHF28-08io5, VHF28-12io5, VHF28-14io5, VHF28-16io5, VHF36-08io5, VHF36-12io5, VHF36-14io5, VHF36-16io5
Need more information?
Contact us to request pricing, availability and customization options.
Single phase half controlled bridge rectifier 160A to 200A
Single phase half controlled bridge rectifier 160A and 200A
Three phase half controlled bridge rectifier 400A/500A
Three phase half controlled bridge rectifier 400A/500A
Single phase and 3 phase half controlled bridge rectifier 30A to 500A
General datasheet
Single phase half controlled bridge rectifier 40A to 150A
Single phase half controlled bridge rectifier 40A, 50A, 60A, 100A and 150A.
