Single Phase Half Controlled Bridge Modules with Free Wheeling Diode
Home Products Diode Bridge ModuleHalf Controlled Bridge RectifierSingle Phase Half Controlled Bridge Modules with Free Wheeling Diode
Product Details

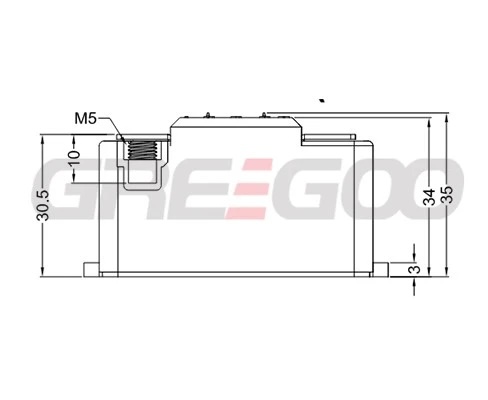

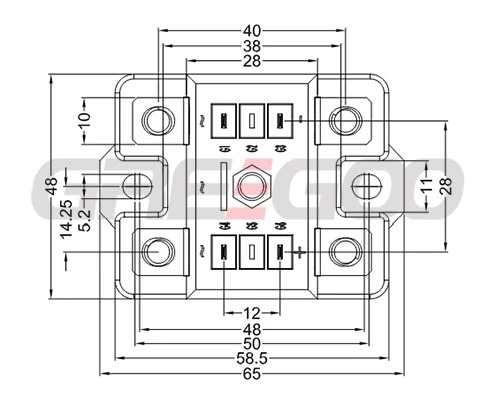

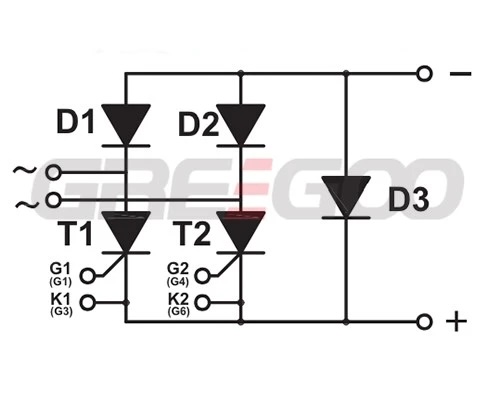

Single Phase Half Controlled Bridge Modules with Free Wheeling Diode
| TYPE | ITVM @TC | VDRM | ITSM | VTO | rT | dv/dt | TVJM | RthJC | |
| /VRRM | 45°C/10ms | per chip | |||||||
| A | °C | V | A | V | mΩ | V/μs | °C | K/W | |
| G1PHB41GK08B | 40 | 85 | 800 | 430 | 0.88 | 13 | 1000 | 125 | 0.98 |
| G1PHB41GK12B | 40 | 85 | 1200 | 430 | 0.88 | 13 | 1000 | 125 | 0.98 |
| G1PHB41GK14B | 40 | 85 | 1400 | 430 | 0.88 | 13 | 1000 | 125 | 0.98 |
| G1PHB41GK16B | 40 | 85 | 1600 | 430 | 0.88 | 13 | 1000 | 125 | 0.98 |
| G1PHB41GK18B | 40 | 85 | 1800 | 430 | 0.88 | 13 | 1000 | 125 | 0.98 |
| G1PHB50GK08B | 50 | 85 | 800 | 540 | 1.64 | 11 | 1000 | 125 | 0.90 |
| G1PHB50GK12B | 50 | 85 | 1200 | 540 | 1.64 | 11 | 1000 | 125 | 0.90 |
| G1PHB50GK14B | 50 | 85 | 1400 | 540 | 1.64 | 11 | 1000 | 125 | 0.90 |
| G1PHB50GK16B | 50 | 85 | 1600 | 540 | 1.64 | 11 | 1000 | 125 | 0.90 |
| G1PHB50GK18B | 50 | 85 | 1800 | 540 | 1.64 | 11 | 1000 | 125 | 0.90 |
| G1PHB75GK08B | 75 | 85 | 800 | 810 | 0.83 | 10.5 | 1000 | 125 | 0.85 |
| G1PHB75GK12B | 75 | 85 | 1200 | 810 | 0.83 | 10.5 | 1000 | 125 | 0.85 |
| G1PHB75GK14B | 75 | 85 | 1400 | 810 | 0.83 | 10.5 | 1000 | 125 | 0.85 |
| G1PHB75GK16B | 75 | 85 | 1600 | 810 | 0.83 | 10.5 | 1000 | 125 | 0.85 |
| G1PHB75GK18B | 75 | 85 | 1800 | 810 | 0.83 | 10.5 | 1000 | 125 | 0.85 |
