Single phase and 3 phase half controlled bridge rectifier 30A to 500A

Home Products Diode Bridge ModuleHalf Controlled Bridge RectifierSingle phase and 3 phase half controlled bridge rectifier 30A to 500A

MFQ-200-half controlled bridge rectifier
MFQ-200-half controlled bridge rectifier

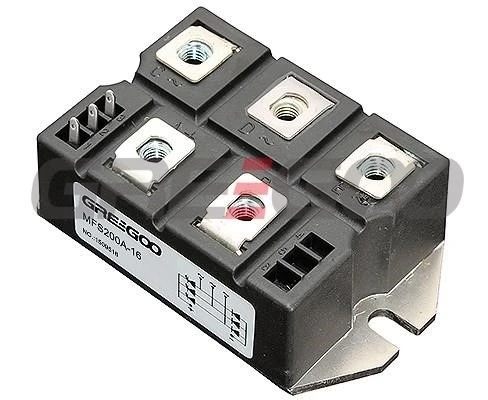

MFS-200-half controlled bridge rectifier
Product Details

Single phase and 3 phase half controlled bridge rectifier 30A to 500A



Type VDRM ID TC IFSM I2t VT0 RT0 VISO IRRM VFM IFM VGT IGT IH Rth(c-h) Rth(j-c)
  VRRM     ITSM (A2S) VF0 RF0   IDRM VTM ITM         (℃/W)
  (V) (A) (℃) (A)   (V) (mΩ) (V) (mA) (V) (A) (V) (mA) (mA)
MTQ-30 600-2500 30 85 570 1620 0.9 7.31 2500 10 1.54 45 2 100 100 0.1 1.018
MTQ-60 600-2500 60 85 1095 5995 0.9 3.84 2500 10 1.5 90 2 100 100 0.1 0.584
MTQ-100 600-2500 100 85 1560 12200 0.8 2.72 2500 10 1.48 150 2 100 100 0.1 0.376
MTQ-150 600-2500 150 85 2680 35900 0.8 1.92 2500 15 1.52 225 2.5 100 100 0.05 0.244
MTQ-200 600-2500 200 80 4600 105800 0.8 1.64 2500 15 1.62 300 2.5 150 150 0.05 0.195
MTQ-250 600-2500 250 80 6780 229800 0.85 1.14 2500 20 1.6 375 2.5 150 150 0.05 0.149
MTQ-300 600-2500 300 80 7800 304200 0.75 1.06 2500 20 1.58 450 2.5 150 150 0.02 0.128
MTQ-400 600-2500 400 80 8450 357000 0.75 1.02 2500 30 1.64 600 3 200 200 0.02 0.111
MTQ-500 600-2500 500 80 9880 488000 0.8 0.76 2500 30 1.65 750 3 200 200 0.02 0.102
MTS-60 600-2500 60 85 510 1300 0.9 7.94 2500 10 1.52 75 2 100 100 0.1 1.153
MTS-100 600-2500 100 85 920 4230 0.9 4.4 2500 10 1.45 120 2 100 100 0.1 0.749
MTS-160 600-2500 160 85 1200 7200 0.9 3.38 2500 10 1.48 165 2 100 100 0.1 0.536
MTS-200 600-2500 200 85 1780 15800 0.8 2.49 2500 10 1.5 270 2.5 100 100 0.1 0.329
MTS-300 600-2500 300 85 2380 28300 0.8 2.07 2500 10 1.51 330 2.5 150 150 0.1 0.268
MTS-400 600-2500 400 85 4680 110000 0.9 1.4 2500 20 1.6 480 2.5 150 150 0.5 0.172
MTS-500 600-2500 500 85 6600 218000 0.9 1.09 2500 20 1.58 600 2.5 150 150 0.05 0.139
MTS-600 600-2500 600 85 7830 307000 0.9 0.85 2500 20 1.56 750 2.5 200 200 0.05 0.113
MTS-700 600-2500 700 85 8850 392000 0.7 0.94 2500 20 1.58 900 3 200 200 0.05 0.096
MTS-800 600-2500 800 80 9800 480000 0.7 0.82 2500 30 1.6 1050 3 250 250 0.03 0.091
