Single phase half controlled bridge rectifier 40A to 150A
Home Products Diode Bridge ModuleHalf Controlled Bridge RectifierSingle phase half controlled bridge rectifier 40A to 150A
Product Details

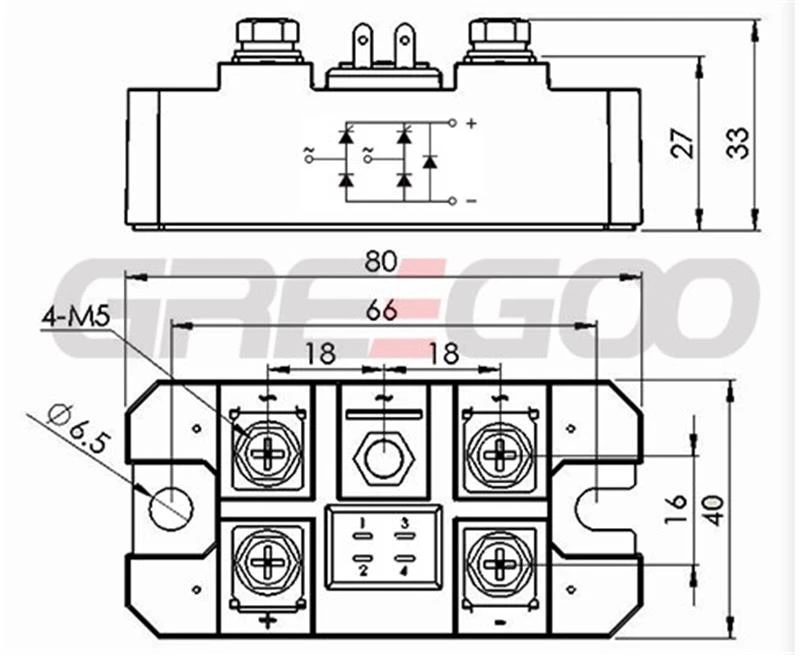

Single phase half controlled bridge rectifier 40A to 150A
| MODEL | IFAV | VFM | VRRM | IRRM | IFSM |
| A | V | V | mA | A | |
| MFQ-40-08 | 40 | 1.6 | 800 | 8 | 480 |
| MFQ-40-12 | 40 | 1.6 | 1200 | 8 | 480 |
| MFQ-40-16 | 40 | 1.6 | 1600 | 8 | 480 |
| MFQ-40-18 | 40 | 1.6 | 1800 | 8 | 480 |
| MFQ-50-08 | 50 | 1.6 | 800 | 8 | 600 |
| MFQ-50-12 | 50 | 1.6 | 1200 | 8 | 600 |
| MFQ-50-16 | 50 | 1.6 | 1600 | 8 | 600 |
| MFQ-50-18 | 50 | 1.6 | 1800 | 8 | 600 |
| MFQ-60-08 | 60 | 1.6 | 800 | 8 | 720 |
| MFQ-60-12 | 60 | 1.6 | 1200 | 8 | 720 |
| MFQ-60-16 | 60 | 1.6 | 1600 | 8 | 720 |
| MFQ-60-18 | 60 | 1.6 | 1800 | 8 | 720 |
| MFQ-100-08 | 100 | 1.6 | 800 | 8 | 1000 |
| MFQ-100-12 | 100 | 1.6 | 1200 | 8 | 1000 |
| MFQ-100-16 | 100 | 1.6 | 1600 | 8 | 1000 |
| MFQ-100-18 | 100 | 1.6 | 1800 | 8 | 1000 |
| MFQ-150-08 | 150 | 1.6 | 800 | 10 | 1500 |
| MFQ-150-12 | 150 | 1.6 | 1200 | 10 | 1500 |
| MFQ-150-16 | 150 | 1.6 | 1600 | 10 | 1500 |
| MFQ-150-18 | 150 | 1.6 | 1800 | 10 | 1500 |
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
