Single phase full wave rectifier solid state relay GZ12 GZ14
- The weak electric part and the strong electric part are optically isolated.
- The control signal is interfaced with TTL logic.
- The strong electric control switch consists of thyristors and rectifier tubes.
- Light-emitting diodes indicate the working status.
- It is widely used in electrolysis, electroplating, electromagnetic vibration, electromagnetic iron absorption, DC power supplies, rolling mill motors, and other equipment for contactless switch control.

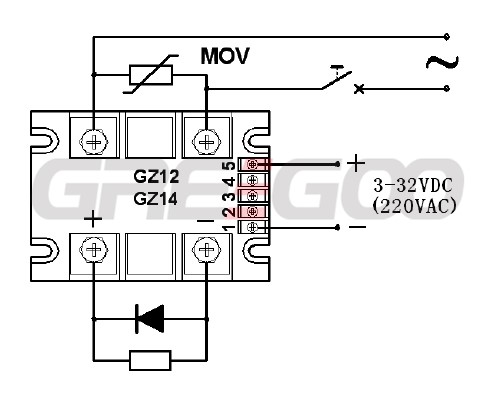

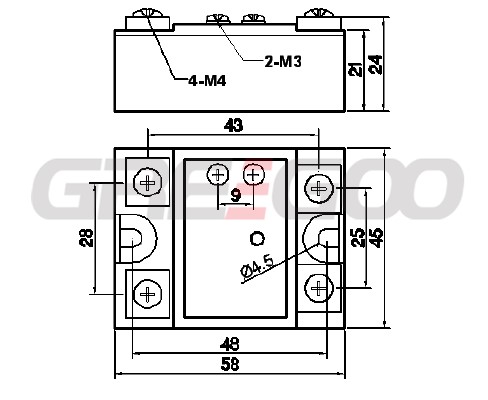

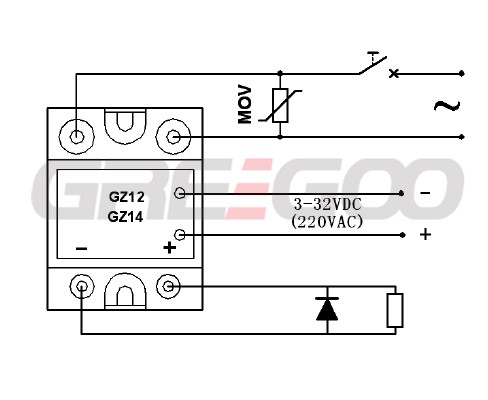

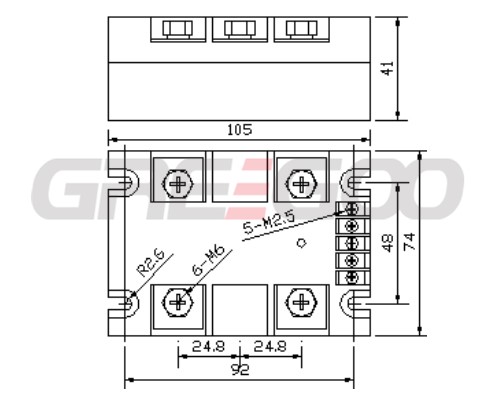

Specification
| Parameter | GZ12 (Full-Wave Rectification) | GZ14 (Full-Wave Rectification) |
|---|---|---|
| Input Power Voltage | 240 VAC 440 VAC | 240 VAC440 VAC |
| Output Rectified Voltage | Input Power Voltage × 0.9 VDC | Input Power Voltage × 0.9 VDC |
| Maximum Rectified Current | 10～500 A | 10～500 A |
| Control Voltage | 3～32 VDC | 160～240 VAC |
| Control Current | ≤25 mA | ≤25 mA |
| Isolation Voltage | ≥2500 V | ≥2500 V |
| Insulation Voltage | ≥2500 V | ≥2500 V |
| Insulation Resistance | ≥100 MΩ | ≥100 MΩ |
| Power Frequency | 50～60 HZ | 50～60 HZ |
| Operating Temperature | -20～75℃ | -20～75℃ |
| Cooling Conditions | ≥30A with heatsink, ≥120A add fan for enhanced cooling | ≥30A with heatsink, ≥120A add fan for enhanced cooling |
| Load Current Safety Factor | Resistive load: 2-3 times, Inductive load: 3-6 times | Resistive load: 2-3 times, Inductive load: 3-6 times |
