Specification
Single phase half wave rectifier solid state relay GZ11 GZ13
Type | GZ11 (Half-Wave Rectification) | GZ13 (Half-Wave Rectification) |
---|---|---|
Input Power |
240 VAC 240VAC |
|
Rectified Voltage | Input Power Voltage × 0.45 VDC | |
Maximum Load Current | 10~300 A | |
Control Voltage | 3~32 VDC | 160~240 VAC |
Control Current | ≤25 mA | |
Isolation Voltage | ≥2500 V | |
Insulation Voltage | ≥2500 V | |
Insulation Resistance | ≥100 MΩ | |
Power Frequency | 50~60 HZ | |
Operating Temperature | -25~75℃ | |
Cooling Conditions | Heat sink required for ≥30A, fan cooling required for ≥120A | |
Load Current Safety Factor | 2-3 times for resistive loads, 3-6 times for inductive loads |

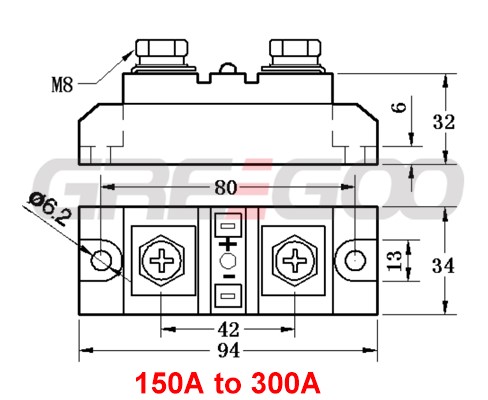

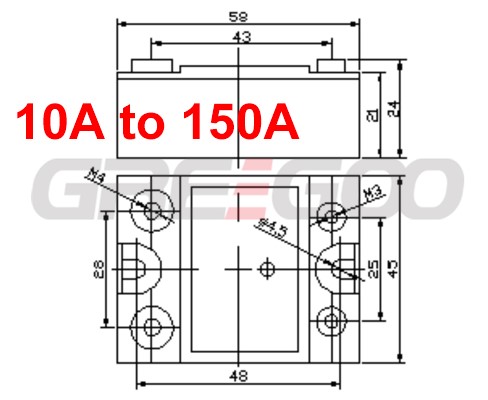

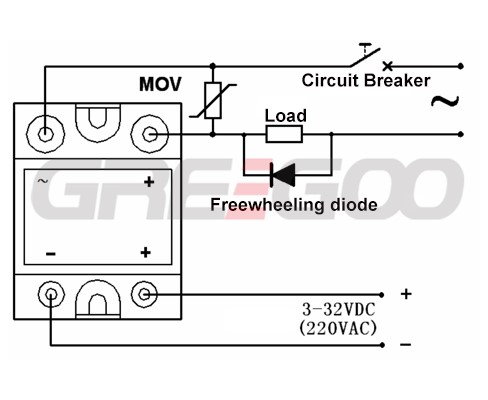

Product Details
- The weak electric part and the strong electric part are optically isolated.
- The control signal is compatible with TTL logic interface.
- The strong electric control switch consists of thyristors and rectifier tubes.
- LEDs indicate the working status.
- Widely used in battery charging, electrolysis, electroplating, electromagnetic vibration, electromagnetic iron absorption, DC power supplies, DC motors, and other equipment for contactless switch control.
