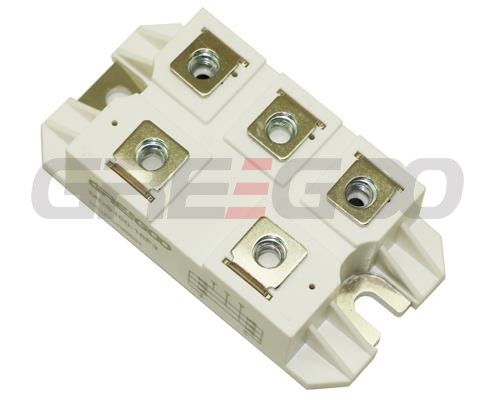

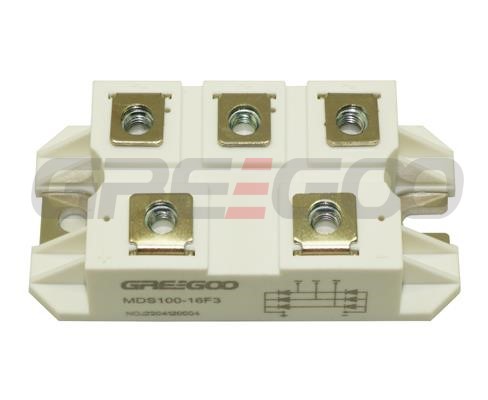

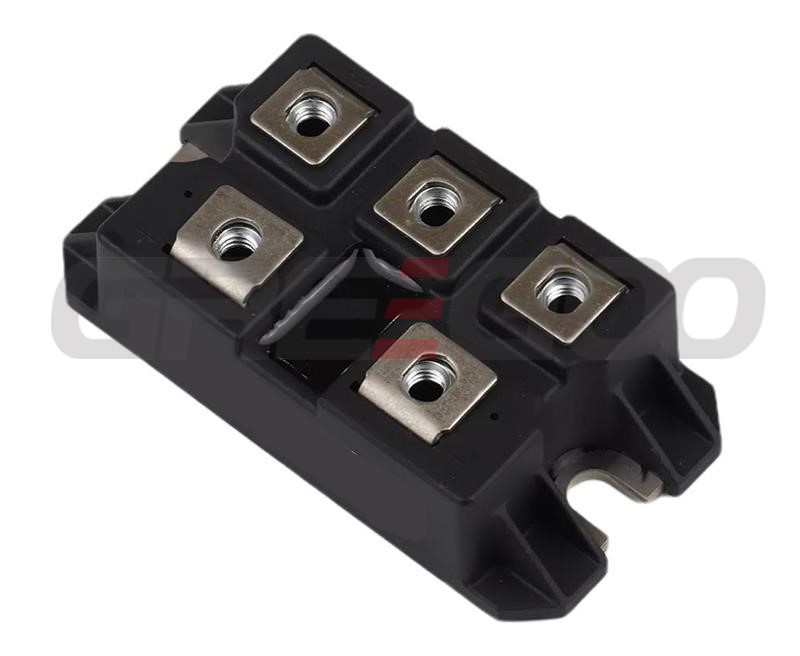

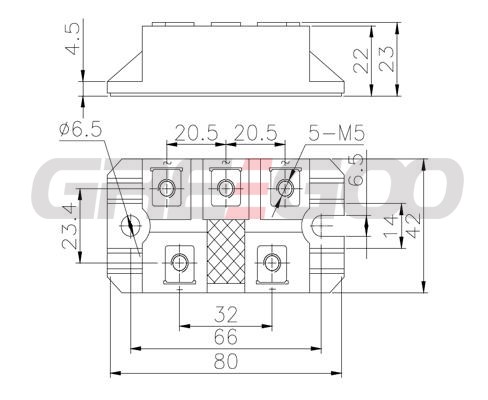

Slim 3 phase Power Diode Module GDF100AA

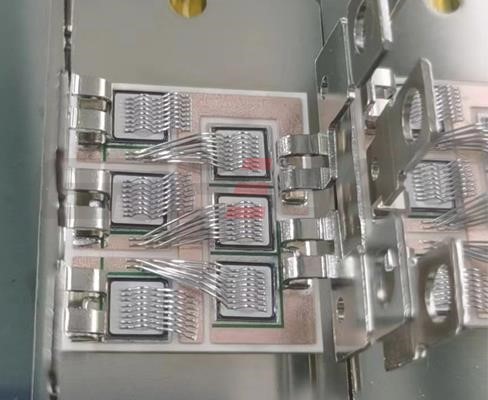

Power Diode Module GDF100AA is designed for three phase full wave rectification, which has six diodes connected in a three phase bridge configuration. The mounting base of the module is electrically isolated from semiconductor elements for simple heatsink construction. Output DC current is 100Amp (Tc=102℃) Repetitive peak reverse voltage is up to 1,600V.
Feature:
● TjMax=150℃

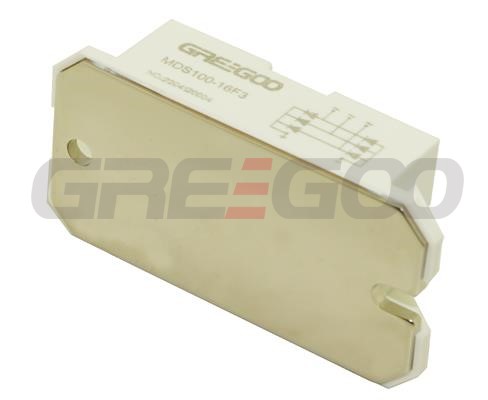

● Isolated mounting base
● High reliability by unique glass passivation
Applications:
AC, DC Motor Drive/AVR/Switching -for three phase rectification

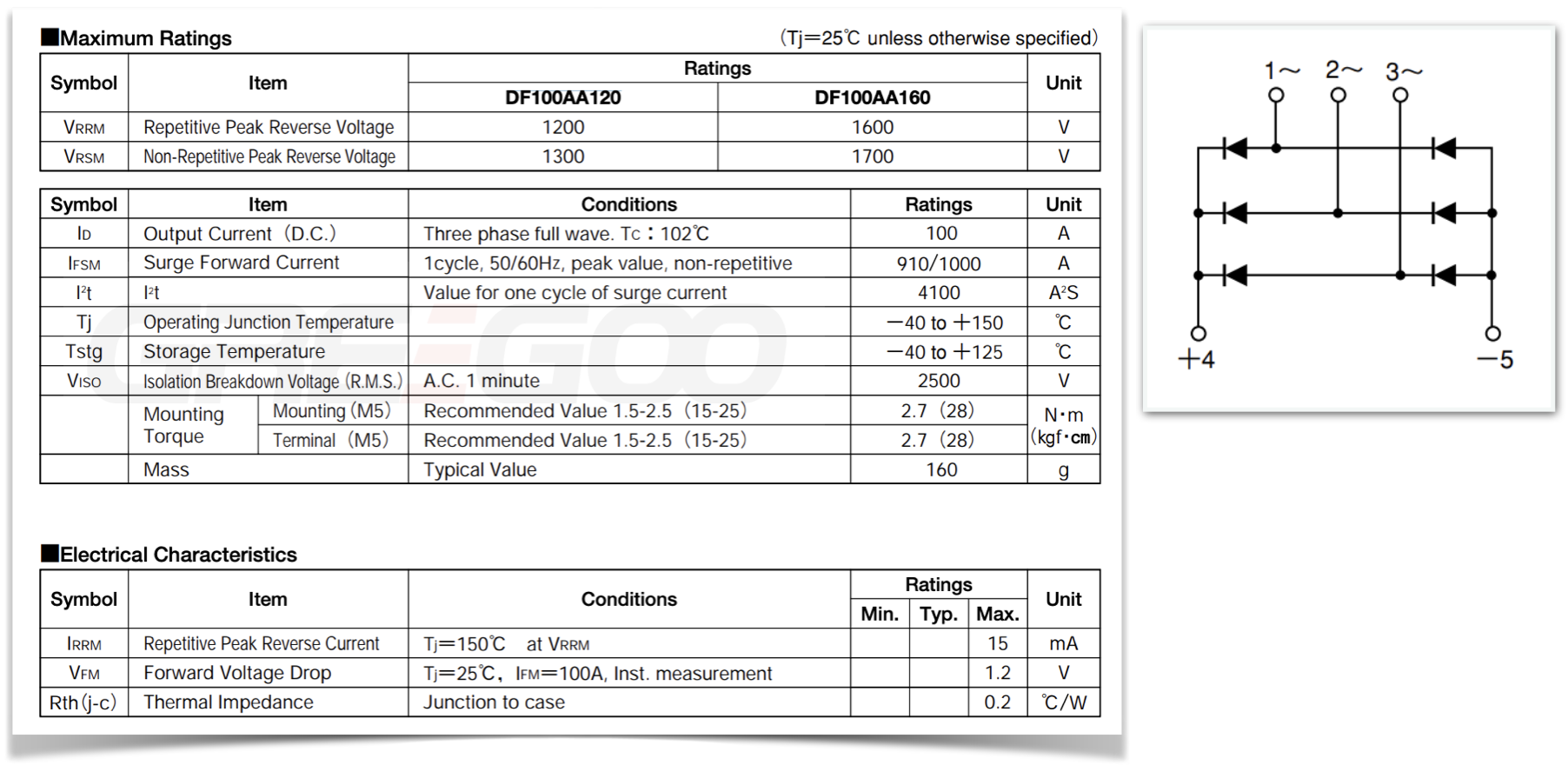

Model Selection
Symbol |
Item |
Ratings |
Unit |
|
GDF100AA120 |
GDF100AA160 |
|||
VRRM |
Repetitive Peak Reverse Voltage |
1200 |
1600 |
V |
VRSM |
Non-Repetitive Peak Reverse Voltage |
1300 |
1700 |
V |
Electrical Parameters
Symbol |
Item |
Conditions |
Ratings |
Unit |
|
ID |
Output Current (D.C.) |
Three phase full wave. Tc : 102℃ |
100 |
A |
|
IFSM |
Surge Forward Current |
1cycle, 50/60Ht, peak value, non-repetitive |
910/1000 |
A |
|
12t |
12t |
Value for one cycle of surge current |
4100 |
A2S |
|
Tj |
Operating Junction Temperature |
|
-40 to 150 |
℃ |
|
Tstg |
Storage Temperature |
|
-40 to 125 |
℃ |
|
Viso |
Isolation Breakdown Voltage (R.M.S.) |
A.C.1 minute |
2500 |
V |
|
|
Mounting Torque |
Mounting(M5) |
Recommended Value 1.5-2.5(15-25) |
2.7(28) |
N·m (kgf·cm) |
Terminal(M5) |
Recommended Value 1.5-2.5 (15-25) |
2.7(28) |
|||
|
Mass |
Typical Value |
160 |
g |
Mechanical Parameters
Symbol |
Item |
Conditions |
Ratings |
Unit |
||
Min. |
Typ. |
Max. |
||||
IRRM |
Repetitive Peak Reverse Current |
Tj=150℃ at VRRM |
|
|
15 |
mA |
VFM |
Forward Voltage Drop |
Tj=25℃, IFM=100A, Inst. measurement |
|
|
1.2 |
V |
Rth(j-c) |
Thermal Impedance |
Junction to case |
|
|
0.2 |
℃/W |
