Specification

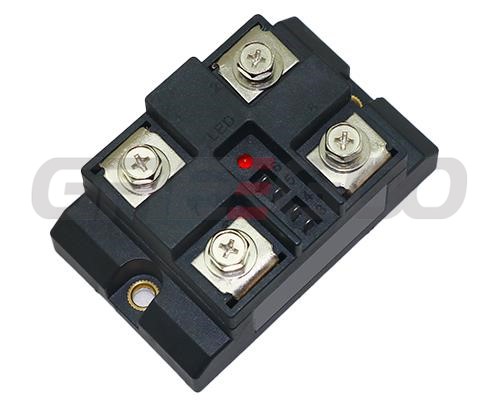

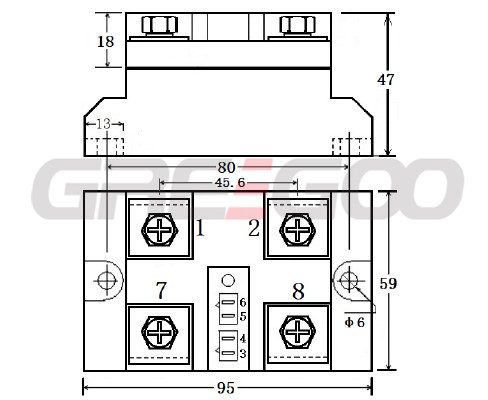

Single phase half full rectifer solid state relay GZ15 GZ16
| Model | GZ15 (Half-Wave Rectification) | GZ16 (Full-Wave Rectification) |
|---|---|---|
| Input Power Voltage | 110～240 VAC 320～480 VAC | 110～240 VAC 320～480 VAC |
| Output Rectified Voltage | Input Power Voltage × 0.45 VDC | Input Power Voltage × 0.9 VDC |
| Max Rectifying Current | 30～500 A | 30～500 A |
| Control Voltage | DC:4～32VDC; AC:160～240VAC | DC:4～32VDC; AC:160～240VAC |
| Control Current | ≤25 mA | ≤25 mA |
| Isolation Voltage | ≥2500 V | ≥2500 V |
| Insulation Voltage | ≥2500 V | ≥2500 V |
| Insulation Resistance | ≥100 MΩ | ≥100 MΩ |
| Power Frequency | 50～60 HZ | 50～60 HZ |
| Operating Temperature | -20～75℃ | -20～75℃ |
| Cooling Conditions | ≥30A requires a heat sink, ≥120A requires additional fan cooling | ≥30A requires a heat sink, ≥120A requires additional fan cooling |
| Load Current Safety Factor | Resistive load: 2-3 times, Inductive load: 3-6 times | Resistive load: 2-3 times, Inductive load: 3-6 times |

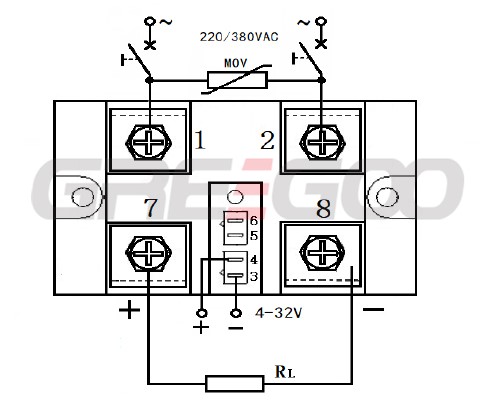

Product Details
- Optical and electromagnetic isolation between input and output circuits.
- Light Emitting Diode (LED) indicates operational status.
- Solid-state, contactless switch output, eliminates sparking and arcing during switching.
- Inductive loads do not require the addition of a freewheeling diode for protection, allowing for easy and convenient installation.
- Encapsulated in epoxy resin, offering shock and corrosion resistance, ensuring stable and reliable switch operation.
- This product is primarily used in control devices for inductive loads, such as electromagnetic vibrators, solenoid valves, generators, motors, and other equipment.
