MCD/MDD/MCC255 Thyristor Diode Modules IXYS Y1-CU Package
Home Products Thyristor Diode ModuleIXYS Diode Thyristor ModuleMCD/MDD/MCC255 Thyristor Diode Modules IXYS Y1-CU Package
Product Details

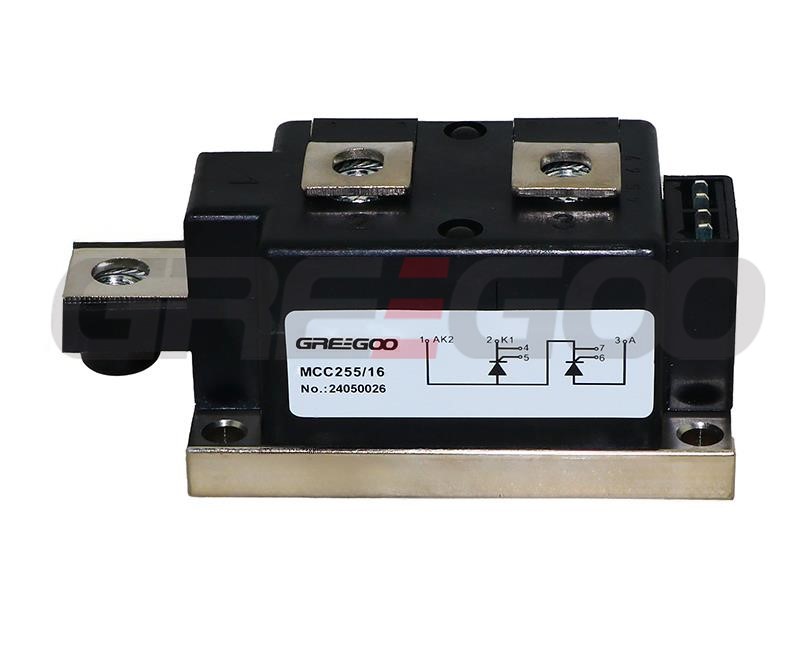

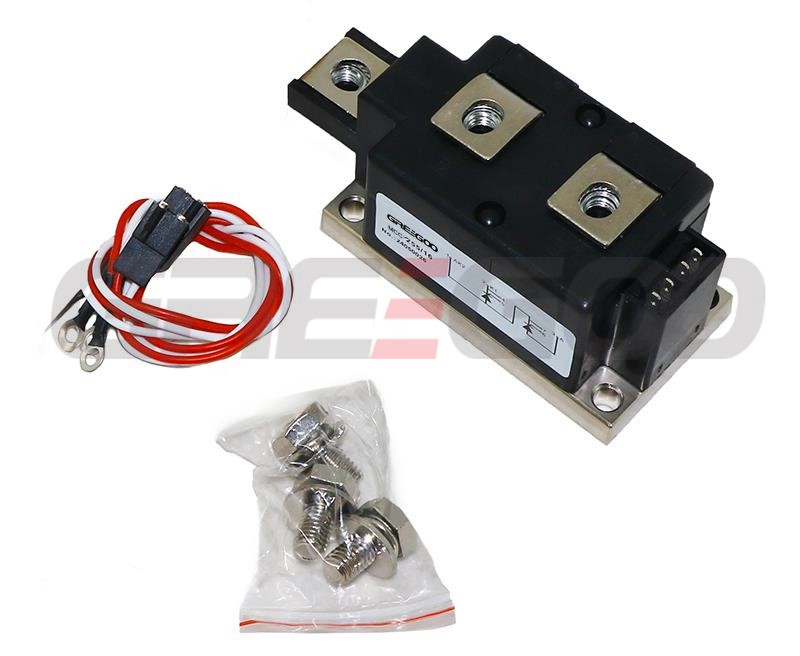

MCD/MDD/MCC255 Thyristor Diode Modules IXYS Y1-CU Package
Features and Advantages:
- Package with DCB ceramic
- Improved temperature and power cycling
- Planar passivated chips
- Very low forward voltage drop
- Very low leakage current

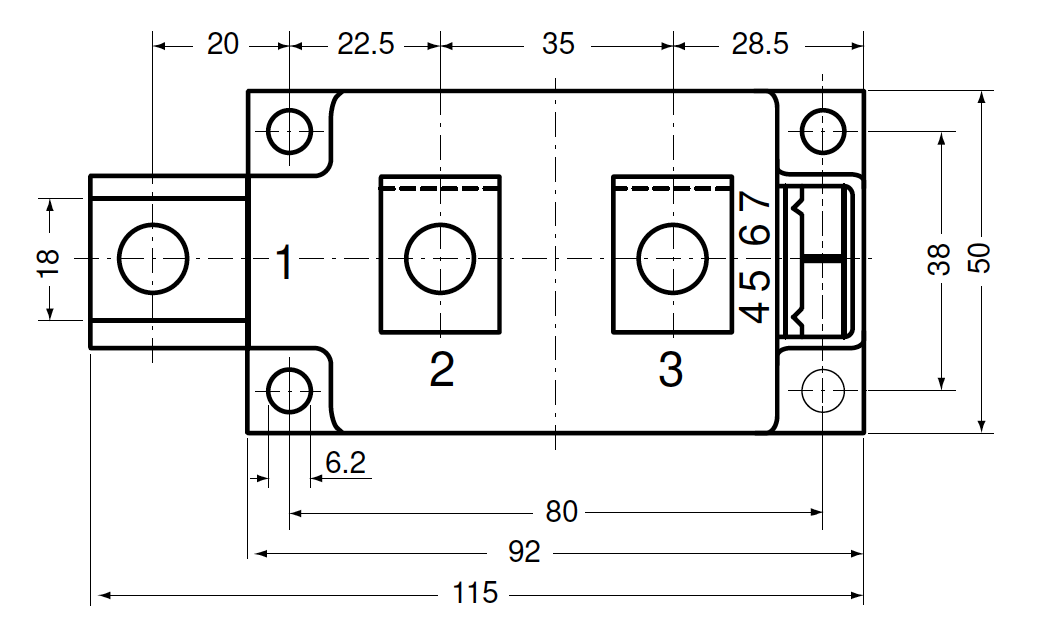

Package:Y1
- Isolation Voltage: 4800 V~
- Industry standard outline
- RoHS compliant
- Height: 30 mm
- Base plate:DCB ceramic
- Reduced weight
- Advanced power cycling

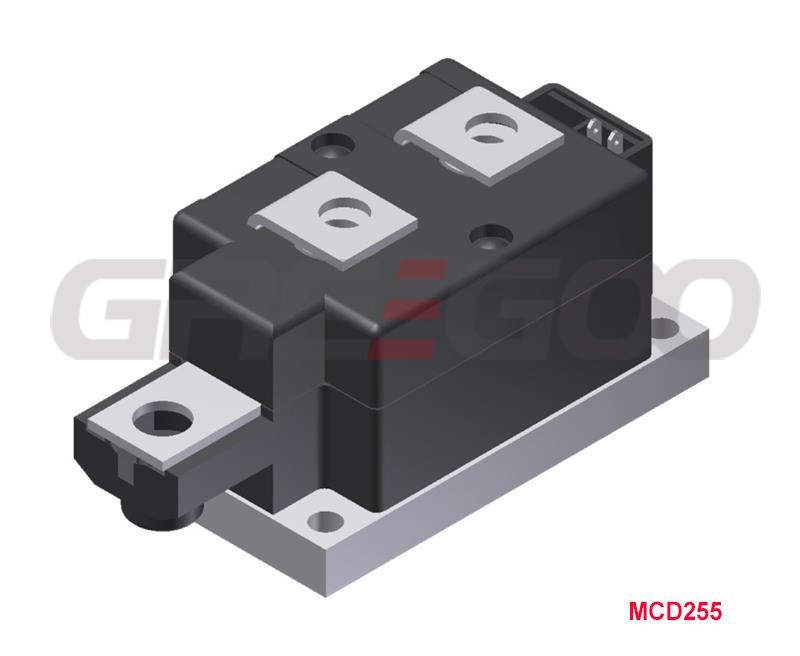

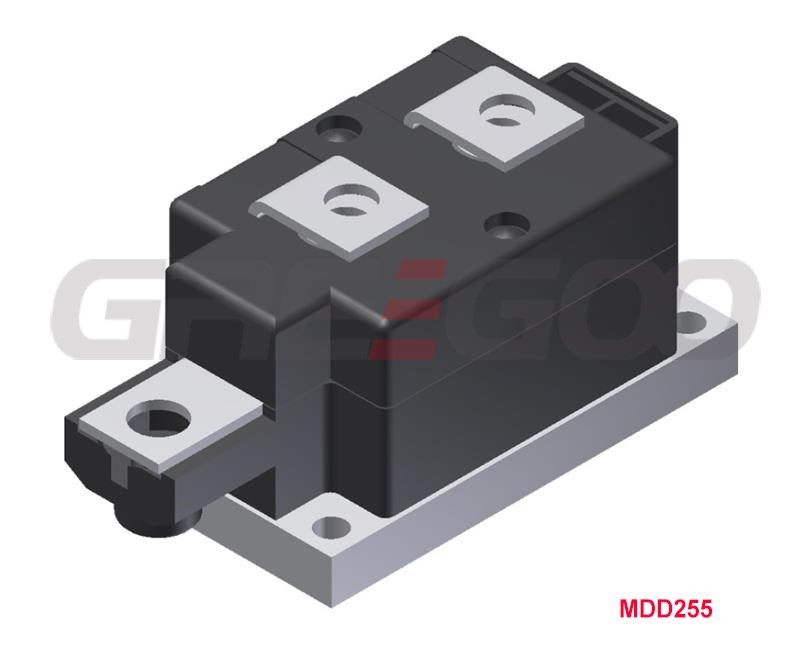

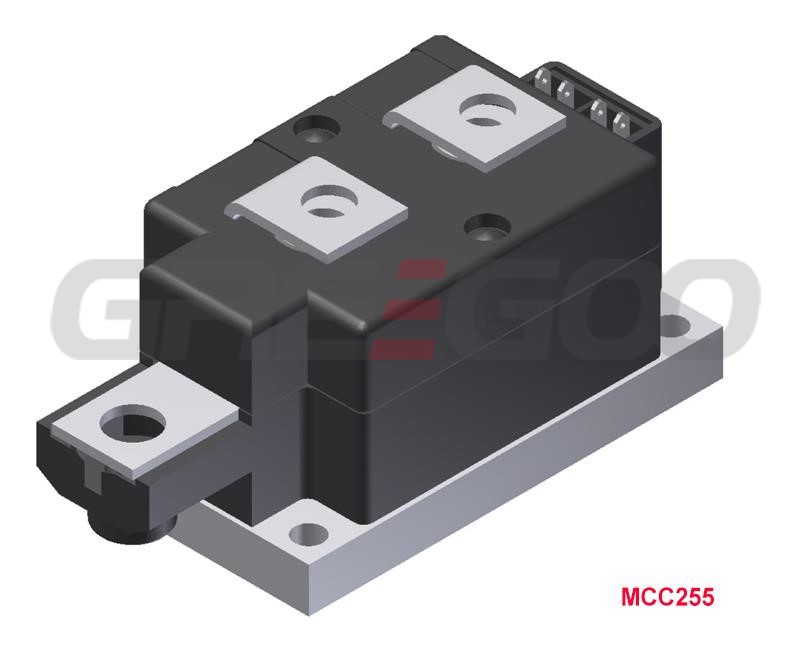

| Model | MCD225-16IO1 |
| Max Repetitive RevFwd Blocking Voltage | 1600 |
| Average forward current | 220 |
| Case temperature | 85 |
| Max Surge Current Thy Amp | 8000 |
| dv/dt (V/µs) | 1000 |
| maximum virtual junction temperature | 140 |
| Threshold voltage for power loss calculation Thyristor | 0.79 |
| Slope Resistance Thyristor mOhm | 0.83 |
| Thermal resistance [junction-case] [Thy] (K/W) | 0.157 |
| Thermal Resistance caseheatsink KW | 0.04 |
| Sample Request | No |
| Package Type | Y1-CU |
| Model | MDD225-16IO1 |
| Maximum Repetitive Blocking Voltage (V) | 1600 |
| Case temperature | 100 |
| Max Reverse Recovery Current | 9800 |
| maximum virtual junction temperature | 150 |
| Threshold voltage for power loss calculation | 0.8 |
| slope resistance for power loss calculation | 0.6 |
| Thermal resistance [junction-case] (K/W) | 0.14 |
| Thermal Resistance caseheatsink KW | 0.04 |
| Average Continuous Current Rating | 270 |
| Sample Request | No |
| Package Type | Y1-CU |
| Model | MCC225-12IO1 |
| Max Repetitive RevFwd Blocking Voltage | 1200 |
| Average forward current | 250 |
| Case temperature | 85 |
| Max Surge Current Thy Amp | 9200 |
| dv/dt (V/µs) | 1000 |
| maximum virtual junction temperature | 140 |
| Threshold voltage for power loss calculation Thyristor | 0.8 |
| Slope Resistance Thyristor mOhm | 0.68 |
| Thermal resistance [junction-case] [Thy] (K/W) | 0.14 |
| Thermal Resistance caseheatsink KW | 0.04 |
| Sample Request | No |
| Package Type | Y1-CU |
