MCC19 MCC21 MCC26 MCC44 MCC56 MCC72 MCC95 Dual Thyristor Module

Thyristor Diode Module (TO-240AA-1B/8B Package)

Model  IT(AV) VRRM ITSM I2t V(TO) rT Tvj max Rth(j-c) Package Size
(A) (V) (A) (kA2·s) (V) (mΩ) (ºC) (ºC/W) (mm)
MCC19-08io1B 18 800 400 0.8 0.85 18 125 1.3 TO-240AA-1B 92x20x30
MCC19-12io1B 18 1200 400 0.8 0.85 18 125 1.3 TO-240AA-1B 92x20x30
MCC19-14io1B 18 1400 400 0.8 0.85 18 125 1.3 TO-240AA-1B 92x20x30
MCC19-16io1B 18 1600 400 0.8 0.85 18 125 1.3 TO-240AA-1B 92x20x30
MCC19-08io8B 18 800 400 0.8 0.85 18 125 1.3 TO-240AA-8B 92x20x30
MCC19-12io8B 18 1200 400 0.8 0.85 18 125 1.3 TO-240AA-8B 92x20x30
MCC19-14io8B 18 1400 400 0.8 0.85 18 125 1.3 TO-240AA-8B 92x20x30
MCC19-16io8B 18 1600 400 0.8 0.85 18 125 1.3 TO-240AA-8B 92x20x30
MCC21-08io8B 21 800 320 0.51 0.85 15 125 1.1 TO-240AA-8B 92x20x30
MCC21-12io8B 21 1200 320 0.51 0.85 15 125 1.1 TO-240AA-8B 92x20x30
MCC21-14io8B 21 1400 320 0.51 0.85 15 125 1.1 TO-240AA-8B 92x20x30
MCC21-16io8B 21 1600 320 0.51 0.85 15 125 1.1 TO-240AA-8B 92x20x30
MCC26-14io1B 27 1400 520 1.35 0.85 11 125 0.88 TO-240AA-1B 92x20x30
MCC26-08io1B 27 800 520 1.35 0.85 11 125 0.88 TO-240AA-1B 92x20x30
MCC26-12io1B 27 1200 520 1.35 0.85 11 125 0.88 TO-240AA-1B 92x20x30
MCC26-14io1B 27 1400 520 1.35 0.85 11 125 0.88 TO-240AA-1B 92x20x30
MCC26-16io1B 27 1600 520 1.35 0.85 11 125 0.88 TO-240AA-1B 92x20x30
MCC26-08io8B 27 800 520 1.35 0.85 11 125 0.88 TO-240AA-8B 92x20x30
MCC26-12io8B 27 1200 520 1.35 0.85 11 125 0.88 TO-240AA-8B 92x20x30
MCC26-14io8B 27 1400 520 1.35 0.85 11 125 0.88 TO-240AA-8B 92x20x30
MCC26-16io8B 27 1600 520 1.35 0.85 11 125 0.88 TO-240AA-8B 92x20x30

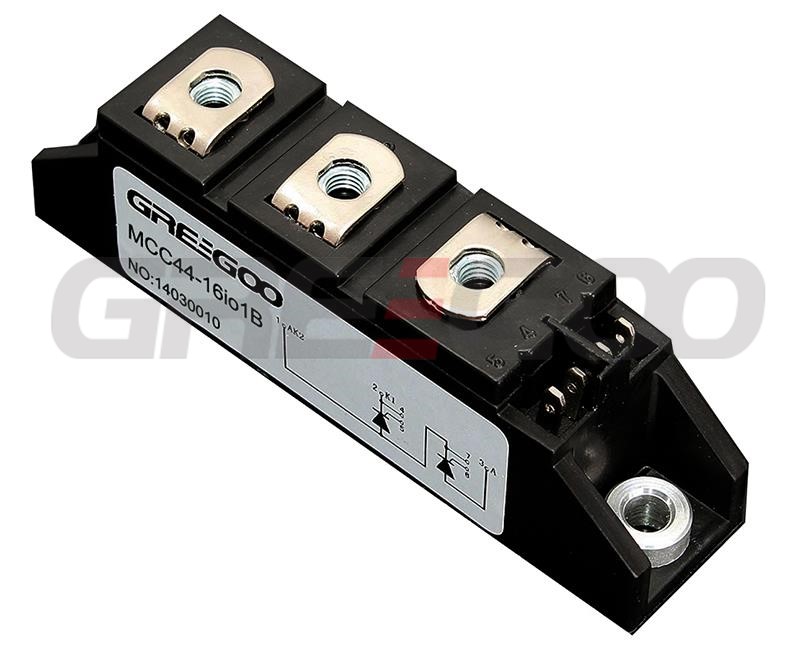

MCC44-12io1B 49 1200 1150 6.62 0.85 5.3 125 0.53 TO-240AA-1B 92x20x30
MCC44-14io1B 49 1400 1150 6.62 0.85 5.3 125 0.53 TO-240AA-1B 92x20x30
MCC44-16io1B 49 1600 1150 6.62 0.85 5.3 125 0.53 TO-240AA-1B 92x20x30
MCC44-18io1B 49 1800 1150 6.62 0.85 5.3 125 0.53 TO-240AA-1B 92x20x30
MCC44-08io8B 49 800 1150 6.62 0.85 5.3 125 0.53 TO-240AA-8B 92x20x30
MCC44-12io8B 49 1200 1150 6.62 0.85 5.3 125 0.53 TO-240AA-8B 92x20x30
MCC44-14io8B 49 1400 1150 6.62 0.85 5.3 125 0.53 TO-240AA-8B 92x20x30
MCC44-16io8B 49 1600 1150 6.62 0.85 5.3 125 0.53 TO-240AA-8B 92x20x30
MCC44-18io8B 49 1800 1150 6.62 0.85 5.3 125 0.53 TO-240AA-8B 92x20x30
MCC56-14io1B 60 1400 1500 11.3 0.85 3.7 125 0.45 TO-240AA-1B 92x20x30
MCC56-08io1B 60 800 1500 11.3 0.85 3.7 125 0.45 TO-240AA-1B 92x20x30
MCC56-12io1B 60 1200 1500 11.3 0.85 3.7 125 0.45 TO-240AA-1B 92x20x30

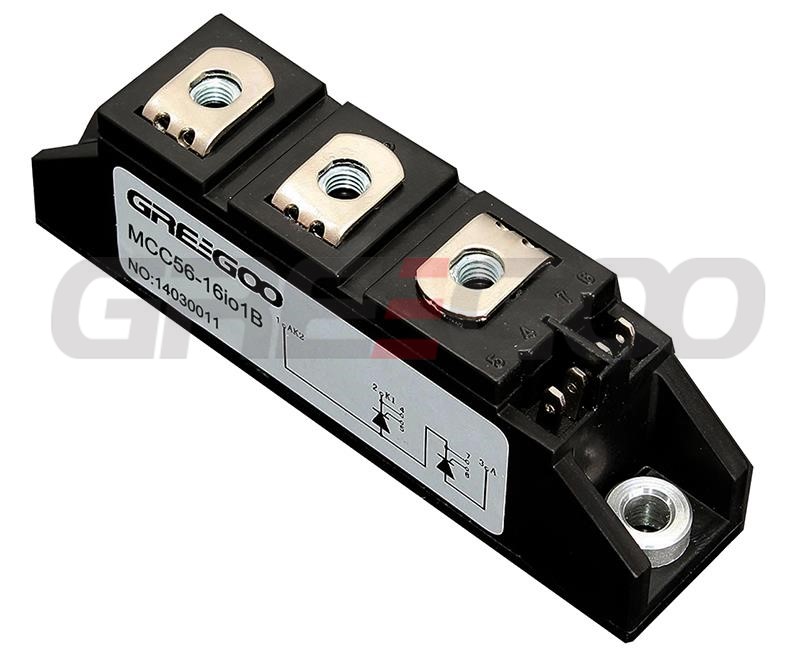

MCC56-14io1B 60 1400 1500 11.3 0.85 3.7 125 0.45 TO-240AA-1B 92x20x30
MCC56-16io1B 60 1600 1500 11.3 0.85 3.7 125 0.45 TO-240AA-1B 92x20x30
MCC56-18io1B 60 1800 1500 11.3 0.85 3.7 125 0.45 TO-240AA-1B 92x20x30
MCC56-08io8B 60 800 1500 11.3 0.85 3.7 125 0.45 TO-240AA-8B 92x20x30
MCC56-12io8B 60 1200 1500 11.3 0.85 3.7 125 0.45 TO-240AA-8B 92x20x30
MCC56-14io8B 60 1400 1500 11.3 0.85 3.7 125 0.45 TO-240AA-8B 92x20x30
MCC56-16io8B 60 1600 1500 11.3 0.85 3.7 125 0.45 TO-240AA-8B 92x20x30
MCC56-18io8B 60 1800 1500 11.3 0.85 3.7 125 0.45 TO-240AA-8B 92x20x30

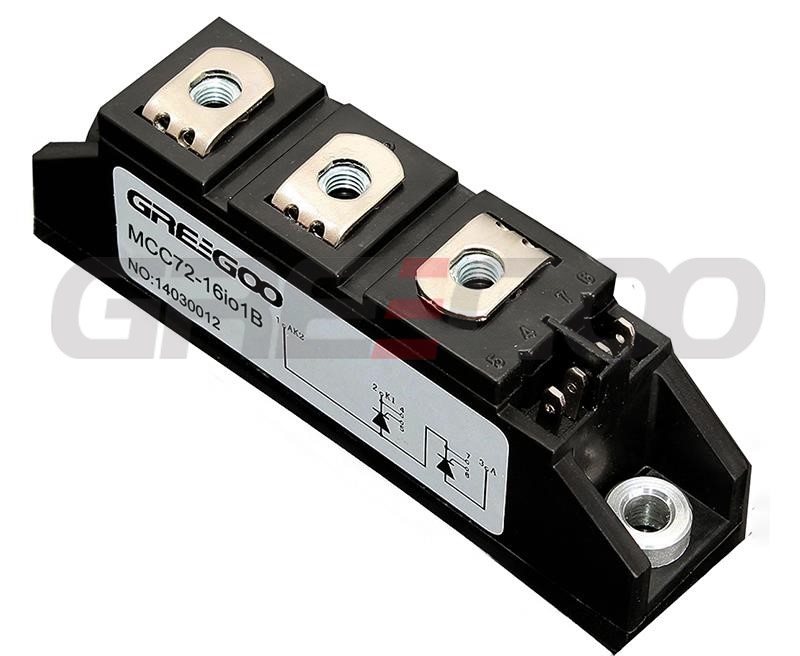

MCC72-12io1B 85 1200 1700 14.5 0.85 3.2 125 0.3 TO-240AA-1B 92x20x30
MCC72-14io1B 85 1400 1700 14.5 0.85 3.2 125 0.3 TO-240AA-1B 92x20x30
MCC72-16io1B 85 1600 1700 14.5 0.85 3.2 125 0.3 TO-240AA-1B 92x20x30
MCC72-18io1B 85 1800 1700 14.5 0.85 3.2 125 0.3 TO-240AA-1B 92x20x30
MCC72-08io8B 85 800 1700 14.5 0.85 3.2 125 0.3 TO-240AA-8B 92x20x30
MCC72-12io8B 85 1200 1700 14.5 0.85 3.2 125 0.3 TO-240AA-8B 92x20x30
MCC72-14io8B 85 1400 1700 14.5 0.85 3.2 125 0.3 TO-240AA-8B 92x20x30
MCC72-16io8B 85 1600 1700 14.5 0.85 3.2 125 0.3 TO-240AA-8B 92x20x30
MCC72-18io8B 85 1800 1700 14.5 0.85 3.2 125 0.3 TO-240AA-8B 92x20x30

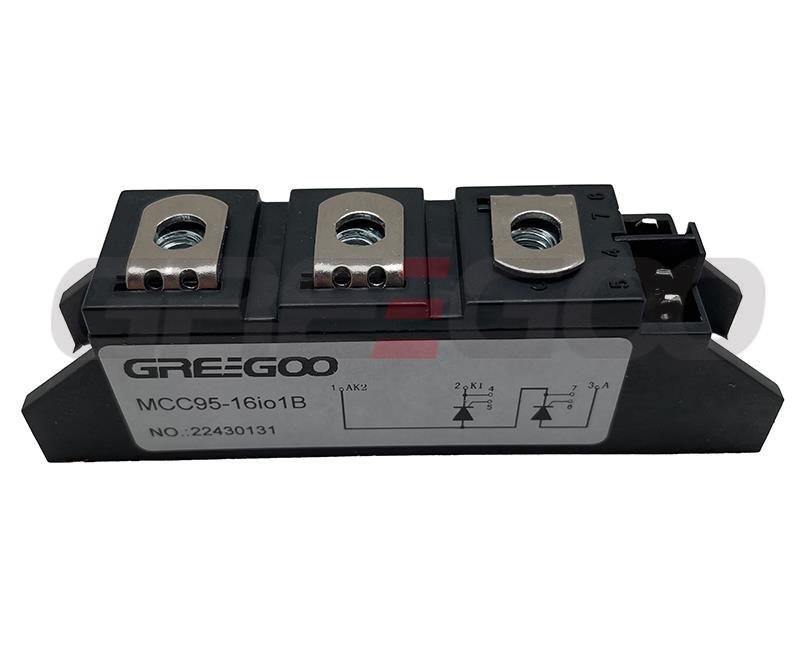

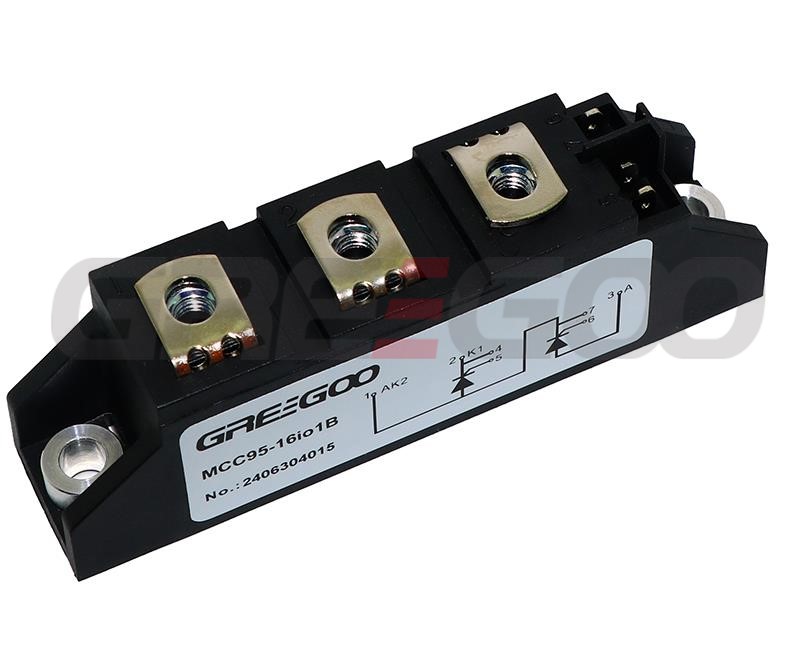

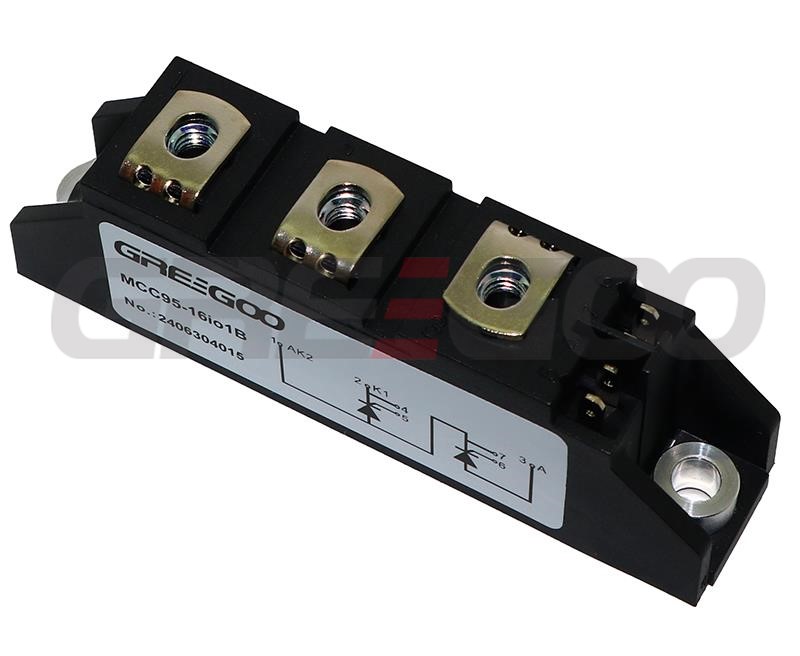

MCC95-08io1B 116 800 2250 25.3 0.85 2.4 125 0.22 TO-240AA-1B 92x20x30
MCC95-12io1B 116 1200 2250 25.3 0.85 2.4 125 0.22 TO-240AA-1B 92x20x30
MCC95-14io1B 116 1400 2250 25.3 0.85 2.4 125 0.22 TO-240AA-1B 92x20x30
MCC95-16io1B 116 1600 2250 25.3 0.85 2.4 125 0.22 TO-240AA-1B 92x20x30
MCC95-18io1B 116 1800 2250 25.3 0.85 2.4 125 0.22 TO-240AA-1B 92x20x30
MCC95-08io8B 116 800 2250 25.3 0.85 2.4 125 0.22 TO-240AA-8B 92x20x30
MCC95-12io8B 116 1200 2250 25.3 0.85 2.4 125 0.22 TO-240AA-8B 92x20x30
MCC95-14io8B 116 1400 2250 25.3 0.85 2.4 125 0.22 TO-240AA-8B 92x20x30
MCC95-16io8B 116 1600 2250 25.3 0.85 2.4 125 0.22 TO-240AA-8B 92x20x30
MCC95-18io8B 116 1800 2250 25.3 0.85 2.4 125 0.22 TO-240AA-8B 92x20x30
MCD26 MCD40 MCD44 MCD56 MCD72 MCD95 Thyristor Diode Module
Model  IT(AV) VRRM ITSM I2t V(TO) rT Tvj max Rth(j-c) Package Size
(A) (V) (A) (kA2·s) (V) (mΩ) (ºC) (ºC/W)   (mm)
MCD26-08io1B 27 800 520 1.35 0.85 11 125 0.88 TO-240AA-1B 92x20x30
MCD26-12io1B 27 1200 520 1.35 0.85 11 125 0.88 TO-240AA-1B 92x20x30
MCD26-14io1B 27 1400 520 1.35 0.85 11 125 0.88 TO-240AA-1B 92x20x30
MCD26-16io1B 27 1600 520 1.35 0.85 11 125 0.88 TO-240AA-1B 92x20x30
MCD26-08io8B 27 800 520 1.35 0.85 11 125 0.88 TO-240AA-8B 92x20x30
MCD26-12io8B 27 1200 520 1.35 0.85 11 125 0.88 TO-240AA-8B 92x20x30
MCD26-14io8B 27 1400 520 1.35 0.85 11 125 0.88 TO-240AA-8B 92x20x30
MCD26-16io8B 27 1600 520 1.35 0.85 11 125 0.88 TO-240AA-8B 92x20x30
MCD40-12io6 40 1200 500 1.25 0.87 10.5 150 0.7 SOT-227B 38x25x12
MCD40-16io6 40 1600 500 1.25 0.87 10.5 150 0.7 SOT-227B 38x25x12
MCD44-08io1B 49 800 1150 6.62 0.85 5.3 125 0.53 TO-240AA-1B 92x20x30
MCD44-12io1B 49 1200 1150 6.62 0.85 5.3 125 0.53 TO-240AA-1B 92x20x30
MCD44-14io1B 49 1400 1150 6.62 0.85 5.3 125 0.53 TO-240AA-1B 92x20x30
MCD44-16io1B 49 1600 1150 6.62 0.85 5.3 125 0.53 TO-240AA-1B 92x20x30
MCD44-18io1B 49 1800 1150 6.62 0.85 5.3 125 0.53 TO-240AA-1B 92x20x30
MCD44-08io8B 49 800 1150 6.62 0.85 5.3 125 0.53 TO-240AA-8B 92x20x30
MCD44-12io8B 49 1200 1150 6.62 0.85 5.3 125 0.53 TO-240AA-8B 92x20x30
MCD44-14io8B 49 1400 1150 6.62 0.85 5.3 125 0.53 TO-240AA-8B 92x20x30
MCD44-16io8B 49 1600 1150 6.62 0.85 5.3 125 0.53 TO-240AA-8B 92x20x30
MCD44-18io8B 49 1800 1150 6.62 0.85 5.3 125 0.53 TO-240AA-8B 92x20x30
MCD56-08io1B 60 800 1500 11.3 0.85 3.7 125 0.45 TO-240AA-1B 92x20x30
MCD56-12io1B 60 1200 1500 11.3 0.85 3.7 125 0.45 TO-240AA-1B 92x20x30
MCD56-14io1B 60 1400 1500 11.3 0.85 3.7 125 0.45 TO-240AA-1B 92x20x30
MCD56-16io1B 60 1600 1500 11.3 0.85 3.7 125 0.45 TO-240AA-1B 92x20x30
MCD56-18io1B 60 1800 1500 11.3 0.85 3.7 125 0.45 TO-240AA-1B 92x20x30
MCD56-08io8B 60 800 1500 11.3 0.85 3.7 125 0.45 TO-240AA-8B 92x20x30
MCD56-12io8B 60 1200 1500 11.3 0.85 3.7 125 0.45 TO-240AA-8B 92x20x30
MCD56-14io8B 60 1400 1500 11.3 0.85 3.7 125 0.45 TO-240AA-8B 92x20x30
MCD56-16io8B 60 1600 1500 11.3 0.85 3.7 125 0.45 TO-240AA-8B 92x20x30
MCD56-18io8B 60 1800 1500 11.3 0.85 3.7 125 0.45 TO-240AA-8B 92x20x30
MCD72-08io1B 85 800 1700 14.5 0.85 3.2 125 0.3 TO-240AA-1B 92x20x30
MCD72-12io1B 85 1200 1700 14.5 0.85 3.2 125 0.3 TO-240AA-1B 92x20x30
MCD72-14io1B 85 1400 1700 14.5 0.85 3.2 125 0.3 TO-240AA-1B 92x20x30
MCD72-16io1B 85 1600 1700 14.5 0.85 3.2 125 0.3 TO-240AA-1B 92x20x30
MCD72-18io1B 85 1800 1700 14.5 0.85 3.2 125 0.3 TO-240AA-1B 92x20x30
MCD72-08io8B 85 800 1700 14.5 0.85 3.2 125 0.3 TO-240AA-8B 92x20x30
MCD72-12io8B 85 1200 1700 14.5 0.85 3.2 125 0.3 TO-240AA-8B 92x20x30
MCD72-14io8B 85 1400 1700 14.5 0.85 3.2 125 0.3 TO-240AA-8B 92x20x30
MCD72-16io8B 85 1600 1700 14.5 0.85 3.2 125 0.3 TO-240AA-8B 92x20x30
MCD72-18io8B 85 1800 1700 14.5 0.85 3.2 125 0.3 TO-240AA-8B 92x20x30

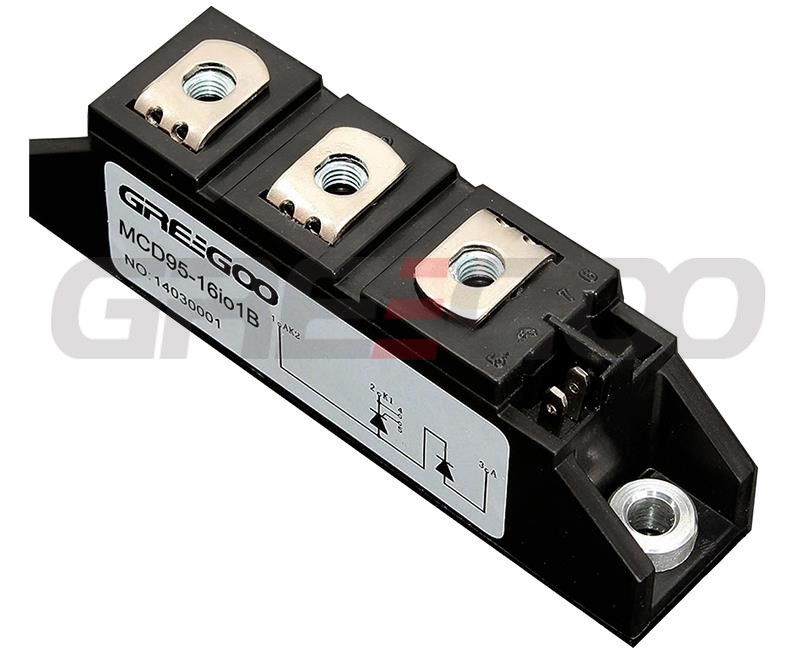

MCD95-16io1B 116 1600 2250 25.3 0.85 2.4 125 0.22 TO-240AA-1B 92x20x30
MCD95-08io1B 116 800 2250 25.3 0.85 2.4 125 0.22 TO-240AA-1B 92x20x30
MCD95-12io1B 116 1200 2250 25.3 0.85 2.4 125 0.22 TO-240AA-1B 92x20x30
MCD95-14io1B 116 1400 2250 25.3 0.85 2.4 125 0.22 TO-240AA-1B 92x20x30
MCD95-16io1B 116 1600 2250 25.3 0.85 2.4 125 0.22 TO-240AA-1B 92x20x30
MCD95-18io1B 116 1800 2250 25.3 0.85 2.4 125 0.22 TO-240AA-1B 92x20x30
MCD95-08io8B 116 800 2250 25.3 0.85 2.4 125 0.22 TO-240AA-8B 92x20x30
MCD95-12io8B 116 1200 2250 25.3 0.85 2.4 125 0.22 TO-240AA-8B 92x20x30
MCD95-14io8B 116 1400 2250 25.3 0.85 2.4 125 0.22 TO-240AA-8B 92x20x30
MCD95-16io8B 116 1600 2250 25.3 0.85 2.4 125 0.22 TO-240AA-8B 92x20x30
MCD95-18io8B 116 1800 2250 25.3 0.85 2.4 125 0.22 TO-240AA-8B 92x20x30
MDD26 MDD44 MDD56 MDD72 MDD95 Dual Diode Module
Model
No.		 IFAV（A） Tc
℃		 VRRM
V		 IFSM
A		 I²t
kA2·s		 V(TO)
V		 rT
mΩ		 Tvj max
ºC		 Rth(j-c)
ºC/W		 Package Size (L×B×H)
mm
MDD26-08N1B 36 100 800 650 2.12 0.8 6.1 150 1 TO-240 AA 92x20x30
MDD26-12N1B 36 100 1200 650 2.12 0.8 6.1 150 1 TO-240 AA 92x20x30
MDD26-14N1B 36 100 1400 650 2.12 0.8 6.1 150 1 TO-240 AA 92x20x30
MDD26-16N1B 36 100 1600 650 2.12 0.8 6.1 150 1 TO-240 AA 92x20x30
MDD26-18N1B 36 100 1800 650 2.12 0.8 6.1 150 1 TO-240 AA 92x20x30
MDD44-08N1B 59 100 800 1150 6.62 0.8 4.3 150 0.59 TO-240 AA 92x20x30
MDD44-12N1B 59 100 1200 1150 6.62 0.8 4.3 150 0.59 TO-240 AA 92x20x30
MDD44-14N1B 59 100 1400 1150 6.62 0.8 4.3 150 0.59 TO-240 AA 92x20x30
MDD44-16N1B 59 100 1600 1150 6.62 0.8 4.3 150 0.59 TO-240 AA 92x20x30
MDD44-18N1B 59 100 1800 1150 6.62 0.8 4.3 150 0.59 TO-240 AA 92x20x30
MDD56-08N1B 71 100 800 1400 9.8 0.8 3 150 0.51 TO-240 AA 92x20x30
MDD56-12N1B 71 100 1200 1400 9.8 0.8 3 150 0.51 TO-240 AA 92x20x30
MDD56-14N1B 71 100 1400 1400 9.8 0.8 3 150 0.51 TO-240 AA 92x20x30
MDD56-16N1B 71 100 1600 1400 9.8 0.8 3 150 0.51 TO-240 AA 92x20x30
MDD56-18N1B 71 100 1800 1400 9.8 0.8 3 150 0.51 TO-240 AA 92x20x30
MDD72-08N1B 99 100 800 1700 14.5 0.8 2.3 150 0.35 TO-240 AA 92x20x30
MDD72-12N1B 99 100 1200 1700 14.5 0.8 2.3 150 0.35 TO-240 AA 92x20x30
MDD72-14N1B 99 100 1400 1700 14.5 0.8 2.3 150 0.35 TO-240 AA 92x20x30
MDD72-16N1B 99 100 1600 1700 14.5 0.8 2.3 150 0.35 TO-240 AA 92x20x30
MDD72-18N1B 99 100 1800 1700 14.5 0.8 2.3 150 0.35 TO-240 AA 92x20x30

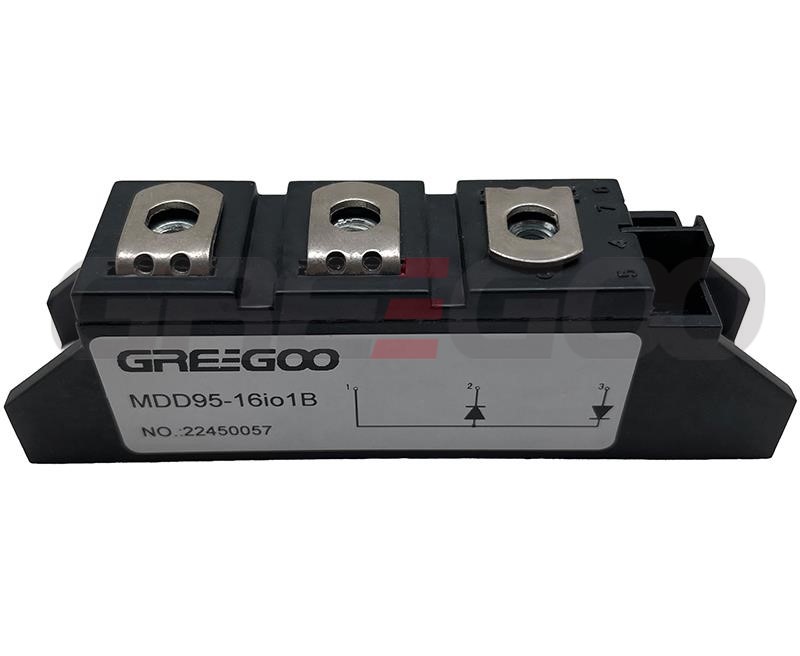

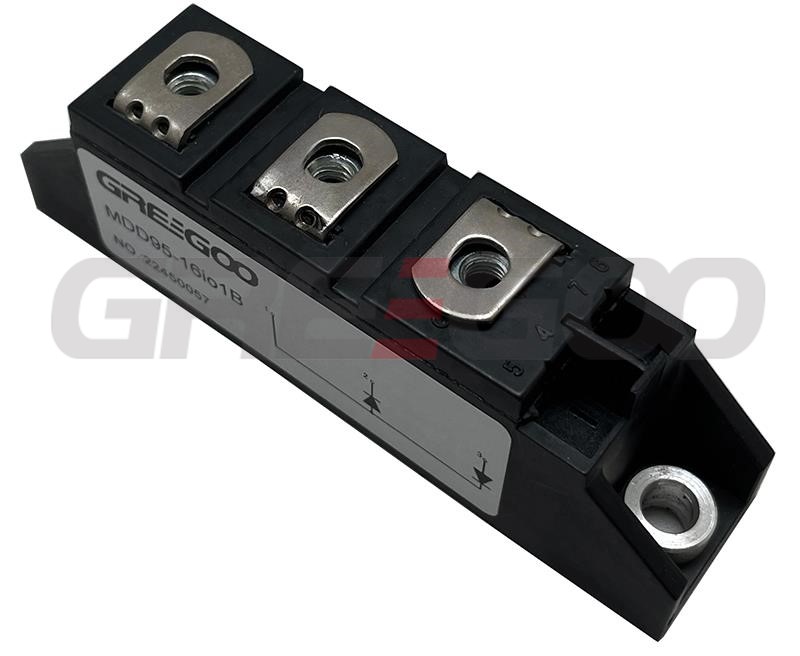

MDD95-08N1B 120 100 800 2800 39.2 0.75 1.95 150 0.26 TO-240 AA 92x20x30
MDD95-12N1B 120 100 1200 2800 39.2 0.75 1.95 150 0.26 TO-240 AA 92x20x30
MDD95-14N1B 120 100 1400 2800 39.2 0.75 1.95 150 0.26 TO-240 AA 92x20x30
MDD95-16N1B 120 100 1600 2800 39.2 0.75 1.95 150 0.26 TO-240 AA 92x20x30
MDD95-18N1B 120 100 1800 2800 39.2 0.75 1.95 150 0.26 TO-240 AA 92x20x30
