Thyristor Diode Module (Y2-DCB package)
Home Products Thyristor Diode ModuleIXYS Diode Thyristor ModuleThyristor Diode Module (Y2-DCB package)
Specification
Thyristor Diode Module (Y2-DCB package)
Model | IT(AV) (A) | VRRM (V) | ITSM (A) | I2t (kA2·s) | V(TO) (V) | rT (mΩ) | Tvj max (ºC) | Rth(j-c) (ºC/W) | Weight (g) | Package | Size (mm) |
MCC220-08io1 | 220 | 800 | 8000 | 320 | 0.9 | 0.85 | 140 | 0.145 | 320 | Y2-DCB | 116x60x32 |
MCC220-12io1 | 220 | 1200 | 8000 | 320 | 0.9 | 0.85 | 140 | 0.145 | 320 | Y2-DCB | 116x60x32 |
MCC220-14io1 | 220 | 1400 | 8000 | 320 | 0.9 | 0.85 | 140 | 0.145 | 320 | Y2-DCB | 116x60x32 |
MCC220-16io1 | 220 | 1600 | 8000 | 320 | 0.9 | 0.85 | 140 | 0.145 | 320 | Y2-DCB | 116x60x32 |
MCC220-18io1 | 220 | 1800 | 8000 | 320 | 0.9 | 0.85 | 140 | 0.145 | 320 | Y2-DCB | 116x60x32 |
MCC250-08io1 | 287 | 800 | 9000 | 405 | 0.85 | 0.82 | 140 | 0.129 | 320 | Y2-DCB | 116x60x32 |
MCC250-12io1 | 287 | 1200 | 9000 | 405 | 0.85 | 0.82 | 140 | 0.129 | 320 | Y2-DCB | 116x60x32 |
MCC250-14io1 | 287 | 1400 | 9000 | 405 | 0.85 | 0.82 | 140 | 0.129 | 320 | Y2-DCB | 116x60x32 |
MCC250-16io1 | 287 | 1600 | 9000 | 405 | 0.85 | 0.82 | 140 | 0.129 | 320 | Y2-DCB | 116x60x32 |
MCC250-18io1 | 287 | 1800 | 9000 | 405 | 0.85 | 0.82 | 140 | 0.129 | 320 | Y2-DCB | 116x60x32 |

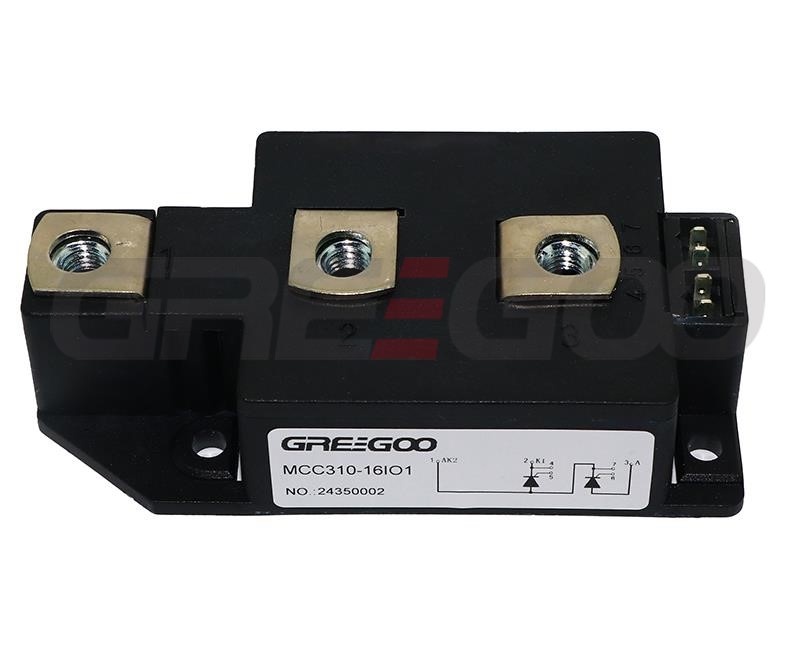

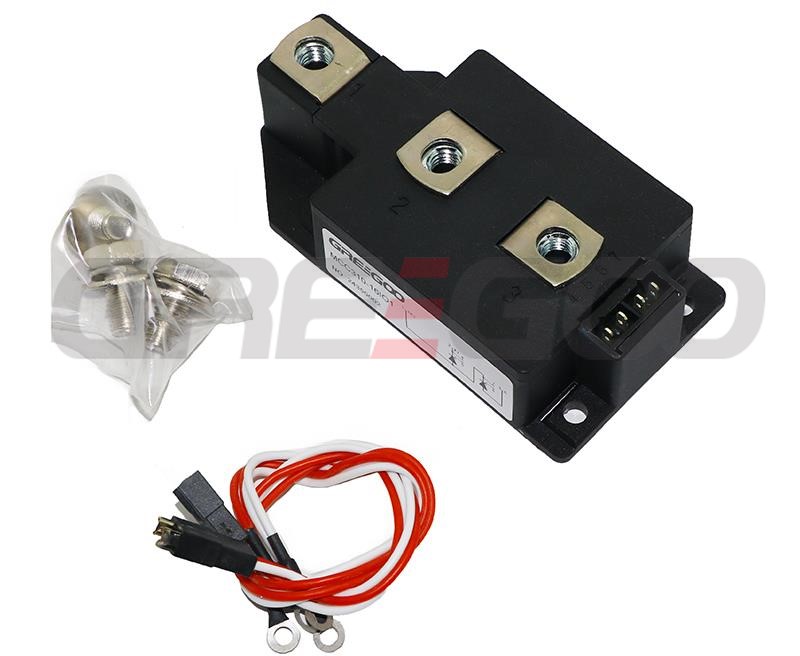

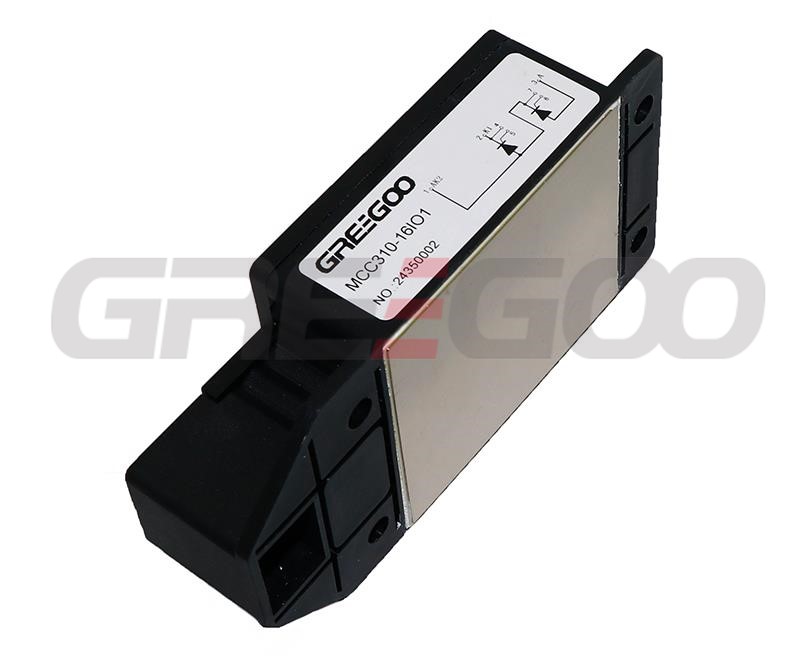

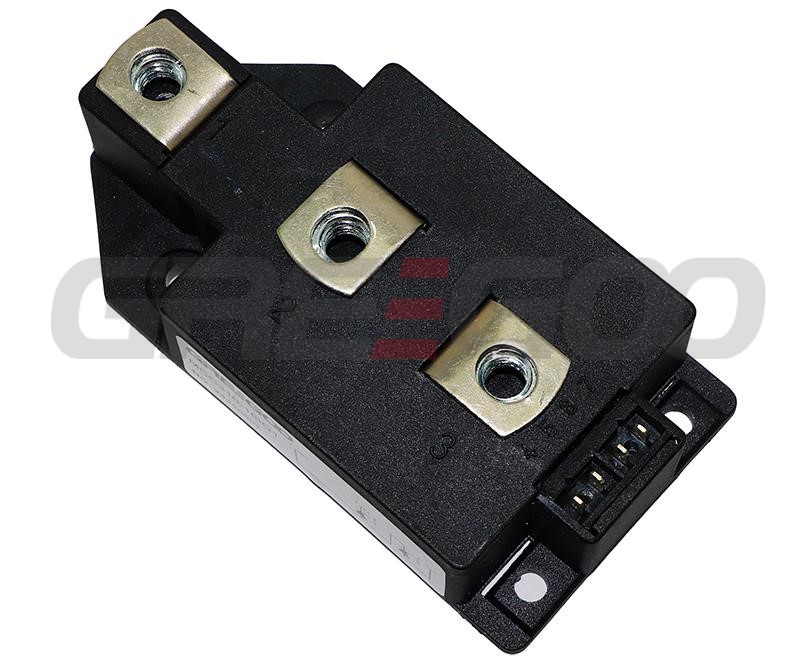

MCC310-08io1 | 320 | 800 | 9200 | 423.2 | 0.8 | 0.82 | 140 | 0.11 | 255 | Y2-DCB | 116x60x32 |
MCC310-12io1 | 320 | 1200 | 9200 | 423.2 | 0.8 | 0.82 | 140 | 0.11 | 255 | Y2-DCB | 116x60x32 |
MCC310-14io1 | 320 | 1400 | 9200 | 423.2 | 0.8 | 0.82 | 140 | 0.11 | 255 | Y2-DCB | 116x60x32 |
MCC310-16io1 | 320 | 1600 | 9200 | 423.2 | 0.8 | 0.82 | 140 | 0.11 | 255 | Y2-DCB | 116x60x32 |
MCC310-18io1 | 320 | 1800 | 9200 | 423.2 | 0.8 | 0.82 | 140 | 0.11 | 255 | Y2-DCB | 116x60x32 |
MDD310 Dual Diode Module
Model No. |
IFAV(A) | Tc ℃ |
VRRM V |
IFSM A |
I²t kA2·s |
V(TO) V |
rT mΩ |
Tvj max ºC |
Rth(j-c) ºC/W |
Weight g |
Package | Size (L×B×H) mm |
MDD310-12N1 | 300 | 100 | 1200 | 11500 | 661.3 | 0.75 | 0.63 | 150 | 0.13 | 254 | Y2-DCB | 116x60x32 |
MDD310-14N1 | 300 | 100 | 1400 | 11500 | 661.3 | 0.75 | 0.63 | 150 | 0.13 | 254 | Y2-DCB | 116x60x32 |
MDD310-16N1 | 300 | 100 | 1600 | 11500 | 661.3 | 0.75 | 0.63 | 150 | 0.13 | 254 | Y2-DCB | 116x60x32 |
MDD310-18N1 | 300 | 100 | 1800 | 11500 | 661.3 | 0.75 | 0.63 | 150 | 0.13 | 254 | Y2-DCB | 116x60x32 |
MDD310-20N1 | 300 | 100 | 2000 | 11500 | 661.3 | 0.75 | 0.63 | 150 | 0.13 | 254 | Y2-DCB | 116x60x32 |
MDD310-22N1 | 300 | 100 | 2200 | 11500 | 661.3 | 0.75 | 0.63 | 150 | 0.13 | 254 | Y2-DCB | 116x60x32 |
