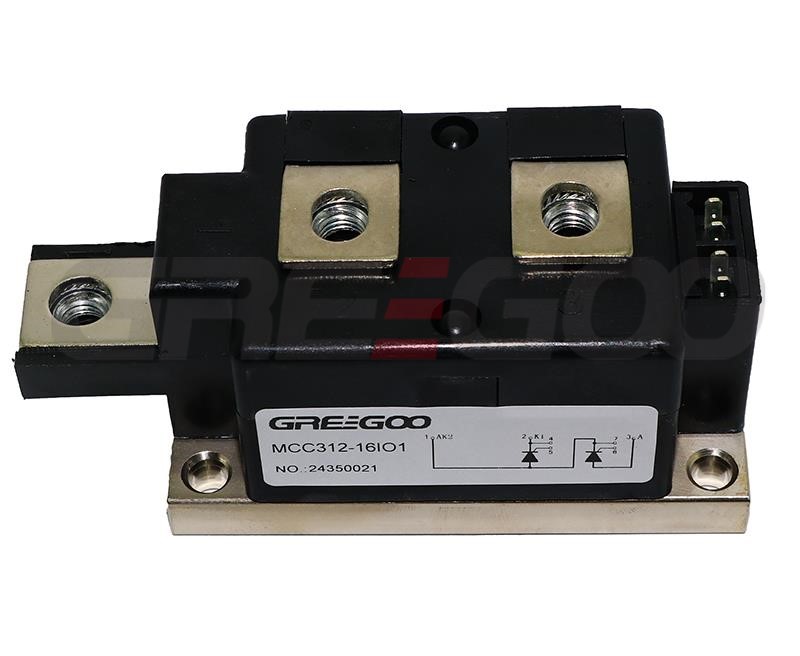

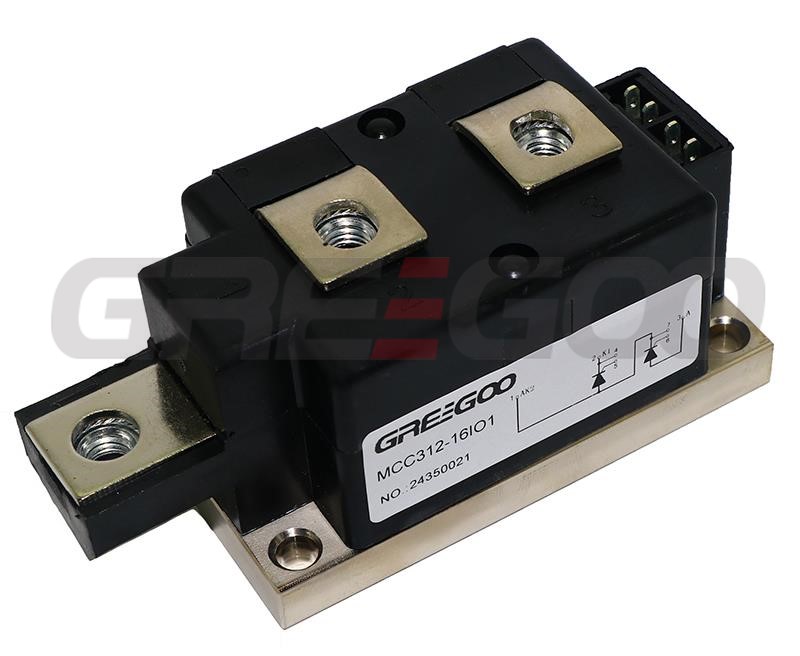

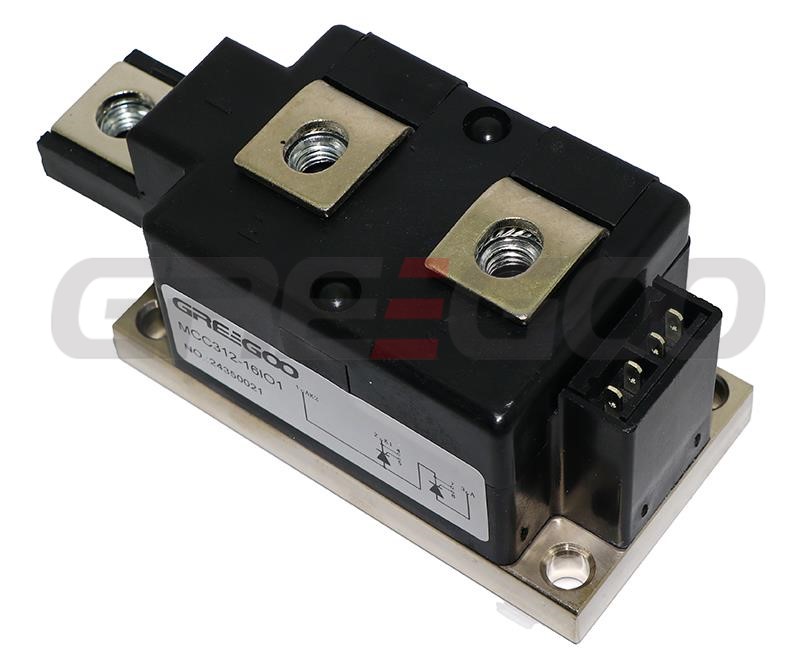

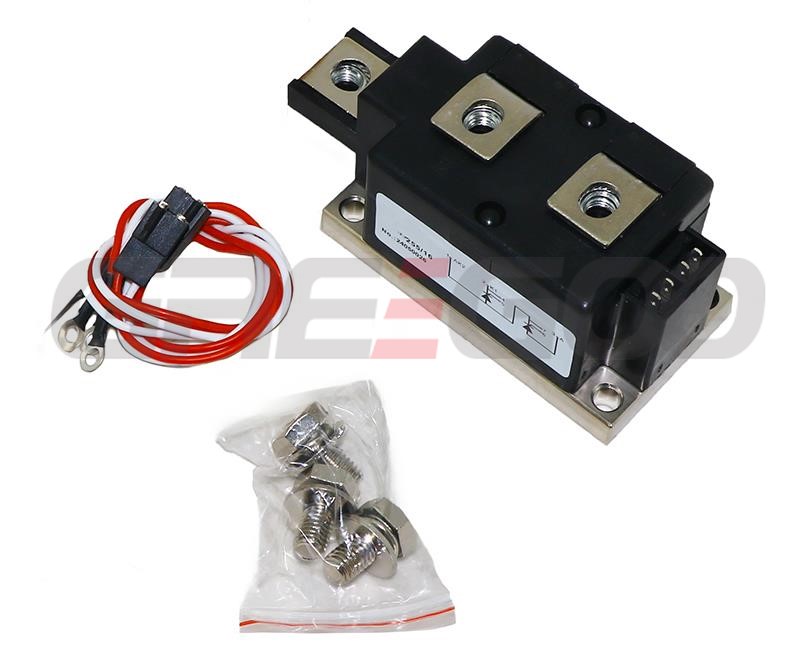

Thyristor Diode Module (Y1-CU package)
Home Products Thyristor Diode ModuleIXYS Diode Thyristor ModuleThyristor Diode Module (Y1-CU package)
Specification
Thyristor Diode Module (Y1-CU package)
| Model | IT(AV) (A) | VRRM (V) | ITSM (A) | I2t (kA2·s) | V(TO) (V) | rT (mΩ) | Tvj max (ºC) | Rth(j-c) (ºC/W) | Weight (g) | Package | Size (mm) |
| MCC225-12io1 | 220 | 1200 | 8000 | 320 | 0.79 | 0.83 | 140 | 0.157 | 680 | Y1-CU | 92x50x52 |
| MCC225-14io1 | 220 | 1400 | 8000 | 320 | 0.79 | 0.83 | 140 | 0.157 | 680 | Y1-CU | 92x50x52 |
| MCC225-16io1 | 220 | 1600 | 8000 | 320 | 0.79 | 0.83 | 140 | 0.157 | 680 | Y1-CU | 92x50x52 |
| MCC225-18io1 | 220 | 1800 | 8000 | 320 | 0.79 | 0.83 | 140 | 0.157 | 680 | Y1-CU | 92x50x52 |
| MCC255-12io1 | 250 | 1200 | 9200 | 432.2 | 0.8 | 0.68 | 140 | 0.14 | 680 | Y1-CU | 92x50x52 |
| MCC255-14io1 | 250 | 1400 | 9200 | 432.2 | 0.8 | 0.68 | 140 | 0.14 | 680 | Y1-CU | 92x50x52 |
| MCC255-16io1 | 250 | 1600 | 9200 | 432.2 | 0.8 | 0.68 | 140 | 0.14 | 680 | Y1-CU | 92x50x52 |
| MCC255-18io1 | 250 | 1800 | 9200 | 432.2 | 0.8 | 0.68 | 140 | 0.14 | 680 | Y1-CU | 92x50x52 |
| MCC312-12io1 | 310 | 1200 | 10000 | 500 | 0.85 | 0.75 | 140 | 0.12 | 680 | Y1-CU | 92x50x52 |
| MCC312-14io1 | 310 | 1400 | 10000 | 500 | 0.85 | 0.75 | 140 | 0.12 | 680 | Y1-CU | 92x50x52 |
| MCC312-16io1 | 310 | 1600 | 10000 | 500 | 0.85 | 0.75 | 140 | 0.12 | 680 | Y1-CU | 92x50x52 |
| MCC312-18io1 | 310 | 1800 | 10000 | 500 | 0.85 | 0.75 | 140 | 0.12 | 680 | Y1-CU | 92x50x52 |
MDD312 MDD255 Dual Diode Module
| Model No. |
IFAV（A） | Tc ℃ |
VRRM V |
IFSM A |
I²t kA2·s |
V(TO) V |
rT mΩ |
Tvj max ºC |
Rth(j-c) ºC/W |
Weight g |
Package | Size (L×B×H) mm |
| MDD255-12N1 | 270 | 100 | 1200 | 9800 | 480.2 | 0.8 | 0.6 | 150 | 0.14 | 680 | Y1-CU | 115x50x52 |
| MDD255-14N1 | 270 | 100 | 1400 | 9800 | 480.2 | 0.8 | 0.6 | 150 | 0.14 | 680 | Y1-CU | 115x50x52 |
| MDD255-16N1 | 270 | 100 | 1600 | 9800 | 480.2 | 0.8 | 0.6 | 150 | 0.14 | 680 | Y1-CU | 115x50x52 |
| MDD255-18N1 | 270 | 100 | 1800 | 9800 | 480.2 | 0.8 | 0.6 | 150 | 0.14 | 680 | Y1-CU | 115x50x52 |
| MDD255-20N1 | 270 | 100 | 2000 | 9800 | 480.2 | 0.8 | 0.6 | 150 | 0.14 | 680 | Y1-CU | 115x50x52 |
| MDD255-22N1 | 270 | 100 | 2200 | 9800 | 480.2 | 0.8 | 0.6 | 150 | 0.14 | 680 | Y1-CU | 115x50x52 |
| MDD312-12N1 | 310 | 100 | 1200 | 10800 | 583.2 | 0.8 | 0.6 | 150 | 0.12 | 680 | Y1-CU | 115x50x52 |
| MDD312-14N1 | 310 | 100 | 1400 | 10800 | 583.2 | 0.8 | 0.6 | 150 | 0.12 | 680 | Y1-CU | 115x50x52 |
| MDD312-16N1 | 310 | 100 | 1600 | 10800 | 583.2 | 0.8 | 0.6 | 150 | 0.12 | 680 | Y1-CU | 115x50x52 |
| MDD312-18N1 | 310 | 100 | 1800 | 10800 | 583.2 | 0.8 | 0.6 | 150 | 0.12 | 680 | Y1-CU | 115x50x52 |
| MDD312-20N1 | 310 | 100 | 2000 | 10800 | 583.2 | 0.8 | 0.6 | 150 | 0.12 | 680 | Y1-CU | 115x50x52 |
| MDD312-22N1 | 310 | 100 | 2200 | 10800 | 583.2 | 0.8 | 0.6 | 150 | 0.12 | 680 | Y1-CU | 115x50x52 |
