GDZ02A DC solid state relay for inductive load
Home Products DC SSR RelayDC output solid state relayGDZ02A DC solid state relay for inductive load
Specification
GDZ02A DC solid state relay for inductive load
Model | GDZ02A |
---|---|
Control Voltage | 4-32 VDC |
Control Current | 10-25 mA |
Off Voltage | <1.5 VDC |
Control Indicator | LED |
Maximum Voltage | 100VDC; 200VDC; 400VDC |
Maximum Current | 10-30A |
On-State Voltage Drop | 1.8-2.5 V |
Off-State Voltage | 100VDC; 200VDC; 400VDC |
Switching Time | ≤ 0.2 ms |
Switching Characteristics | Bipolar Transistor |
Isolation Voltage | ≥ 2000 V |
Insulation Voltage | ≥ 2000-2500 V |
Operating Temperature | -25 to 75 ℃ |
Heat Dissipation Condition | Heat sink required for ≥10A |
Load Current Safety Factor | Resistive load: 2-3 times, Inductive load: 4-6 times |

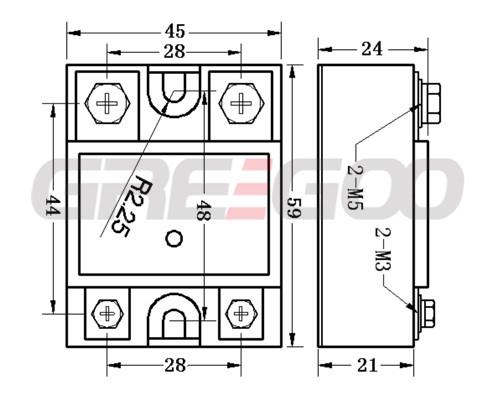

Product Details
- Optical isolation between control signals and output circuits.
- Control signal interface with TTL logic.
- Light Emitting Diode (LED) indicates working status.
- Solid-state contactless output, switching without sparks or arcing.
- Encapsulated in epoxy resin, corrosion-resistant, shock-resistant, stable, and reliable.

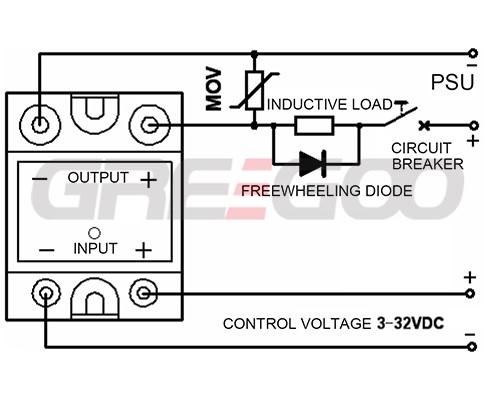

- The product is mainly used for loads powered by high-frequency DC supply
- Electrical switches, such as: DC motors, solenoids, heaters, and battery charging/discharging switches.
