Product Details

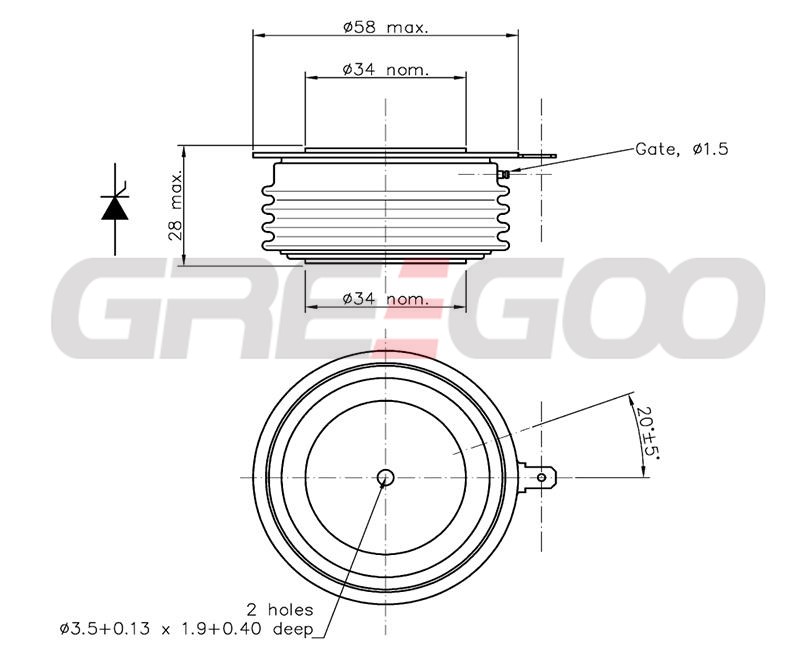

T83-900 Phase Control Thyristor

FEATURES

All diffused design
High current capabilities
High surge current capabilities high rates voltages
High du/dt
Low gate current
Dynamic gate
Low thermal impedance
Tested according to IEC standards compact size and small weight

APPLICATION

High Power Drives
DC Motor Control
High Voltage Power Supplies

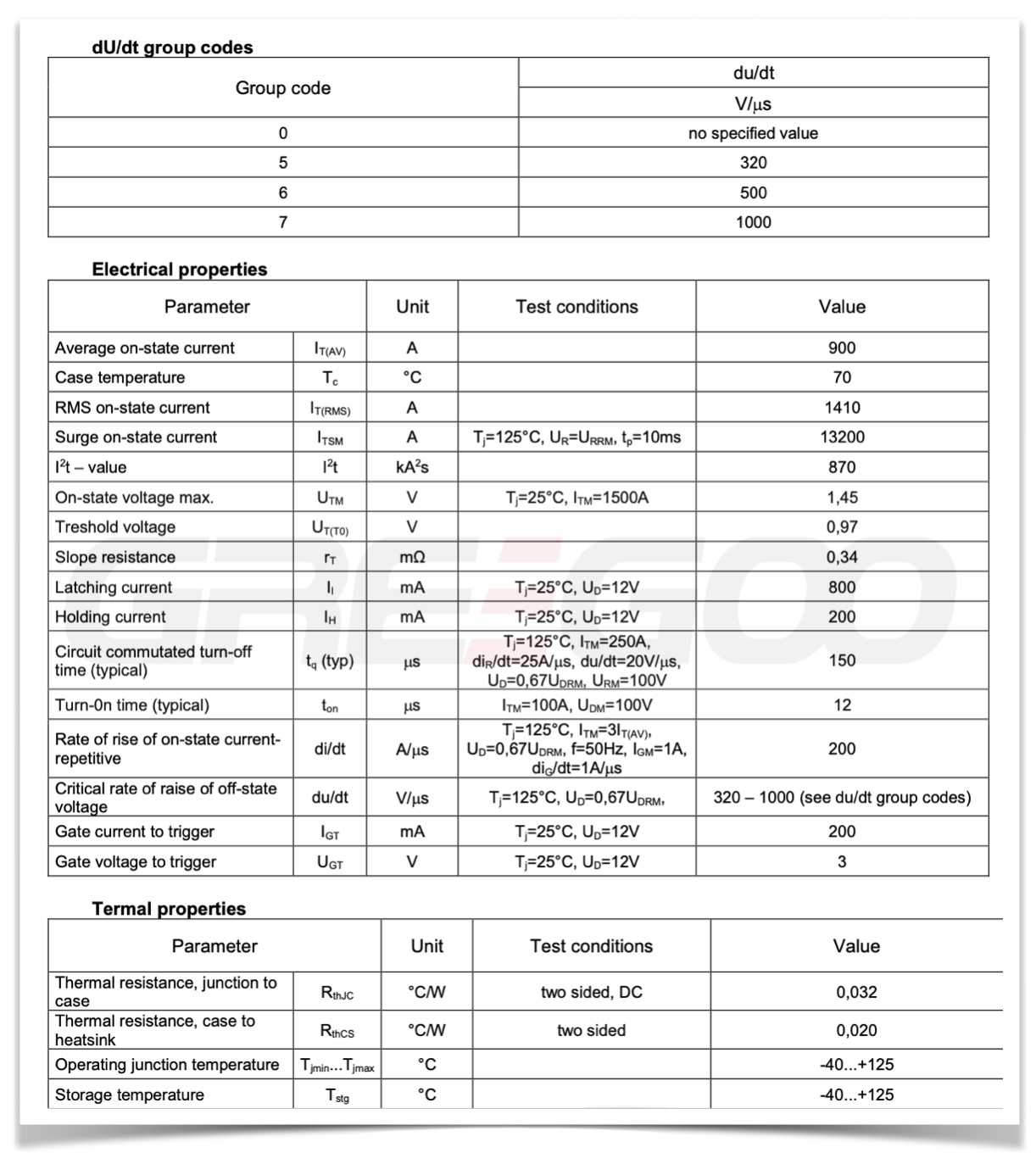

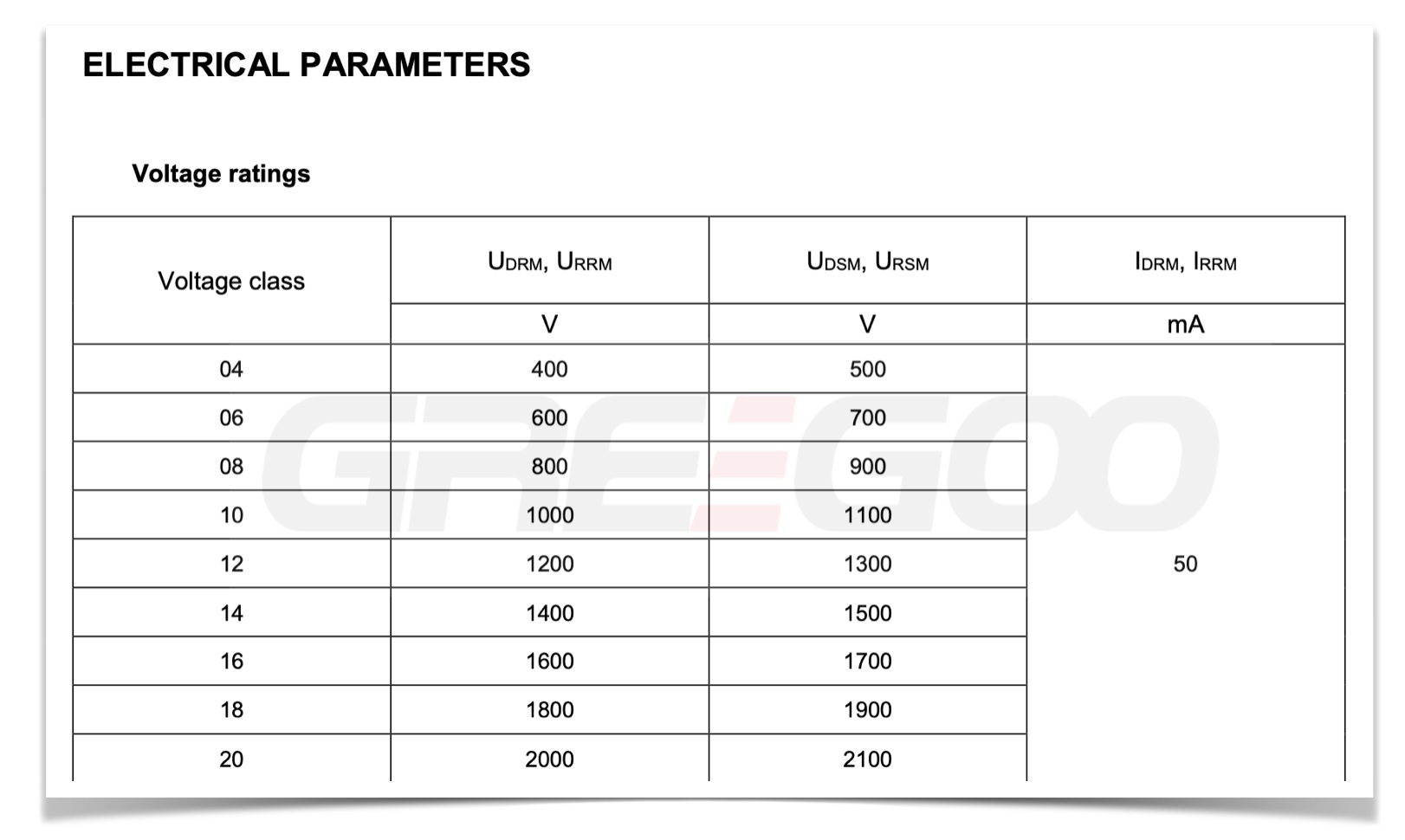

Specification

T83-900
