T75-650 T75-700 T75-750 T75-980 Thyristor

Home Products Capsule Thyristor & RectifierPhase Control Thyristor Lamina SeriesT75-650 T75-700 T75-750 T75-980 Thyristor

T75 thyristor
T75 thyristor
Product details

T75-650 T75-700 T75-750 T75-980 Thyristor

Type IT(AV)M
(Tc)		 VDRM
VRRM		 ITSM I²t VTo rT Tvj

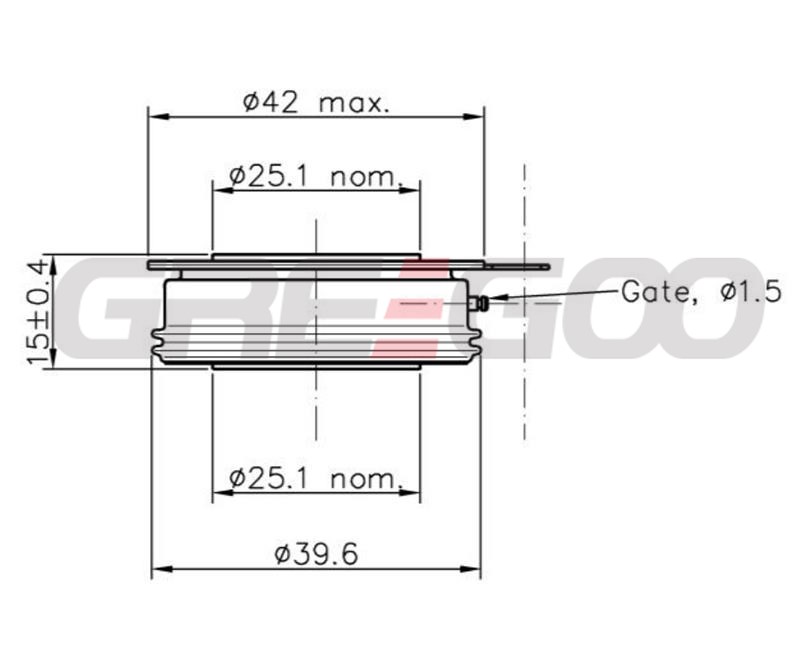

max		 Rth(j-c) Dimensions
  IDxODxH
  A V A kA².s V mΩ ℃ C/W mm
T75-650-04 650 (65) 400 8100 330 0.93 0.71 125 0.04 42x25x15
T75-650-06 650 (65) 600 8100 330 0.93 0.71 125 0.04 42x25x15
T75-650-08 650 (65) 800 8100 330 0.93 0.71 125 0.04 42x25x15
T75-650-10 650 (65) 1000 8100 330 0.93 0.71 125 0.04 42x25x15
T75-650-12 650 (65) 1200 8100 330 0.93 0.71 125 0.04 42x25x15
T75-650-14 650 (65) 1400 8100 330 0.93 0.71 125 0.04 42x25x15
T75-650-16 650 (65) 1600 8100 330 0.93 0.71 125 0.04 42x25x15
T75-650-18 650 (65) 1800 8100 330 0.93 0.71 125 0.04 42x25x15
T75-650-20 650 (65) 2000 8100 330 0.93 0.71 125 0.04 42x25x15
T75-700-06 700 (65) 600 8800 386 0.87 0.6 125 0.04 42x25x15
T75-700-08 700 (65) 800 8800 386 0.87 0.6 125 0.04 42x25x15
T75-700-10 700 (65) 1000 8800 386 0.87 0.6 125 0.04 42x25x15
T75-700-12 700 (65) 1200 8800 386 0.87 0.6 125 0.04 42x25x15
T75-700-14 700 (65) 1400 8800 386 0.87 0.6 125 0.04 42x25x15
T75-700-16 700 (65) 1600 8800 386 0.87 0.6 125 0.04 42x25x15
T75-700-18 700 (65) 1800 8800 386 0.87 0.6 125 0.04 42x25x15
T75-700-20 700 (65) 2000 8800 386 0.87 0.6 125 0.04 42x25x15
T75-750-04 750 (65) 400 9500 450 0.89 0.48 125 0.04 42x25x15
T75-750-06 750 (65) 600 9500 450 0.89 0.48 125 0.04 42x25x15
T75-750-08 750 (65) 800 9500 450 0.89 0.48 125 0.04 42x25x15
T75-750-10 750 (65) 1000 9500 450 0.89 0.48 125 0.04 42x25x15
T75-750-12 750 (65) 1200 9500 450 0.89 0.48 125 0.04 42x25x15
T75-750-14 750 (65) 1400 9500 450 0.89 0.48 125 0.04 42x25x15
T75-750-16 750 (65) 1600 9500 450 0.89 0.48 125 0.04 42x25x15
T75-980-02 980 (65) 200 11400 650 0.8 0.23 125 0.04 42x25x15
T75-980-04 980 (65) 400 11400 650 0.8 0.23 125 0.04 42x25x15
T75-980-06 980 (65) 600 11400 650 0.8 0.23 125 0.04 42x25x15
T75-980-08 980 (65) 800 11400 650 0.8 0.23 125 0.04 42x25x15
