Product details
T63-200 T63-250 T63-300 T63-400 T63-500 Phase Control Thyristor
| Type | IT(AV)M (Tc) |
VDRM VRRM |
ITSM | I²t | VTo | rT | Tvj max |

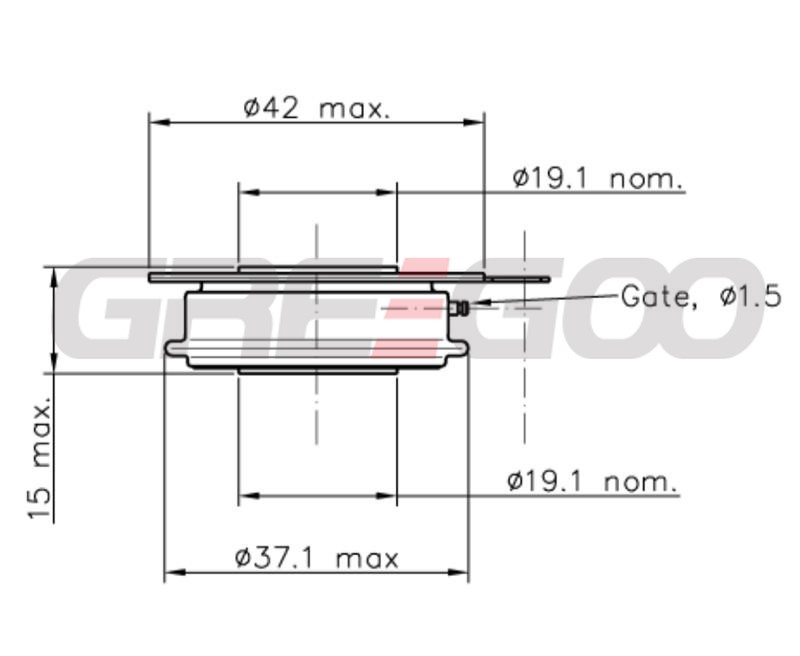

Rth(j-c) | Dimensions IDxODxH |
| A | V | A | kA².s | V | mΩ | ℃ | C/W | mm | |
| T63-200-04 | 200 (90) | 400 | 3600 | 65 | 1.24 | 1.6 | 125 | 0.08 | 42x19x15 |
| T63-200-06 | 200 (90) | 600 | 3600 | 65 | 1.24 | 1.6 | 125 | 0.08 | 42x19x15 |
| T63-200-08 | 200 (90) | 800 | 3600 | 65 | 1.24 | 1.6 | 125 | 0.08 | 42x19x15 |
| T63-200-10 | 200 (90) | 1000 | 3600 | 65 | 1.24 | 1.6 | 125 | 0.08 | 42x19x15 |
| T63-200-12 | 200 (90) | 1200 | 3600 | 65 | 1.24 | 1.6 | 125 | 0.08 | 42x19x15 |
| T63-200-14 | 200 (90) | 1400 | 3600 | 65 | 1.24 | 1.6 | 125 | 0.08 | 42x19x15 |
| T63-200-16 | 200 (90) | 1600 | 3600 | 65 | 1.24 | 1.6 | 125 | 0.08 | 42x19x15 |
| T63-200-18 | 200 (90) | 1800 | 3600 | 65 | 1.24 | 1.6 | 125 | 0.08 | 42x19x15 |
| T63-200-20 | 200 (90) | 2000 | 3600 | 65 | 1.24 | 1.6 | 125 | 0.08 | 42x19x15 |
| T63-200-22 | 200 (90) | 2200 | 3600 | 65 | 1.24 | 1.6 | 125 | 0.08 | 42x19x15 |
| T63-250-04 | 250 (85) | 400 | 4000 | 80 | 1.15 | 1.15 | 125 | 0.08 | 42x19x15 |
| T63-250-06 | 250 (85) | 600 | 4000 | 80 | 1.15 | 1.15 | 125 | 0.08 | 42x19x15 |
| T63-250-08 | 250 (85) | 800 | 4000 | 80 | 1.15 | 1.15 | 125 | 0.08 | 42x19x15 |
| T63-250-10 | 250 (85) | 1000 | 4000 | 80 | 1.15 | 1.15 | 125 | 0.08 | 42x19x15 |
| T63-250-12 | 250 (85) | 1200 | 4000 | 80 | 1.15 | 1.15 | 125 | 0.08 | 42x19x15 |
| T63-250-14 | 250 (85) | 1400 | 4000 | 80 | 1.15 | 1.15 | 125 | 0.08 | 42x19x15 |
| T63-250-16 | 250 (85) | 1600 | 4000 | 80 | 1.15 | 1.15 | 125 | 0.08 | 42x19x15 |
| T63-250-18 | 250 (85) | 1800 | 4000 | 80 | 1.15 | 1.15 | 125 | 0.08 | 42x19x15 |
| T63-250-20 | 250 (85) | 2000 | 4000 | 80 | 1.15 | 1.15 | 125 | 0.08 | 42x19x15 |
| T63-250-22 | 250 (85) | 2200 | 4000 | 80 | 1.15 | 1.15 | 125 | 0.08 | 42x19x15 |
| T63-300-04 | 300 (80) | 400 | 4500 | 101 | 1.1 | 0.86 | 125 | 0.08 | 42x19x15 |
| T63-300-06 | 300 (80) | 600 | 4500 | 101 | 1.1 | 0.86 | 125 | 0.08 | 42x19x15 |
| T63-300-08 | 300 (80) | 800 | 4500 | 101 | 1.1 | 0.86 | 125 | 0.08 | 42x19x15 |
| T63-300-10 | 300 (80) | 1000 | 4500 | 101 | 1.1 | 0.86 | 125 | 0.08 | 42x19x15 |
| T63-300-12 | 300 (80) | 1200 | 4500 | 101 | 1.1 | 0.86 | 125 | 0.08 | 42x19x15 |
| T63-300-14 | 300 (80) | 1400 | 4500 | 101 | 1.1 | 0.86 | 125 | 0.08 | 42x19x15 |
| T63-300-16 | 300 (80) | 1600 | 4500 | 101 | 1.1 | 0.86 | 125 | 0.08 | 42x19x15 |
| T63-300-18 | 300 (80) | 1800 | 4500 | 101 | 1.1 | 0.86 | 125 | 0.08 | 42x19x15 |
| T63-400-04 | 400 (65) | 400 | 4700 | 110 | 0.95 | 0.8 | 125 | 0.08 | 42x19x15 |
| T63-400-06 | 400 (65) | 600 | 4700 | 110 | 0.95 | 0.8 | 125 | 0.08 | 42x19x15 |
| T63-400-08 | 400 (65) | 800 | 4700 | 110 | 0.95 | 0.8 | 125 | 0.08 | 42x19x15 |
| T63-400-10 | 400 (65) | 1000 | 4700 | 110 | 0.95 | 0.8 | 125 | 0.08 | 42x19x15 |
| T63-400-12 | 400 (65) | 1200 | 4700 | 110 | 0.95 | 0.8 | 125 | 0.08 | 42x19x15 |
| T63-400-14 | 400 (65) | 1400 | 4700 | 110 | 0.95 | 0.8 | 125 | 0.08 | 42x19x15 |
| T63-400-16 | 400 (65) | 1600 | 4700 | 110 | 0.95 | 0.8 | 125 | 0.08 | 42x19x15 |
| T63-500-02 | 500 (65) | 200 | 6300 | 200 | 0.76 | 0.46 | 125 | 0.08 | 42x19x15 |
| T63-500-04 | 500 (65) | 400 | 6300 | 200 | 0.76 | 0.46 | 125 | 0.08 | 42x19x15 |
| T63-500-06 | 500 (65) | 600 | 6300 | 200 | 0.76 | 0.46 | 125 | 0.08 | 42x19x15 |
