Product details
T83-630 T83-800 T83-900 T83-1000 Phase Control Thyristor
| Type | IT(AV)M (Tc) |
VDRM VRRM |
ITSM | I²t | VTo | rT | Tvj max |

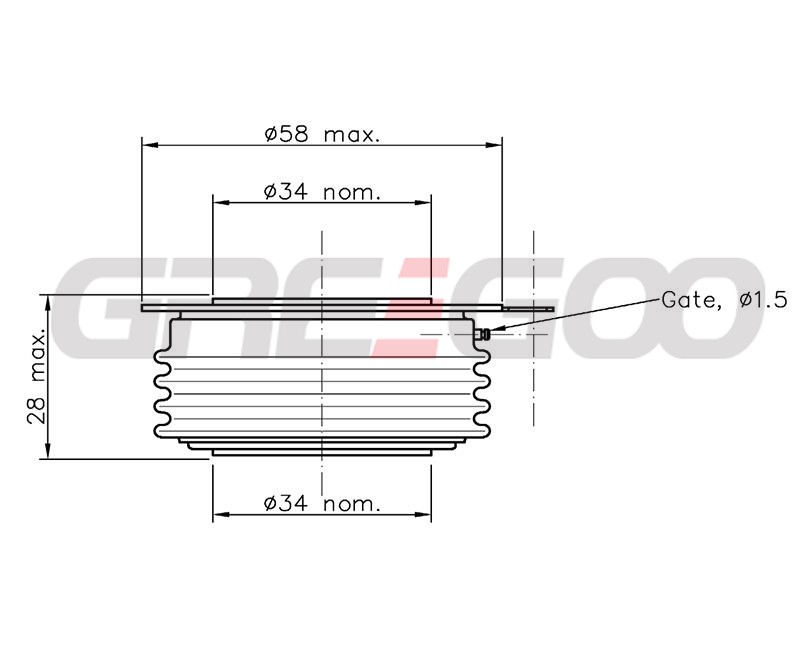

Rth(j-c) | Dimensions IDxODxH |
| A | V | A | kA².s | V | mΩ | ℃ | C/W | mm | |
| T83-630-04 | 630 (70) | 400 | 10200 | 520 | 1.25 | 0.8 | 125 | 0.032 | 58x34x28 |
| T83-630-06 | 630 (70) | 600 | 10200 | 520 | 1.25 | 0.8 | 125 | 0.032 | 58x34x28 |
| T83-630-08 | 630 (70) | 800 | 10200 | 520 | 1.25 | 0.8 | 125 | 0.032 | 58x34x28 |
| T83-630-10 | 630 (70) | 1000 | 10200 | 520 | 1.25 | 0.8 | 125 | 0.032 | 58x34x28 |
| T83-630-12 | 630 (70) | 1200 | 10200 | 520 | 1.25 | 0.8 | 125 | 0.032 | 58x34x28 |
| T83-630-14 | 630 (70) | 1400 | 10200 | 520 | 1.25 | 0.8 | 125 | 0.032 | 58x34x28 |
| T83-630-16 | 630 (70) | 1600 | 10200 | 520 | 1.25 | 0.8 | 125 | 0.032 | 58x34x28 |
| T83-630-18 | 630 (70) | 1800 | 10200 | 520 | 1.25 | 0.8 | 125 | 0.032 | 58x34x28 |
| T83-630-20 | 630 (70) | 2000 | 10200 | 520 | 1.25 | 0.8 | 125 | 0.032 | 58x34x28 |
| T83-630-22 | 630 (70) | 2200 | 10200 | 520 | 1.25 | 0.8 | 125 | 0.032 | 58x34x28 |
| T83-630-24 | 630 (70) | 2400 | 10200 | 520 | 1.25 | 0.8 | 125 | 0.032 | 58x34x28 |
| T83-800-04 | 800 (70) | 400 | 13000 | 845 | 0.99 | 0.49 | 125 | 0.032 | 58x34x28 |
| T83-800-06 | 800 (70) | 600 | 13000 | 845 | 0.99 | 0.49 | 125 | 0.032 | 58x34x28 |
| T83-800-08 | 800 (70) | 800 | 13000 | 845 | 0.99 | 0.49 | 125 | 0.032 | 58x34x28 |
| T83-800-10 | 800 (70) | 1000 | 13000 | 845 | 0.99 | 0.49 | 125 | 0.032 | 58x34x28 |
| T83-800-12 | 800 (70) | 1200 | 13000 | 845 | 0.99 | 0.49 | 125 | 0.032 | 58x34x28 |
| T83-800-14 | 800 (70) | 1400 | 13000 | 845 | 0.99 | 0.49 | 125 | 0.032 | 58x34x28 |
| T83-800-16 | 800 (70) | 1600 | 13000 | 845 | 0.99 | 0.49 | 125 | 0.032 | 58x34x28 |
| T83-800-18 | 800 (70) | 1800 | 13000 | 845 | 0.99 | 0.49 | 125 | 0.032 | 58x34x28 |
| T83-800-20 | 800 (70) | 2000 | 13000 | 845 | 0.99 | 0.49 | 125 | 0.032 | 58x34x28 |
| T83-800-22 | 800 (70) | 2200 | 13000 | 845 | 0.99 | 0.49 | 125 | 0.032 | 58x34x28 |
| T83-800-24 | 800 (70) | 2400 | 13000 | 845 | 0.99 | 0.49 | 125 | 0.032 | 58x34x28 |
| T83-900-04 | 900 (70) | 400 | 13200 | 870 | 0.97 | 0.34 | 125 | 0.032 | 58x34x28 |
| T83-900-06 | 900 (70) | 600 | 13200 | 870 | 0.97 | 0.34 | 125 | 0.032 | 58x34x28 |
| T83-900-08 | 900 (70) | 800 | 13200 | 870 | 0.97 | 0.34 | 125 | 0.032 | 58x34x28 |
| T83-900-10 | 900 (70) | 1000 | 13200 | 870 | 0.97 | 0.34 | 125 | 0.032 | 58x34x28 |
| T83-900-12 | 900 (70) | 1200 | 13200 | 870 | 0.97 | 0.34 | 125 | 0.032 | 58x34x28 |
| T83-900-14 | 900 (70) | 1400 | 13200 | 870 | 0.97 | 0.34 | 125 | 0.032 | 58x34x28 |
| T83-900-16 | 900 (70) | 1600 | 13200 | 870 | 0.97 | 0.34 | 125 | 0.032 | 58x34x28 |
| T83-900-18 | 900 (70) | 1800 | 13200 | 870 | 0.97 | 0.34 | 125 | 0.032 | 58x34x28 |
| T83-900-20 | 900 (70) | 2000 | 13200 | 870 | 0.97 | 0.34 | 125 | 0.032 | 58x34x28 |
| T83-1000-02 | 1000 (80) | 200 | 18000 | 1620 | 0.79 | 0.2 | 125 | 0.032 | 58x34x28 |
| T83-1000-04 | 1000 (80) | 400 | 18000 | 1620 | 0.79 | 0.2 | 125 | 0.032 | 58x34x28 |
| T83-1000-06 | 1000 (80) | 600 | 18000 | 1620 | 0.79 | 0.2 | 125 | 0.032 | 58x34x28 |
| T83-1000-08 | 1000 (80) | 800 | 18000 | 1620 | 0.79 | 0.2 | 125 | 0.032 | 58x34x28 |
| T83-1000-10 | 1000 (80) | 1000 | 18000 | 1620 | 0.79 | 0.2 | 125 | 0.032 | 58x34x28 |
| T83-1000-12 | 1000 (80) | 1200 | 18000 | 1620 | 0.79 | 0.2 | 125 | 0.032 | 58x34x28 |
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
