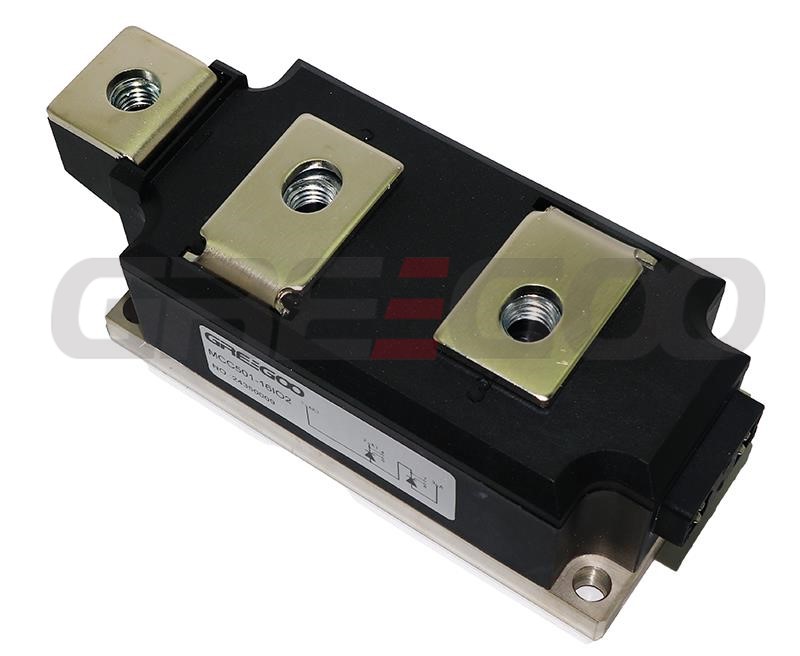

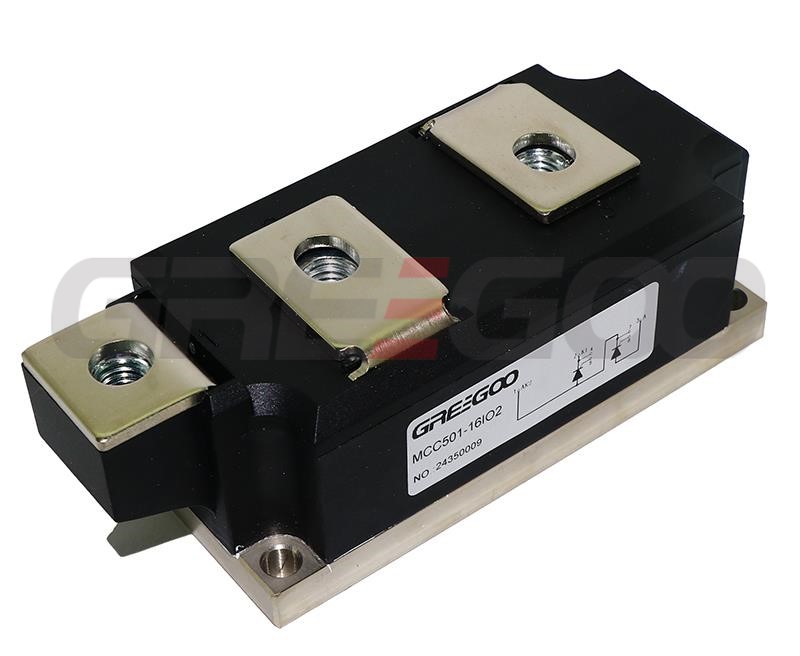

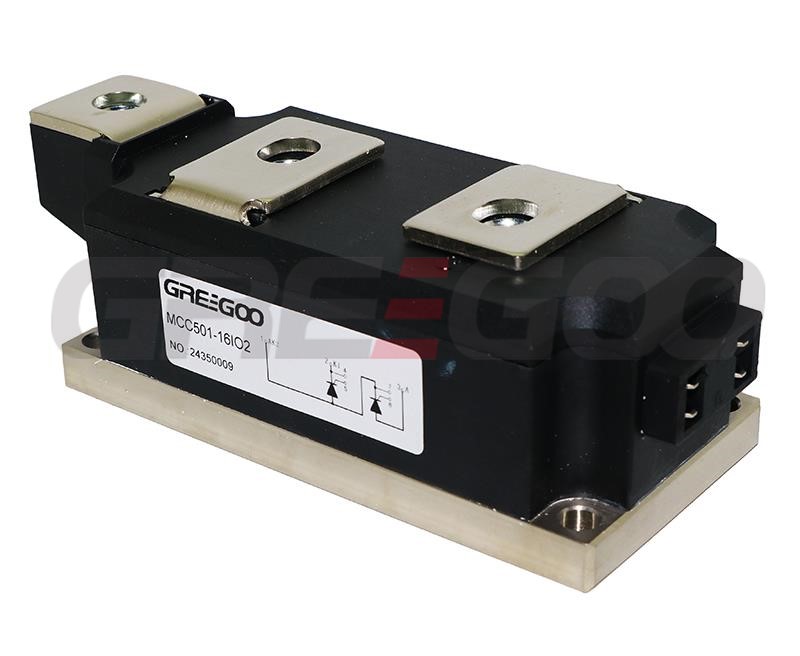

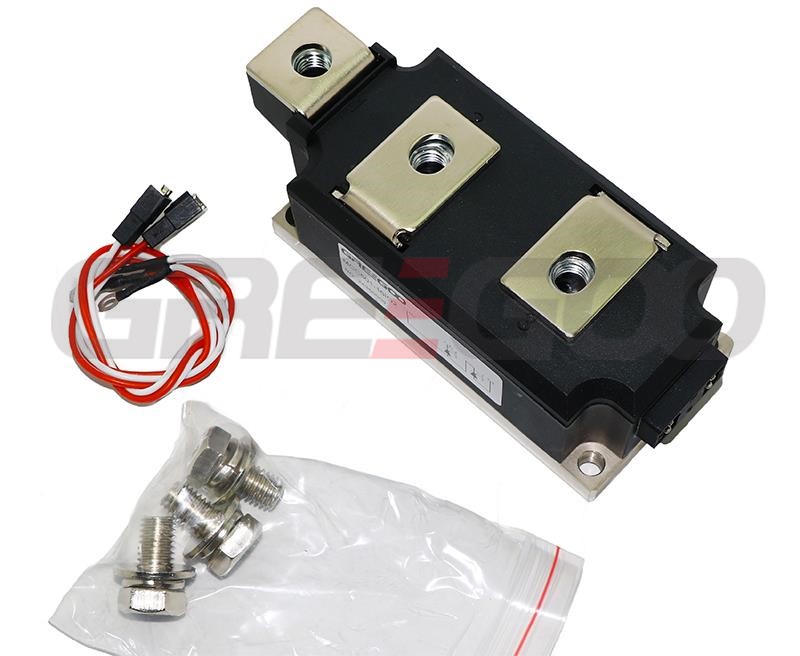

IXYS Thyristor Diode Module (W74 package)
Home Products Thyristor Diode ModuleIXYS Diode Thyristor ModuleIXYS Thyristor Diode Module (W74 package)
Specification
IXYS Thyristor Diode Module (W74 package)
| Model | IT(AV) (A) | VRRM (V) | ITSM (A) | I2t (kA2·s) | V(TO) (V) | rT (mΩ) | Tvj max (ºC) | Rth(j-c) (ºC/W) | Weight (g) | Package | Size (mm) |
| MCC501-12io2 | 503 | 1200 | 14500 | 1050 | 0.85 | 0.3 | 125 | 0.062 | 1500 | W74 | 149x60x52 |
| MCC501-14io2 | 503 | 1400 | 14500 | 1050 | 0.85 | 0.3 | 125 | 0.062 | 1500 | W74 | 149x60x52 |
| MCC501-16io2 | 503 | 1600 | 14500 | 1050 | 0.85 | 0.3 | 125 | 0.062 | 1500 | W74 | 149x60x52 |
| MCC501-18io2 | 503 | 1800 | 14500 | 1050 | 0.85 | 0.3 | 125 | 0.062 | 1500 | W74 | 149x60x52 |
| MCC552-12io2 | 550 | 1200 | 15800 | 1250 | 0.77 | 0.259 | 125 | 0.062 | 1500 | W74 | 149x60x52 |
| MCC552-14io2 | 550 | 1400 | 15800 | 1250 | 0.77 | 0.259 | 125 | 0.062 | 1500 | W74 | 149x60x52 |
| MCC552-16io2 | 550 | 1600 | 15800 | 1250 | 0.77 | 0.259 | 125 | 0.062 | 1500 | W74 | 149x60x52 |
MDD630 MDD710 MDD810 Dual Diode Module
| Model No. |
IFAV（A） | Tc ℃ |
VRRM V |
IFSM A |
I²t kA2·s |
V(TO) V |
rT mΩ |
Tvj max ºC |
Rth(j-c) ºC/W |
Weight g |
Package | Size (L×B×H) mm |
| MDD630-30N2 | 530 | 100 | 3000 | 11700 | 845 | 0.8 | 0.5 | 150 | 0.065 | 1500 | W74 | 149x60x52 |
| MDD630-36N2 | 530 | 100 | 3600 | 11700 | 845 | 0.8 | 0.5 | 150 | 0.065 | 1500 | W74 | 149x60x52 |
| MDD710-22N2 | 578 | 100 | 2200 | 12700 | 806 | 0.8 | 0.35 | 150 | 0.065 | 1500 | W74 | 149x60x52 |
| MDD710-24N2 | 578 | 100 | 2400 | 12700 | 806 | 0.8 | 0.35 | 150 | 0.065 | 1500 | W74 | 149x60x52 |
| MDD710-26N2 | 578 | 100 | 2600 | 12700 | 806 | 0.8 | 0.35 | 150 | 0.065 | 1500 | W74 | 149x60x52 |
| MDD810-12N2 | 664 | 100 | 1200 | 17300 | 1480 | 0.78 | 0.23 | 150 | 0.062 | 1500 | W74 | 149x60x52 |
| MDD810-14N2 | 664 | 100 | 1400 | 17300 | 1480 | 0.78 | 0.23 | 150 | 0.062 | 1500 | W74 | 149x60x52 |
| MDD810-16N2 | 664 | 100 | 1600 | 17300 | 1480 | 0.78 | 0.23 | 150 | 0.062 | 1500 | W74 | 149x60x52 |
| MDD810-18N2 | 664 | 100 | 1800 | 17300 | 1480 | 0.78 | 0.23 | 150 | 0.062 | 1500 | W74 | 149x60x52 |
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
