Specification

Half bridge Thyristor Module

Model	IT(AV) (A)	VRRM (V)	ITSM (A)	I2t (kA2·s)	V(TO) (V)	rT (mΩ)	Tvj max (ºC)	Rth(j-c) (ºC/W)	Weight (g)	Package	Size (mm)
MCMA25P1200TA	25	1200	400	0.8	0.87	13	140	1.2	81	TO-240AA-1B	92x20x30
MCMA25P1600TA	25	1600	400	0.8	0.87	13	140	1.2	81	TO-240AA-1B	92x20x30
MCMA35P1200TA	35	1200	520	1.35	0.87	9.8	140	0.9	81	TO-240AA-1B	92x20x30
MCMA35P1600TA	35	1600	520	1.35	0.87	9.8	140	0.9	81	TO-240AA-1B	92x20x30
MCMA50P1200TA	50	1200	800	3.2	0.89	5.3	140	0.7	81	TO-240AA-1B	92x20x30
MCMA50P1600TA	50	1600	800	3.2	0.89	5.3	140	0.7	81	TO-240AA-1B	92x20x30
MCMA65P1200TA	65	1200	1150	6.62	0.85	4.8	140	0.5	81	TO-240AA-1B	92x20x30
MCMA65P1600TA	65	1600	1150	6.62	0.85	4.8	140	0.5	81	TO-240AA-1B	92x20x30
MCMA65P1800TA	65	1800	1150	6.62	0.85	4.8	140	0.5	81	TO-240AA-1B	92x20x30
MCMA85P1200TA	85	1200	1500	11.3	0.85	3.9	140	0.38	81	TO-240AA-1B	92x20x30
MCMA85P1600TA	85	1600	1500	11.3	0.85	3.9	140	0.38	81	TO-240AA-1B	92x20x30
MCMA85P1800TA	85	1800	1500	11.3	0.85	3.9	140	0.38	81	TO-240AA-1B	92x20x30
MCMA110P1200TA	110	1200	1900	18.1	0.85	3.3	140	0.3	81	TO-240AA-1B	92x20x30
MCMA110P1600TA	110	1600	1900	18.1	0.85	3.3	140	0.3	81	TO-240AA-1B	92x20x30
MCMA110P1800TA	110	1800	1900	18.1	0.85	3.3	140	0.3	81	TO-240AA-1B	92x20x30
MCMA140P1200TA	140	1200	2400	28.8	0.85	2.8	140	0.22	81	TO-240AA-1B	92x20x30
MCMA140P1400TA	140	1400	2400	28.8	0.85	2.8	140	0.22	81	TO-240AA-1B	92x20x30

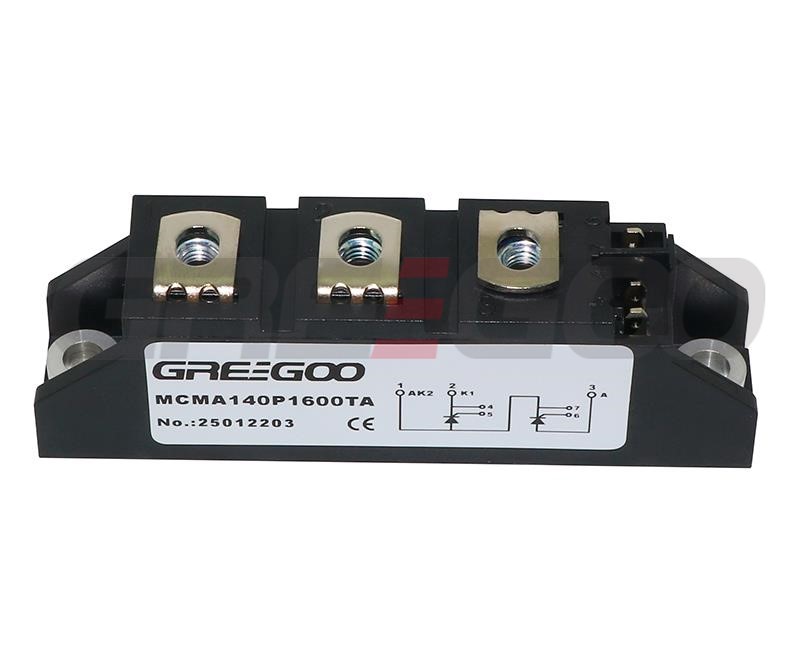

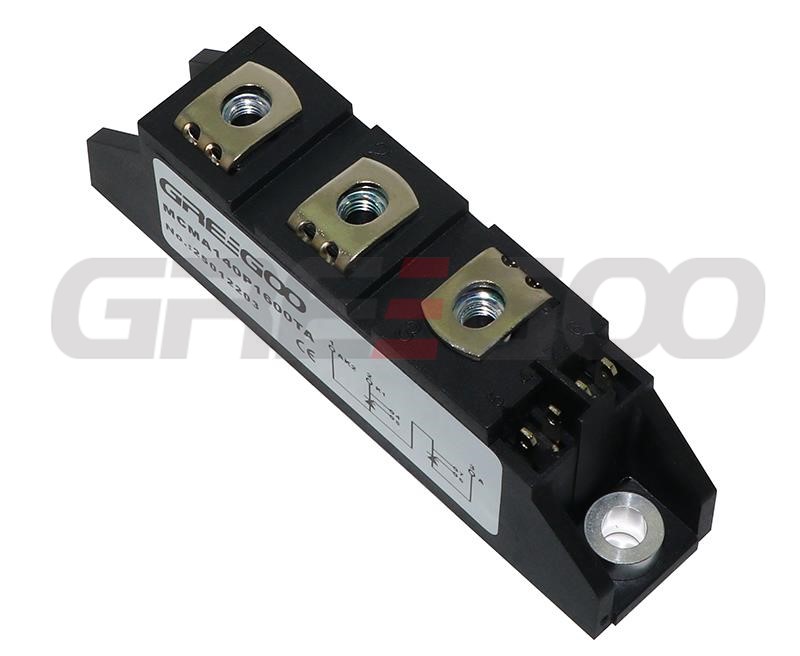

MCMA140P1600TA	140	1600	2400	28.8	0.85	2.8	140	0.22	81	TO-240AA-1B	92x20x30
MCMA140P1800TA	140	1800	2400	28.8	0.85	2.8	140	0.22	81	TO-240AA-1B	92x20x30

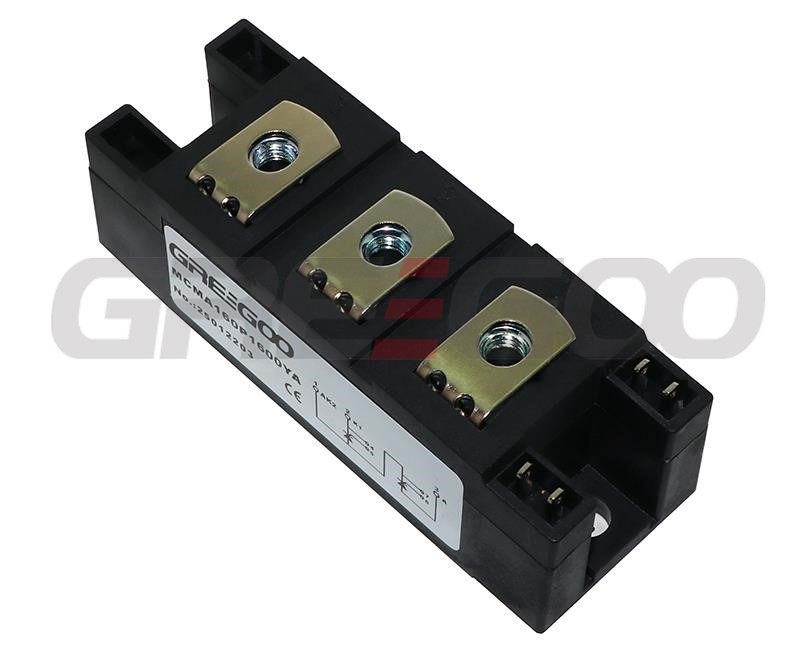

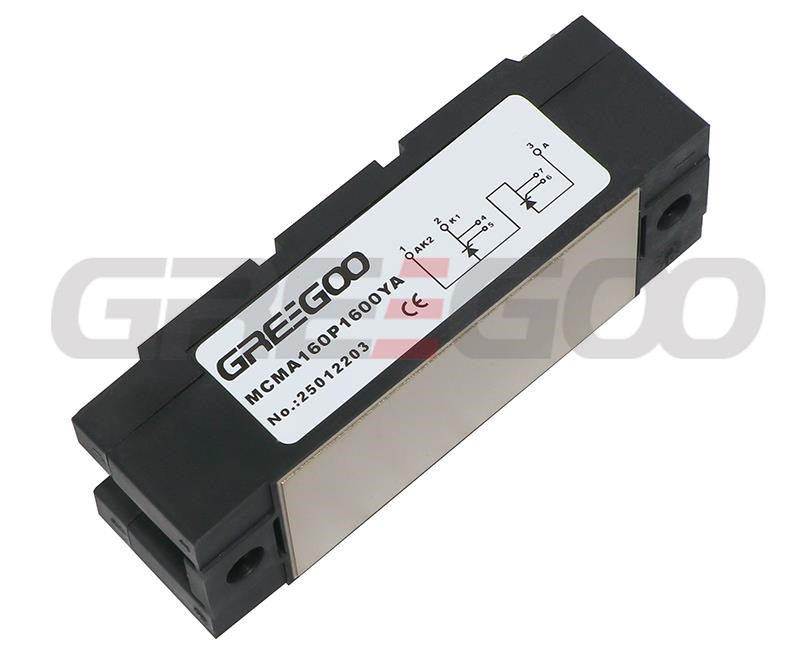

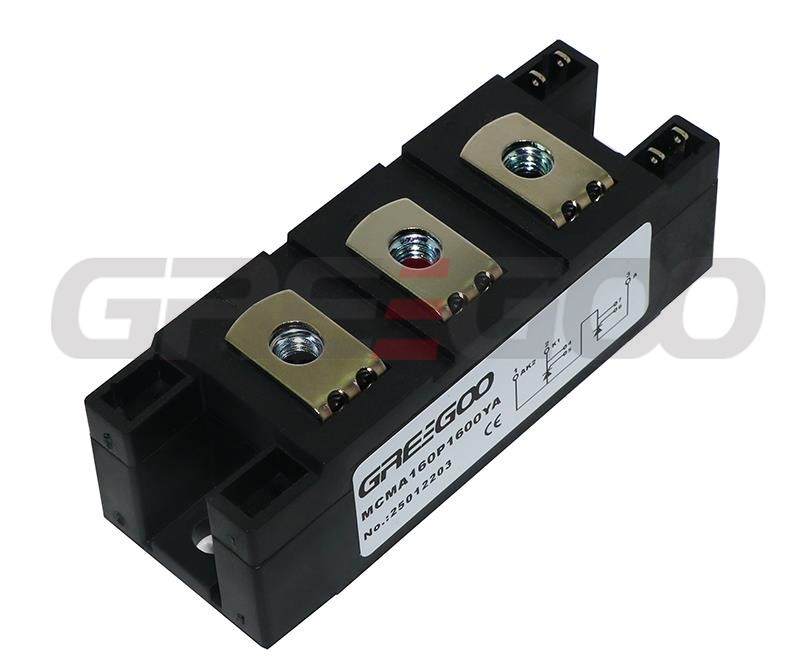

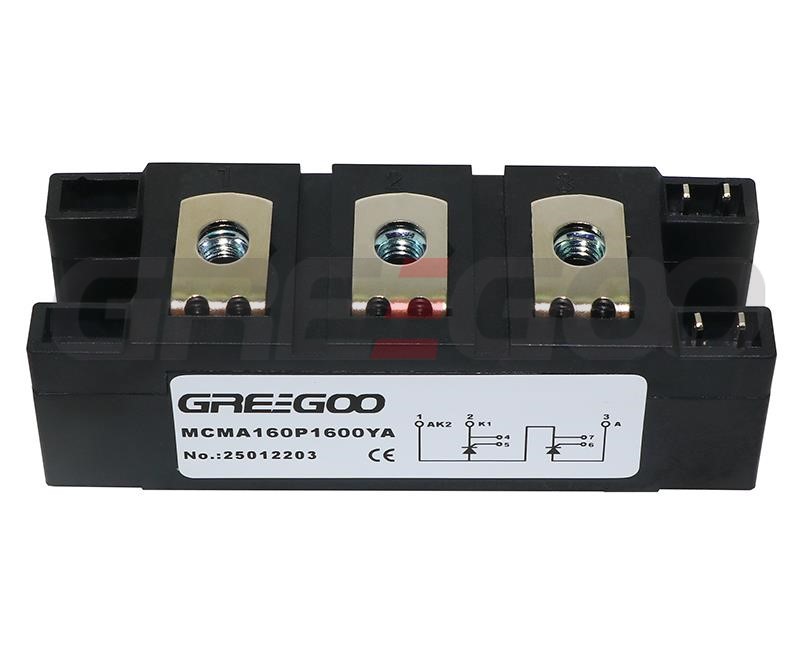

MCMA160P1600YA	160	1600	4750	112.8	0.82	1.63	140	0.21	131	Y4-M6	94x34x30
MCMA160P1800YA-MI	160	1800	4750	112.8	0.82	1.63	140	0.21	131	Y4-M6	94x34x30
MCMA200P1600YA	200	1600	6000	180	0.83	1.43	140	0.17	131	Y4-M6	94x34x30
MCMA200P1800YA-MI	200	1800	6000	180	0.83	1.43	140	0.17	131	Y4-M6	94x34x30
MCMA260P1600YA	260	1600	8300	344.5	0.81	1.23	140	0.13	150	Y4-M6	94x34x30
MCMA260P1800YA	260	1800	8300	344.5	0.81	1.23	140	0.13	150	Y4-M6	94x34x30
MCMA265P1600KA	268	1600	8500	361.3	0.8	0.75	140	0.16	680	Y1-CU	92x50x52
MCMA265P1800KA	268	1800	8500	361.3	0.8	0.75	140	0.16	680	Y1-CU	92x50x52
