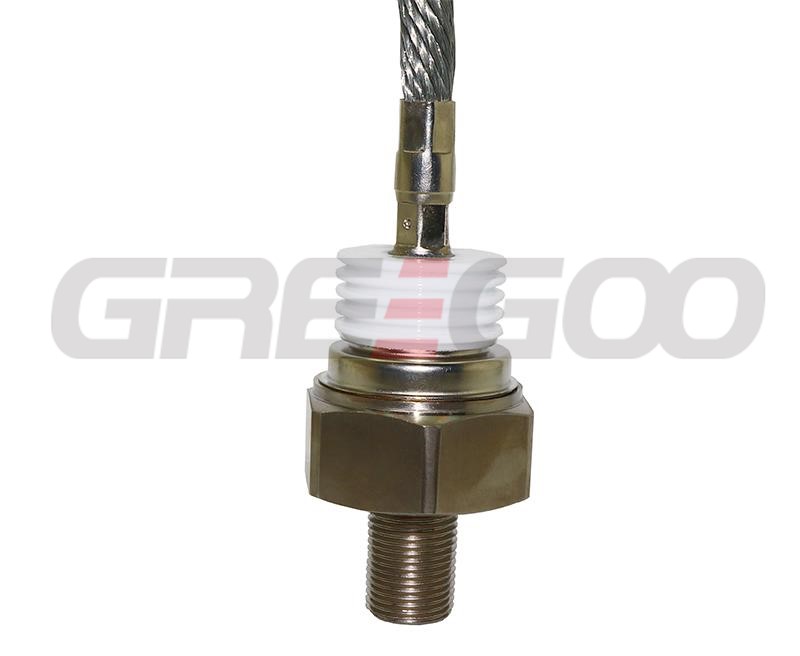

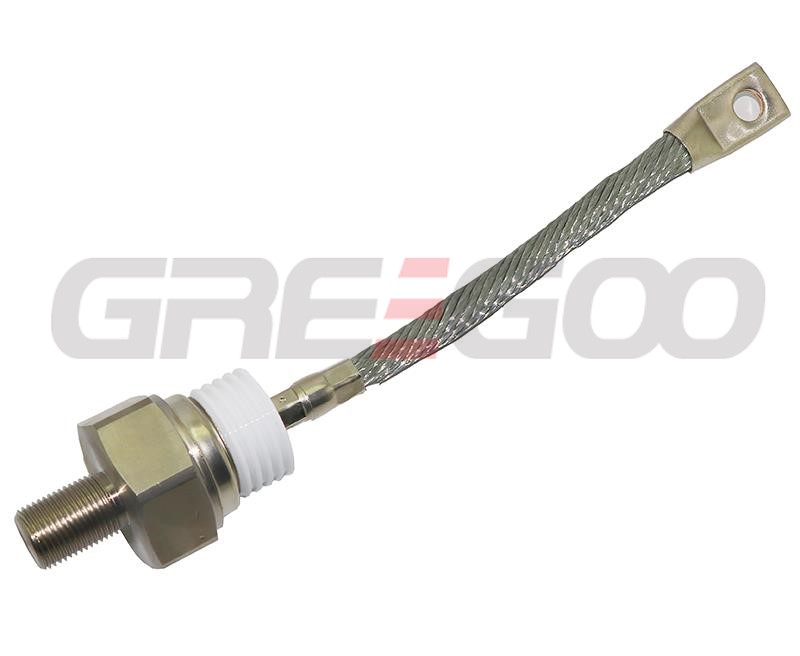

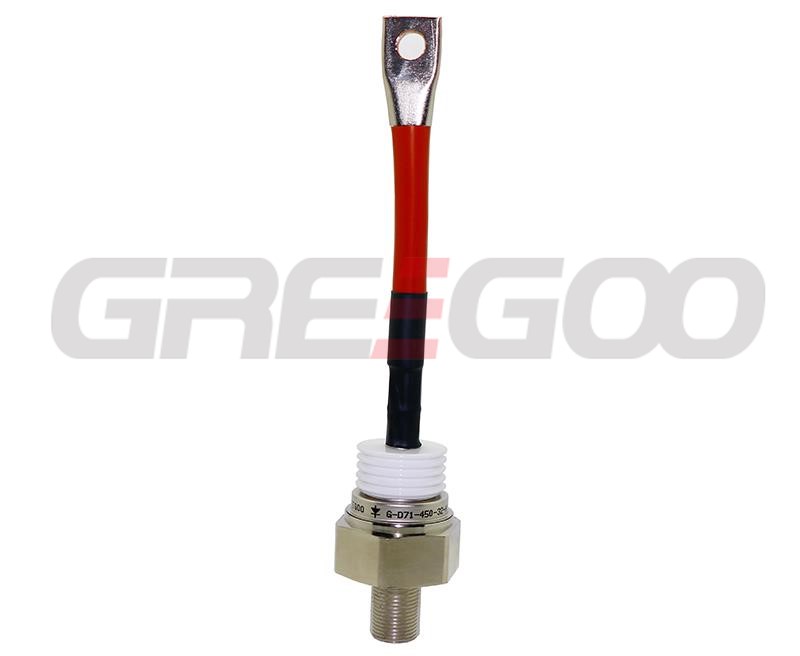

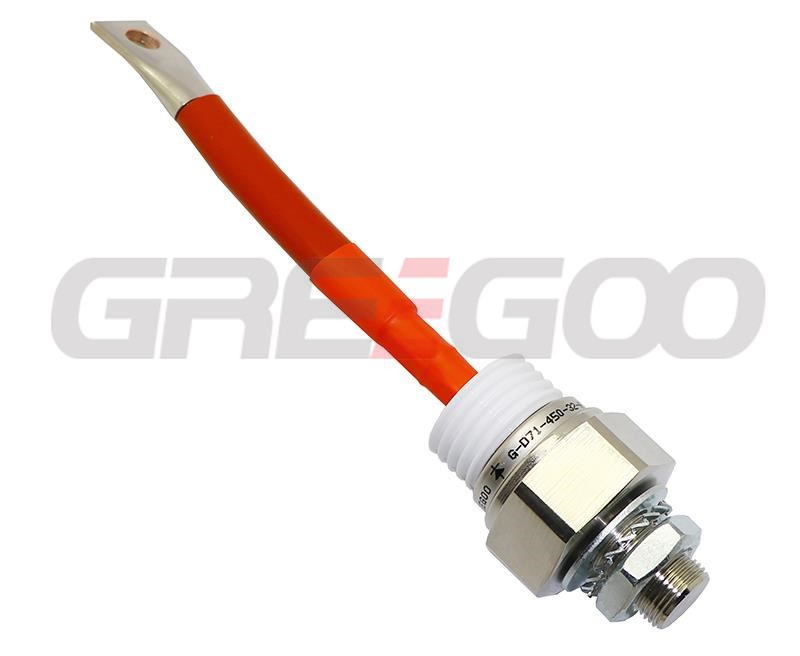

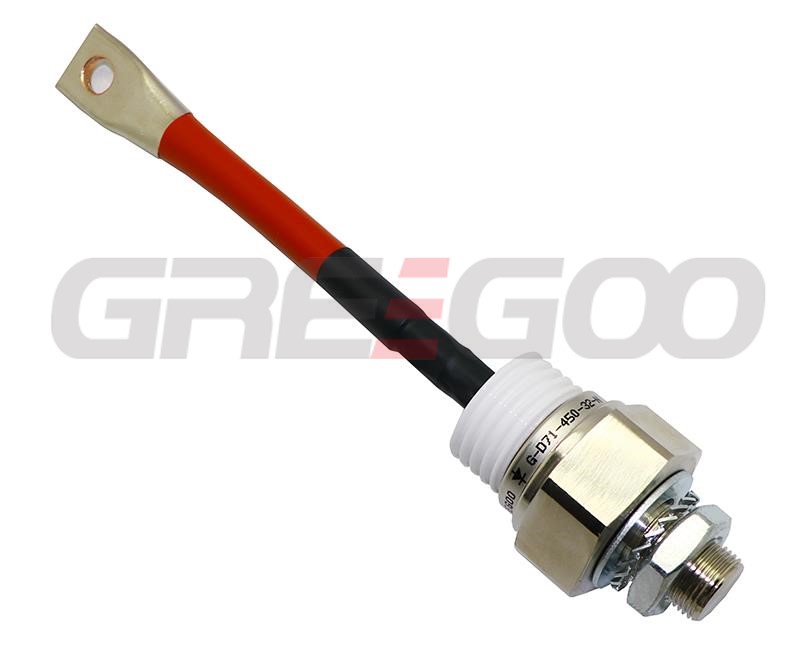

D71-450 Diode
Diodes type D71 is of modern design with internal spring loaded contacts, high alumina ceramic insulator and pressure welded encapsulation. Designed for use in power electronic circuits and equipment under normal operating conditions.
FEATURES
All diffused design
High current capabilities
High surge current capabilities
High rates voltages
Low thermal impedance
Tested according to IEC standards
Compact size and small weight
APPLICATION
High Voltage Power Supplies
Motor Control
Battery Chargers
Free Wheeling Diode
Resistance Welding

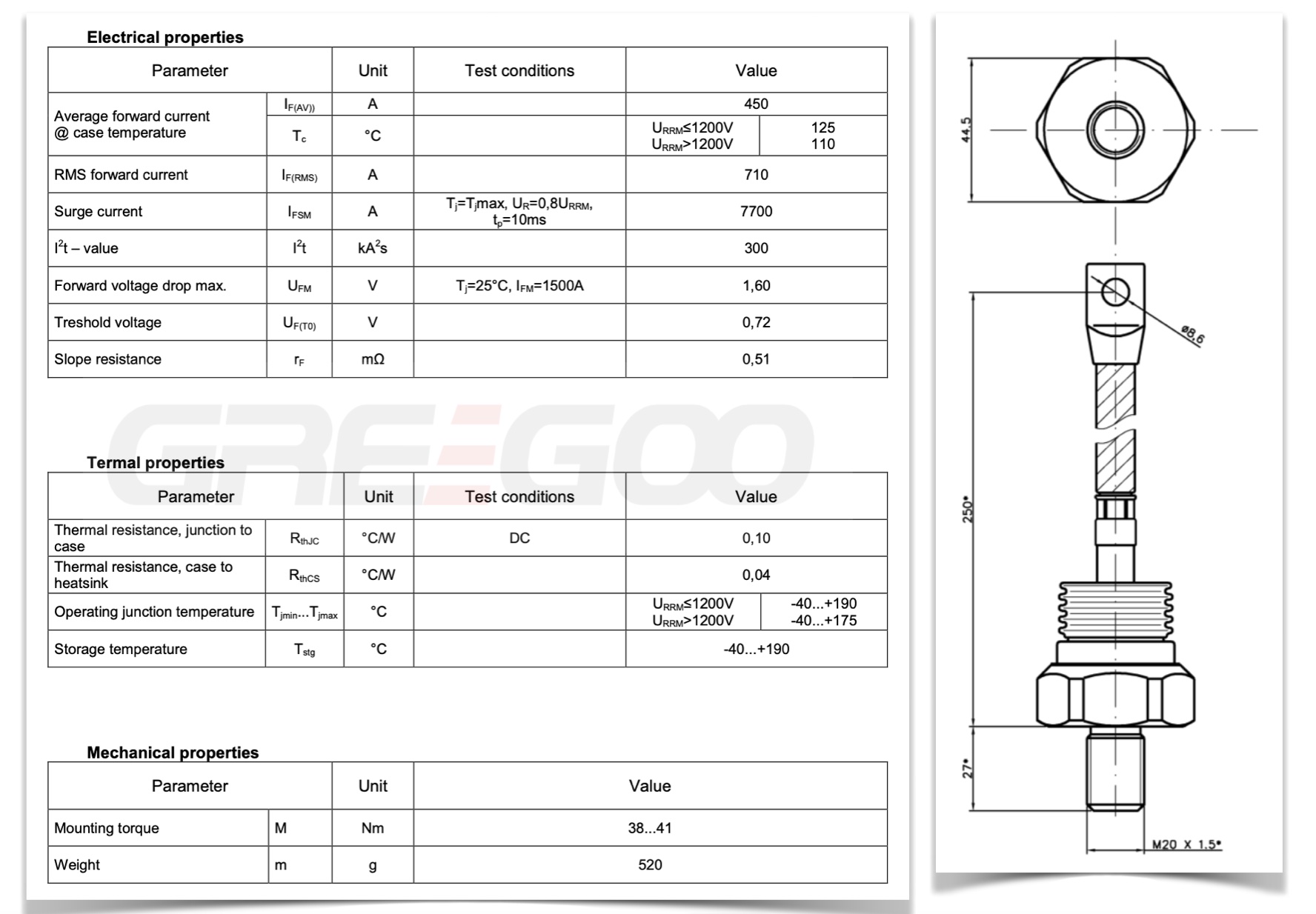

Part Numbers |
Voltage class | URRM | URSM | IRRM |
V | V | mA | ||

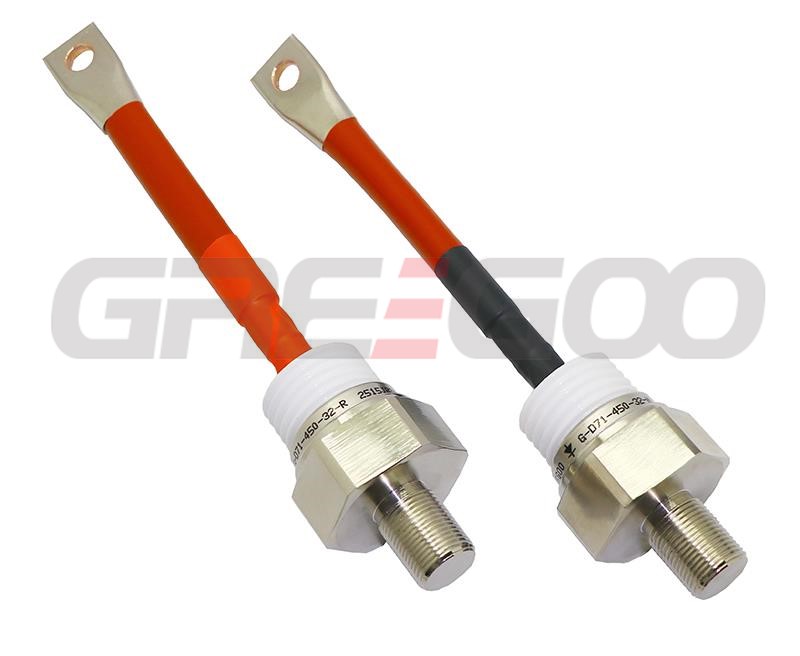

D71-450-08-N0 | 8 | 800 | 900 | 50 |
D71-450-10-N0 | 10 | 1000 | 1100 | |
D71-450-12-N0 | 12 | 1200 | 1300 | |
D71-450-14-N0 | 14 | 1400 | 1500 | |
D71-450-16-N0 | 16 | 1600 | 1700 | |
D71-450-18-N0 | 18 | 1800 | 1900 | |
D71-450-20-N0 | 20 | 2000 | 2100 | |
D71-450-22-N0 | 22 | 2200 | 2300 | |
D71-450-24-N0 | 24 | 2400 | 2500 | |
D71-450-26-N0 | 26 | 2600 | 2700 | |
D71-450-28-N0 | 28 | 2800 | 2900 | |
D71-450-30-N0 | 30 | 3000 | 3100 | |
D71-450-32-N0 | 32 | 3200 | 3300 | |

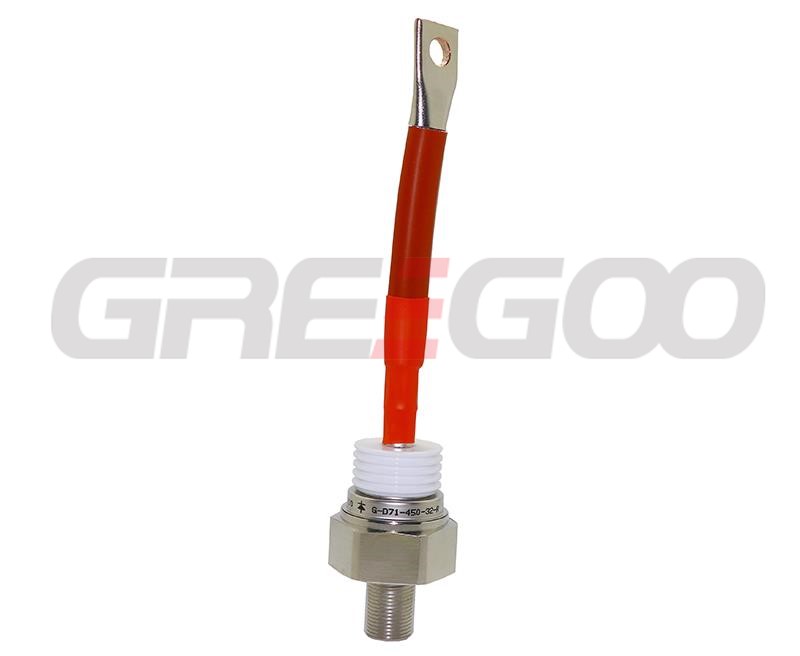

D71-450-08-R0 | 8 | 800 | 900 | 50 |
D71-450-10-R0 | 10 | 1000 | 1100 | |
D71-450-12-R0 | 12 | 1200 | 1300 | |
D71-450-14-R0 | 14 | 1400 | 1500 | |
D71-450-16-R0 | 16 | 1600 | 1700 | |
D71-450-18-R0 | 18 | 1800 | 1900 | |
D71-450-20-R0 | 20 | 2000 | 2100 | |
D71-450-22-R0 | 22 | 2200 | 2300 | |
D71-450-24-R0 | 24 | 2400 | 2500 | |
D71-450-26-R0 | 26 | 2600 | 2700 | |
D71-450-28-R0 | 28 | 2800 | 2900 | |
D71-450-30-R0 | 30 | 3000 | 3100 | |
D71-450-32-R0 | 32 | 3200 | 3300 |
Need more information?
Contact us to request pricing, availability and customization options.

ZP series rectifeir diode
5A to 500A Chinese type stud rectifier diode, metal type and ceramic type sealed stud.
View More

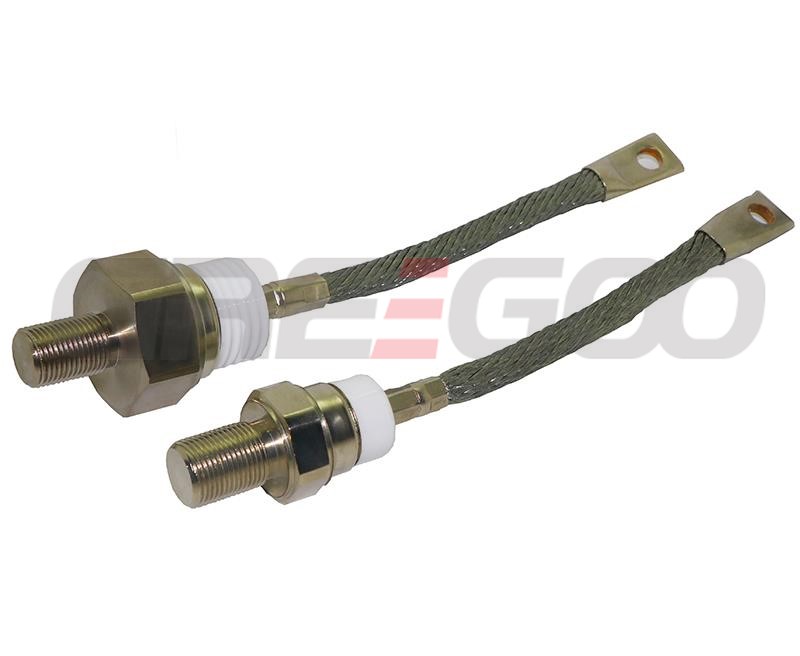

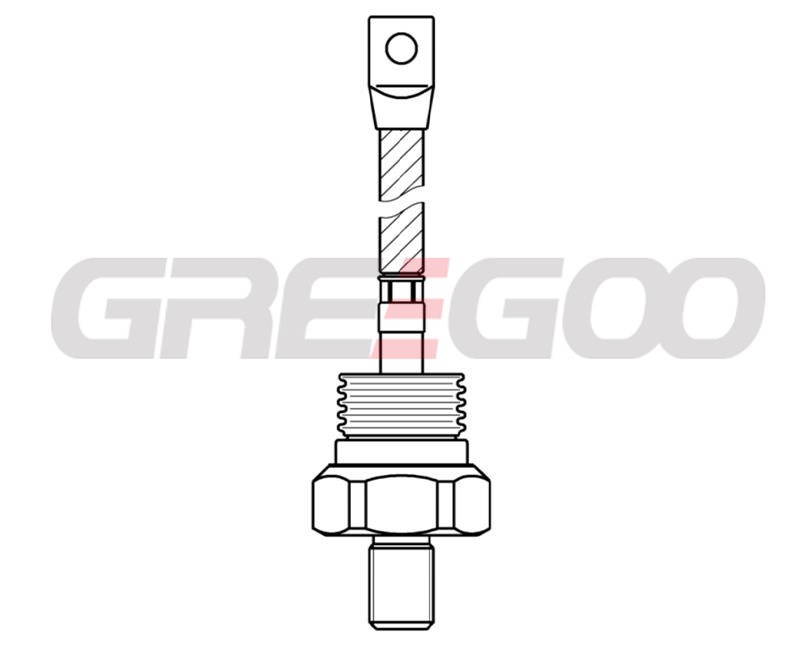

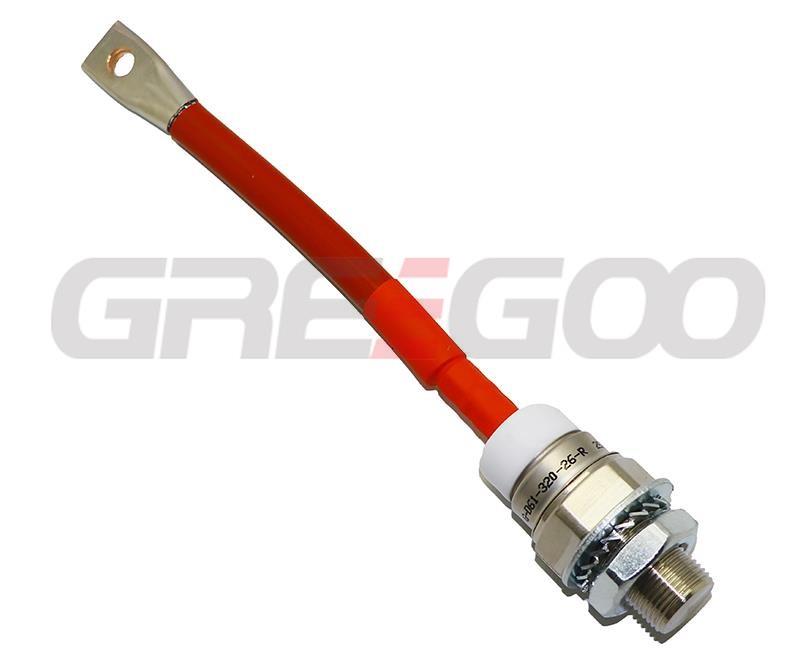

D61-320 Stud Diode
320A 1800V to 2600V
View More
D62-400 Diode, Press Welded Diode 400A
Diodes type D62 are of modern design with internal spring loaded contacts and pressure welded glass-to-metal seal.
View More

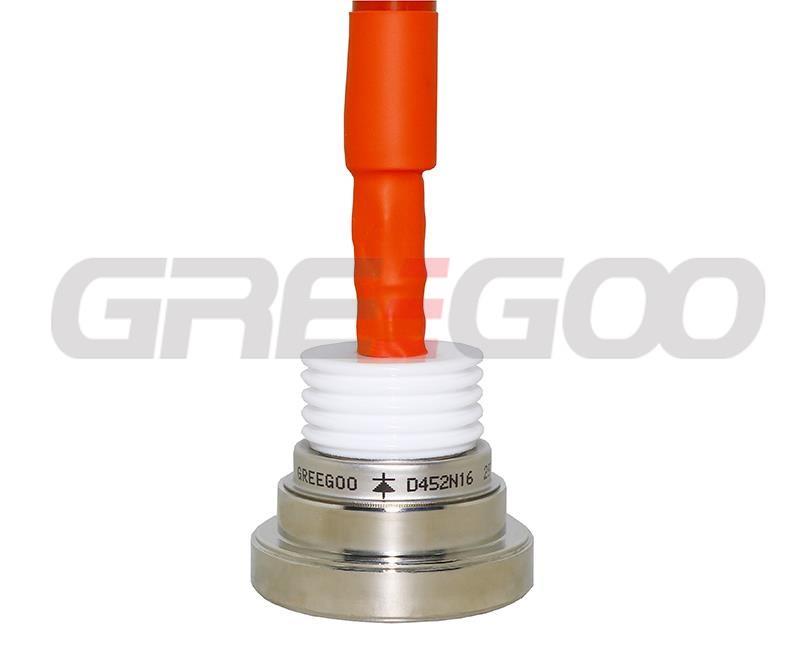

Standard Recovery Diodes (D452N)
