D355 stud rectifier diode
Home Products Stud DiodeGeneral Purpose Stud Diode D355 stud rectifier diode
Product Details

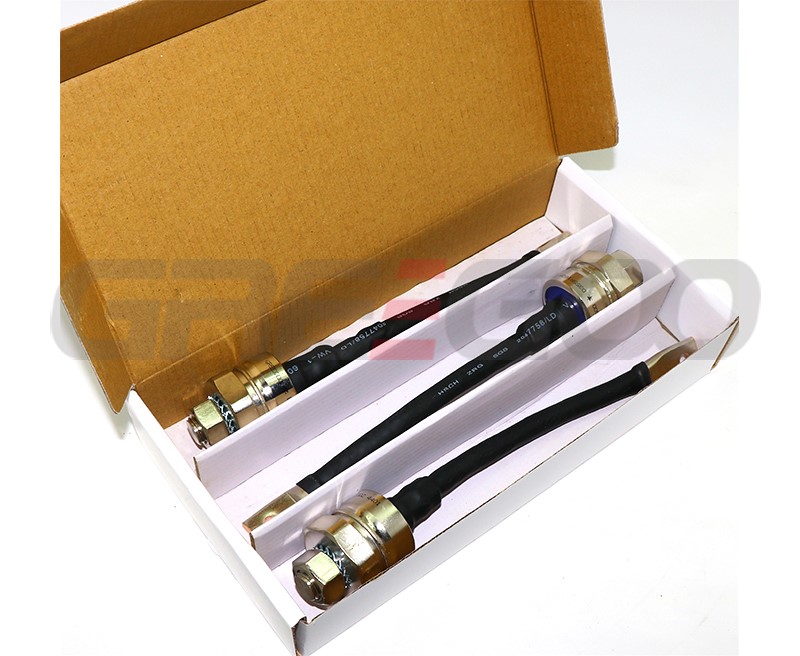

D355 stud rectifier diode
Feature
- Hermetic metal case
- High surge current capabilities
- Stud cathode and stud anode version
Typical Applications
- Converters
- Power supplies
- Machine tool controls
Type number | Voltage Code | VRRM, maximum repetitive peak reverse voltage |
VRSM , maximum non- repetitive peak rev. voltage |
IRRM max. @ TJ = TJ max. |
D355N/R-16/18/20 | V | V | mA | |
16 | 1600 | 1700 | 15 | |
18 | 1800 | 1900 | ||
20 | 2000 | 2100 |
Parameters | D355 | Units | |
IF(AV) | 355 | A | |
@ Ths | 100 | oC | |
IF(RMS) | 595 | A | |
IFSM | @ 50Hz | 6050 | A |
@ 60Hz | 6335 | A | |
I2t | @ 50Hz | 183 | KA2S |
@ 60Hz | 167 | KA2S | |
VRRM range | 1600 to 2000 | V | |
TJ | -40 to 180 | oC |
