Product Details

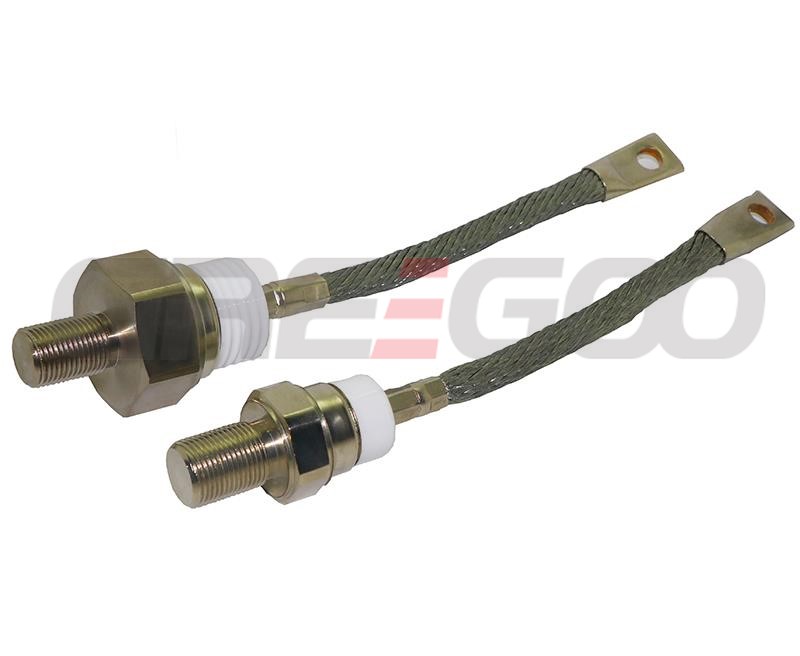

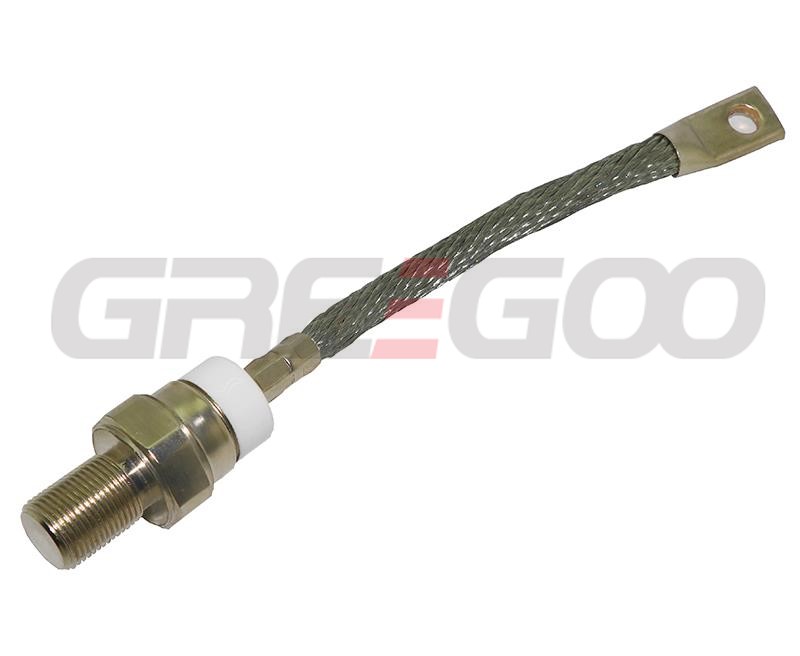

D61-200 Diode

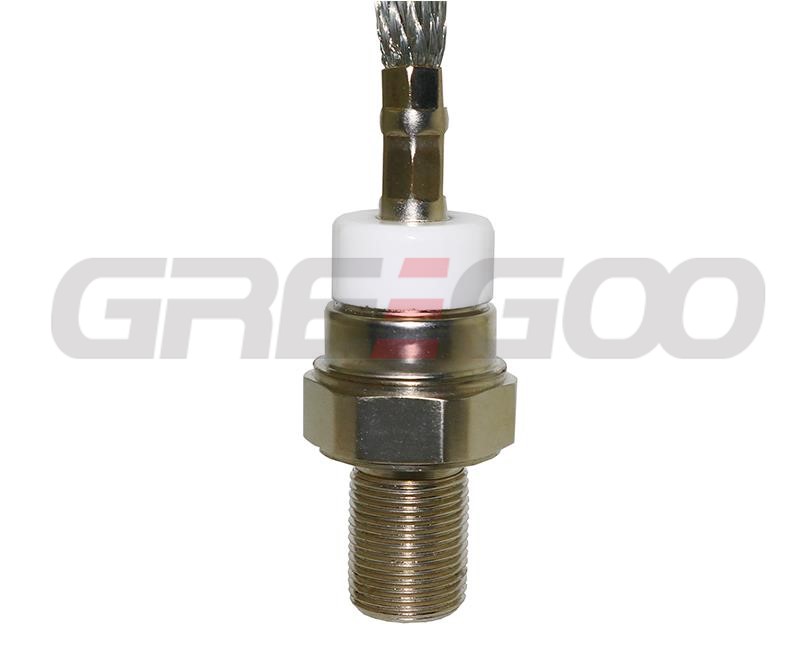

Diodes type D61 is of modern design with internal spring loaded contacts, high alumina ceramic insulator and pressure welded encapsulation. Designed for use in power electronic circuits and equipment under normal operating conditions.

FEATURES
All diffused design
High current capabilities
High surge current capabilities
High rates voltages
Low thermal impedance
Tested according to IEC standards
Compact size and small weight

APPLICATION
High Voltage Power Supplies
Motor Control
Battery Chargers
Free Wheeling Diode
Resistance Welding

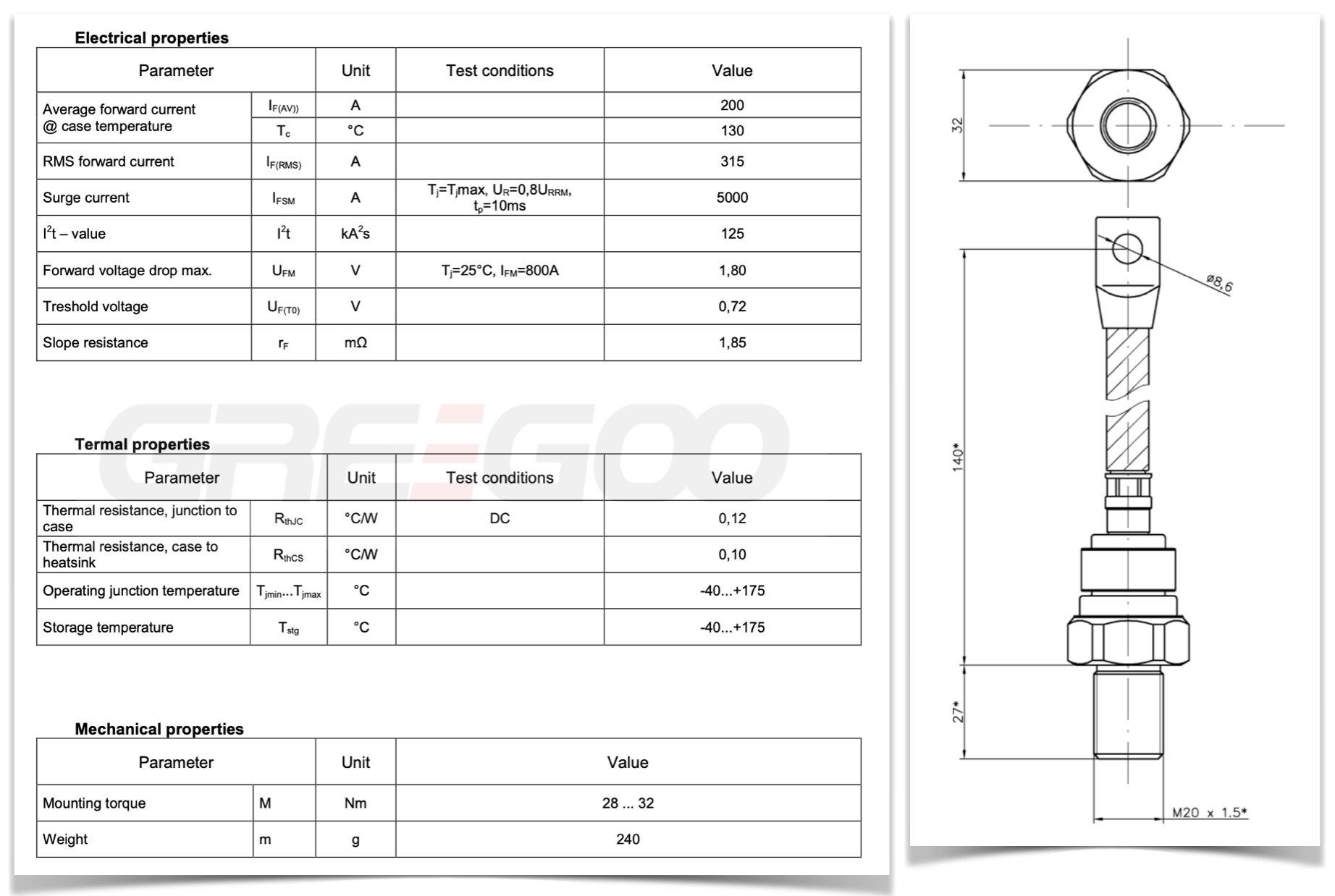

Specification

D61-200 Diode

Part Numbers

Part Numbers	Voltage class	URRM	URSM	IRRM
Part Numbers	Voltage class	V	V	mA
D61-200-18-N0	18	1800	1900	50
D61-200-20-N0	20	2000	2100
D61-200-22-N0	22	2200	2300
D61-200-24-N0	24	2400	2500
D61-200-26-N0	26	2600	2700
D61-200-28-N0	28	2800	2900
D61-200-30-N0	30	3000	3100
D61-200-32-N0	32	3200	3300
D61-200-18-R0	18	1800	1900	50
D61-200-20-R0	20	2000	2100
D61-200-22-R0	22	2200	2300
D61-200-24-R0	24	2400	2500
D61-200-26-R0	26	2600	2700
D61-200-28-R0	28	2800	2900
D61-200-30-R0	30	3000	3100
D61-200-32-R0	32	3200	3300
