Product details

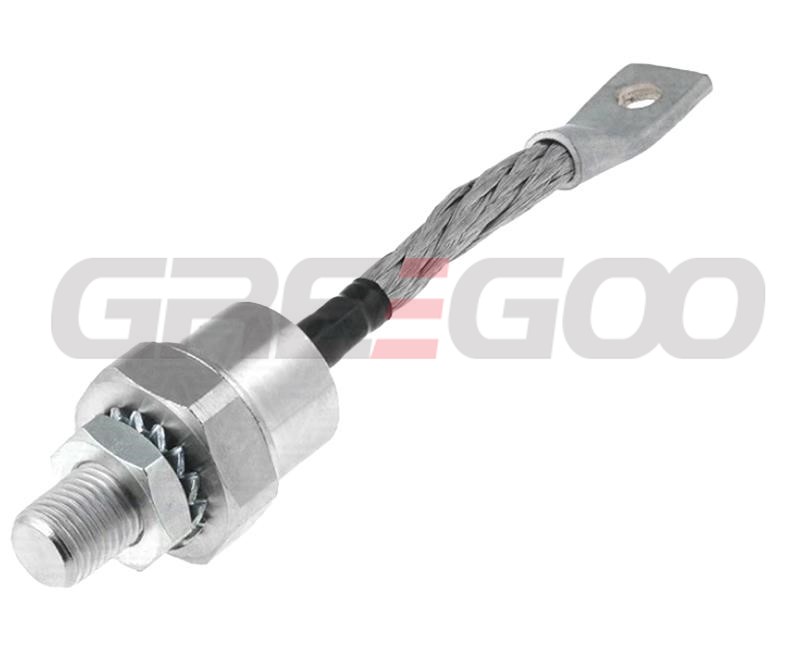

D52-150 Diode

D52-150 Diode are of modern design with internal spring loaded contacts and pressure welded glassto-metal seal. Designed for use in power electronic circuits and equipment under normal operating conditions.

FEATURES
All diffused design
High current capabilities
High surge current capabilities
High rates voltages
Low thermal impedance
Tested according to IEC standards
Compact size and small weight

APPLICATION
High Voltage Power Supplies
Motor Control
Battery Chargers
Free Wheeling Diode Resistance Welding

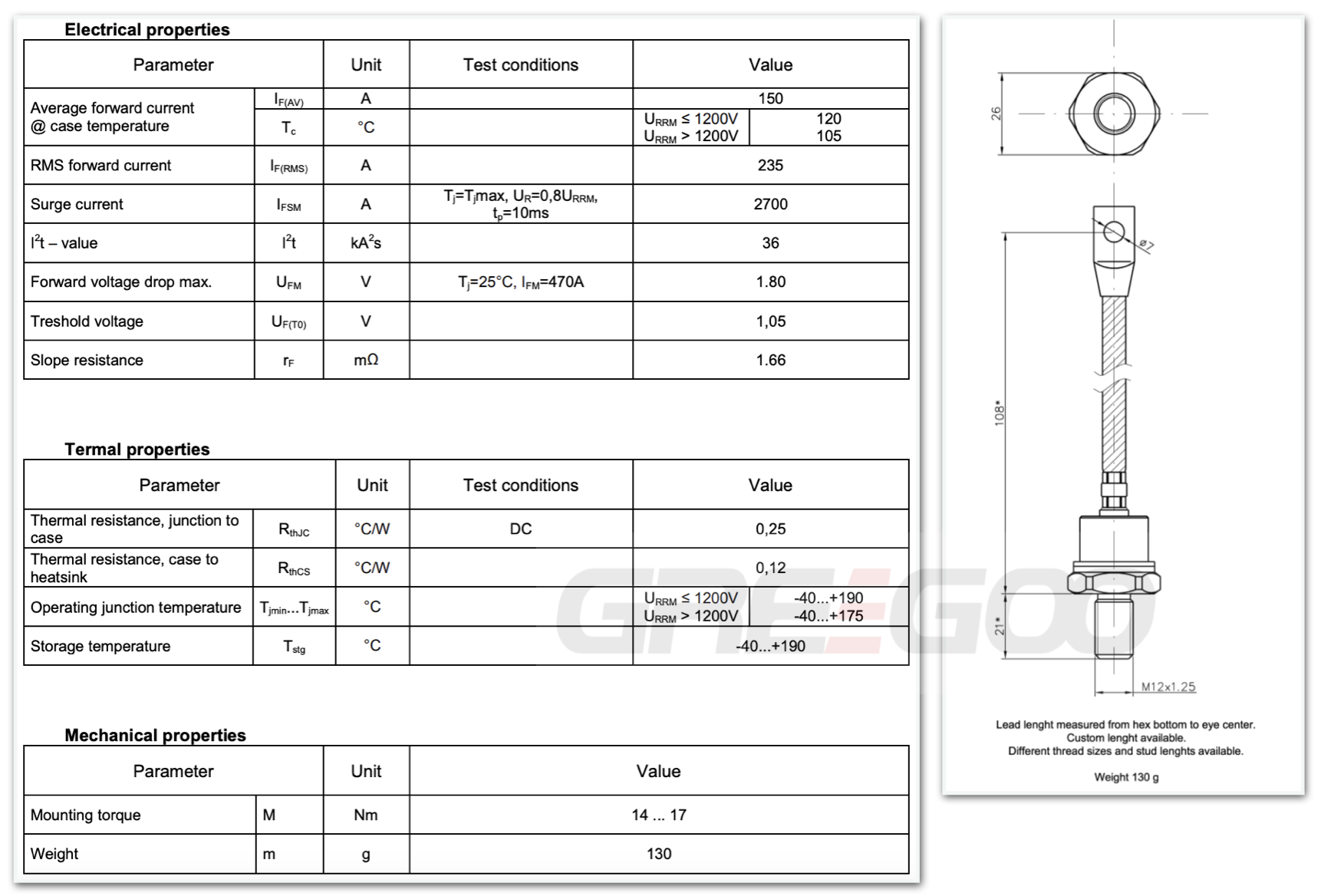

Specification

D52-150 diode

Part Numbers

Part	Voltage class	URRM	URSM	IRRM
Numbers		V	V	mA
D52-150-04-N0	4	400	500	20
D52-150-06-N0	6	600	700
D52-150-08-N0	8	800	900
D52-150-10-N0	10	1500	1150
D52-150-12-N0	12	1200	1300
D52-150-14-N0	14	1400	1500
D52-150-16-N0	16	1600	1700
D52-150-04-R0	4	400	500	20
D52-150-06-R0	6	600	700
D52-150-08-R0	8	800	900
D52-150-10-R0	10	1500	1150
D52-150-12-R0	12	1200	1300
D52-150-14-R0	14	1400	1500
D52-150-16-R0	16	1600	1700
