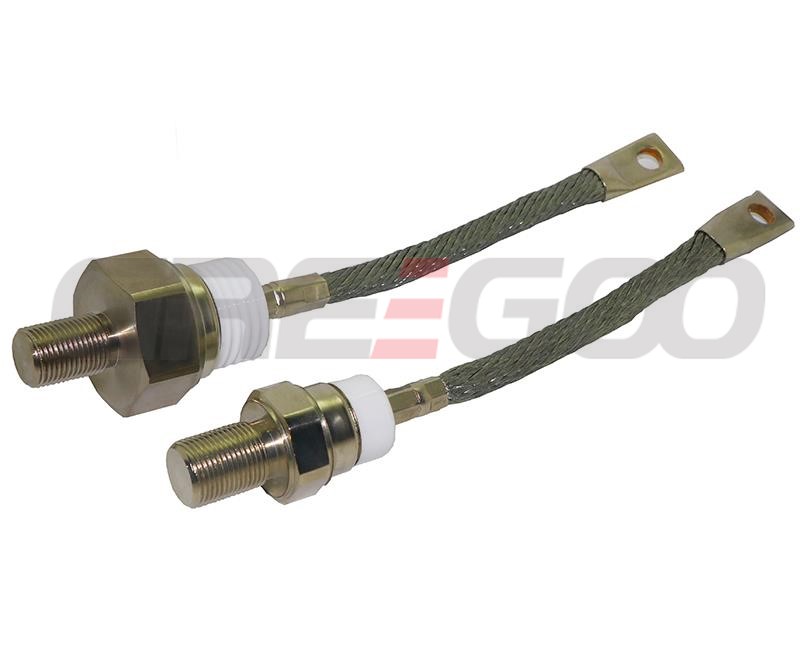

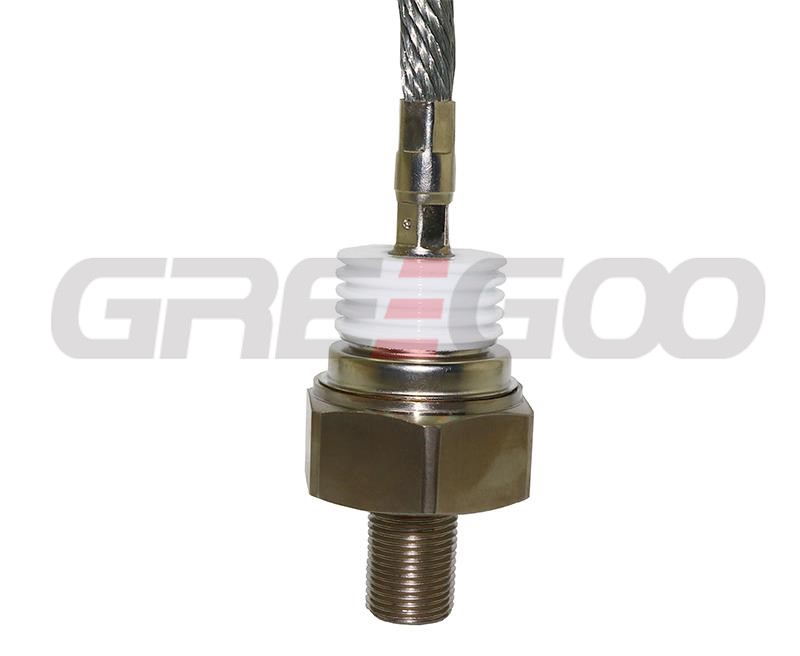

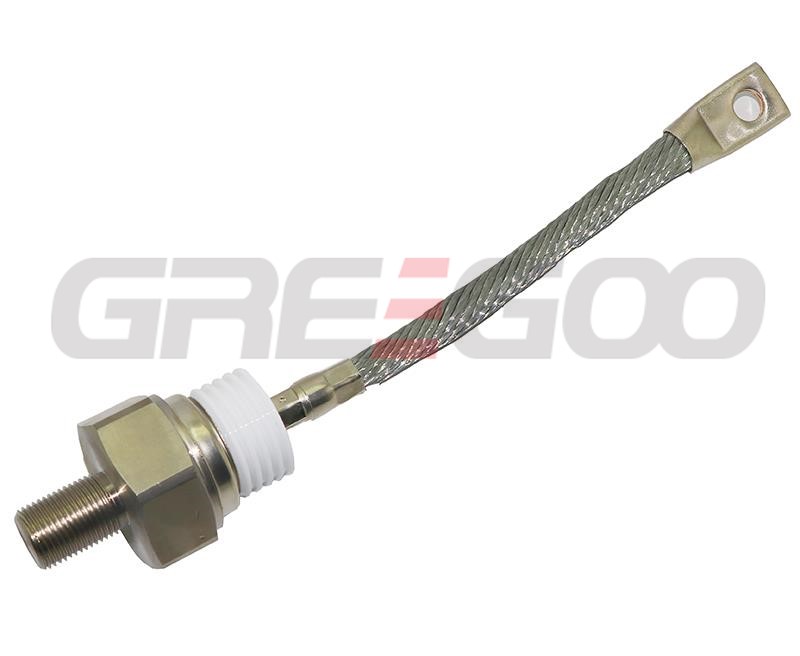

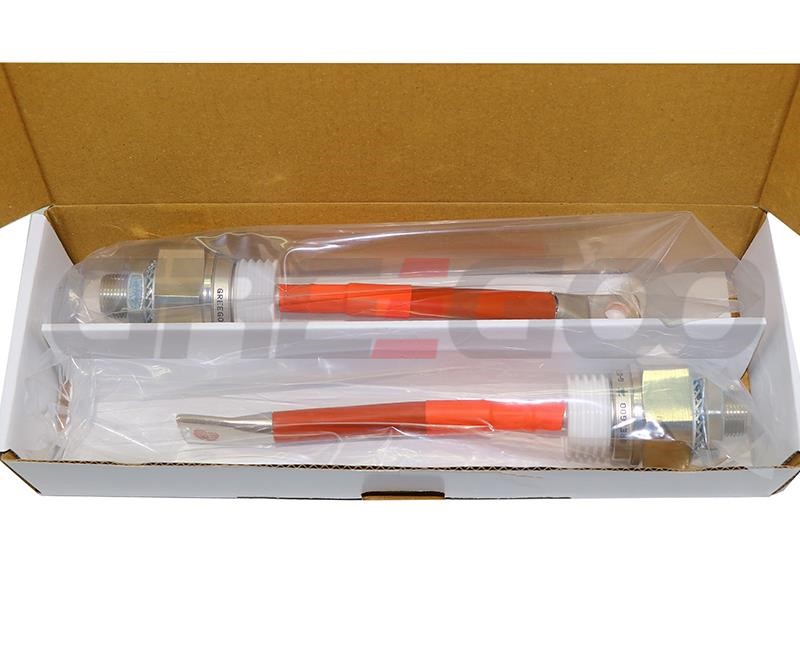

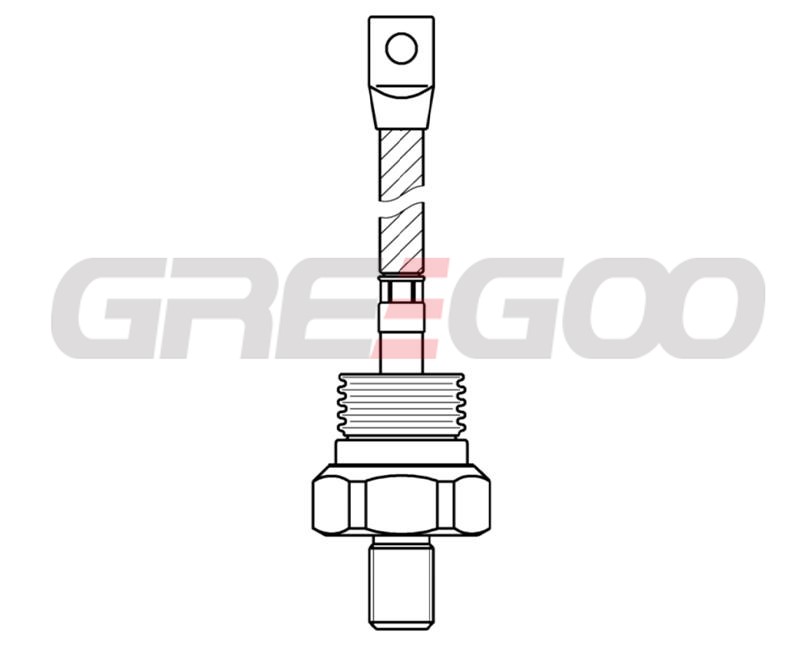

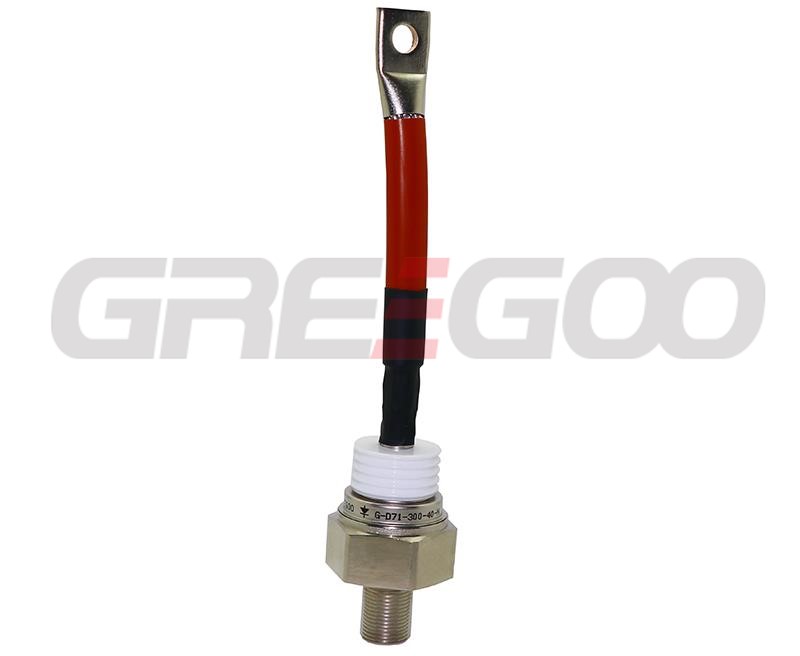

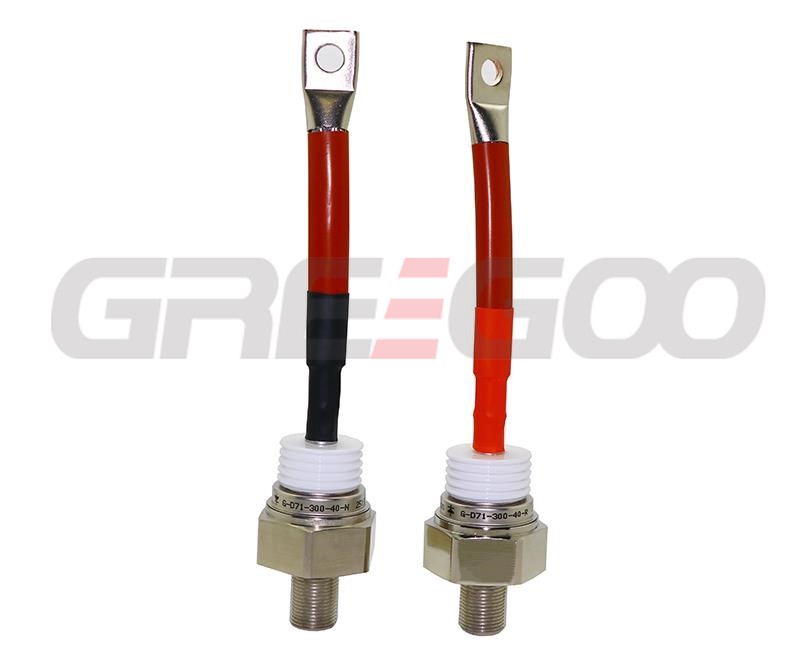

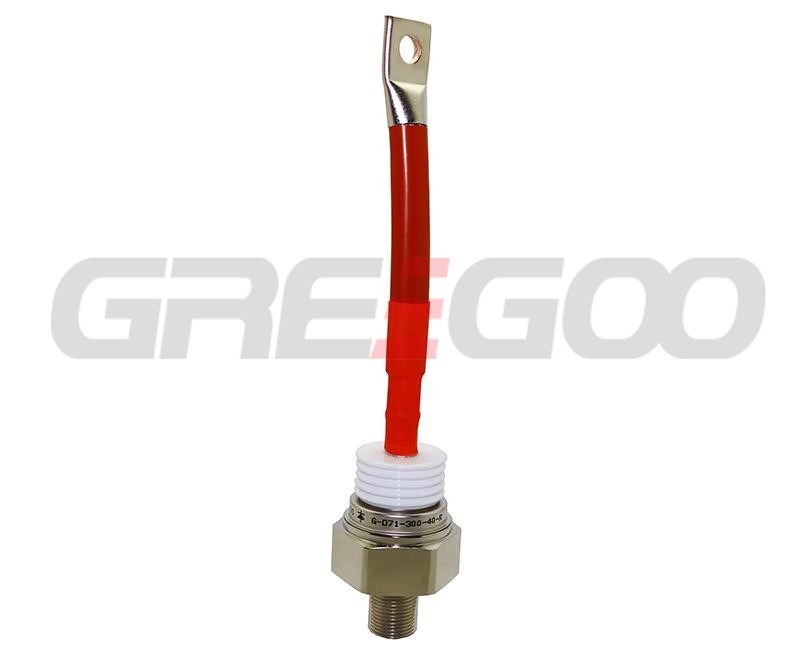

D71-300 Stud Diode

Diodes type D71 is of modern design with internal spring loaded contacts, high alumina ceramic insulator and pressure welded encapsulation. Designed for use in power electronic circuits and equipment under normal operating conditions.

FEATURES
All diffused design
High current capabilities
High surge current capabilities
High rates voltages
Low thermal impedance
Tested according to IEC standards
Compact size and small weight

APPLICATION
High Voltage Power Supplies
Motor Control
Battery Chargers
Free Wheeling Diode
Resistance Welding

Specification

D71-300 Stud Diode

Part Numbers

Part Numbers	Voltage class	URRM	URSM	IRRM
Part Numbers	Voltage class	V	V	mA
D71-300-20-N0	20	2000	2100	50
D71-300-22-N0	22	2200	2300
D71-300-24-N0	24	2400	2500
D71-300-26-N0	26	2600	2700
D71-300-28-N0	28	2800	2900
D71-300-30-N0	30	3000	3100
D71-300-32-N0	32	3200	3300
D71-300-34-N0	34	3400	3500
D71-300-36-N0	36	3600	3700
D71-300-38-N0	38	3800	3900
D71-300-40-N0	40	4000	4100
D71-300-20-R0	20	2000	2100	50
D71-300-22-R0	22	2200	2300
D71-300-24-R0	24	2400	2500
D71-300-26-R0	26	2600	2700
D71-300-28-R0	28	2800	2900
D71-300-30-R0	30	3000	3100
D71-300-32-R0	32	3200	3300
D71-300-34-R0	34	3400	3500
D71-300-36-R0	36	3600	3700
D71-300-38-R0	38	3800	3900
D71-300-40-R0	40	4000	4100
