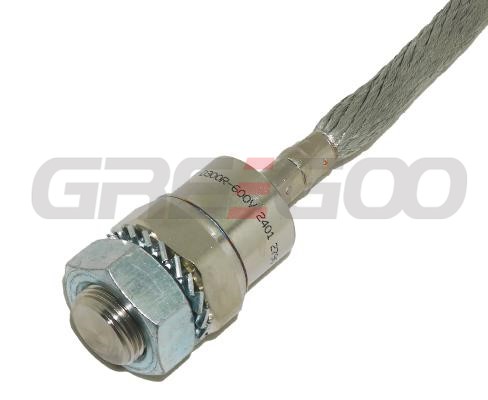

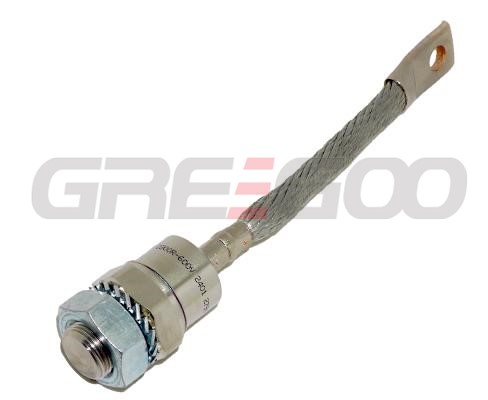

ZP series rectifeir diode

Feature

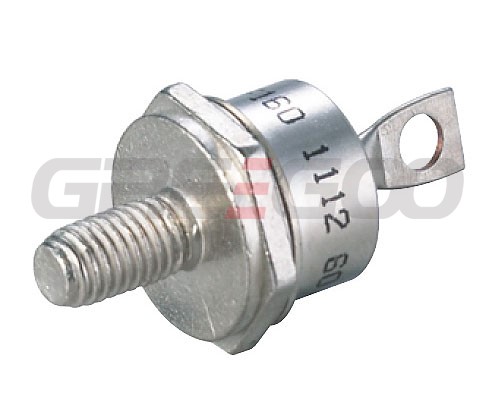

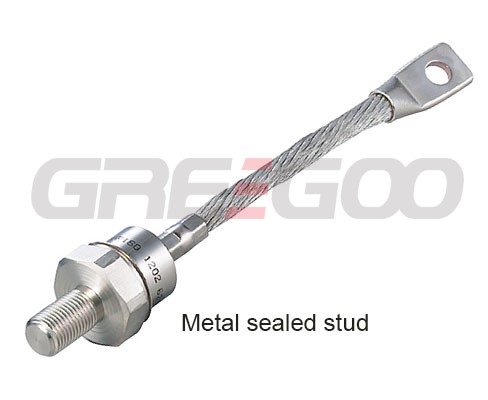

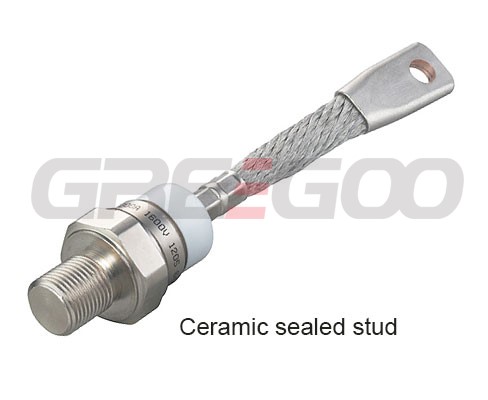

· Hermetic ceramics-metal stud structure
· Conform to national standard JB/T8949.2-1999
· Capacity of supporting high surge current

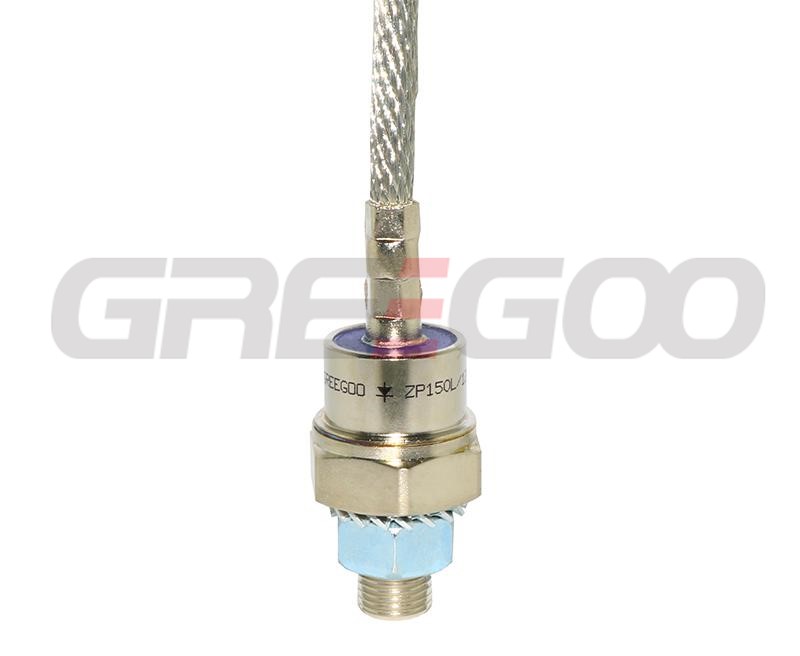

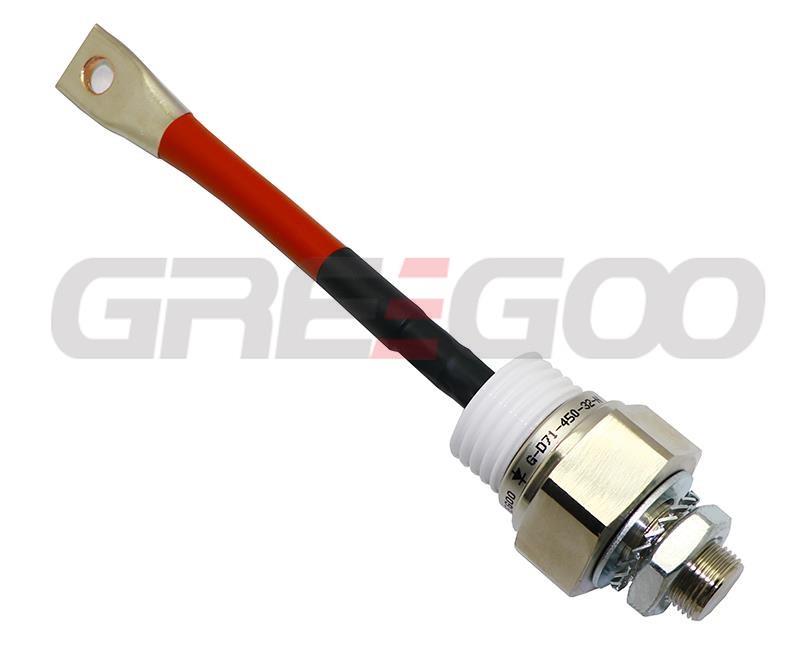

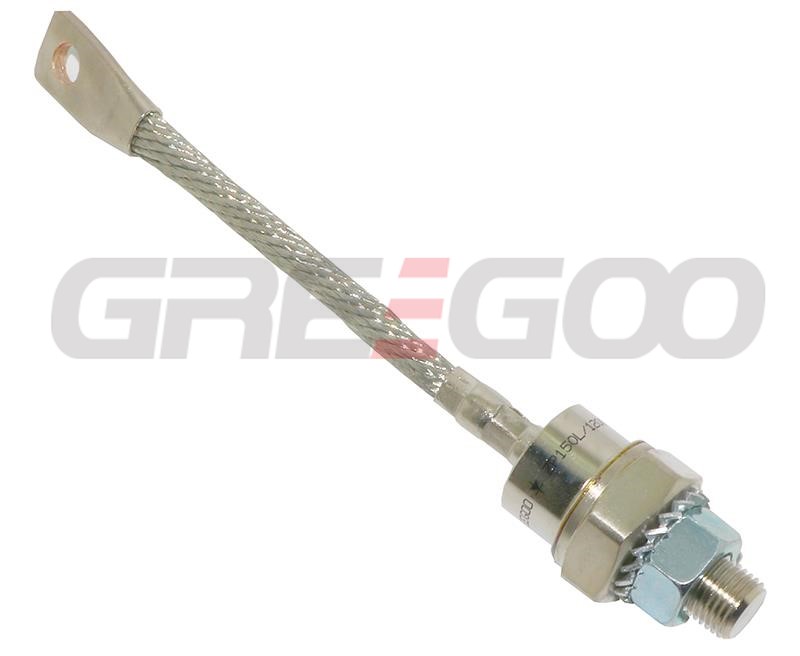

· Stud cathode and stud anode version

Typical Application

· DC motor controls,Controls DC power supplie
· AC switch and thermal control ,Synchronous motor excitation

Type	IF(AV)	IF(RMS)	VFM	VRRM	IRRM	R(jc)	Tj
	A	A	V	V	mA	℃/W	℃
ZP5A	5	7.9	≤1.6	100-5000	≤2	≤4.0	-40~150
ZP10A	10	16	≤1.6	100-5000	≤2	≤2.5	-40~150
ZP20A	20	31	≤1.6	100-5000	≤6	≤1.4	-40~150
ZP30A	30	47	≤1.6	100-5000	≤6	≤1.0	-40~150
ZP50A	50	79	≤1.6	100-5000	≤12	≤0.6	-40~150
ZP100A	100	160	≤1.6	100-5000	≤12	≤0.3	-40~150
ZP150A	150	210	≤1.6	100-5000	≤12	≤0.2	-40~150
ZP200A	200	310	≤1.6	100-5000	≤12	≤0.2	-40~150
ZP300A	300	470	≤1.6	100-5000	≤15	≤0.11	-40~150
ZP500A	500	630	≤1.6	100-5000	≤15	≤0.11	-40~150
