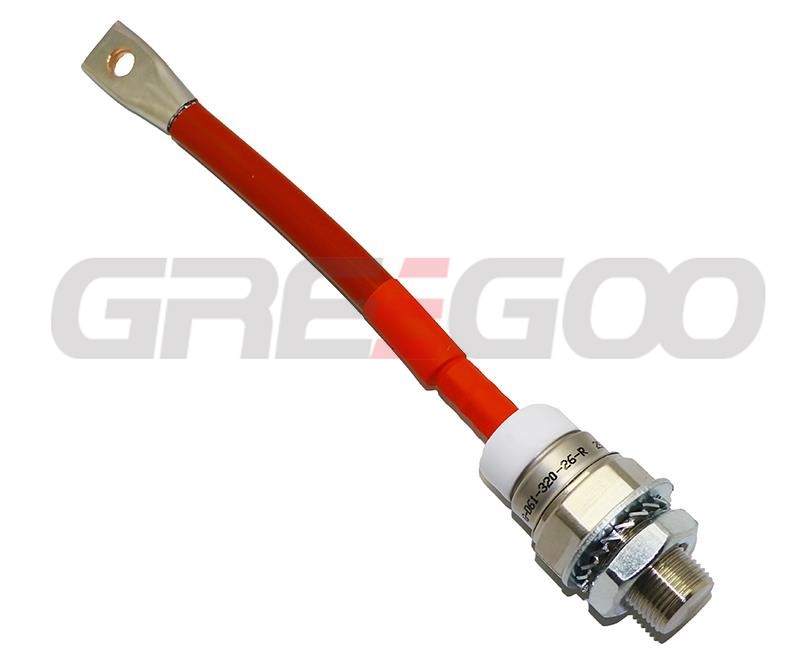

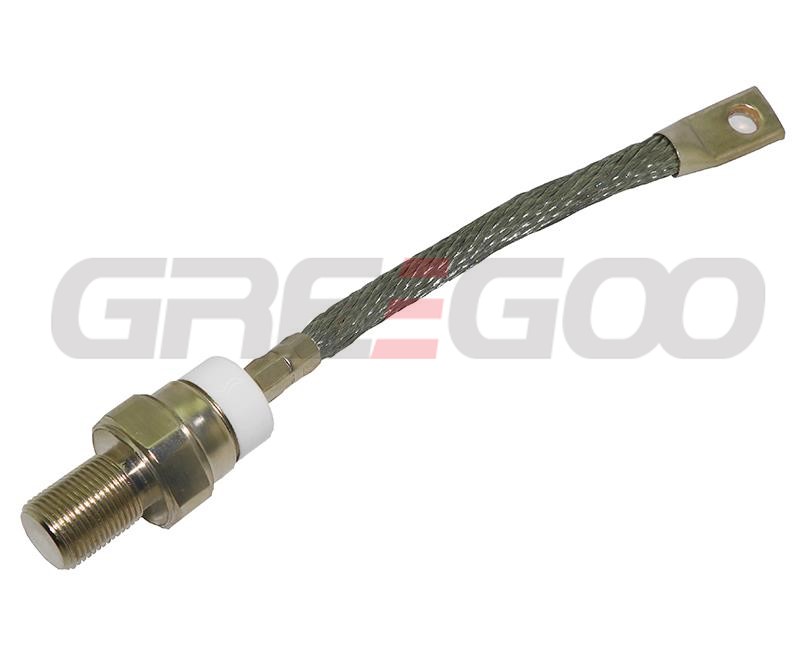

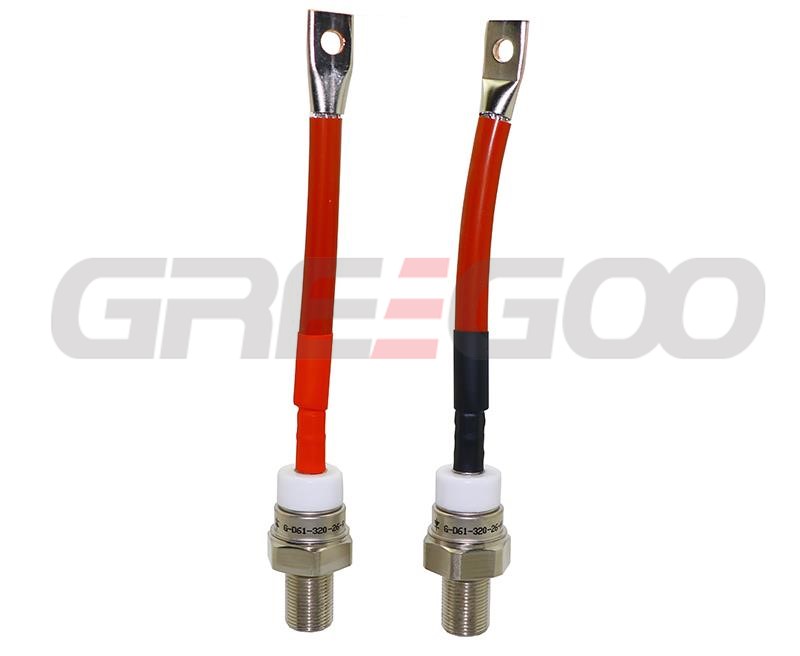

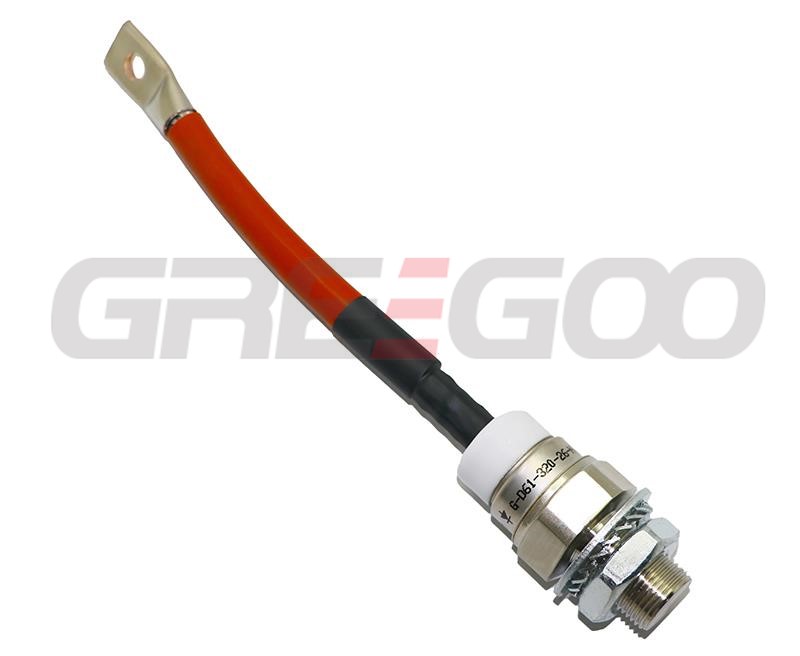

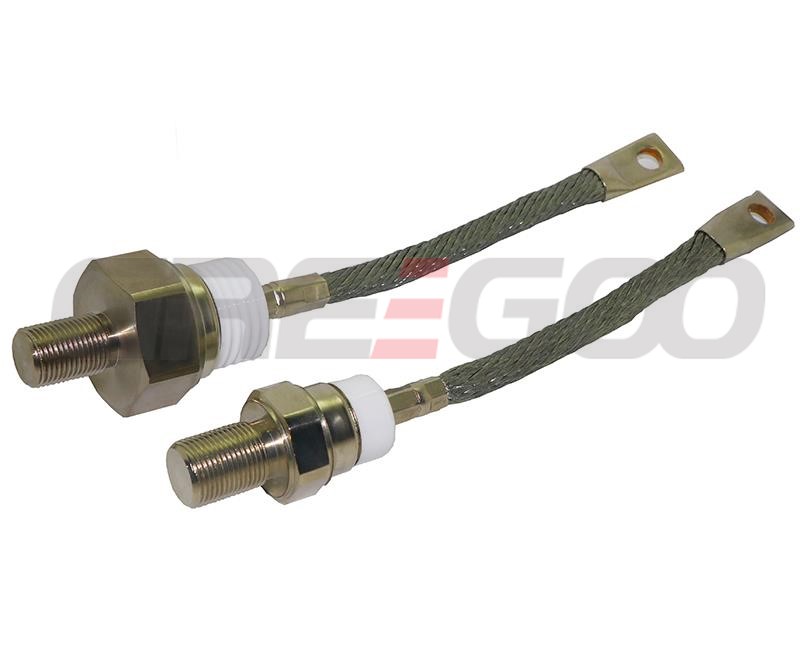

D61-320 Stud Diode
Diodes type D61 is of modern design with internal spring loaded contacts, high alumina ceramic insulator and pressure welded encapsulation. Designed for use in power electronic circuits and equipment under normal operating conditions.
FEATURES
All diffused design
High current capabilities
High surge current capabilities high rates voltages
Low thermal impedance
Tested according to IEC standards compact size and small weight
APPLICATION
High Voltage Power Supplies Motor Control
Battery Chargers
Free Wheeling Diode
Resistance Welding
Part Numbers |
Voltage class | URRM | URSM | IRRM |
V | V | mA | ||
D61-320-18-N0 | 18 | 1800 | 1900 | 50 |
D61-320-20-N0 | 20 | 2000 | 2100 | |
D61-320-22-N0 | 22 | 2200 | 2300 | |
D61-320-24-N0 | 24 | 2400 | 2500 | |
D61-320-26-N0 | 26 | 2600 | 2700 | |
D61-320-28-N0 | 28 | 2800 | 2900 | |
D61-320-30-N0 | 30 | 3000 | 3100 | |
D61-320-32-N0 | 32 | 3200 | 3300 | |
D61-320-18-R0 | 18 | 1800 | 1900 | 50 |
D61-320-20-R0 | 20 | 2000 | 2100 | |
D61-320-22-R0 | 22 | 2200 | 2300 | |
D61-320-24-R0 | 24 | 2400 | 2500 | |
D61-320-26-R0 | 26 | 2600 | 2700 | |
D61-320-28-R0 | 28 | 2800 | 2900 | |
D61-320-30-R0 | 30 | 3000 | 3100 | |
D61-320-32-R0 | 32 | 3200 | 3300 |
Need more information?
Contact us to request pricing, availability and customization options.
