    2 phase output solid state relays2 phase output solid state relays2 phase output solid state relays2 phase output solid state relays
Product Details
Product Details

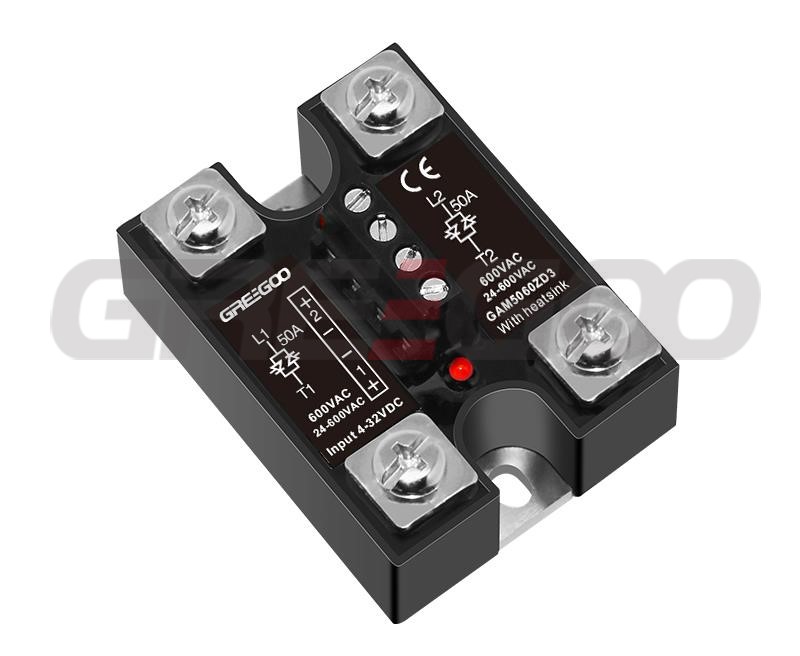

2 phase output solid state relaysPDF

Features
  • Rated operational current 25,40,50Amps.
  • Rated operational voltage 480VAC or 600VAC
  • Input Voltage Range 4 to 32 Vdc.
  • 2500Vrms Optical Isolation. [input/output]
  • Both "Zero Voltage" & phase controllable "Random Switching" versions


Model Selection

Control
Voltage 		Dutput Voltage Rated Operational Current
25Amps  40Amps  50Amps
4 to 32VDC  480VAC"Z" GAM2548Z03 GAM4048Z03 GAM5048ZD3
4 to 32VDC  480VAC"R" GAM2548RD3 GAM4048RD3 GAM5048RD3
4 to 32VDC  600VAC"Z" GAM2560ZD3 GAM4060Z03 GAM5060Z03
4 to 32VDC  600VAC”R” GAM2560RD3 GAM4060RD3 GAM5060RD3

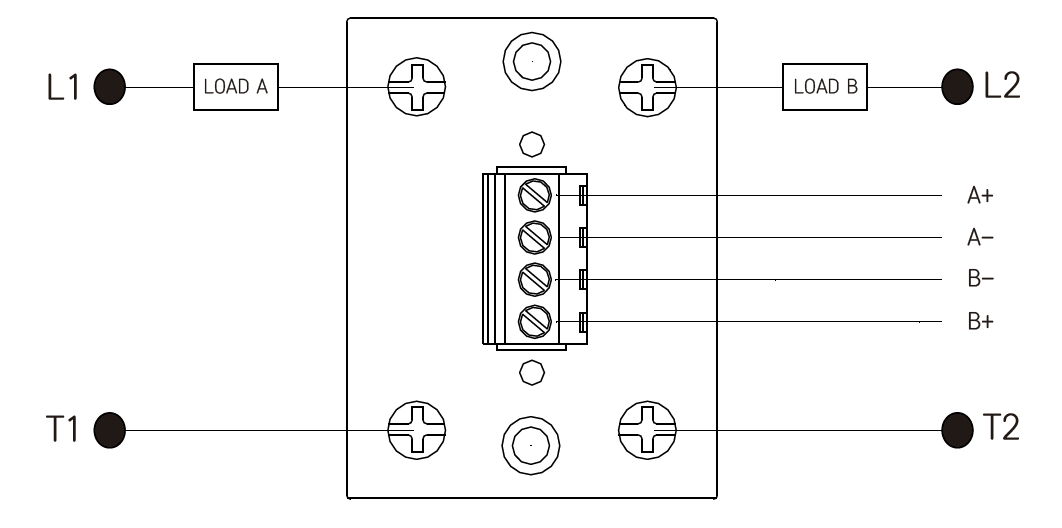

Connection

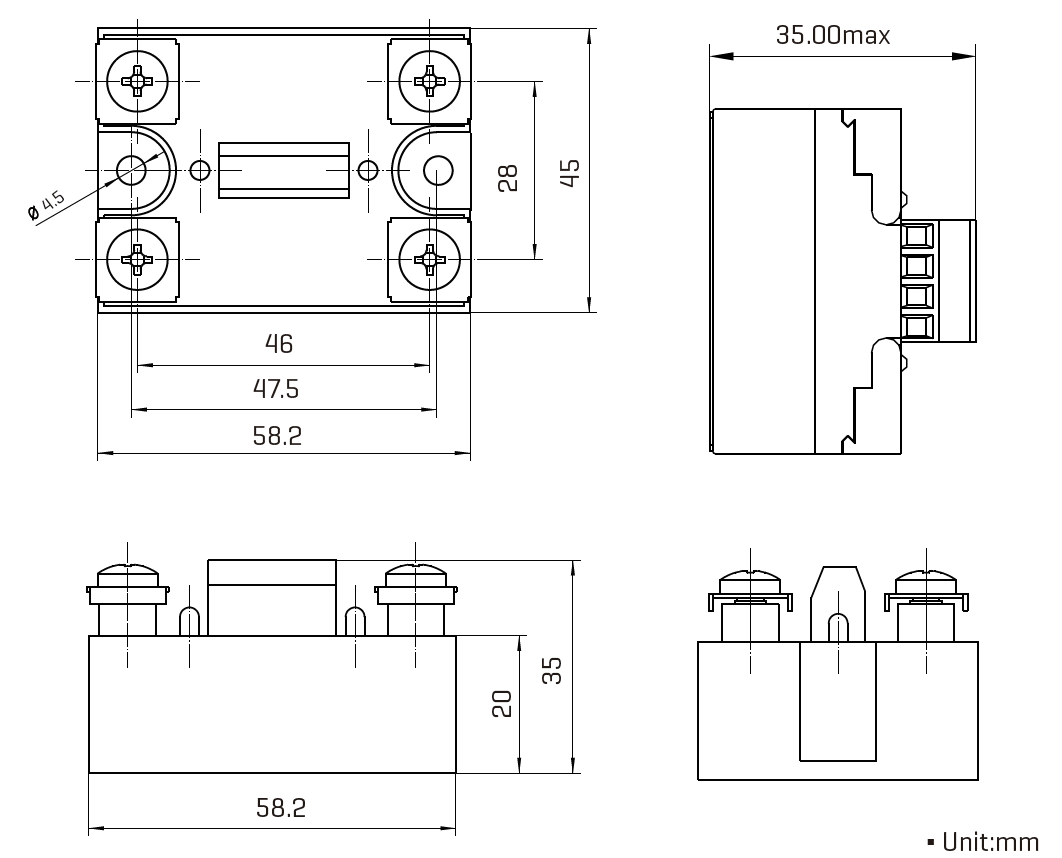

Dimensions:
