2 phase AC switching solid state relays
Home Products Solid State Relays (AC Switching)Multi-output solid state relays2 phase AC switching solid state relays
Feature

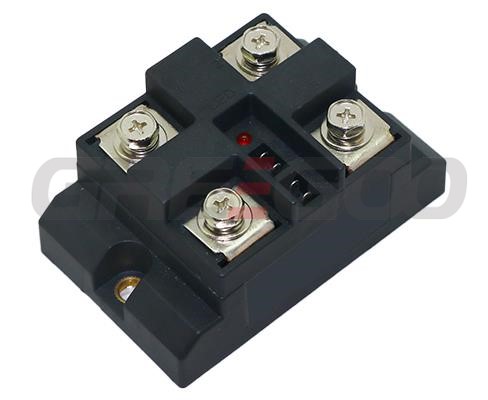

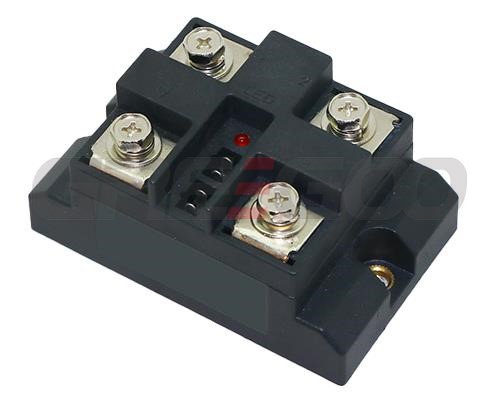

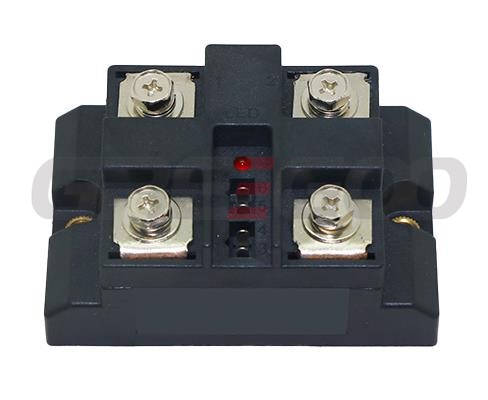

2 phase AC switching solid state relays
- Optical isolation between input and output circuits.
- Control signal with TTL logic interface.
- LED indicator for working status.
- Two sets of contactless switches, zero voltage turn-on, zero current turn-off.
- Epoxy resin encapsulation, shockproof and corrosion-resistant, reliable operation.
- Mainly used for computer and digital program-controlled interfaces and industrial automation control. Suitable for equipment such as industrial electric furnaces, electric ovens, motors, solenoid valves, and power switches.
Specification
Model | GDS23 | GDS24 |
---|---|---|

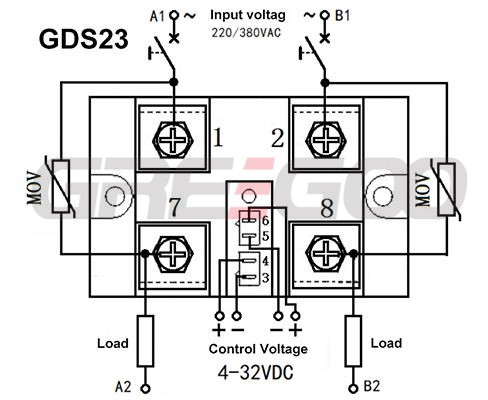

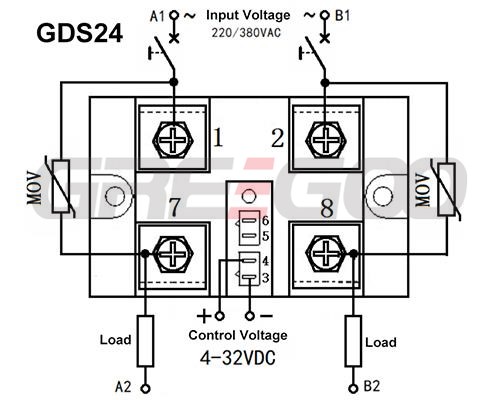

Control Method | Two DC control two AC | One DC control two AC |
Control Voltage | 4~32VDC*2 (separately controlled) | 4-32VDC (one control) |
Control Current | ≤25 mA | ≤25 mA |
Start Current | ≥ 6 mA | ≥ 6 mA |
Turn-off Voltage | ≤1.5 VDC | ≤1.5 VDC |
Switching Time | ≤10 mS | ≤10 mS |
Load Voltage | 24-240VAC×2; 24-440VAC×2; 24-660VAC×2 |
24-440VAC×2; 24-440VAC×2; 24-660VAC×2 |
Maximum Load Current | 60~300A | 60~300A |
On-state Voltage Drop | ≤1.8 V | ≤1.8 V |
Off-state Voltage | ≥ 600V | ≥ 900V |
Isolation Voltage | ≥ 1800 V | ≥ 1800 V |
Insulation Voltage | ≥ 2000 V | ≥ 2000 V |
Insulation Resistance | ≥ 100 MΩ | ≥ 100 MΩ |
Operating Temperature | -25 ~ 75 ℃ | -25 ~ 75 ℃ |
Power Frequency | 50/60 HZ | 50/60 HZ |
Cooling Conditions | ≥60A with heat sink, ≥100A with additional fan cooling | ≥60A with heat sink, ≥100A with additional fan cooling |
Load Current Safety Factor | 2-3 times for resistive load, 3-4 times for inductive load | 2-3 times for resistive load, 3-4 times for inductive load |

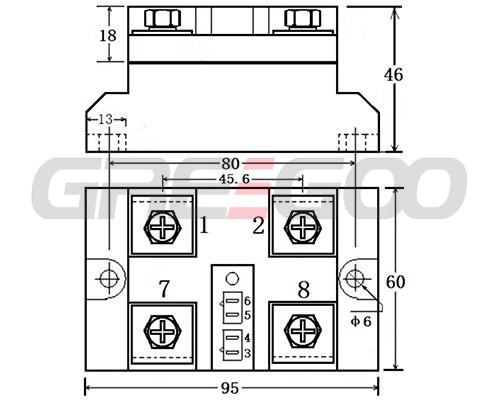

Dimensions | 95×60×46mm | 95×60×46 mm |
