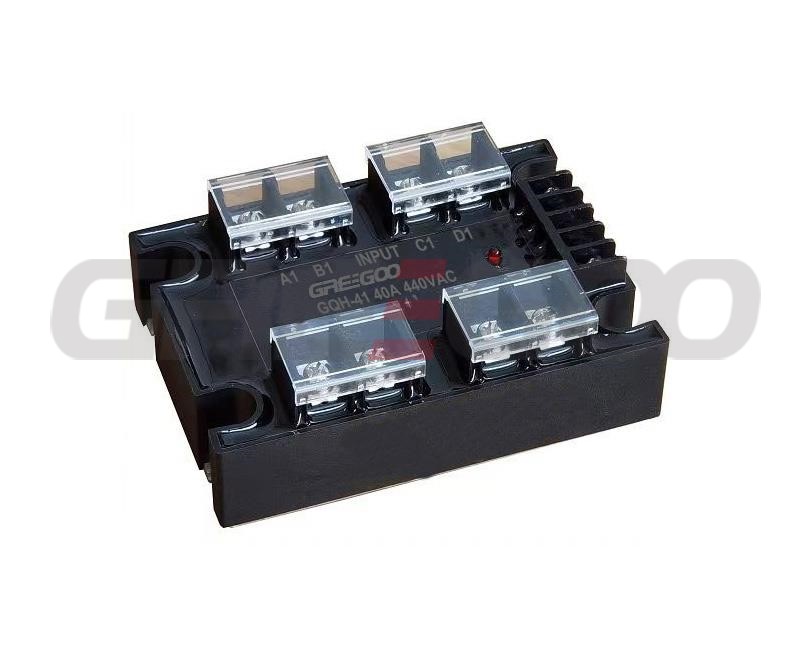

4 channels output Solid State Relays

Features:


  • Optical isolation between the input and output circuits.
  • Control signals compatible with TTL and PLC logic interfaces.
  • Dual normally open and dual normally closed contactless switches, with spark-free and noiseless operation.
  • Encapsulated in epoxy resin for integrated, earthquake-resistant, and corrosion-resistant properties, ensuring safe and reliable performance.
  • The product is primarily used for computer and digital program-controlled interfaces, as well as industrial automation control, such as backup power supply, lighting, and high-power electrical appliances switching etc.


Model

GJ42KB

Input

Control Power Supply

12～24 VDC；4～32 VDC

Control Voltage

12-24VDC；4～32 VDC

Control Current

≤20 mA

Turn off Voltage

≤1.5 V

Turn On/Off time

≤10 mS

Output

Load Voltage

24～240VAC

40～440VAC

60～660VAC

Max. load current

10、20、30、40、60、80、100A

On sate Voltage Drop

≤1.8 V

Off state voltage

≥ 600V

≥ 900V

≥ 1400V

Form

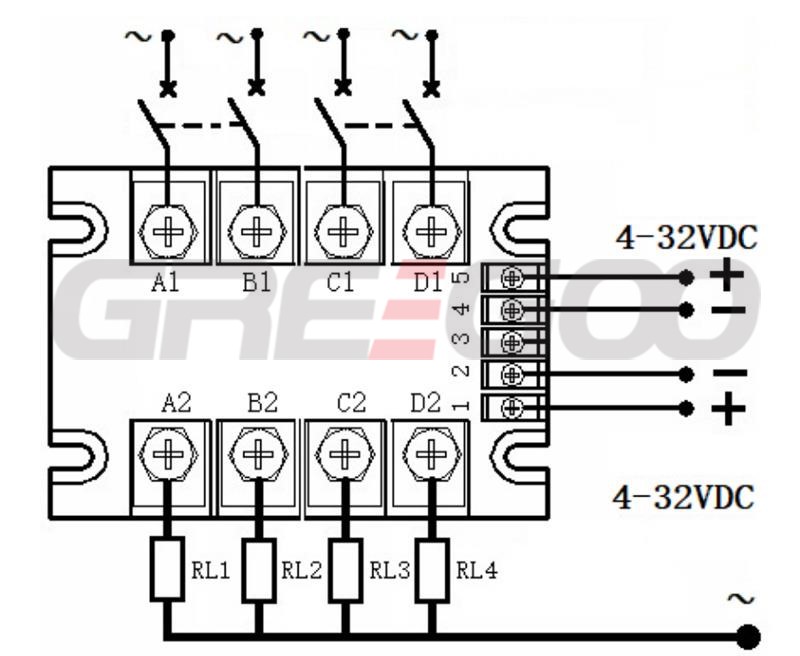

1 DC voltage to control 2NO and 2NC AC load

Parameters

Isolation Voltage

≥2000 V

Insulation Voltage

≥2500 V

Working Temperature

－25 ～ 75 ℃

Power Frequency

50/60 HZ

Heating Condition

≥20A with heatsink,≥80A with heatsink and axial fan cooling

Load Current safety factor

Take 2-3 times for resistive load and 3-4 times for inductive load

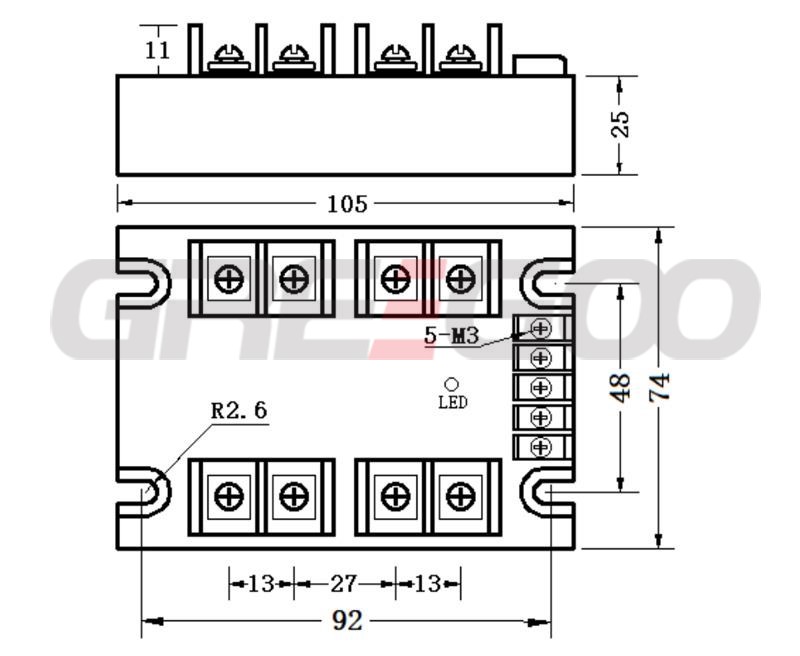

Dimensions

105×74×36 mm3
