Specification

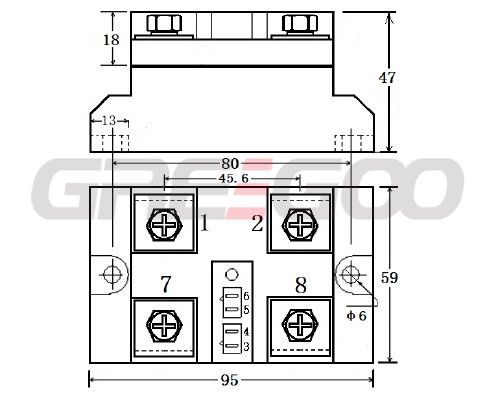

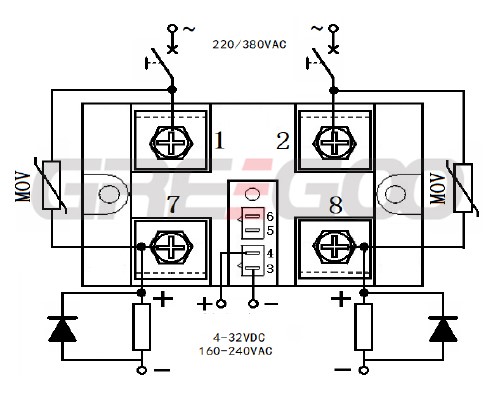

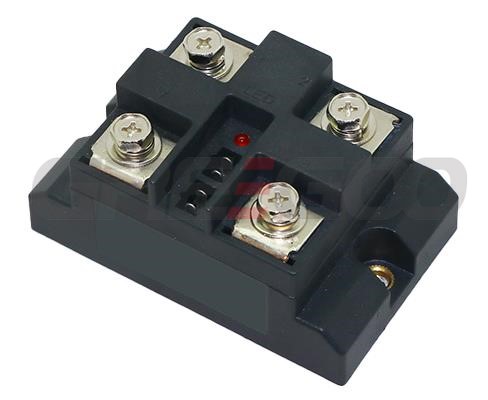

2 phase half wave rectifier solid state relay GZ23
Model | GZ23 (Half-Wave Rectification) |
---|---|
Input Power Voltage | 240 VAC / 440 VAC |
Output Rectified Voltage | Input Power Voltage × 0.45 VDC |
Maximum Load Current | 30~300 A |
Control Voltage | 4~32 VDC |
Control Current | ≤25 mA |
Isolation Voltage | ≥2500 V |
Insulation Voltage | ≥2500 V |
Insulation Resistance | ≥100 MΩ |
Power Frequency | 50~60 HZ |
Operating Temperature | -25~75℃ |
Cooling Conditions | ≥30A requires a heat sink, ≥100A requires additional fan cooling |
Load Current Safety Factor | Resistive load: 2-4 times, Inductive load: 4-6 times |
Product Details
- Optical and magnetic isolation between input and output circuits ensures safe signal transmission.
- The control signal is compatible with TTL logic interface, facilitating connection with various digital devices.
- A light-emitting diode (LED) is used to indicate the operational status, providing a clear display of the device's functioning.
- Utilizes solid-state, contactless switch output, eliminating sparks and arcing during switching, enhancing safety in use.
- Encapsulated in epoxy resin, offering excellent shock and corrosion resistance, ensuring stable and reliable switch operation.
- This product is primarily used in control devices for inductive loads, such as electromagnetic vibrators, solenoid valves, generators, motors, etc., widely applicable in the field of automation control.
